4/6TMG-225/400-1-BP/BP datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 4/6TMG-225/400-1-BP/BP

4/6TMG-225/400-1-BP/BP: DescriptionTunable BPF, 6 Section(s) Min, 6 Section(s) Max, 225MHz Min, 400MHz Max; CategoryAnalog mixed-signal IC filter; File Size494KB，2 Pages; ManufacturerK&L Microwave Inc

Download Datasheet Parametric View All

4/6TMG-225/400-1-BP/BP Overview

Tunable BPF, 6 Section(s) Min, 6 Section(s) Max, 225MHz Min, 400MHz Max

4/6TMG-225/400-1-BP/BP Parametric

Parameter Name	Attribute value
Maker	K&L Microwave Inc
Reach Compliance Code	compliant
3dB bandwidth	1%
filter type	TUNABLE BPF
input connector	BNC MALE
Input/output impedance	50 OHM
Maximum insertion loss	1.5 dB
Manufacturer's serial number	TMG
Installation type	PANEL MOUNT
Number of partitions-max	6
Number of partitions - minimum	6
Output connector	BNC MALE
tuning control	KNOB CONTROL
maximum tuning frequency	400 MHz
minimum tuning frequency	225 MHz
voltage standing wave ratio	1.75
Base Number Matches	1

Preview

Download Datasheet

View All

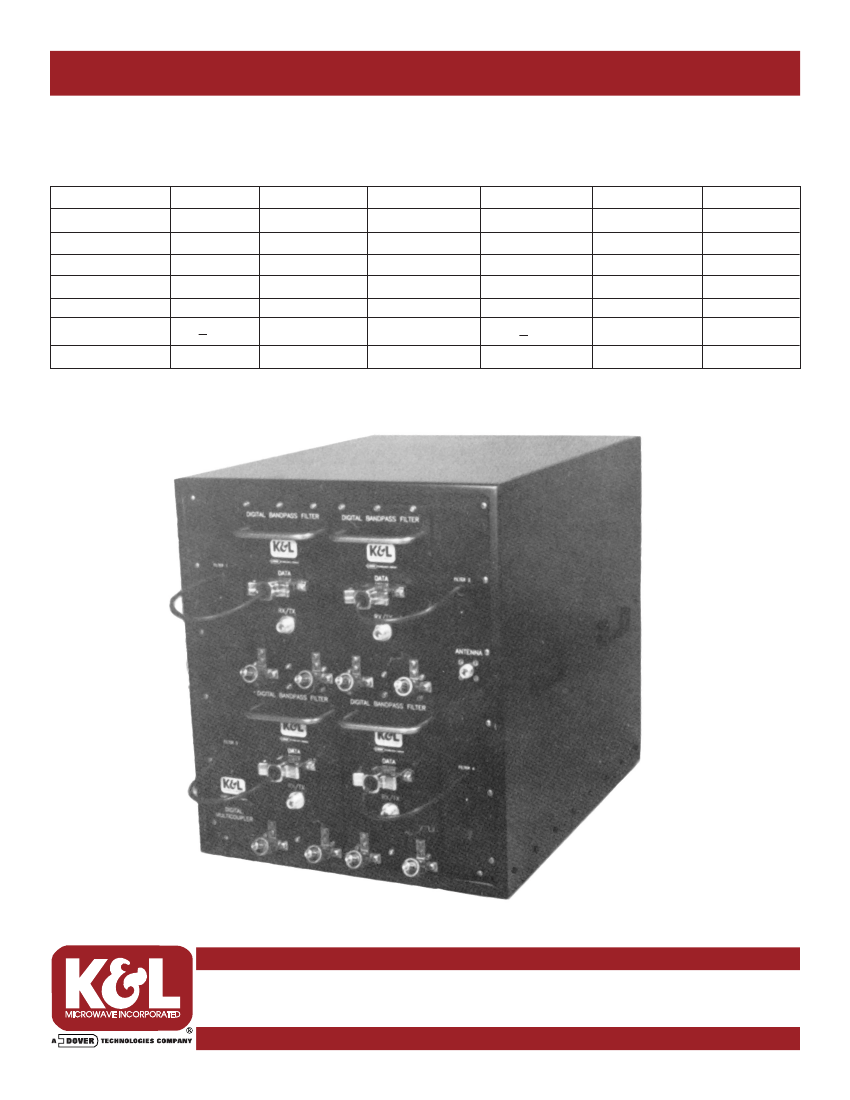

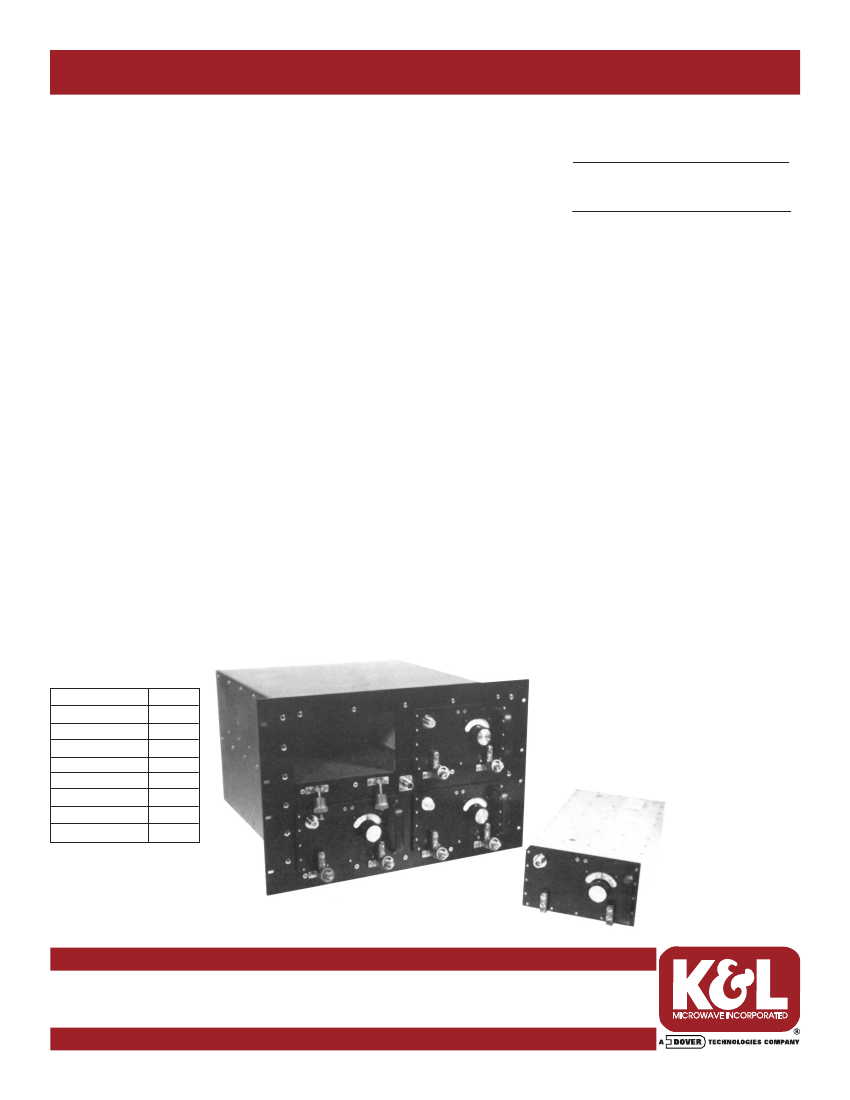

Tunable Filters - TMA/TMG Series

Tunable Multicouplers

K&L Microwave’s Tunable Multicouplers

enable up to four transceivers to

operate simultaneously in transmission

and reception mode using a common

antenna. Each multicoupler can be

arranged in either ground base or

airborne rack assemblies with up to

four individually packaged tunable

filters in each.

The filters within the tunable multicoupler

can cover either the VHF (100-160MHz)

or UHF (225-400MHz) communications

band. Each filter is available with 3

through 6 sections and a nominal 3dB

bandwidth ranging from 0.35 to 5%.

Control of each tunable filter is either

manually, through a front panel

dial assembly, or remotely, through a

digitally controlled option. For specifics

on the filter configurations, refer to the

BT series and the Digital Tunable

sections of this catalog.

Model

TMA

TMG

Description

Manually tuned multicoupler

airborne configuration

Manually tuned multicoupler

ground based configuration

To Order

D 4/4 TMA-100/160 - 2-N/N -G R I

123 4

6 7 8 9 10 11

D 4/3 TMA- 225/400- 2 -N/N-G R I

1 23 4

6 7 8 9 10 11

VHF:

UHF:

1. Digital control designation

(remove if manually controlled)

2. Number of channels

3. Number of sections

4. Model designator

5. Frequency Range: VHF (100/160) or

UHF (225/400)

6. Nominal 3dB bandwidth in % or MHz

7. Filter Connectors

8. Antenna Connector

Digitally Controlled Options:

(Remove if not used)

9. Control logic

10. Drive voltage

11. Infrared sensor

Special Requirements

In addition to the standard line

offered in the TMA/TMG series, K&L

offers the engineering and

manufacturing capabilities to handle

a vast array of special requirements.

Some of these capabilities are:

1. Digitally controlled

2. 19" rack mounting

3. Special tuning ranges

4. Power handling capabilities up to

200 watts peak

5. Custom bandwidths and shape factors

6. Custom sizes to customer specifications

7. Military qualified capabilities

Connectors

Code

Connector

SMA Female

SMA Male

"N" Female

"N" Male

TNC Female

TNC Male

BNC Female

BNC Male

ISO 9001 Registered Quality Management System

USA

Phone: 410-749-2424

FAX:

410-749-5725

Email: klsales@klmicrowave.com

Phone: 44-(0)-1262 605500

FAX:

44-(0)-1262 605504

Email: kleurope@klmicrowave.com

EUROPE

www.klmicrowave.com
