Between Series Adaptor: 33_N-PC24-50-1/199_U
Rev.: D
Description

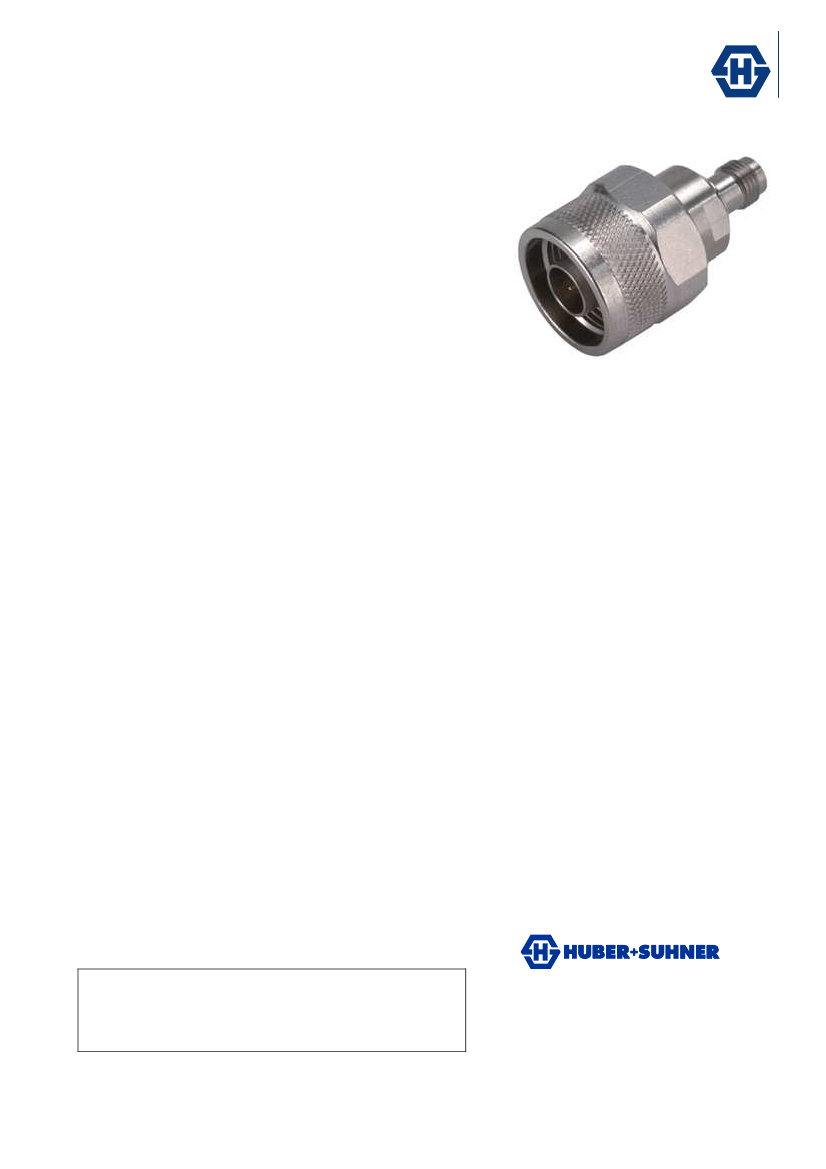

Adaptor plug/jack
N-precision plug (male) / PC 2.4 jack (female)
For Test & Measurement applications
Precision adaptor
Interface standards
Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210
Series PC 2.4 -
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical Length
50
Ω
18 GHz
DC to 10 GHz
≥ 32 dB
33.63 mm +/- 0.1
500
0.0353 kg
-55 °C to 70 °C
compliant
Surface Plating
Gold Plating (without Nickel underplating)
10 to 18 GHz
≥ 28 dB
Mechanical Data
Number of matings
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Material Data
Piece Parts
Material
Interface -
N-precision plug (male)
Centre contact
Copper Beryllium Alloy
Outer contact
Stainless Steel
Body
Stainless Steel
Insulator
Air Dielectric - Bead - PPH
Coupling nut
Brass
Interface -
PC 2.4 jack (female)
Centre contact
Copper Beryllium Alloy
Outer contact
Stainless Steel
Body
Stainless Steel
Insulator
Air Dielectric - Bead - PPH
SUCOPLATE (R) Plating
Gold Plating (without Nickel underplating)
Related Documents
Single package
Ordering Information
33_N-PC24-50-1/199_UE
Operating specification acc. IEEE Std 287: temperature 13 °C to 33 °C
Remarks
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000195329 R
Issued: 29.10.12
Uncontrolled Copy
Page 1/1
