1TL82-6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1TL82-6

Preview

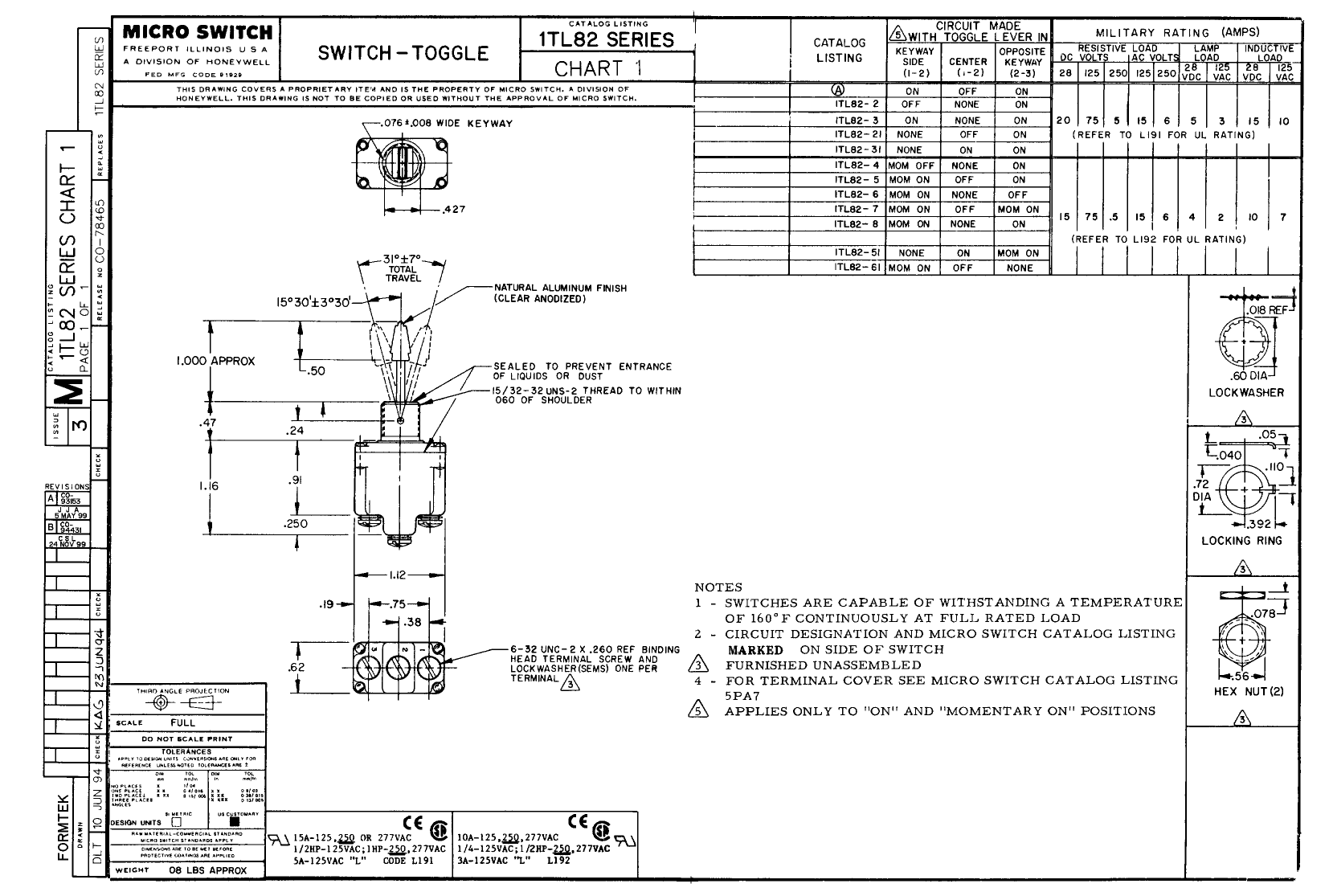

1TL82-6: DescriptionToggle Switch, SPST, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size51KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

1TL82-6 Overview

Toggle Switch, SPST, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded

1TL82-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	15.75 mm
body height	29.46 mm
Body length or diameter	28.45 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	15 A
Contact (DC) maximum rated R load	15A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	1TL82
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

1TL82-6 Related Products

	1TL82-6	1TL82-51	1TL82-4	1TL82-8	1TL82-5	1TL82-21	1TL82-31	1TL82-61
Description	Toggle Switch, SPST, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched And Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER
body width	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm
body height	29.46 mm	29.46 mm	29.46 mm	29.46 mm	29.46 mm	29.46 mm	29.46 mm	29.46 mm
Body length or diameter	28.45 mm	28.45 mm	28.45 mm	28.45 mm	28.45 mm	28.45 mm	28.45 mm	28.45 mm
Contact (AC) maximum rated R load	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC
Maximum contact current (AC)	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Maximum contact current (DC)	15 A	15 A	15 A	15 A	15 A	20 A	20 A	15 A
Contact (DC) maximum rated R load	15A@28VDC	15A@28VDC	15A@28VDC	15A@28VDC	15A@28VDC	20A@28VDC	20A@28VDC	15A@28VDC
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Manufacturer's serial number	1TL82	1TL82	1TL82	1TL82	1TL82	1TL82	1TL82	1TL82
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	LATCHED AND MOMENTARY	LATCHED	LATCHED	MOMENTARY
switch function	SPST	SPDT	SPDT	SPDT	SPDT	SPST	SPDT	SPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	1	1	1
