54F253/BFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F253/BFA

54F253/BFA: DescriptionIC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, Multiplexer/Demultiplexer; Categorylogic logic; File Size118KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F253/BFA Overview

IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, Multiplexer/Demultiplexer

54F253/BFA Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	23 mA
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

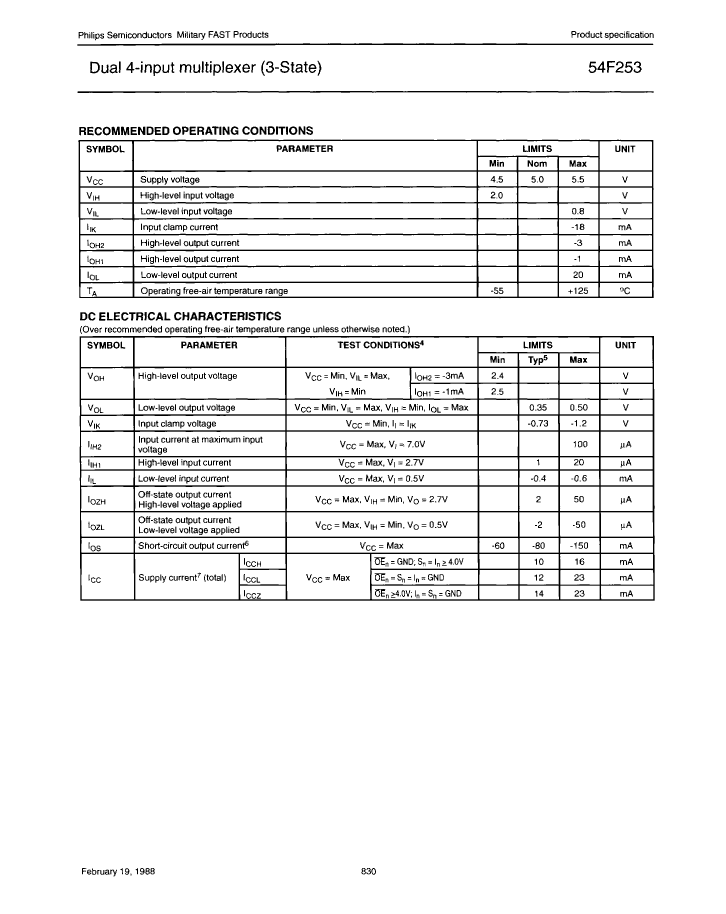

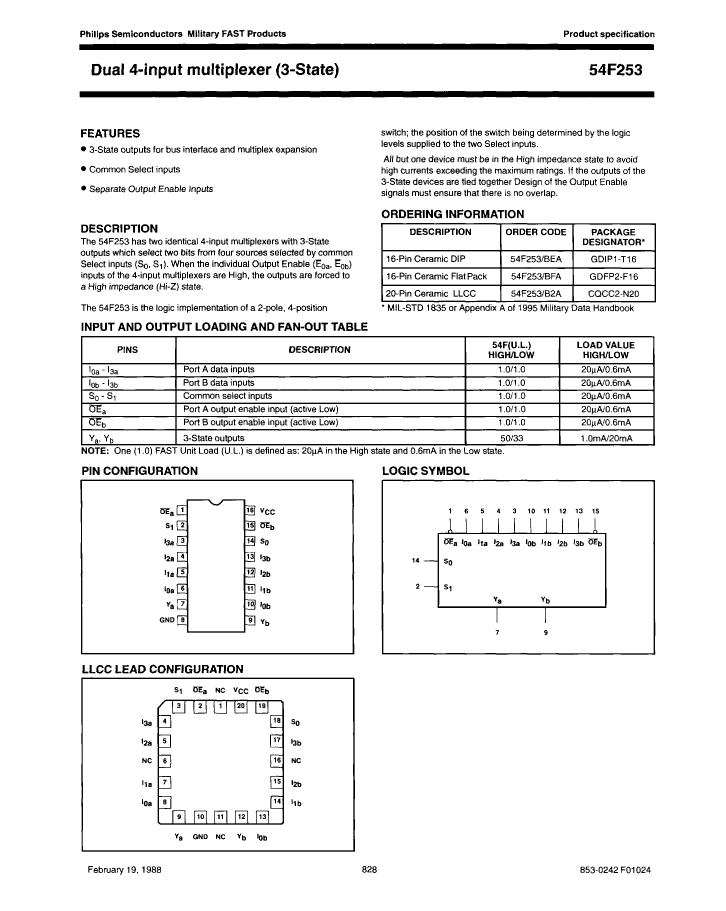

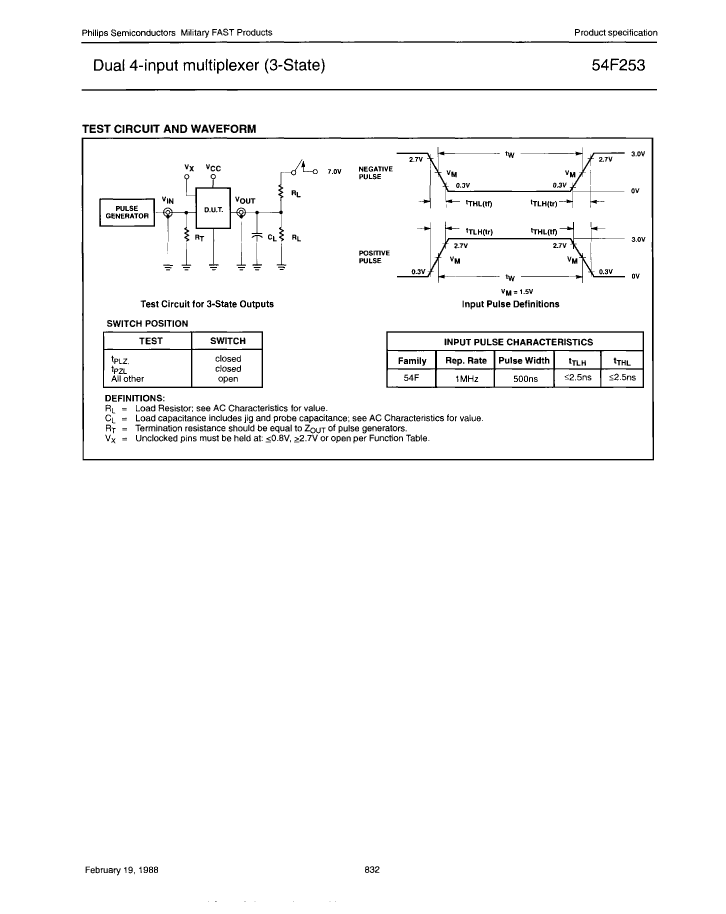

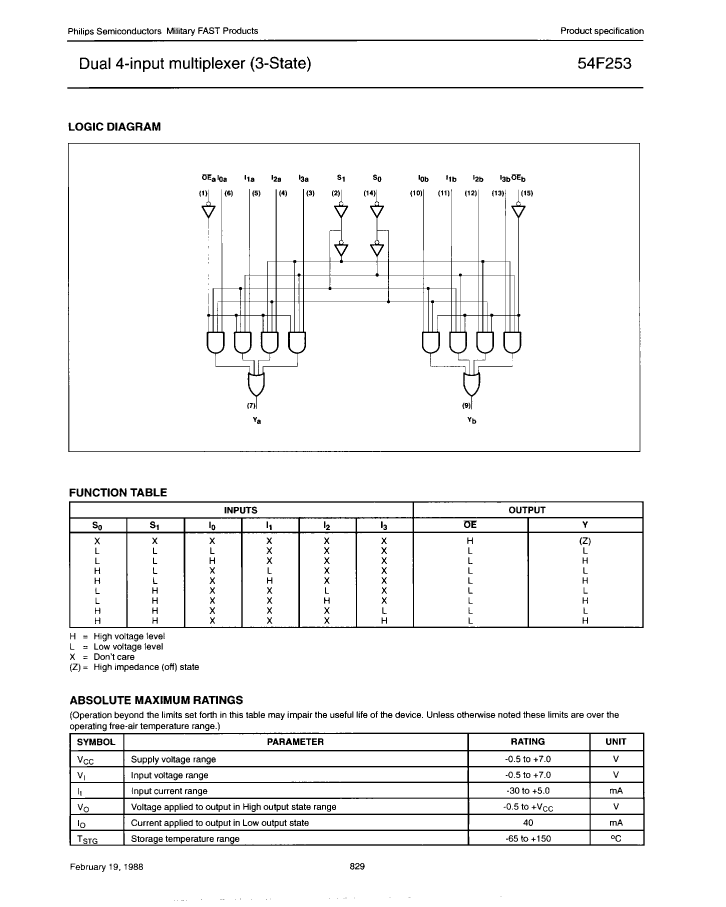

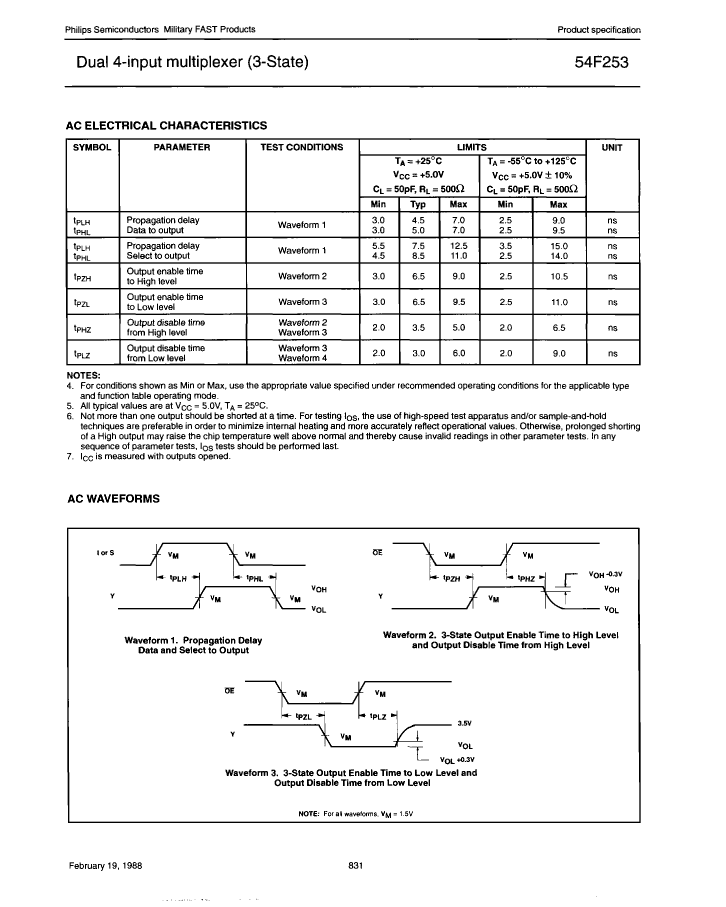

Preview

Download Datasheet

View All

54F253/BFA Related Products

	54F253/BFA	N54F253/BFA	54F253/BEA	54F253/B2A	N54F253/B2A
Description	IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, Multiplexer/Demultiplexer	IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERAMIC, DFP-16, Multiplexer/Demultiplexer	IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, Multiplexer/Demultiplexer	IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, Multiplexer/Demultiplexer	IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Multiplexer/Demultiplexer
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F16	R-CDFP-F16	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2	2	2
Number of entries	4	4	4	4	4
Output times	1	1	1	1	1
Number of terminals	16	16	16	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DIP	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	IN-LINE	CHIP CARRIER	CHIP CARRIER
Maximum supply current (ICC)	23 mA	23 mA	23 mA	23 mA	23 mA
propagation delay (tpd)	14 ns	14 ns	14 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD
Base Number Matches	1	1	1	1	1
Maker	NXP	NXP	NXP	-	-
package instruction	-	CERAMIC, DFP-16	-	QCCN,	QCCN,
Maximum seat height	-	2.159 mm	5.08 mm	-	1.905 mm
Terminal pitch	-	1.27 mm	2.54 mm	-	1.27 mm
width	-	6.731 mm	7.62 mm	-	8.89 mm
