224221 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Plug,

224221 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	1.22 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.209 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3614 N
Base Number Matches	1

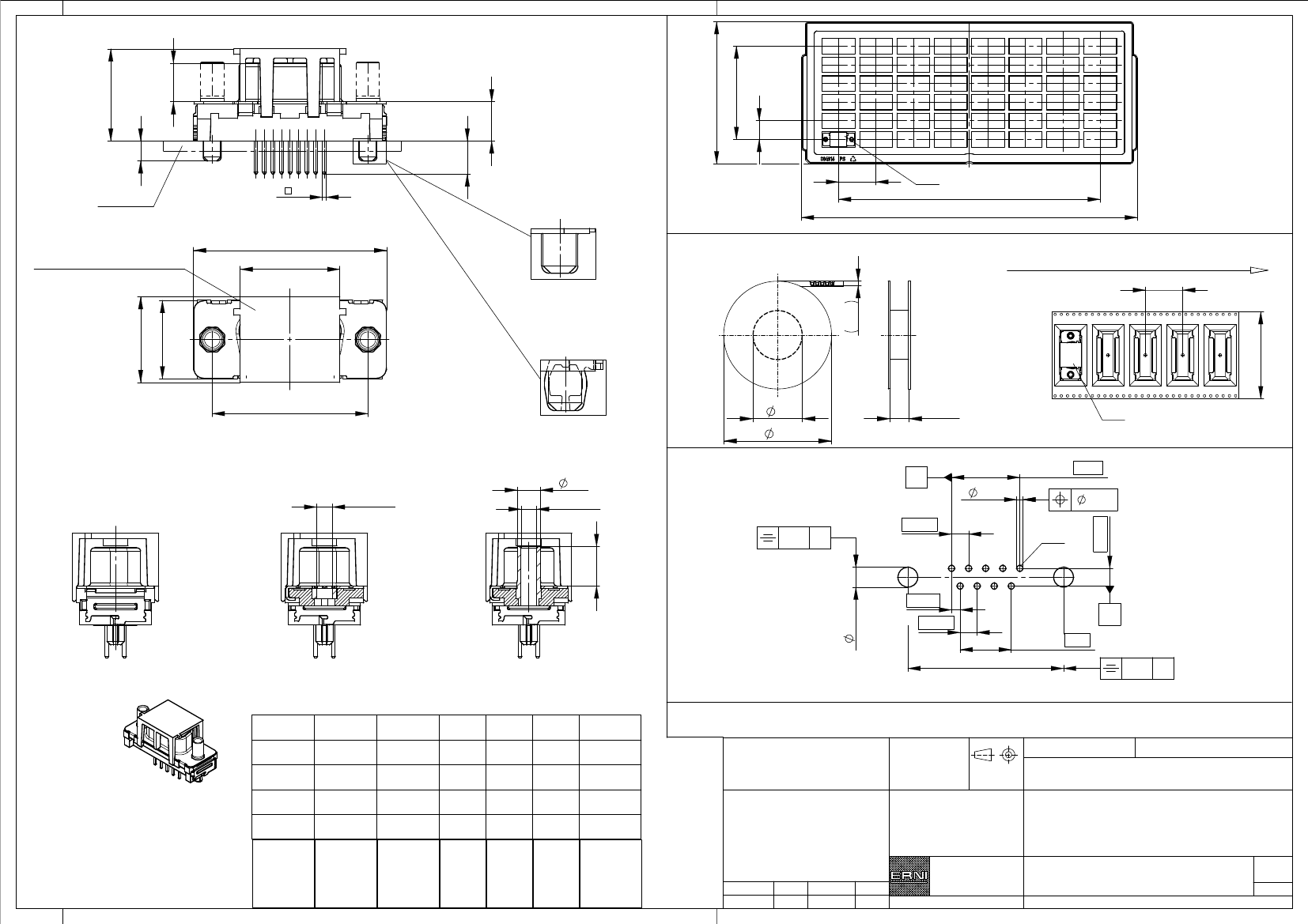

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 48 St.

6,3

-0,25

5 x 18 = 90

max. 138

tray packaging

packaging unit 48 pcs

14,8

6,3

3,2

5,3

Variante 1

version 1

Leiterplatte

0,6

Bestückung kraftlos

Pin 1

7 x 36 = 252

max. 325

pcb

powerless assembly

+0,2

-0,4

hood only on version 1

Ansaughaube nur bei Version 1

Variante 2

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Abspulrichtung -

Reel off Direction

12,6

±0,3

Bestückung mit Kraft

13,8

assembly with force

21,2

version 2

±0,1

150

56,5

Pin 1

ohne /

without

Mutter /

nut

max. Einschraubtiefe 3,7 mm

Bolzen /

bolt

330

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

thread depth max. 5,5 mm

3,7

Layoutvorschlag:

recommended layout:

0,05

4 x 2,74 = 10,96

-0,06

+0,09

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

0,05 (9x)

Pin 1

2,84

2,74

6,4

3,2

±0,1

1,37

2,74

3 x 2,74 = 8,22

±0,05

0,05

Beschriftung nach Bedruckungsvorschrift 174538

M 1:1

Part marking according to specification 174538

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

204107

Anschlussbereich verzinnt

214408

224221

204109

224300

224299

224298

#4-40

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Anforderungsstufe: 2

class: 2

Ident-Nr.

part-no.

tape &reel

Variante 1

Ident.-Nr.

Variante 1

part-no.

tray

Ident.-Nr.

Variante 2

part-no.

tray

ohne

without

Mutter

thread

Bolzen Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

26.01.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 09-THR-5,3-6,3-BA8

TMC-S 09-THR-5,3-6,3-type 8

bolt

remark

www.ERNI.com

Class

144983

TMCS

version 1

version 2

224221 Related Products

	224221	224300	204109	214408	224299	224298	204107
Description	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40, Plug,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	ROHS COMPLIANT	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch
body length	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch	1.22 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	6 A	6 A	6 A	6 A	6 A	6 A	6 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	1/E	1/E	1/E	1/E	1/E	1/E
Terminal length	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch
Terminal pitch	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	9	9	9	9	9	9
Evacuation force-minimum value	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N
Base Number Matches	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0	94V-0	94V-0
Installation option 1	-	M3	#4-40	#4-40	#4-40	M3	#4-40
Installation option 2	-	SCREW	SCREW	SCREW	THREADED	THREADED	SCREW
