364 Series
Right-Angle BNC Jack Connectors
Product Description
Winchester’s Bomar brand 364 Series BNC
Right-Angle PCB Jack Connectors can be
used in a wide range of applications
including Broadcast, Telecommunications,
Test and Measurement, Security, and
Medical.
The 364 Series Right-Angle BNC PCB Jack
Connectors are available in 50 and 75 Ohm
impedance in both isolated or panel-ground
versions.
Isolated BNC Jacks are made with black or
white UL 94V-0 PBT Thermoplastic material.
Panel-ground Dual BNC Jacks feature a
nickel-plated Zinc die-cast body.
• Right-Angle BNC Connectors are
available in two heights - .625”
standard profile and .519” low-
profile.
• Right-Angle BNC Jacks are
available in both isolated and
panel-ground versions.
• Mounting posts are soldered
to the PCB which provides
additional retention and strain
relief.
CONNECTING INNOVATION TO APPLICATION
®
Specifications
Electrical
Impedance:
Frequency Range:
Working Voltage:
Dielectric
Withstanding Voltage:
VSWR:
Contact Resistance:
Insulation Resistance:
Insertion Loss:
50Ω / 75Ω Ohms
50Ω DC – 1 GHz
75Ω DC – 1 GHz
500 VRMS at Sea Level
1500 VRMS at Sea Level
1.3 Max
Center Contact:
≤
3 Milliohms
5000 Megohms Min
0.2dB Max
Material
BNC Barrel:
Female Contact:
Insulator:
Zinc, Nickel Plated
Phosphor Bronze
Gold Plated
Polypropylene
Mechanica
l
Center Contact Retention:
Engagement Force:
Disengagement Force:
Durability (Mating):
≥
6 lbs.
≤
5 lbs.
≥
1.5 lbs.
500 Cycles Min
Environmenta
l
Temperature Range:
- 40˚ C to +165˚ C

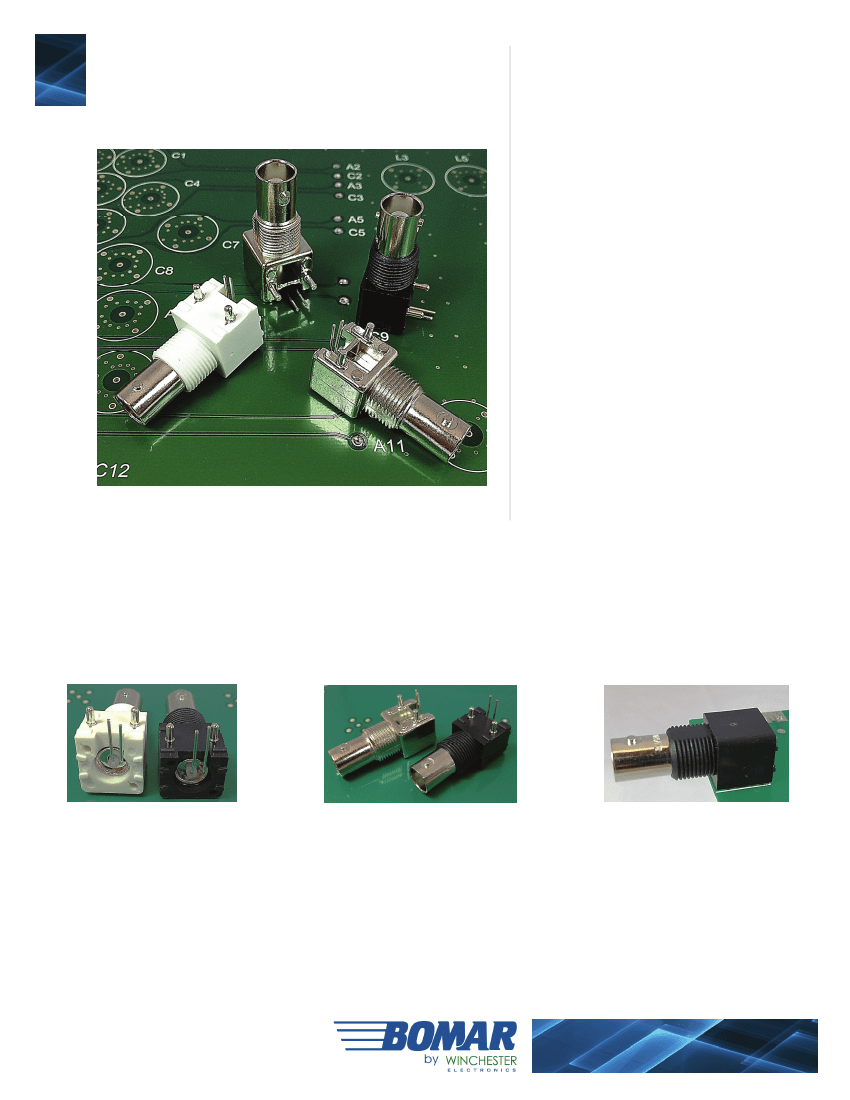

Photo 1
Photo 2
Photo 3
Photo 4
Part Numbers
Bomar Part Number
364A595*
364A595B*
364A595BL*
364A595BLB*
364M595*
364M595L*
364A795*
364A795B*
364A795BL*
364A795BLB*
364M795*
364M795L*
Description
Right-Angle PCB, Standard Profile, Isolated
Right-Angle PCB, Standard Profile, Isolated
Right-Angle PCB, Low Profile, Isolated
Right-Angle PCB, Low Profile, Isolated
Right-Angle PCB, Standard Profile, Panel-Ground
Right-Angle PCB, Low Profile, Panel-Ground
Right-Angle PCB, Standard Profile, Isolated
Right-Angle PCB, Standard Profile, Isolated
Right-Angle PCB, Low Profile, Isolated
Right-Angle PCB, Low Profile, Isolated
Right-Angle PCB, Standard Profile, Panel- Ground
Right-Angle PCB, Low Profile, Panel-Ground
Impedance
50 Ohm
50 Ohm
50 Ohm
50 Ohm
50 Ohm
50 Ohm
75 Ohm
75 Ohm
75 Ohm
75 Ohm
75 Ohm
75 Ohm
Body
Material
Valox
Valox
Valox
Valox
Zinc
Zinc
Valox
Valox
Valox
Valox
Zinc
Zinc
Color
White
Black
White
Black
Nickel Plated
Nickel Plated
White
Black
White
Black
Nickel Plated
Nickel Plated
Height
.625
.625
.519
.519
.625
.529
.625
.625
.519
.519
.625
.529
1
1
2
2
3
4
1
1
2
2
3
4
*
Mounting Hardware Sold Separately
Lock washer: 364LW
Hex Nut: 364NT
Spanner Nut: 364KNT
Spanner Wrench: BD36400
Winchester Electronics
199 Park Road Extension, Suite 104
Middlebury, Connecticut 06762
203.741.5400
Phone
203.741.5500
Fax
www.winchesterelectronics.com

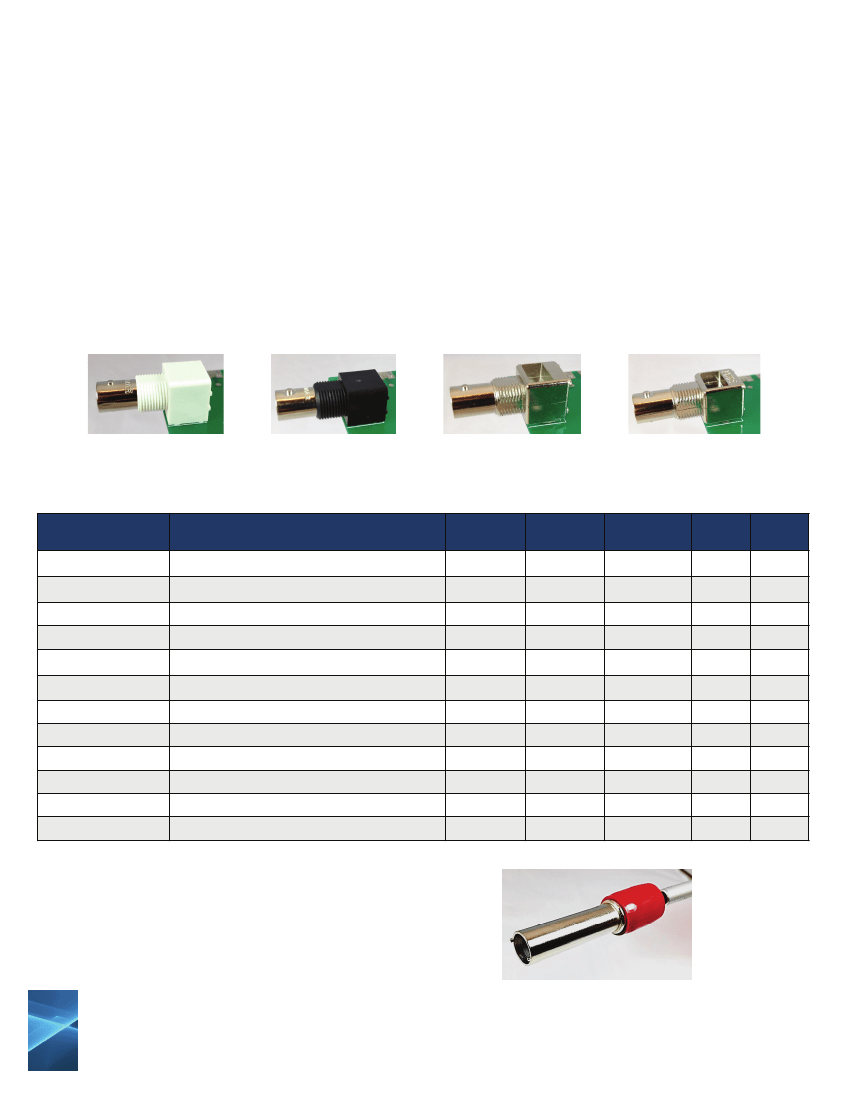

Spanner Wrench BD36400
