53671-0604 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53671-0604

53671-0604: DescriptionBoard Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53671-0604 Overview

Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug

53671-0604 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.205 inch
subject depth	0.096 inch
body length	1.02 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	53671
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

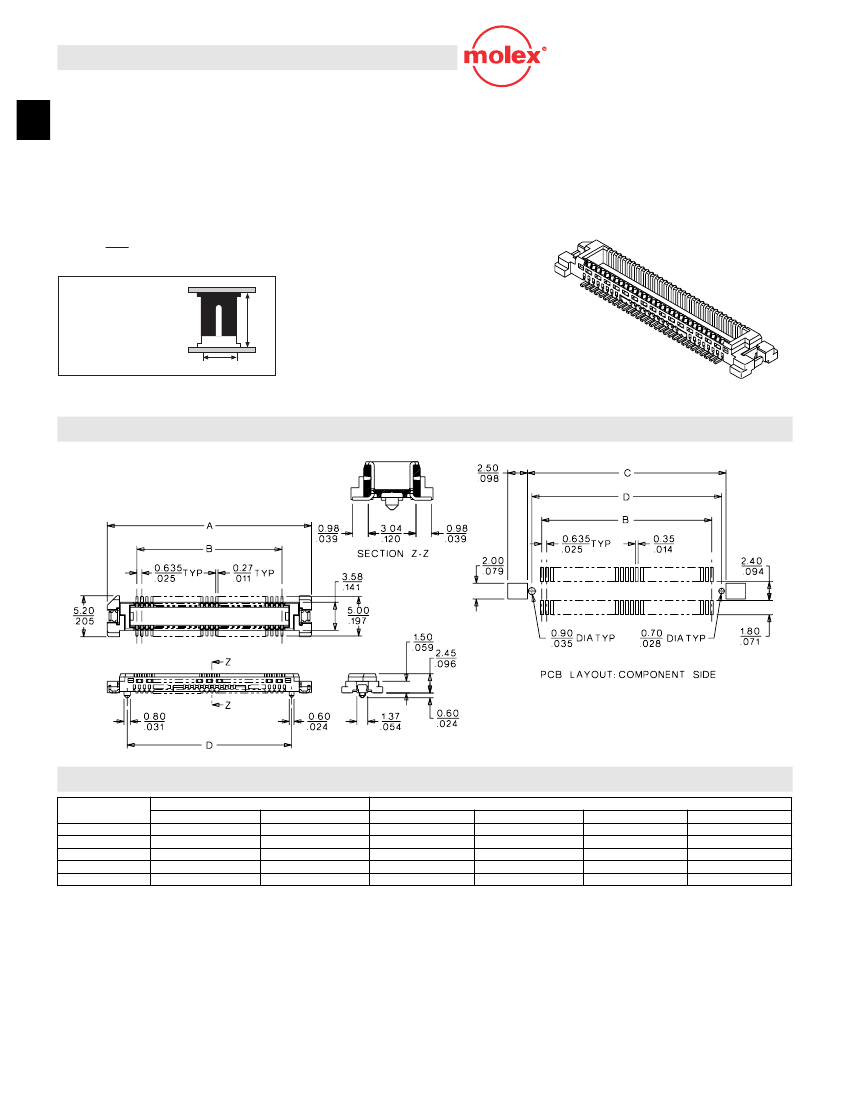

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Stacking height: 3.0mm

Sizes 30, 60, 80 and 140 circuits

Housing lock on 30 and 60 circuits

Anti-ﬂux design

Metal solder tabs provide PCB hold down and strain

relief for SMT tails

Polarizing pegs assist placement

0.40 to 1.60mm (.016 to .063") Pitch

Electrical

Voltage: 100V

Current: 0.5A

Contact Resistance: 40m

Ω

max.

Dielectric Withstanding Voltage: 250V AC

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: White glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Gold over Nickel

Operating Temperature: -55 to +85˚C

0.635mm (.025") Pitch

Board-to-Board

Plug

53671

SMT, Dual Row

Vertical Stacking

Reference Information

Packaging: Tube and embossed tape

Mates With:

52921

Designed In: Millimeters

Mating Dimensions

53671 • 52921

H=3.0mm W=6.4mm

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

140

Tube

53671-0309

53671-0409

53671-0609

53671-1409

Order No.

Embossed Tape with Cover

53671-0304

53671-0604

53671-0804

Dimension

16.40

19.57

25.92

32.27

51.32

(.645)

(.770)

(1.020)

(1.270)

(2.020)

8.890

12.07

18.42

24.77

43.82

(.350)

(.475)

(.725)

(.975)

(1.725)

12.50

15.67

22.02

28.37

47.42

(.492)

(.617)

(.866)

(1.117)

(1.866)

11.40

14.57

20.92

27.27

46.32

(.448)

(.574)

(.823)

(1.074)

(1.823)

Note: Use only one connector per daughterboard in order to insure proper mating alignment

Note: Contact Molex for embossed tape speciﬁcations

A-38

MX01

53671-0604 Related Products

	53671-0604	53671-0804	53671-0304
Description	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, White Insulator, Plug	Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED
Board mount options	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.205 inch	0.205 inch	0.205 inch
subject depth	0.096 inch	0.096 inch	0.096 inch
body length	1.02 inch	1.27 inch	0.645 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD	NOT SPECIFIED	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	BRASS	NOT SPECIFIED	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ
DIN compliance	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V
Durability	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.695 N	.695 N	.695 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO
Manufacturer's serial number	53671	53671	53671
Plug contact pitch	0.025 inch	0.025 inch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	4.191 mm
Plating thickness	4u inch	4u inch	4u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	80	30
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N
Base Number Matches	1	1	1
Contact completed and terminated	GOLD	-	GOLD
JESD-609 code	e4	-	e4
Installation option 1	LOCKING	-	LOCKING
Installation option 2	FRICTION LOCK	-	FRICTION LOCK
