324-93-133-41-002: DescriptionIC Socket, SIP33, 33 Contact(s); CategoryThe connector socket; File Size157KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

324-93-133-41-002 Overview

IC Socket, SIP33, 33 Contact(s)

324-93-133-41-002 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SIP SOCKET
Contact completed and terminated	GOLD (30) OVER NICKEL
Device slot type	IC SOCKET
Type of equipment used	SIP33
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	324
Number of contacts	33
Base Number Matches	1

Preview

Download Datasheet

View All

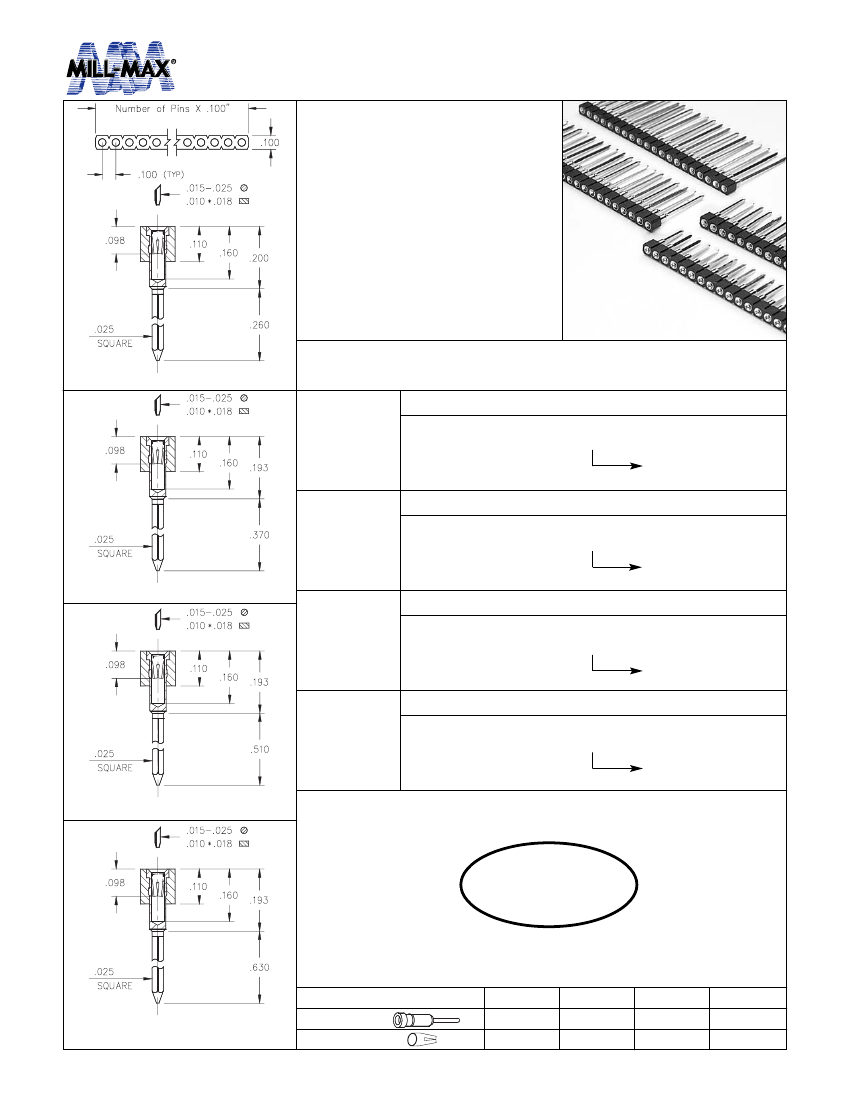

SINGLE-IN-LINE SOCKETS

Wrapost

Single Row

•

Wraposts available in 4 levels

using M-M pin numbers:

1-Level

2-Level

3-Level

4-Level

uses

#

0040-1

0089-2

0088-3

0086-4

Series 321, 322

323, 324

•

Hi-Rel, 4-finger BeCu #30 clip

rated at 3 amps. See page 208

for details.

Fig. 1

Ordering Information

Series 321...001

1 Level Wrapost

Fig. 1

321-XX-1_ _-41-001

Specify # of pins

Series 322...001

01-64

2 Level Wrapost

Fig. 2

322-XX-1_ _-41-001

Specify # of pins

Series 323...001

01-64

3 Level Wrapost

Fig. 3

323-XX-1_ _-41-001

Specify # of pins

Series 324...002

01-64

4 Level Wrapost

Fig. 4

324-XX-1_ _-41-002

Specify # of pins

01-64

Fig. 3

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

93

200µ” Sn/Pb

30µ” Au

Sleeve (Pin)

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

49

516-922-6000
