30HFUR-300PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 30HFUR-300PBF

30HFUR-300PBF: DescriptionRectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, DO-203AB,; CategoryDiscrete semiconductor diode; File Size199KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

30HFUR-300PBF Overview

Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, DO-203AB,

30HFUR-300PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	O-MUPM-D1
Reach Compliance Code	compliant
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.45 V
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	420 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	125 °C
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1

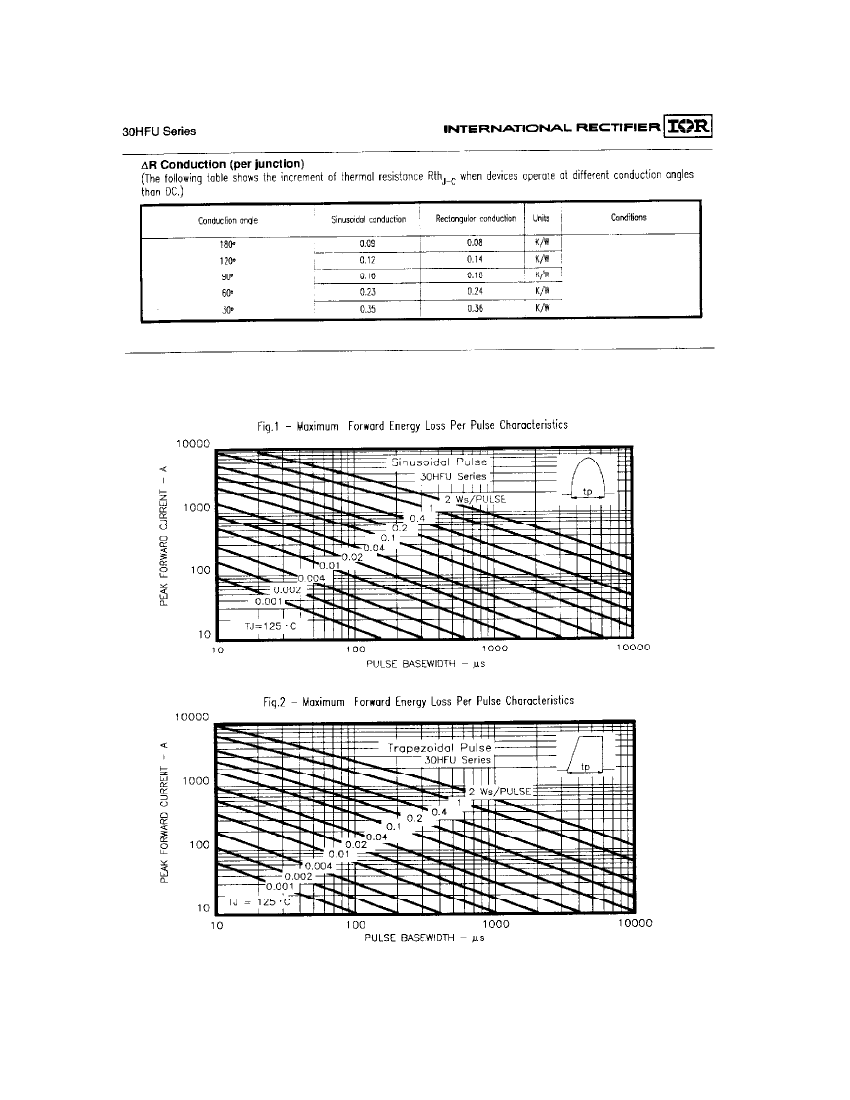

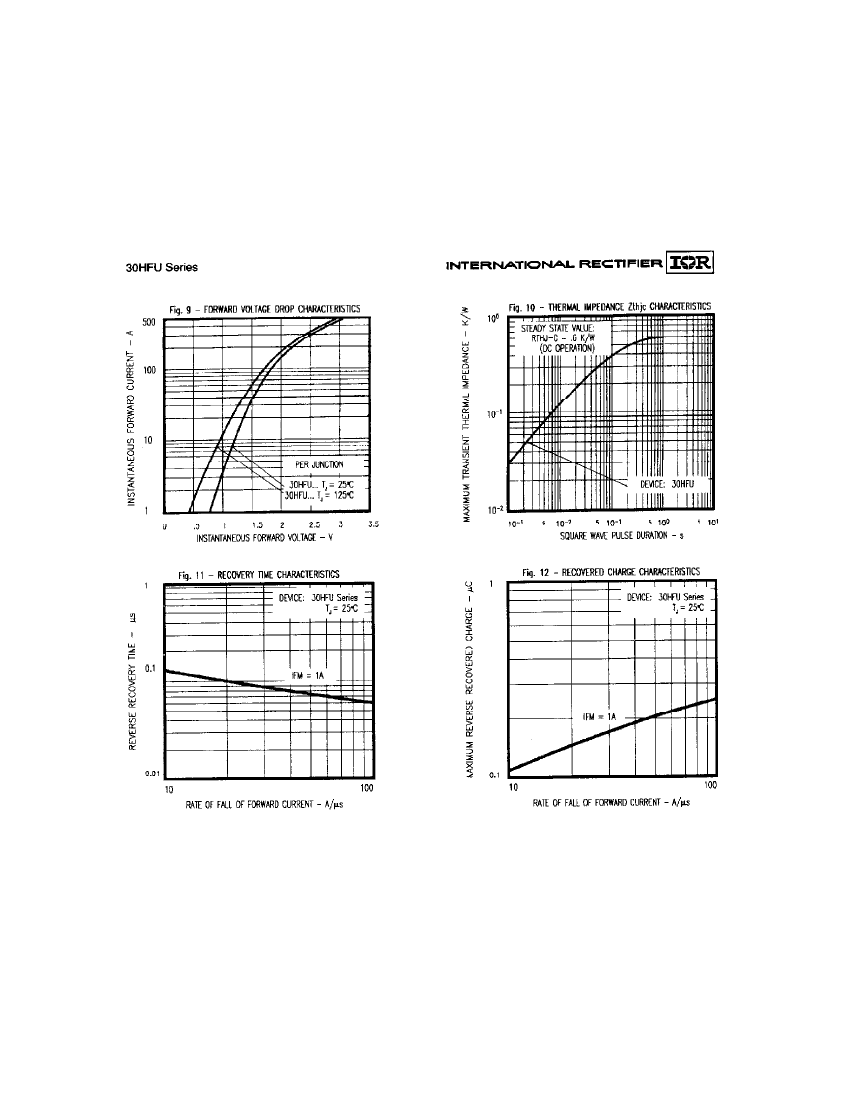

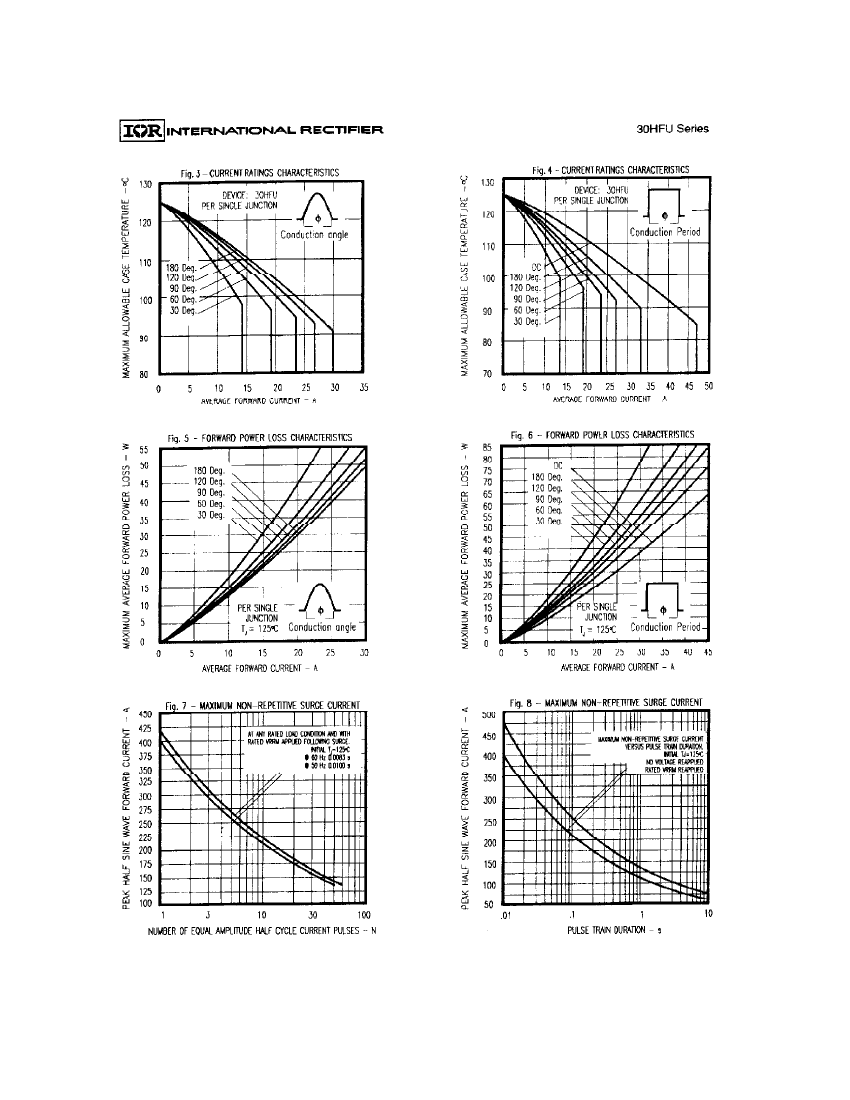

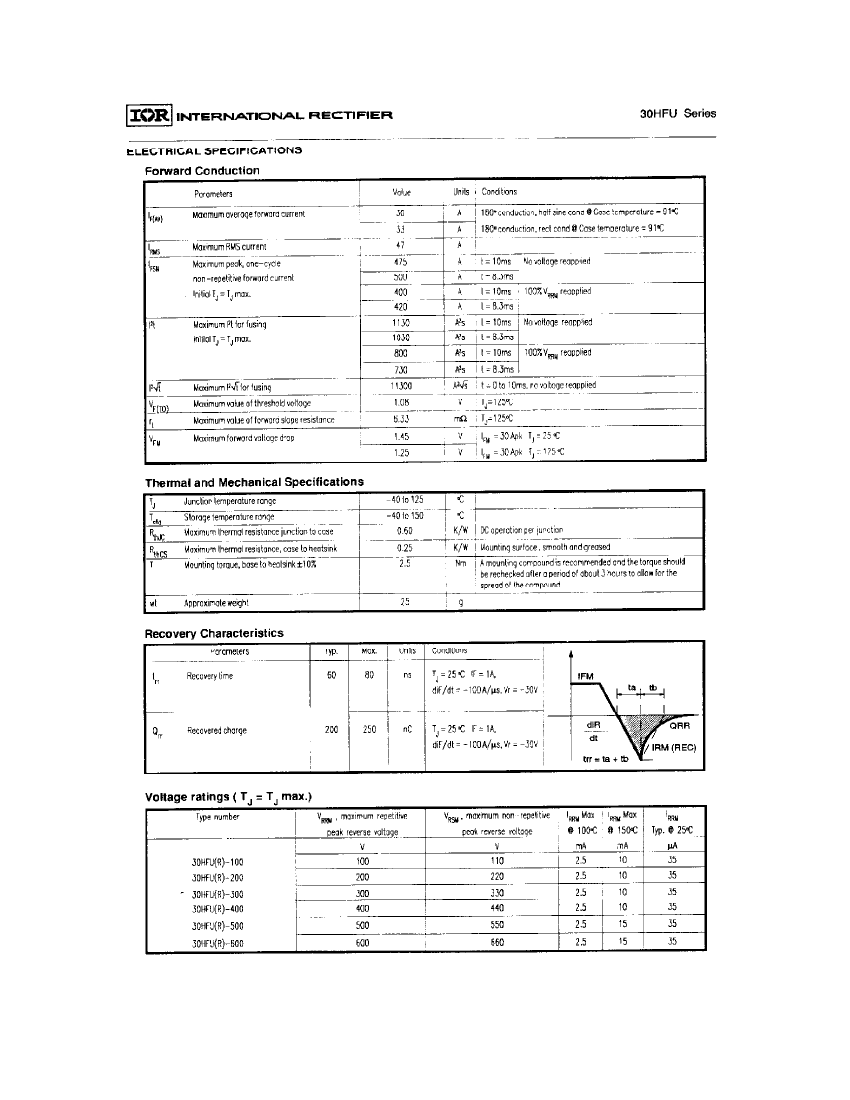

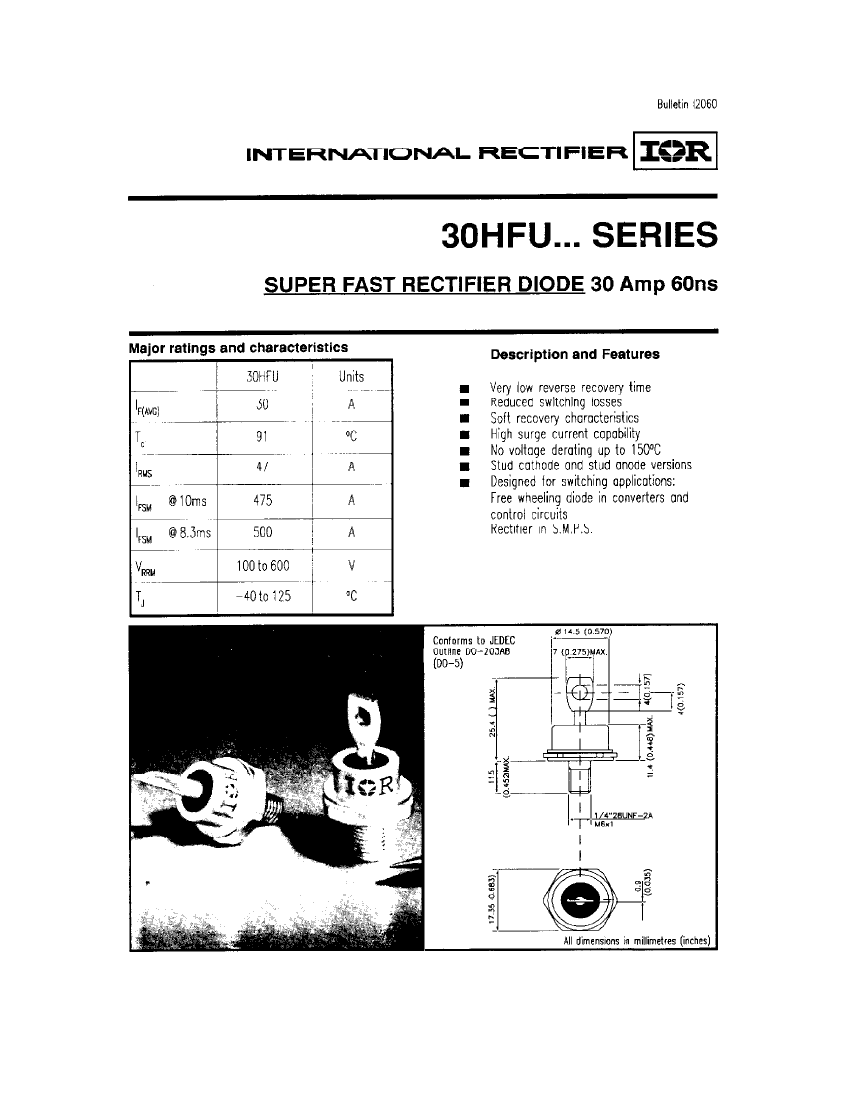

Preview

Download Datasheet

View All

30HFUR-300PBF Related Products

	30HFUR-300PBF	30HFUR-500PBF	30HFUR-100PBF	30HFUR-200PBF	30HFUR-600PBF	30HFU-100PBF	30HFU-200PBF	30HFU-300PBF	30HFU-400PBF	30HFU-600PBF
Description	Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 500V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 100V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 600V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 100V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon, DO-203AB	Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, DO-203AB,	Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon, DO-203AB	Rectifier Diode, 1 Phase, 1 Element, 30A, 600V V(RRM), Silicon, DO-203AB,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.45 V	1.45 V	1.45 V	1.45 V	1.45 V	1.45 V	1.45 V	1.45 V	1.45 V	1.45 V
JEDEC-95 code	DO-203AB	DO-203AB	DO-203AB	DO-203AB	DO-203AB	DO-203AB	DO-203AB	DO-203AB	DO-203AB	DO-203AB
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	420 A	420 A	420 A	420 A	420 A	420 A	420 A	420 A	420 A	420 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	500 V	100 V	200 V	600 V	100 V	200 V	300 V	400 V	600 V
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40	40	40	40	40	40	40
Base Number Matches	1	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	-	EAR99
