4456-5260 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 4456-5260

Preview

4456-5260: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

4456-5260 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking

4456-5260 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.358 inch
subject depth	0.358 inch
body length	1.607 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	4456
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

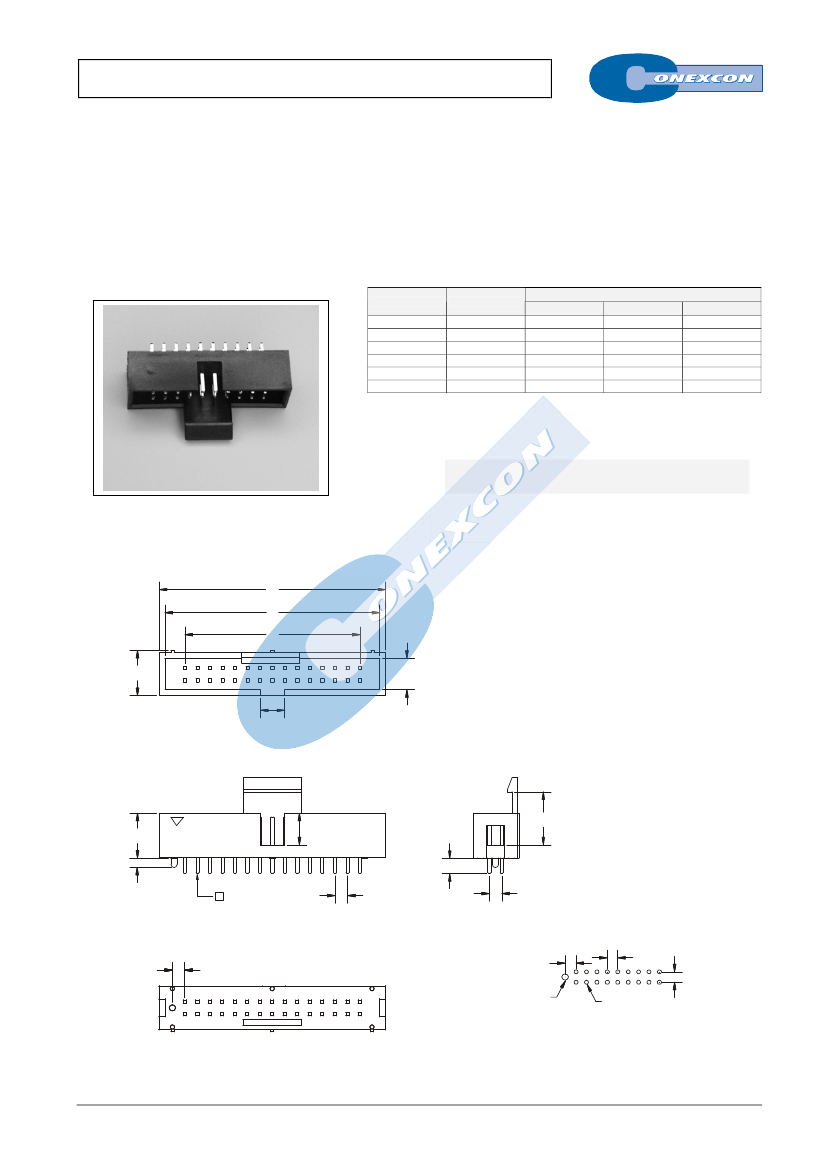

STRAIGHT SHROUDED HEADER WITH LATCH

4456 SERIES.

2.54 x 2.54mm(0.100 x 0.100”). For PCB Solder

Features



Available in 10, 14, 16, 20, 26 and 30 Circuits

Insulator Material: Glass filled Polyester 6T UL 94V-0

Contact Material: 0.64mm square pin in phosphor bronze

Different plating options are available



Mates with 5435 series female connector

Fully shrouded. Low profile

Low profile

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

Circuit Size

10

14

16

20

26

30

Part Number

4456-T100

4456-T140

4456-T160

4456-T200

4456-T260

4456-T300

Dimensions

A

20.50(0.807)

25.58(1.007)

28.12(1.107)

33.20(1.307)

40.82(1.607)

46.00(1.811)

B

18.10(0.712)

23.18(0.912)

25.72(1.012)

30.80(1.212)

38.42(1.512)

43.80(1.724)

10.16(0.400)

15.24(0.600)

17.78(0.700)

22.86(0.900)

30.48(1.200)

35.56(1.400)

T = Contact Plating



T =

2.

Tin plated

T =

3.

Gold flash over 50µ” nickel.

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

A

B

C

9.1

6.4

5.0

9.1

6.4

3.2

10.6

1.5

0.64x0.64

2.54

2.67

ø1.6±0.05

2.54

ø1.02±0.05

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

H-XX
