54L54J/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54L54J/B

54L54J/B: DescriptionAND-OR-Invert Gate; Categorylogic logic; File Size1MB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54L54J/B Overview

AND-OR-Invert Gate

54L54J/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	AND-OR-INVERT GATE
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

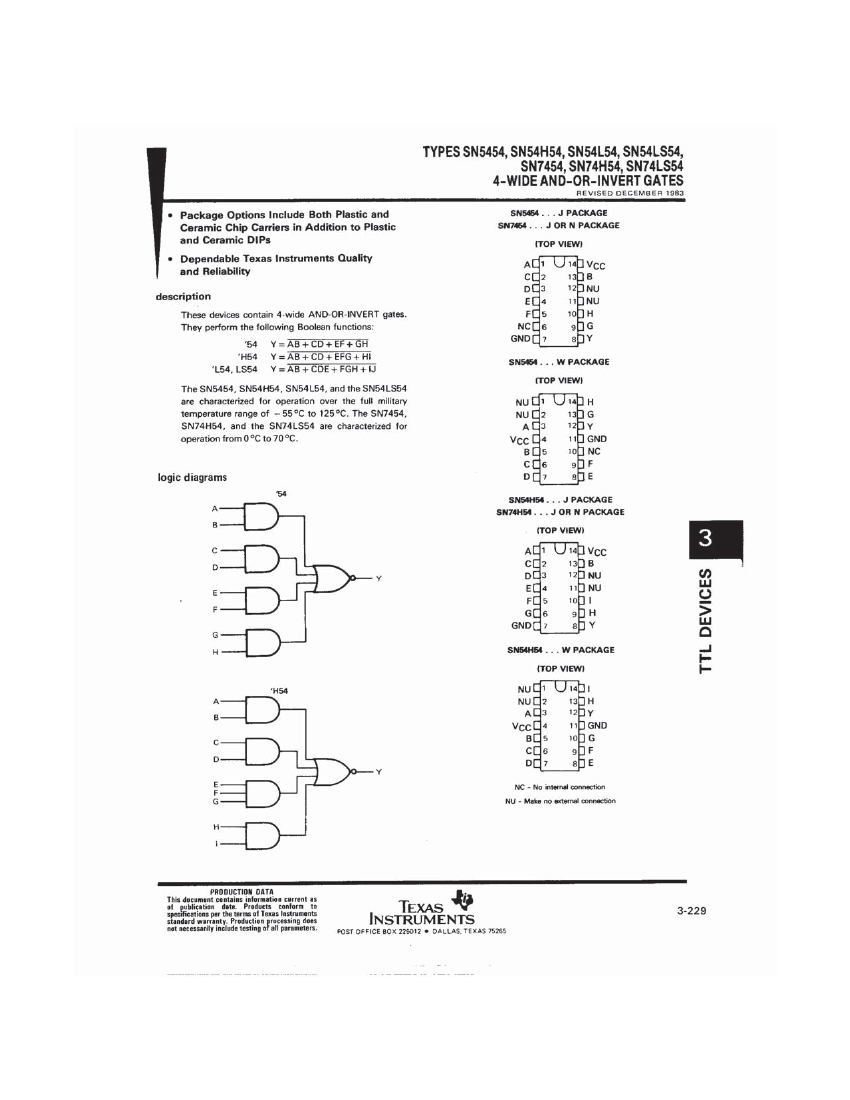

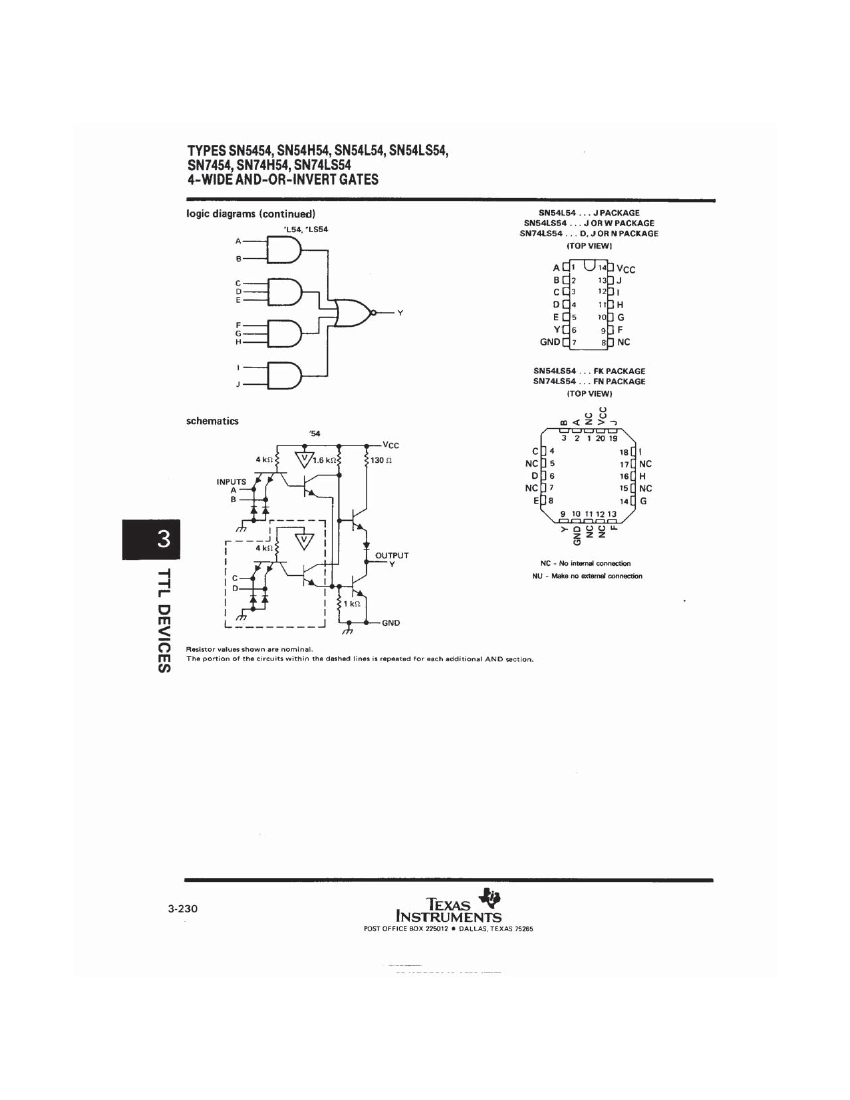

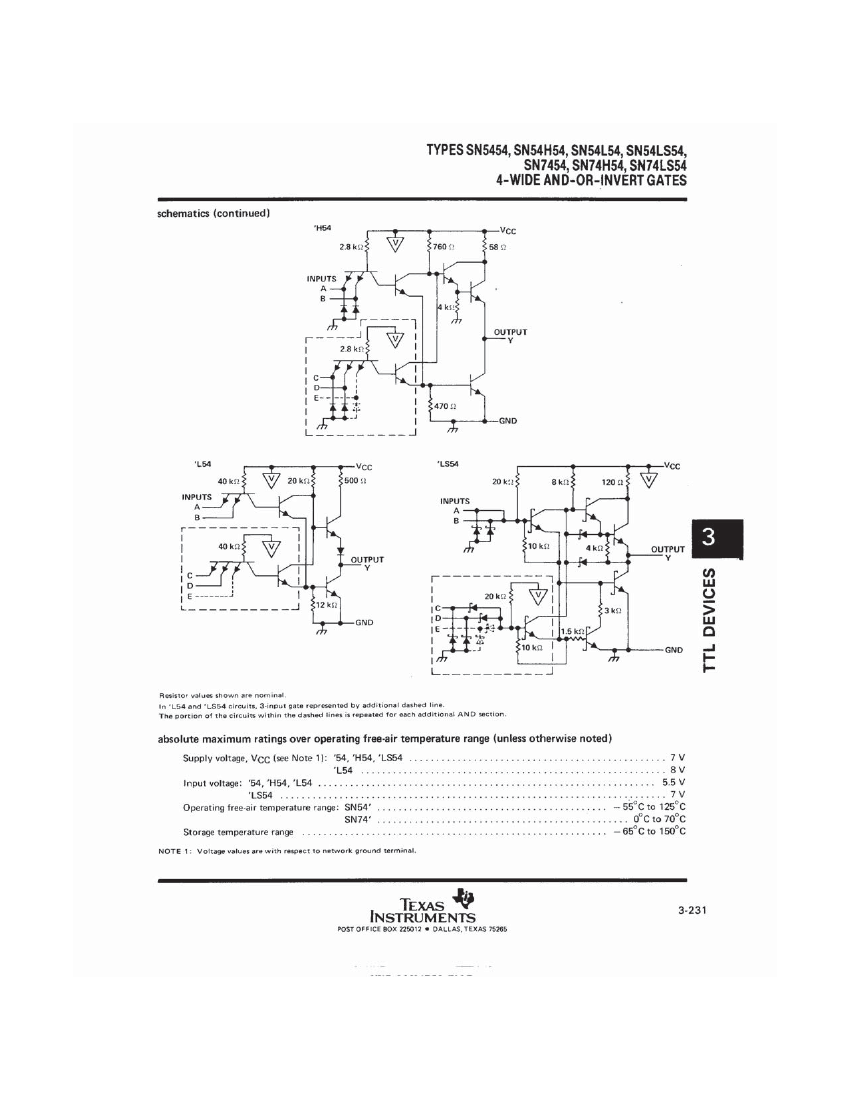

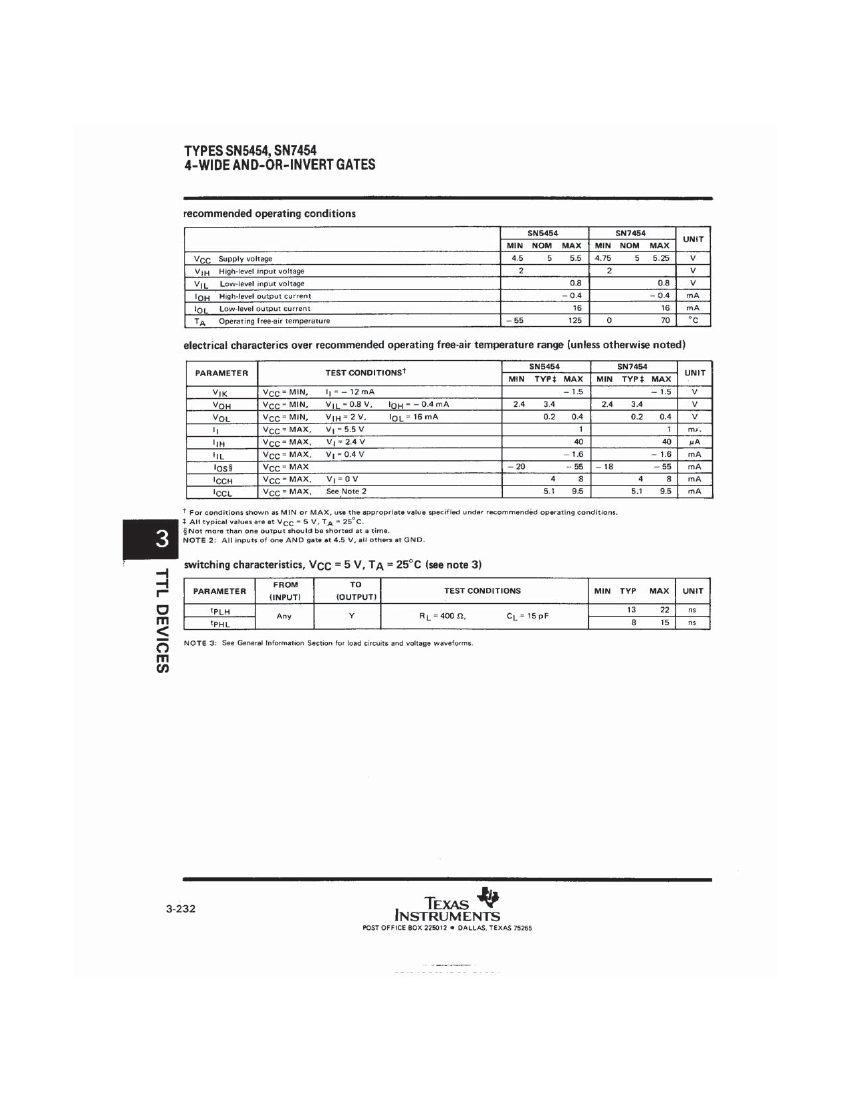

SN5454, SN54H54, SN54L54, SN54LS54

SN7454, SN74H54, SN74LS54

4-Wide AND-OR-INVERT Gates

The SN5454, SN54H54, SN54L54, and the SN54LS54 are characterized for operation over the full

military temperature range of -55°C to 125°C while the SN7454, SN74H54, and the SN74LS54 are

characterized for operation from 0°C to 70°C. These devices contain 4-wide AND-OR-INVERT gates.

They perform the following Boolean functions:

‘54

‘H54

‘L54, LS54

Y = AB + CD + EF + GH

Y = AB + CD + EFG + HI

Y = AB + CDE + FGH + IJ

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com
