ASPI-104S-150-M-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> ASPI-104S-150-M-T

Preview

ASPI-104S-150-M-T: Description1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size90KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASPI-104S-150-M-T Overview

1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

ASPI-104S-150-M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
core material	FERRITE
DC Resistance	0.05 Ω
Nominal inductance(L)	15 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-104S-150
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	3.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

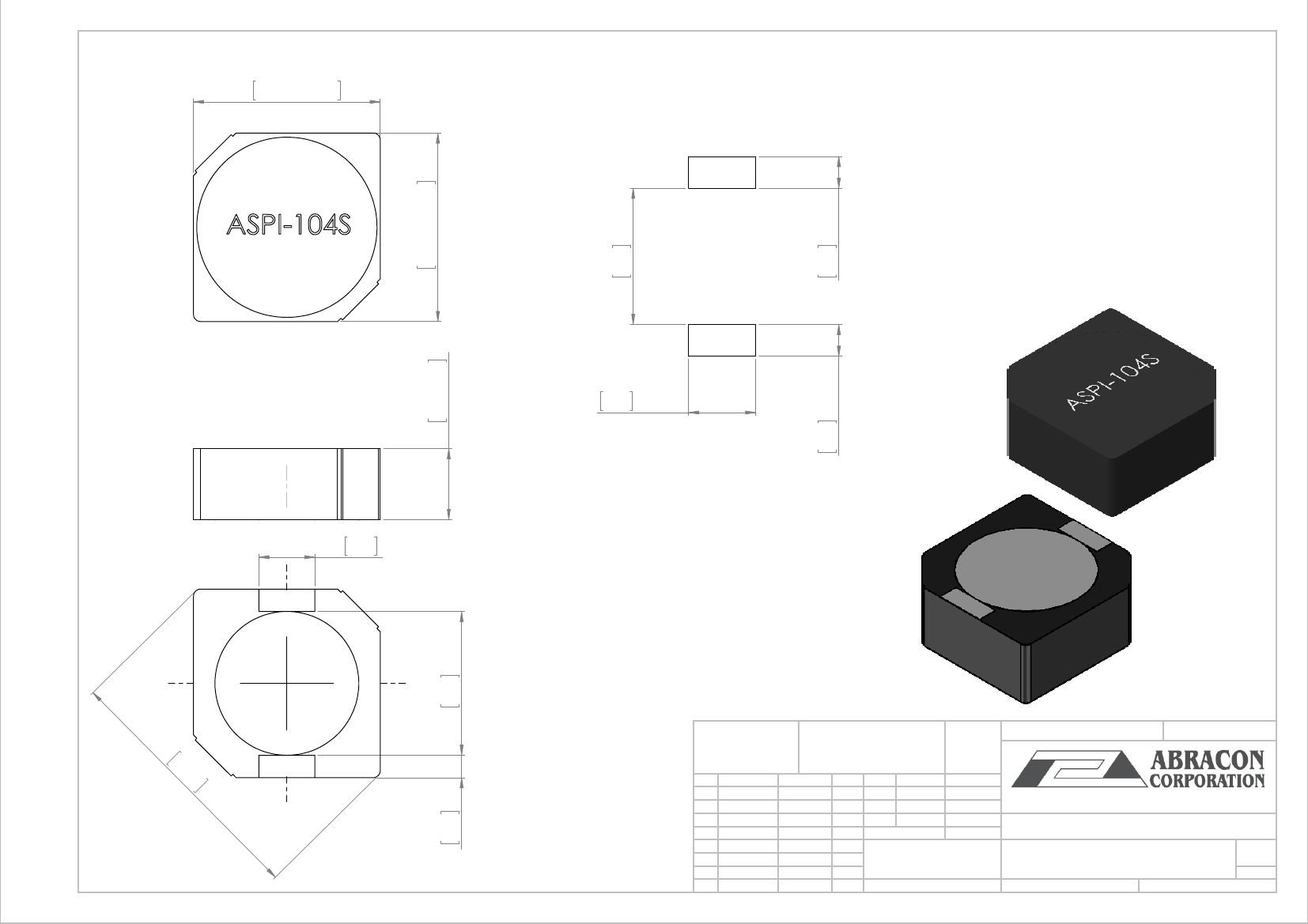

0.394±0.012

10.00±0.30

Recommended Land Pattern

0.398±0.012

10.10±0.30

0.15±0.01

3.8±0.2

0.287 REF.

7.3

0.12

3.0

0.30

7.7

0.067 REF.

1.7

0.142 REF.

3.6

0.067 REF.

1.7

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

SAAZVAT

XXXXXX

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

-

0.05

1.2

0.

53

13

.5

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

APPV'D

MFG

Q.A

MATERIAL:

Power Inductor

DWG NO.

ASPI-104S

SHEET 1 OF 1

A3

WEIGHT:

SCALE:6:1
