32Z2509 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 32Z2509

32Z2509: DescriptionDatacom Transformer, ISDN Application(s), 1:1; 1:2; CategoryPower management transformer; File Size39KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

32Z2509 Overview

Datacom Transformer, ISDN Application(s), 1:1; 1:2

32Z2509 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
application	ISDN
high	7.37 mm
Insulation voltage	2000 V
length	24.13 mm
Manufacturer's serial number	32Z
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	24.13mm X 14.73mm X 7.37mm
Primary inductance	22000 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1; 1:2
width	14.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

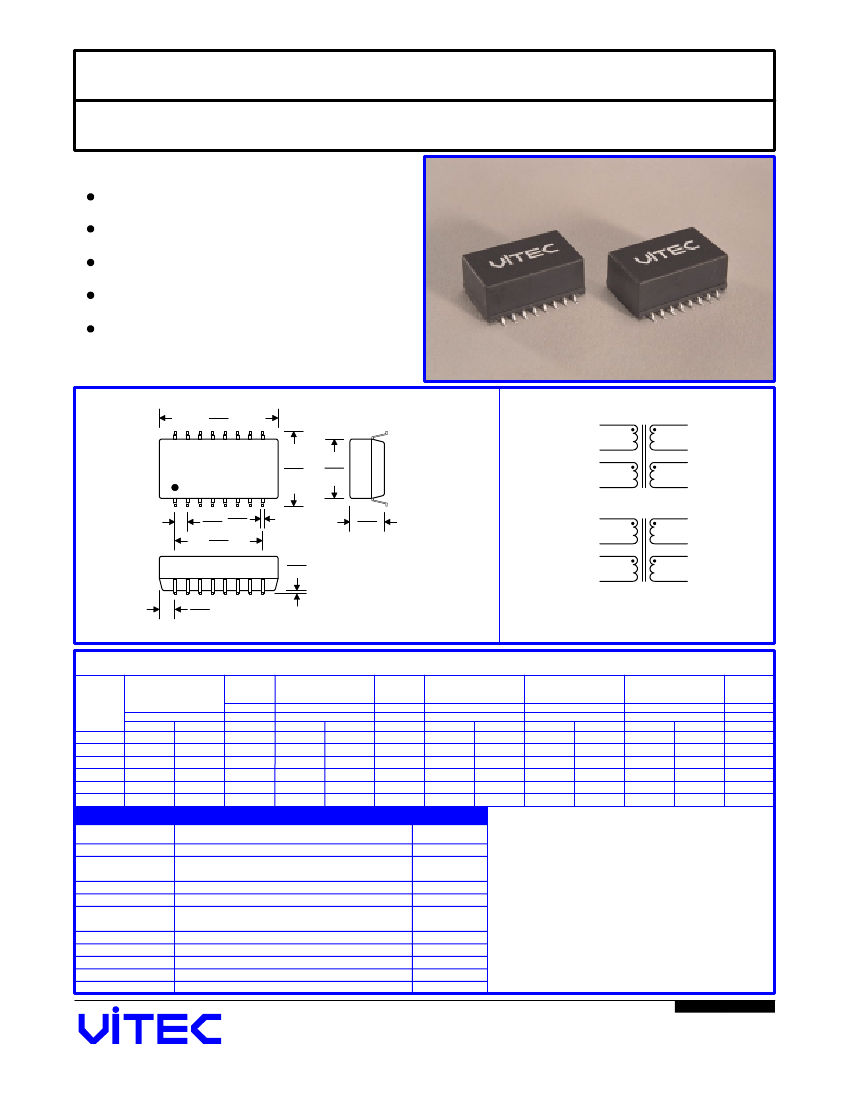

TYPE 32Z - LOW PROFILE SMD DUAL TRANSFORMERS

ISDN S-Interface

FEATURES

Designed to meet FCC and CCITT I.430.

Excellent longitudinal balance.

Meet UL 1459 and UL 1950.

Dielectric test voltage: 2000 Vrms MIN.

Operating temperature: 0 to +70

PACKAGE

0.950

24.13

SCHEMATIC

Coil A

0.100 0.018

2.54 0.46

0.700

17.78

0.010

0.25

0.290

7.37

PRI

SEC

VITEC

32Z25xx

0.720

18.29

0.580

14.73

Coil B

0.125

3.18

Drawing NOT to scales. Dimensions Inches/mm +/- 0.01" Unless noted

ELECTRICAL CHARACTERISTICS @ 25

Part

Number

32Z2505

32Z2506

32Z2507

32Z2508

32Z2509

32Z2510

Turns Ratio

+/- 2%

OCL

MIN

A&B

Sec L

←

MAX

A&B

Pri CD

MAX

Pri DCR

Ohm

+/-25%

Sec DCR

Ohm

+/-25%

MAX

A/B

1:2.5

1:2

1:1

1:1.8

1:2.5

1:2

1:1

1:2

1:1.8

100

110

180

160

Part Number

32Z2506

32Z2505

32Z2507

32Z2508

32Z2505

32Z2507

32Z2510

110

180

160

Notes:

2.4

5.3

4.4

4.2

2.4

3.8

5.3

4.4

4.2

2.4

4.2

3.8

Transformer Selection Guide

IC Manufacturer

AMD

AT&T/Lucent

Mietec

Mitel

Motorola

National

SGS Thomson

Siemens

Yamaha

Intel

IC Part Number

Am79C30A / Am79C32A

T7250 / T7256 / T7259

T7903

MTC-2072

MT8930

MC145474 / MC145475

MC145574

TP3420/3421

ST5420, ST5421

PEB2080/2081/2085,PSB2186,PEB2084/2086

7405B, YTD421

29C53

T-650.9

05/01

Vitec Electronics Corporation

www.VitecCorp.com
