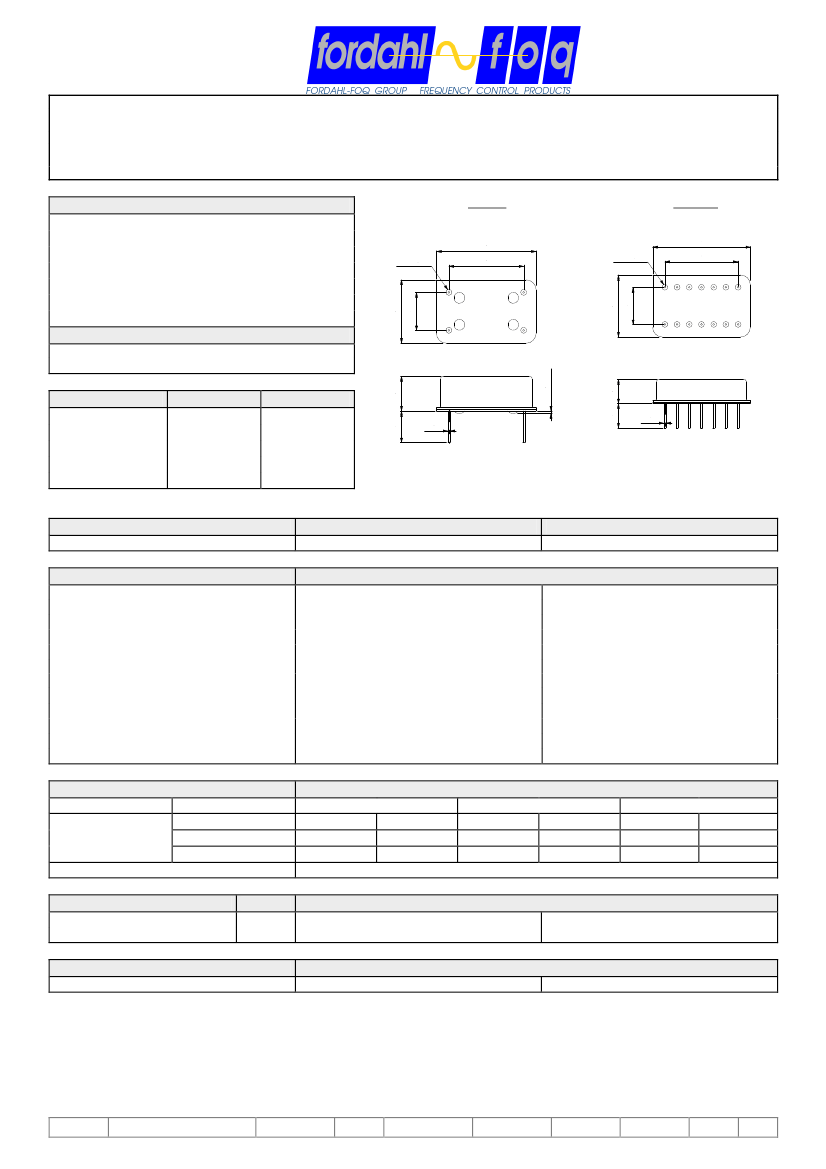

TTL OR HCMOS PRECISION OSCILLATORS
DFN 14-K & DFN 114-K
KEY FEATURES
1 to 70 MHz
± 15 ppm overall stability available
Encapsulated crystal
APPLICATIONS
Sonet/SDH/Avionics/High rel. clocks
Function
NC/Trim/Enable
GND
Output
Vcc
NC
TYPE
Frequency Range
PIN 1
DFN 14
DFN 114
20.3±0.1
15.24
PIN 1
20.3±0.1
15.24 (6*2.54)
12.7±0.1
12.7±0.1
7.62
0.75±0.1
DFN 14
1
7
8
14
DFN 114
1
7
8
14
others
6.3 5.1±0.1
H±0.1
7.62
0.45
6.3
0.45
H = 5.10 mm
DFN 14-KH & DFN 114-KH
1 to 70 MHz
DFN 14-KT & DFN 114-KT
1 to 70 MHz
ELECTRICAL SPECIFICATIONS
supply voltage
supply current (no load)
≤
25 MHz
> 25 MHz
5 V ± 10 %
≤
10 mA (KH), 20 mA (KHZ)
≤
40 mA (KH), 50 mA (KHZ)
HCMOS 50 pF up to 25 MHz, 15 pF above
40/60 ...60/40 % @ 50% level
10 to 90 %
≤
10 ns up to 25 MHz or
≤
5 ns > 25 MHz
≥
4.5 V/
≤
0.5 V
≤
10 ms @ 4.5 V
5 V ± 10 %
≤
20 mA
≤
50 mA
10 TTL
40/60...60/40 % @ 1.4 V
0.4 to 2.4 V
≤
5 ns up to 25 MHz or
≤
3 ns > 25MHz
≥
2.4 V/
≤
0.4 V
≤
10 ms @ 4.5 V
output load
duty cycle
rise/fall times (HCMOS @ 15 pF load)
high/low levels
start up
FREQUENCY STABILITY
types
all types
remark
temperature range
0 to 70°
C
-40 to 85°
C
-55 to 125°
C
stability [ ppm ] and temperature code
stability
code
stability
code
stability
code
XB15
XB25
XB50
≤
± 15
≤
± 25
≤
± 50
XE25
XE50
XE100
≤
± 25
≤
± 50
≤
± 100
XH50
XH75
XH100
≤
± 50
≤
± 75
≤
± 100
st
includes calibration at 25° temperature, ageing, Vcc and load changes 1 year
C,
OPTIONS
tight symmetry (f
≤
50 MHz)
tri-state control (higher current)
CODE
R
Z
45/55...55/45 %
high or open = enable, low = high Z
45/55...55/45 %
high or open = enable, low = high Z
ORDERING CODE
Example
type + option code + frequency + temperature code
DFN 14-KH 49.152 MHz XB15
DFN 114-KTR 32.000 MHz XH50
TYPE
DFN 14-K & DFN 114-K
REVISION
02
CHECKED
NE
DATE
10.10.2002
PAGE
32
FREQUENCY CONTROL PRODUCTS
GENERIC ORDERING CODES
TYPE
PXO
VCXO
TCXO
VC-TCXO
1
DFN
DFV
DFA
DFAV
2
1
3
14
14
S7
36
-
-
-
-
4
K
K
K
M
SOME EXAMPLES
5
6
FREQUENCY
H
H
O
H
Z
A
68.736 MHz
32.768 MHz
16.384 MHz
10.000 MHz
7
100
40
8
X
A
9
H
B
C
C
10
100
25
1
2
11
/12
1.
TYPE CODE
DFN
DFV
DFA
DFO
DFAV
DFT
=
=
=
=
=
=
CXO/PXO
VCXO
TCXO
OCXO
VC-TCXO
FCXO
2.
VERSION
3.
PACKAGE CODE
Through hole
Surface mount
=
=
=
=
DIL 14
DIL 8
20 x 20 mm
36 x 27 mm
S1
S2
S3
S4
S5
S7
S8
S10
S11
S13
S15
S16
S17
=
=
=
=
=
=
=
=
=
=
=
=
=
epoxy
epoxy
epoxy
epoxy
plastic
epoxy
epoxy
ceramic
ceramic
epoxy
ceramic
ceramic
ceramic
14 x 9 mm
7 x 5 mm
9 x 7 mm
24 x 22 mm
14 x 9 mm
20 x 12 mm
20 x 12 mm
14 x 9 mm
7 x 5 mm
11 x 9 mm
5 x 3.2 mm
3.2 x 2.5 mm
2.5 x 2 mm
4.
INTERNAL
CODE
not for
T
customer use H
B
E
EC
LEC
L
O
S
5.
OUTPUT CODE
=
=
=
=
=
=
=
=
=
TTL
HCMOS
TTL & HCMOS
Negative ECL 10KH
Pos. ECL 10KH/100K
LVPECL 100K
LVDS
Clipped square wave
Sine wave
model no.
14
not for
4
customer use 20
36
6.
OPTION CODE
(IF NEEDED)
Z
L
R
P
G
T
A
V
Y
I
=
=
=
=
=
=
=
=
=
=
tri-state
low power model
tight symmetry
complimentary outputs
inverted pin-out
external trimmer
internal trimmer
external control voltage
external potentiometer
enable/disable
7.
PULLING RANGE
CODE
value in ppm
8.
INDICATION CODE
General
VCXO
X = overall frequency
stability 1 year or
long term ageing
code
A= 0.5 to 4.5 V range
center @ 2.5 V
(only DIL-14)
C= 0.5 to 10 V range
center @ 4.25 V
void = temperature
stability only
D= 0.3 to 3.0 V range
center @ 1.65 V
void = standard spec
A
L
B
M
D
I
Q
C
P
9.
TEMPERATURE
RANGE
= 0 to
= 0 to
= 0 to
= -10 to
= -10 to
= -10 to
= -20 to
= -20 to
= -25 to
50°C
60°C
70°C
50°C
60°C
70°C
60°C
70°C
75°C
K
R
N
T
F
E
G
H
= -30 to 60°C
= -30 to 70°C
= -30 to 75°C
= -30 to 85°C
= -40 to 70°C
= -40 to 85°C
= -55 to 105°C
= -55 to 125°C
10.
FREQUENCY STABILITY
frequency stability expressed in ppm, either as
an overall tolerance or as temperature
stability only.
11.
SUPPLY VOLTAGE / LONG TERM AGEING CODE
indicates the supply voltage value in Volts for models offering different
options of supply voltage for (VC)-TCXO
indicates long term ageing for surface mount PXO
NON-STANDARD SPECIFICATIONS
Specifications that cannot be covered by the above codes will be issued a unique specification number
TYPE
ORDERING CODE
REVISION
03
CHECKED
NE
DATE
23.07.2007
PAGE
FREQUENCY CONTROL PRODUCTS

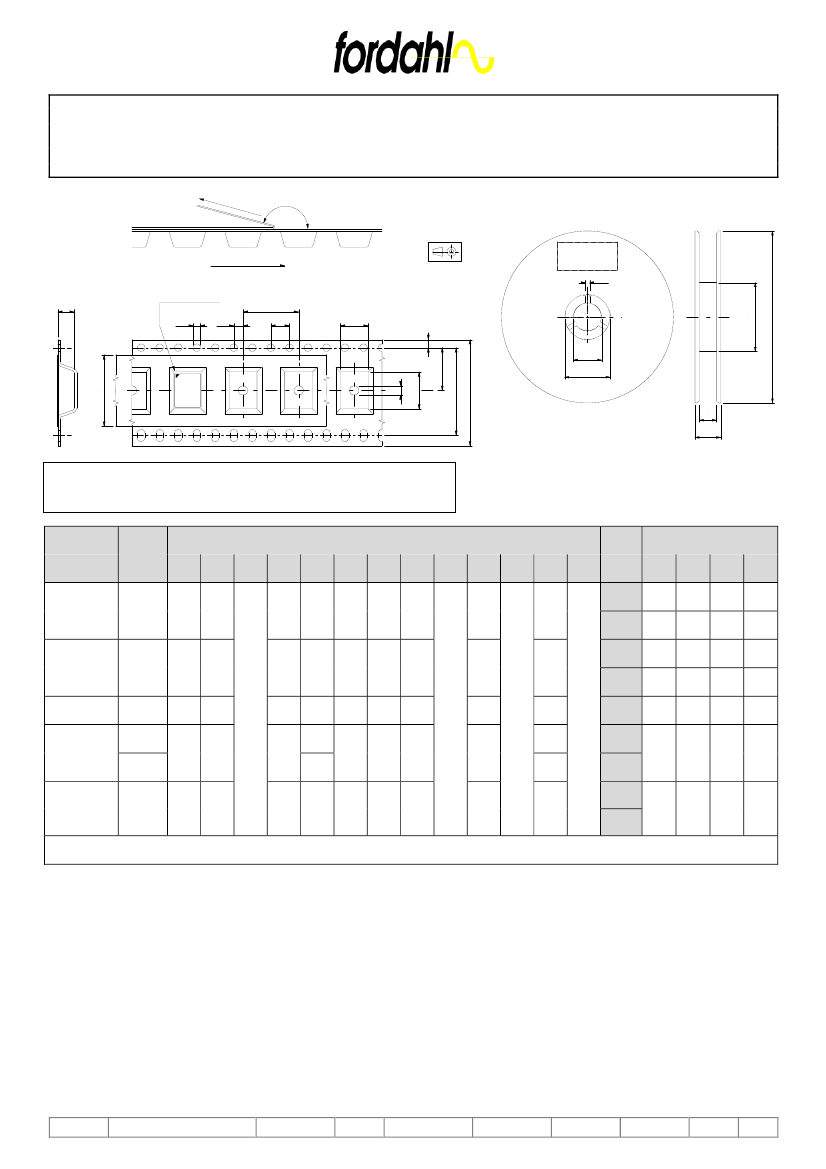

FORDAHL SMD PRODUCTS : TAPE & REEL DIMENSIONS
DIR
ECT
IO
NO
FP
ULL
> 165°
ING
DIRECTION OF UNREELING
LA L
BE
1.0
ORIENTATION MARKER
INDICATES PIN 1
K
D0
P2
P1
P0
A
C
E
D
13.0
F
FORDAHL TYPE
FR UE
EQ NCY
SPEC DATE
10.6
S W
T
D1
B
B
A
Materials:
Carrier tape
Cover tape
Reel
: conductive polycarbonate
: polyester, antistatic coated
: conductive or antistatic treated polystyrene
Product
Oscil.
type
PXO
VCXO
TCXO
PXO
VCXO
TCXO
TCXO
VCXO
S7
TCXO
13.2
20.2
14.2
8.0
A
B
E
F
K
S
Tape [mm]
T
W
D0
D1
P0
P1
P2
MOQ
[pcs]
250
A
27.8
30.5
19.8
21.4
49.6
Reel [mm]
B
24.7
26.1
16.7
17.0
45.2
C
60
100
60
100
100
D
180
330
180
330
330
S1
9.4
15
11.5
6.25
-
21.3
24
2.0
12
1000
500
S2
5.5
8.7
7.5
3.6
-
13.3
16
1.5
8
2000
S4
26.5
26.5
1.75
20.2
7.5
9.5
40.4
37.5
44
1.55
1.0
4.0
32
24
2.0
250
250
28.4
25.3
32
2.0
20
450
600
39.6
35.2
100
330
S8
PXO
13.2
20.2
14.2
5.3
28.4
25.3
32
2.0
20
250
39.6
35.2
100
330
Please consult factory for details on S5, S11, S15, S16 and S17
NOTICE
1.
Storage
Please store the products in room where temperature /
humidity is stable. Conditions should be:
Temperature
: 5 to 35°C
Humidity
: 30 to 60% RH
If products are stored for more than a year, solderability
may be degraded. Please confirm it regularly.
2.
Transportation
If you transport the products, please pack them so that
the package will not be damaged by mechanical
vibration / shock and please educate and guide a carrier
to prevent rough handling.
TYPE
HAND. GUIDELINES
REVISION
04
CHECKED
NE
DATE
21.09.2007
PAGE
1
FREQUENCY CONTROL PRODUCTS
RoHS SMD PRODUCTS SOLDERING GUIDELINES
1. WASHING CONDITIONS
Our non hermetic SMD products are strictly non-washable as liquid cleaning solutions could penetrate the base to cap seal.
No-washing type flux with no washing is highly recommended. Please consult factory for any other process.
2. REFLOW SOLDERING CONDITIONS
Reflow profile:
tL
t 25°C to Peak
tp
Tp
TL
T max
s
T min
s
T
emperature
25
ts
Time
Minimum preheat temperature
Maximum preheat temperature
Preheat time
Average ramp-up rate
Reflow temperature
Reflow time
Peak temperature
Peak time
Average down ramp rate
Time 25°C to peak temperature
Ts min
Ts max
Ts min to TS max
Ts max to Tp
TL
tL
TP
tp
PROFILE DATA
150°C
200°C
90 - 180 seconds
3°C/second max.
217°C
60 - 150 seconds
According to Jedec J-STD-020C
20 - 40 seconds
6°C/seconds max.
8 min max.
This profile is applicable for the following packages: S1, S2, S3, S4, S5, S7, S8, S11, S13, and S15
Additional recommendations:
•
•
•
•
do not vibrate during reflow soldering
do not reflow solder on back side
Only one reflow is allowed
solder adhesion may vary depending on the motherboard’s thermal capacity and other factors
Hand soldering (not recommended):
Maximum temperature: 300°C/5 sec, fine tipped soldering iron
TYPE
HAND. GUIDELINES
REVISION
05
CHECKED
NE
DATE
29.10.2007
PAGE
