3626B560K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 3626B560K

3626B560K: Description1 ELEMENT, 56uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size81KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3626B560K Overview

1 ELEMENT, 56uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

3626B560K Parametric

Parameter Name	Attribute value
package instruction	4439
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	4439
structure	Chip
core material	FERRITE
DC Resistance	0.2 Ω
Nominal inductance(L)	56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	3626B
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package height	4.8 mm
Package length	11.1 mm
Package form	SMT
Package width	10 mm
method of packing	TR
Maximum rated current	2 A
series	3626
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

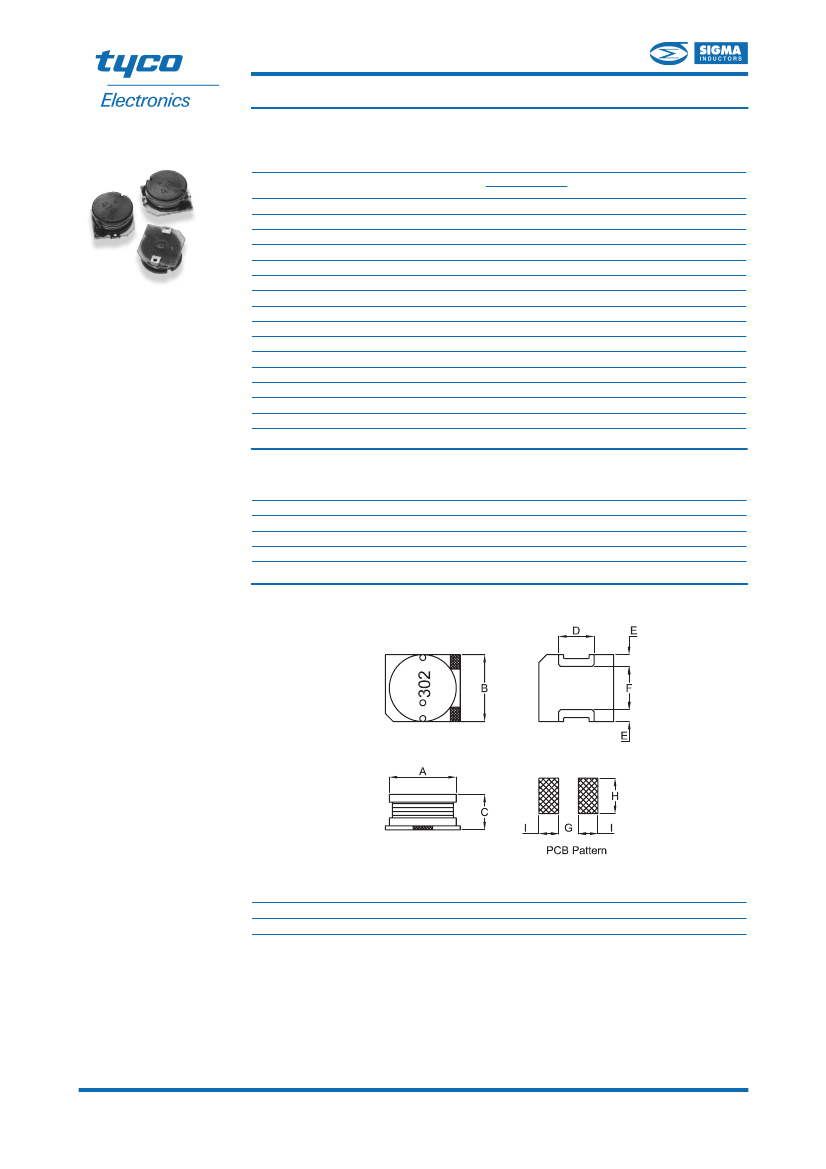

SMD Power Inductors

Type 3626 Series

Electrical Characteristics -

3626A Series

Inductance Inductance

Code

(µH)

471

470

561

560

681

680

821

820

102

1000

122

1200

152

1500

182

1800

222

2200

272

2700

302

3000

332

3300

392

3900

472

4700

502

5000

Tolerance

±10%

±20%

±10%

Ref.

Test Freq. (Hz)

796K

252K

S.R.F.

(MHz) Nom.

5.80

5.60

4.80

4.40

4.00

3.60

3.40

2.60

2.50

2.40

2.30

2.00

1.80

1.70

1.60

R.D.C.

(Ω) Max.

2.10

2.40

2.90

3.40

4.00

4.80

5.80

7.20

9.00

12.00

15.00

16.50

18.00

22.50

25.00

I.D.C.

(mA) Max.

The 3626 series with its low profile

makes this product very effective in

space – conscious applications and

designs. With its low resistance and

high energy storage capabilities the

products are highly suitable for use in

DC-DC converter applications, step up

or step down converters and flash

memory programmers.

Key Features

Available in 2 different sizes

Wide Inductance range

Low RDC

Low profile construction

Ferrite Core

Taped and reeled

Excellent Reliability

Environmental Characteristics -

3626A Series

Storage Temp:

Operating Temp:

Rated Current:

Temp. Rise:

-40°C to +125°C

-25°C to +105°C

Base on Temp. Rise &

∆L/L

= 10% Max.

40°C Max.

Dimensions

Series

3626A

7.5±0.3

3.5±0.2

4.0±0.2

2.5±0.2

2.6±0.3

2.2 ref.

4.6 ref.

2.8 ref.

Literature No. 1773151

Issued: 07-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
