5420FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5420FMQB

5420FMQB: DescriptionNAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size95KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5420FMQB Overview

NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14

5420FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknown
series	TTL/H/L
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.016 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	11 mA
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-STD-883 Class B
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.2865 mm
Base Number Matches	1

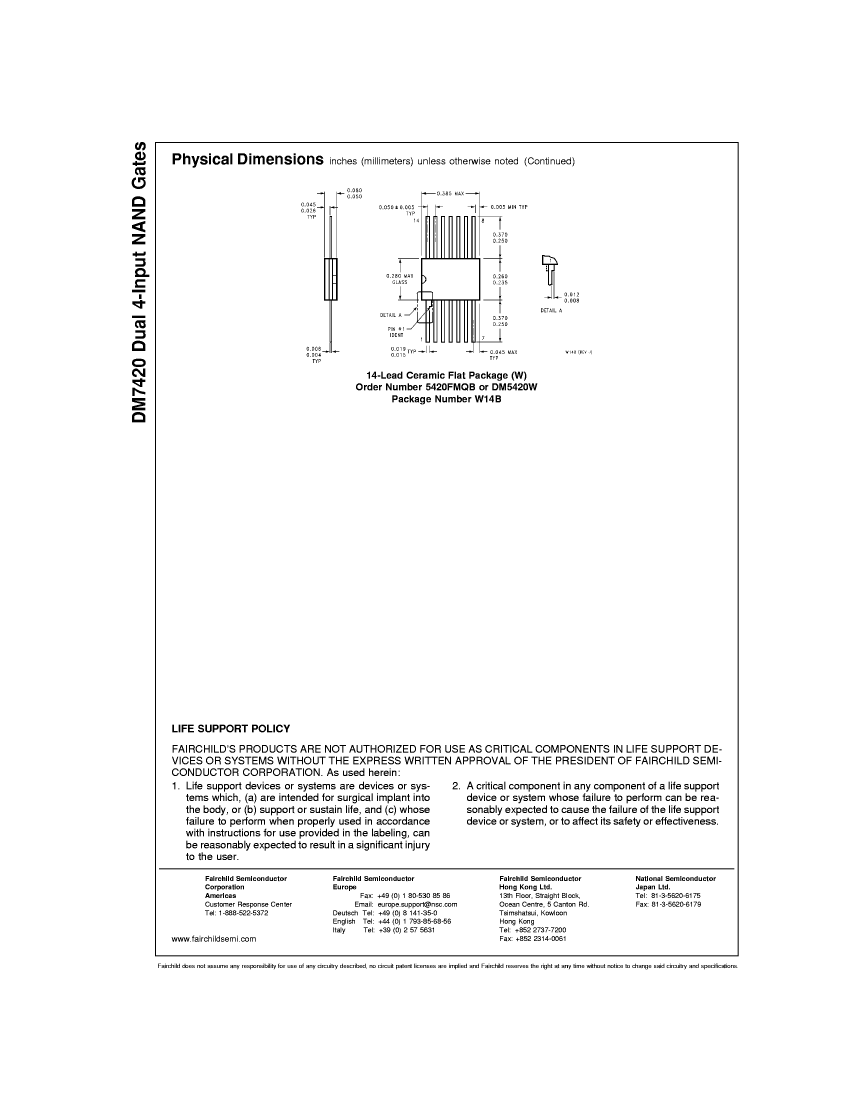

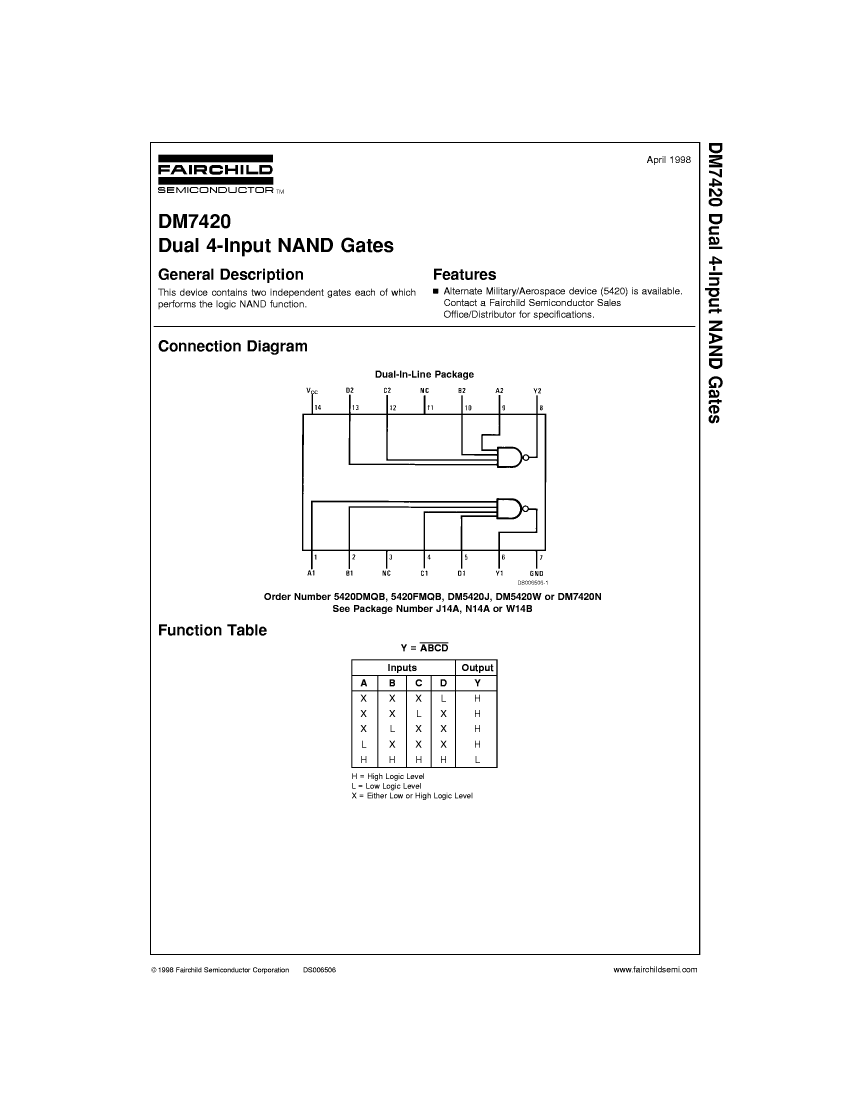

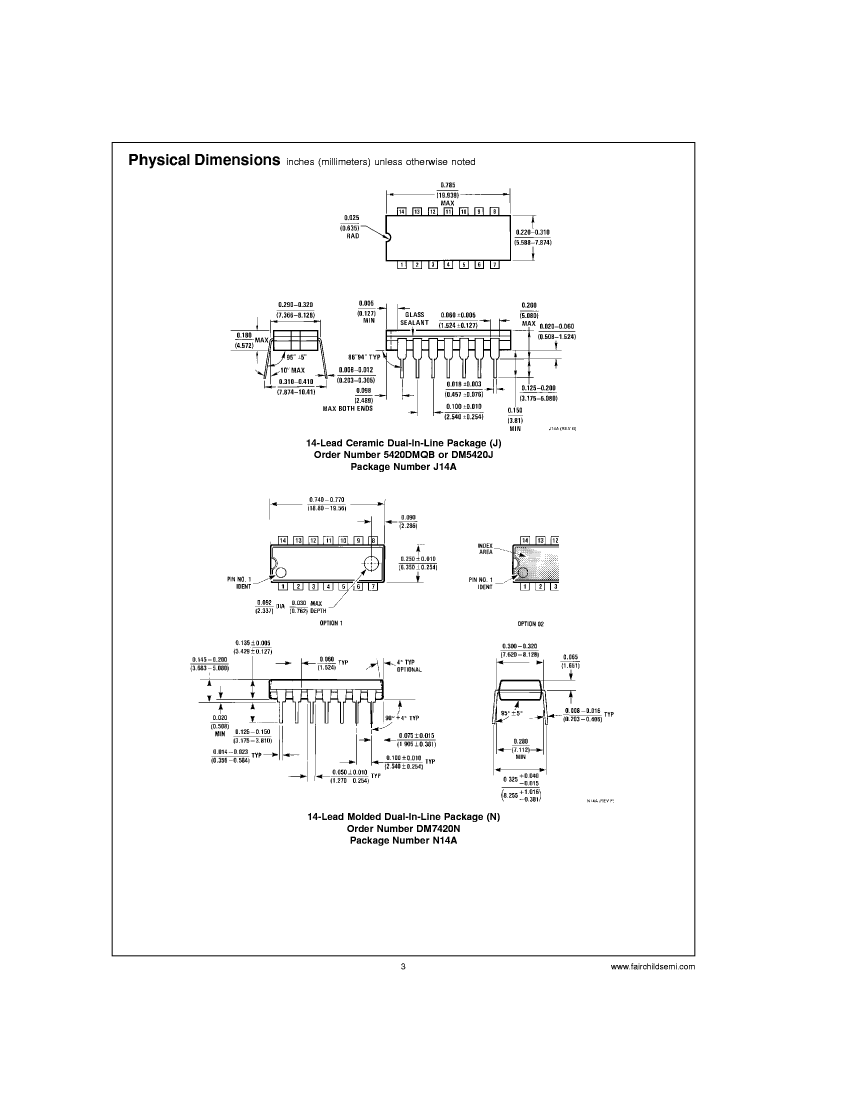

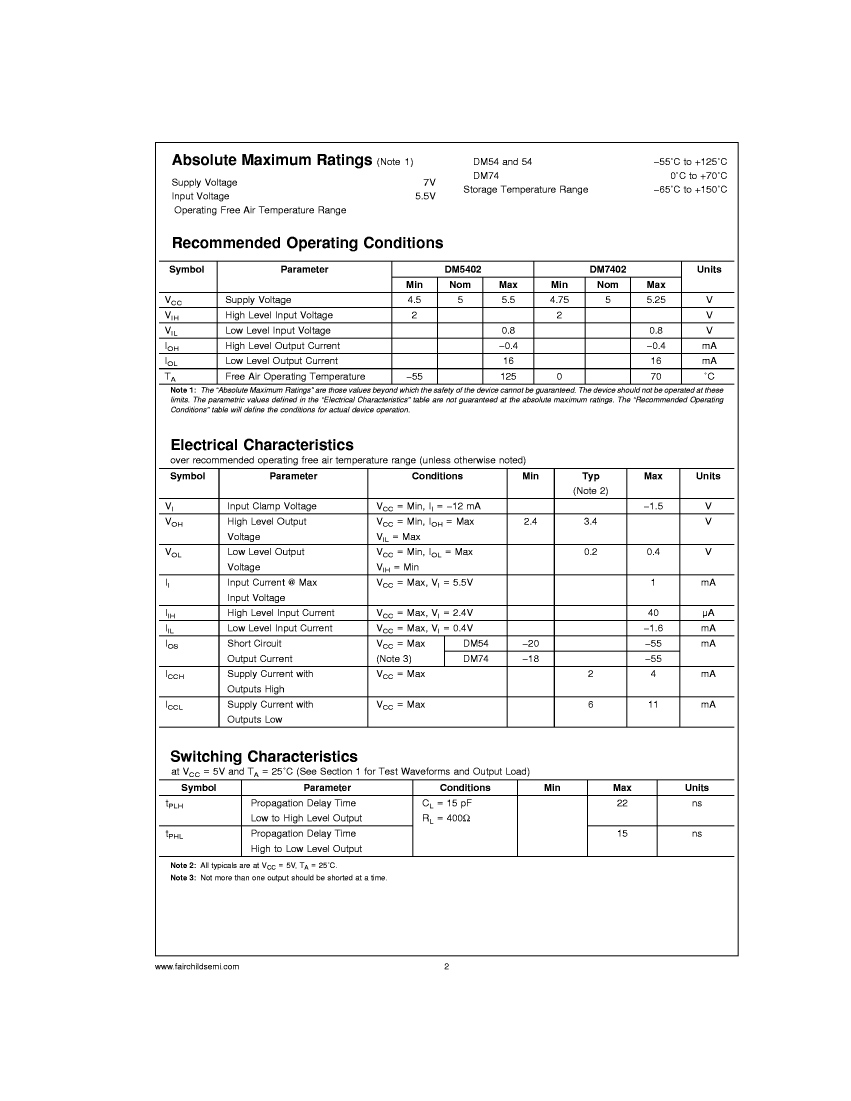

Preview

Download Datasheet

View All

5420FMQB Related Products

	5420FMQB	5420DMQB	DM5420J	DM5420W
Description	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DIP	DIP	DFP
package instruction	DFP, FL14,.3	CERAMIC, DIP-14	CERAMIC, DIP-14	DFP, FL14,.3
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	TTL/H/L	TTL/H/L	TTL/H/L	-
JESD-30 code	R-GDFP-F14	R-GDIP-T14	R-GDIP-T14	-
JESD-609 code	e0	e0	e0	-
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	-
MaximumI(ol)	0.016 A	0.016 A	0.016 A	-
Number of functions	2	2	2	-
Number of entries	4	4	4	-
Number of terminals	14	14	14	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-
encapsulated code	DFP	DIP	DIP	-
Encapsulate equivalent code	FL14,.3	DIP14,.3	DIP14,.3	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	FLATPACK	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	5 V	5 V	-
Maximum supply current (ICC)	11 mA	11 mA	11 mA	-
Prop。Delay @ Nom-Sup	22 ns	22 ns	22 ns	-
propagation delay (tpd)	15 ns	15 ns	15 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Schmitt trigger	NO	NO	NO	-
Maximum seat height	2.032 mm	5.08 mm	5.08 mm	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-
surface mount	YES	NO	NO	-
technology	TTL	TTL	TTL	-
Temperature level	MILITARY	MILITARY	MILITARY	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	6.2865 mm	7.62 mm	7.62 mm	-
Base Number Matches	1	1	1	-
Maker	-	Fairchild	Fairchild	Fairchild
