346-0100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 346-0100

346-0100: DescriptionAudio/RCA Connector, 1 Pole(s), Male, Locking, Plug; CategoryThe connector The connector; File Size192KB，1 Pages; ManufacturerDeltron

Download Datasheet Parametric Compare View All

346-0100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	346-0100	-	-	View	Buy Now

346-0100 Overview

Audio/RCA Connector, 1 Pole(s), Male, Locking, Plug

346-0100 Parametric

Parameter Name	Attribute value
Maker	Deltron
Reach Compliance Code	compliant
audio type	PHONO
subject depth	1.772 inch
Body diameter	0.417 inch
Body/casing type	PLUG
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
Contact style	RND PIN-SKT
Insulation resistance	100000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	346
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of connectors	ONE
Number of poles	1
Number of ports	1
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
reliability	COMMERCIAL
Base Number Matches	1

Preview

Download Datasheet

View All

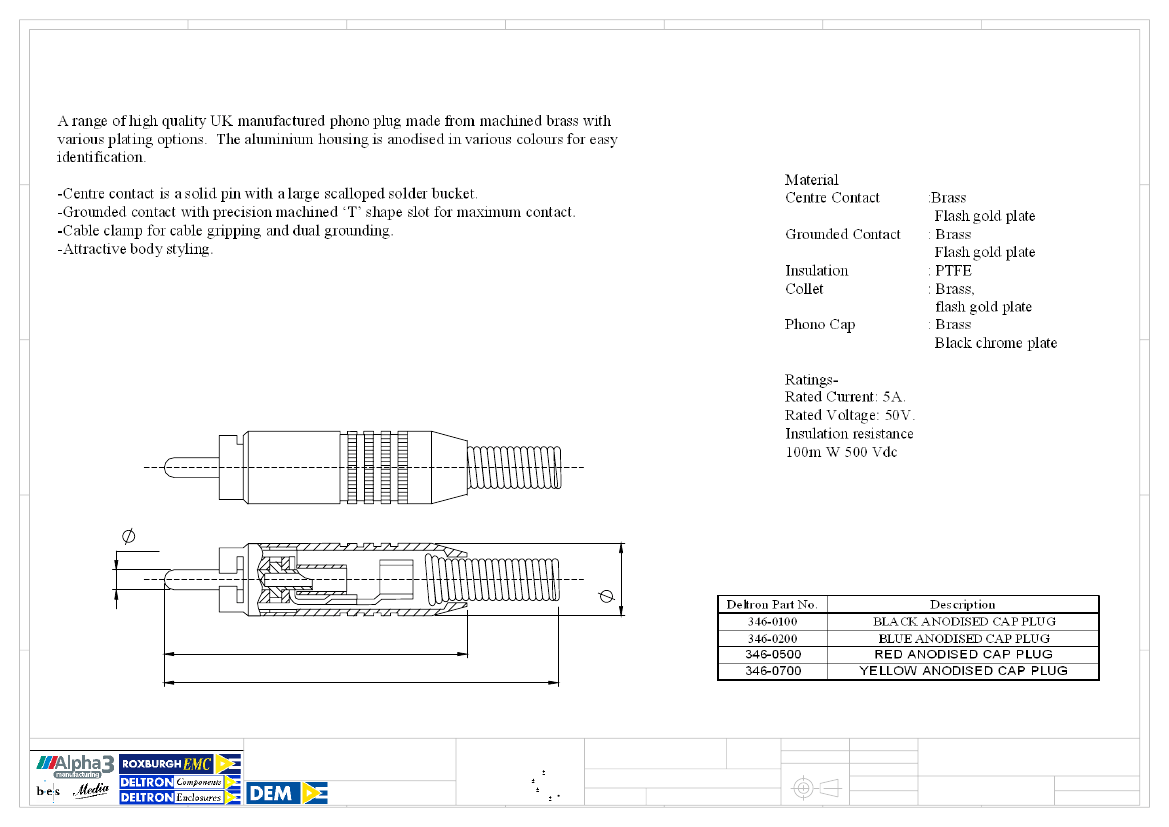

Dimensions

3.2

10.6

60.5

Tel No. +44(0)1724 273200 Website www.dem-uk.com

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

ALPHA 3 MANUFACTURING.

ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF

ALPHA 3 MANUFACTURING

IS PROHIBITED.

DEM Manufacturing, Deltron Emcon House

Hargreaves Way, Sawcliffe Ind. Park,

Scunthorpe, North Lincolnshire, DN15 8RF, UK

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETRES

LINEAR TOLERANCE:

NO DECIMAL PLACES 0.5mm

1 DECIMAL PLACE 0.25mm

2 DECIMAL PLACES 0.125mm

ANGULAR TOLERANCE: 1

FINISH

PROFESSIONAL

PHONO PLUG

IF IN DOUBT ASK

DO NOT SCALE DRAWING

DEBURR AND BREAK

SHARP EDGES

DRAWN BY

APPROVED BY

THIRD ANGLE PROJECTION

SPB

SHEET 1 OF 1

SCALE 1:1

TITLE

DRAWING NO.

GENERAL SPECIFICATION

346 SERIES

PHONO PLUG

ISSUE

MATERIAL

SEE NOTE

346 SERIES

Release

346-0100 Related Products

	346-0100	346-0700
Description	Audio/RCA Connector, 1 Pole(s), Male, Locking, Plug	Audio/RCA Connector, 1 Pole(s), Male, Locking, Plug
Maker	Deltron	Deltron
Reach Compliance Code	compliant	compliant
audio type	PHONO	PHONO
subject depth	1.772 inch	1.772 inch
Body diameter	0.417 inch	0.417 inch
Body/casing type	PLUG	PLUG
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
Contact to complete cooperation	AU	AU
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
Contact style	RND PIN-SKT	RND PIN-SKT
Insulation resistance	100000000 Ω	100000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	346	346
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE
Number of poles	1	1
Number of ports	1	1
Plating thickness	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A
reliability	COMMERCIAL	COMMERCIAL
Base Number Matches	1	1
