Printview: Stackable PCB terminal block; 4 mm²; Pin spacing 5 mm; 1-pole; CAGE CLAMP® - Item No.:
745-3807
.
Stackable PCB terminal block; 4 mm²; Pin spacing 5 mm; 1-pole;
CAGE CLAMP®
Item No.: 745-3807
.

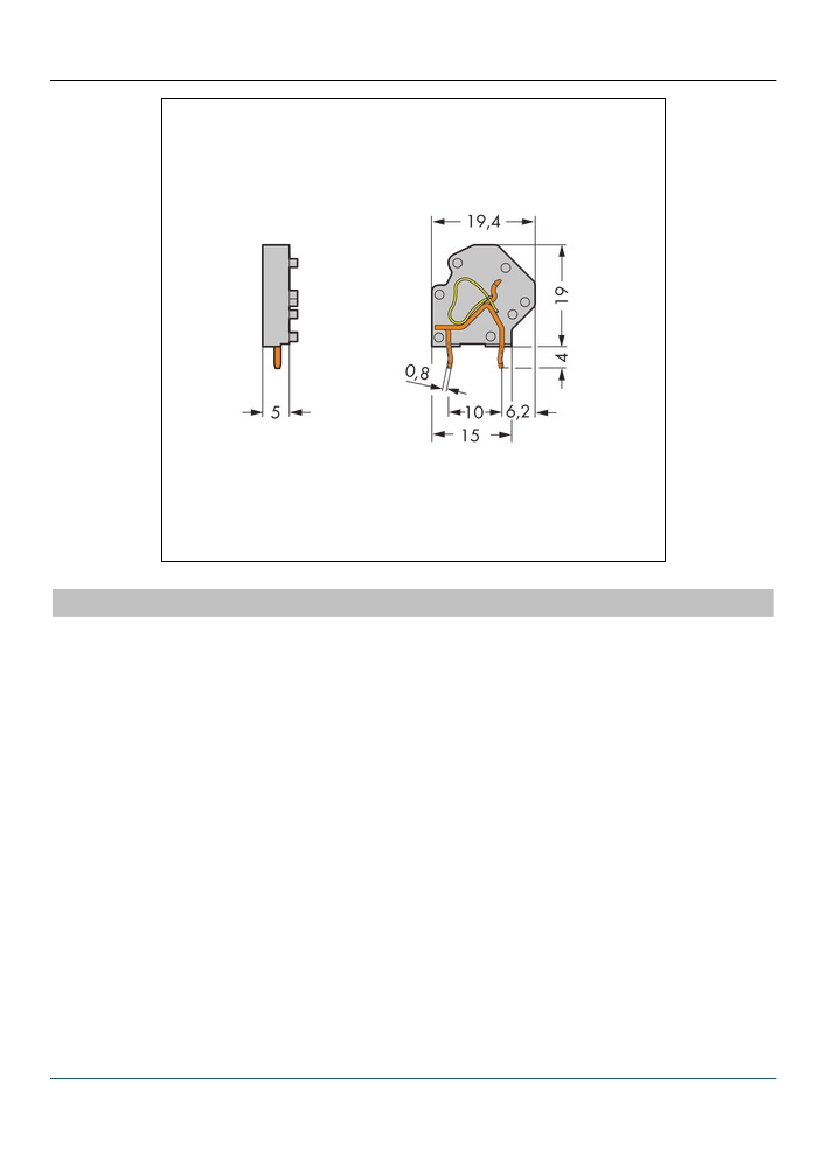

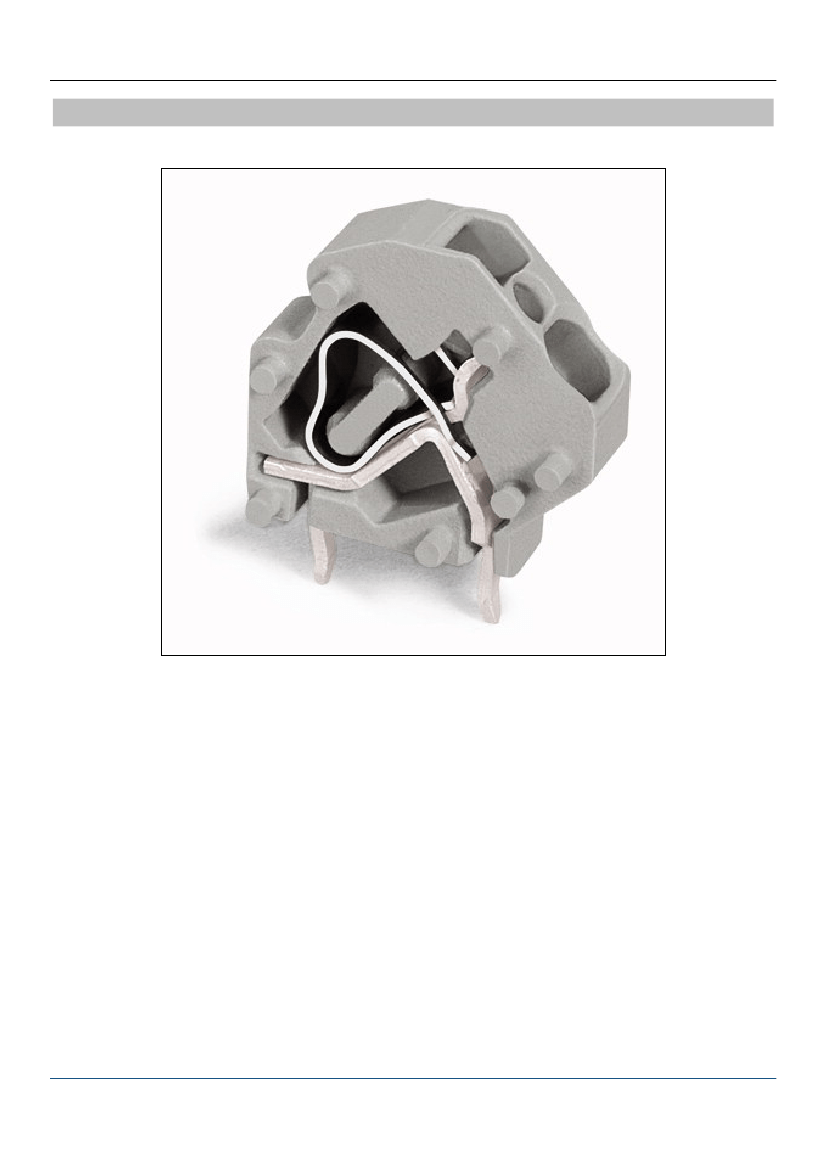

Stackable PCB terminal block; 4 mm²; Pin spacing 5 mm; 1-pole; CAGE CLAMP®
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
745-3807
4045454001230
1
50
Item description:Modular terminal blocks with screwdriver-actuated CAGE CLAMP® for custom terminal strip
assembliesAlso available with Ex e approvalSpacers for higher voltage applicationsDouble solder pins for high
mechanical stabilitySaves spaces thanks to positioning of terminal strips behind one anotherIntegrated testing tap
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
1
5 mm (0.197 in)
1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Stackable PCB terminal block; 4 mm²; Pin spacing 5 mm; 1-pole; CAGE CLAMP® - Item No.:
745-3807
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
1
green-yellow
IEC/EN 60664-1
320 [V]
4 [kV]
2
320 [V]
4 [kV]
630 [V]
4 [kV]
32 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
CAGE CLAMP®
1
Operating tool
0.08 … 4 mm² / 28 … 12 AWG
0.08 … 4 mm² / 28 … 12 AWG
0.25 … 2.5 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 2.5 mm² / …
Strip length
Conductor entry angle to the PCB [°]
Solder pin arrangement
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact material
Contact plating
8 … 9 mm / 0.31 … 0.35 Inch
45 [°]
in line
4 [mm]
1.5(+ 0.1) [mm]
I
Polyamide 66 (PA 66)
V0
-60 … 105 °C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Stackable PCB terminal block; 4 mm²; Pin spacing 5 mm; 1-pole; CAGE CLAMP® - Item No.:
745-3807
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
