This specification is applied to SAW filters ACTF2005/155.0/QCC8C (155MHz),
AND ACTF2006/163.0/QCC8C (163MHz) and ACTF378/281.0/QCC8C (281MHz)
for pager applications.
1. Package Dimension
(QCC8C)
Pin
2
6
1,3, 5,7
4,8
Sign
A
B
C
D
Data (unit: mm)
2.08
0.60
1.27
2.54
Configuration
Input / Output
Output / Input
To be Grounded
Case Ground
Sign
E
F
G
H
Data (unit: mm)
1.20
1.35
5.00
5.00

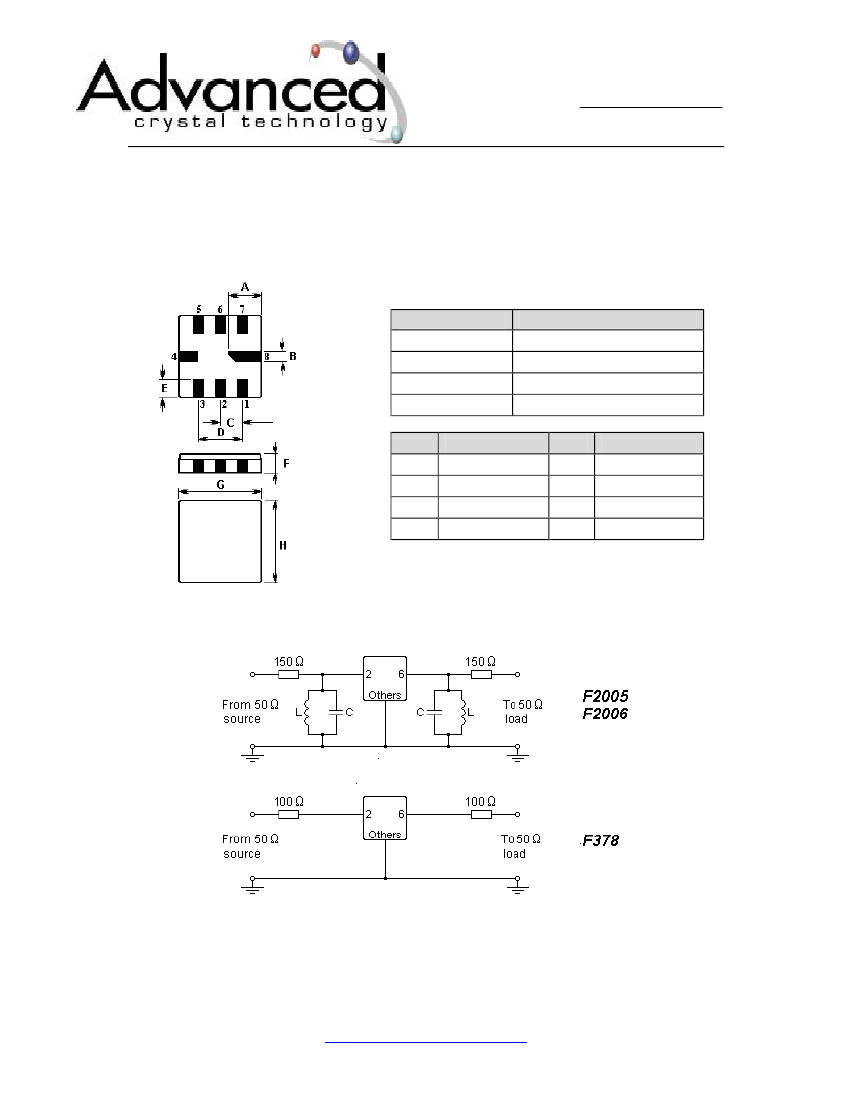

2. Test Circuits
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com
3. Performance
3-1.Maximum Ratings
Rating
DC Voltage
AC Voltage
Storage temperature
Operation temperature
RF Power Dissipation
V
DC
V
PP
T
stg
T
A
P
Value
+15 V max.
10V 50Hz / 60Hz
-45
°C
to +85
°C
-10
°C
to +65
°C
0 dBm
3-2.Electrical characteristics
Item
Centre Frequency
Insertion Loss
f
C
-100.0MHz to f
C
-46.8MHz
f
C
-46.8MHz to f
C
-38.8MHz
f
C
±4.0MHz
f
C
+38.8MHz to 2.5×f
C
Input/Output Impedance
50 min.
50 min.
6.5 max.
42 min.
210 // -12.3
50 min.
50 min.
6.5 max.
42 min.
210 // -11.0
50 min.
50 min.
4.5 max.
45 min.
150 // 0
dB
dB
dB
dB
Ω
// pF
F2005
155.0
F2006
163.0
F378
281.0
Unit
MHz
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com

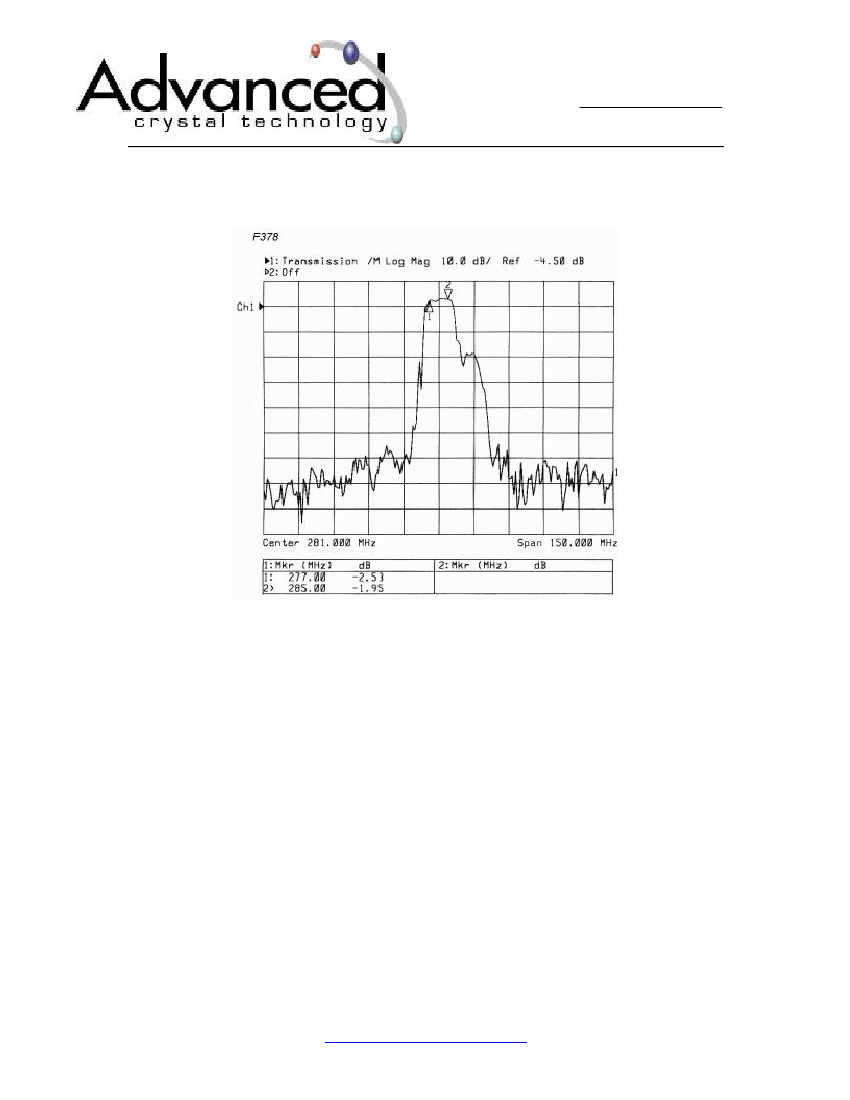

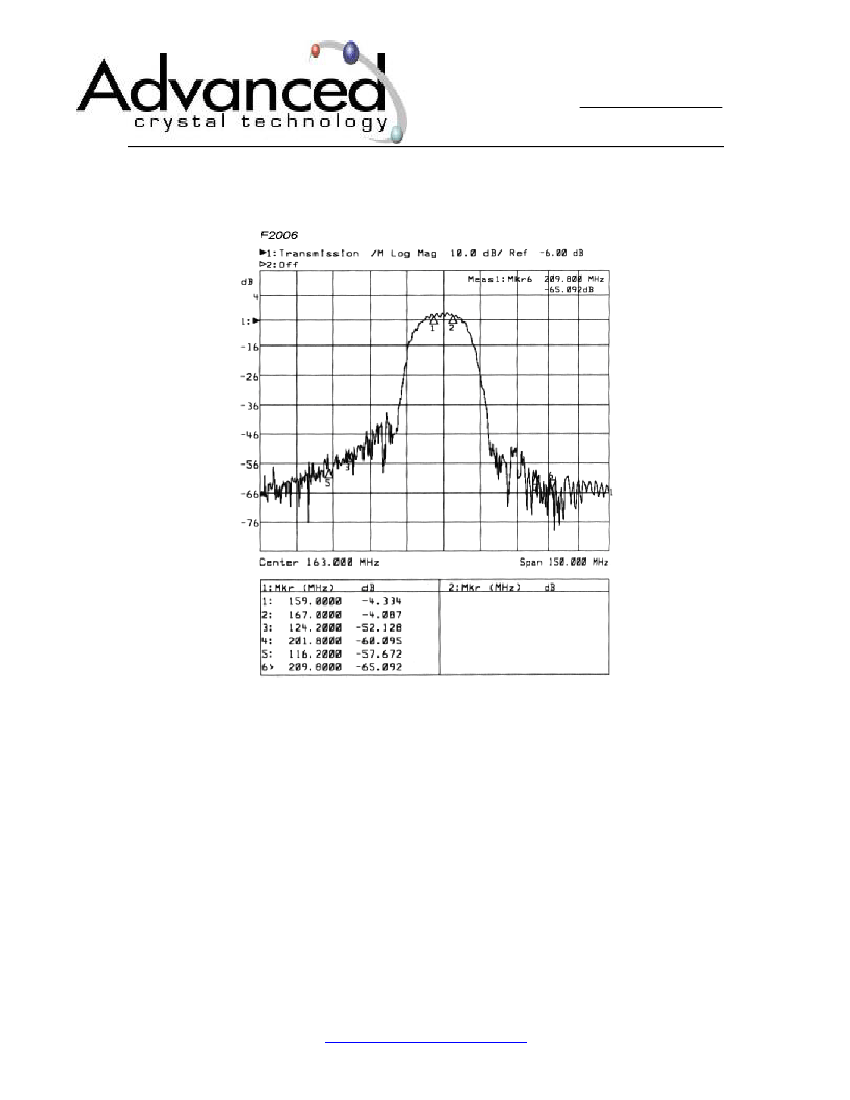

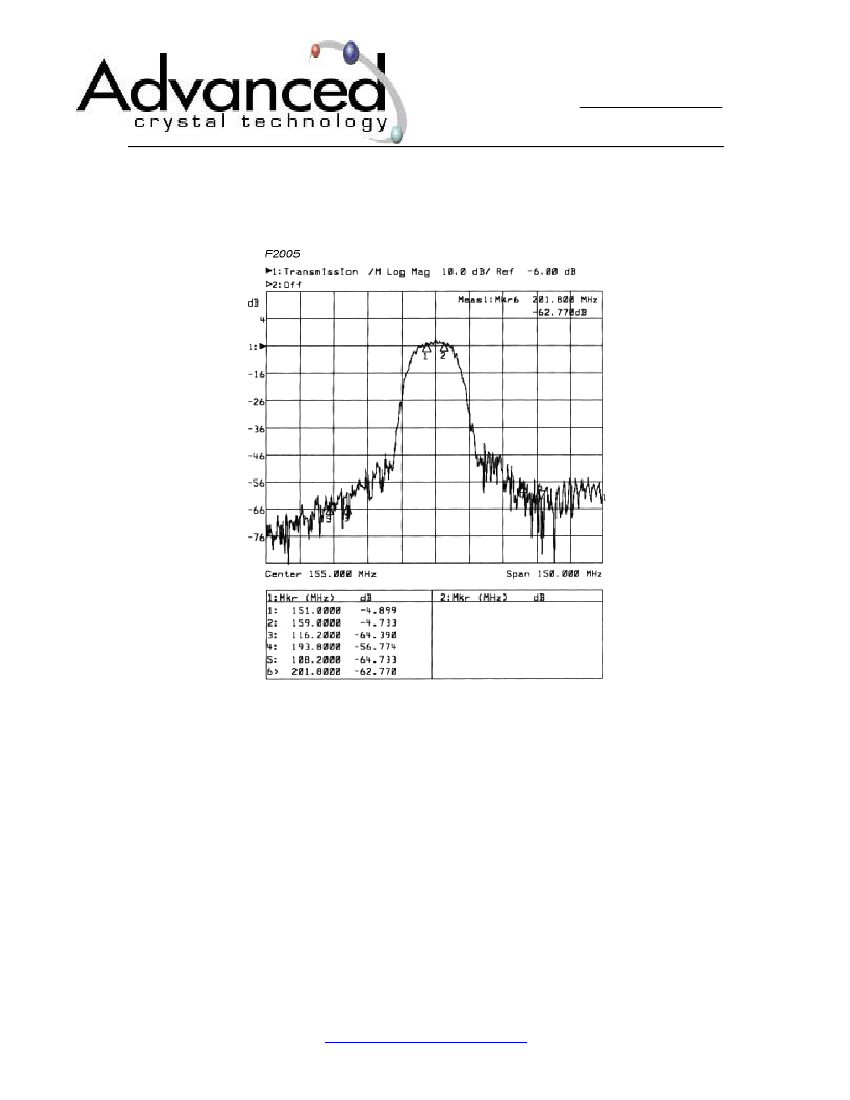

4. Typical Frequency Response
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com
i
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling
!
1.
2.
3.
4.
5.
6.
The frequency f
C
is defined as the midpoint between the 3dB frequencies.
Unless noted otherwise, all measurements are made with the filter installed in the specified test fixture that is
connected to a 50
Ω
test system with VSWR
≤1.2:1.
The test fixture L and C are adjusted for minimum
insertion loss at the filter centre frequency, f
C
. Note that insertion loss, bandwidth, and passband shape are
dependent on the impedance matching component values and quality.
Unless noted otherwise, specifications apply over the entire specified operating temperature range.
The specifications of this device are based on the test circuit shown above and subject to change or
obsolescence without notice.
All equipment designs utilizing this product must be approved by the appropriate government agency prior to
manufacture or sale.
Our liability is only assumed for the Surface Acoustic Wave (SAW) component(s) per se, not for applications,
processes and circuits implemented within components or assemblies.
