A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
SURFACE MOUNT LED LAMPS
0805 YELLOW SMD Chip LED Lamps
Part Number: AL-HY035A

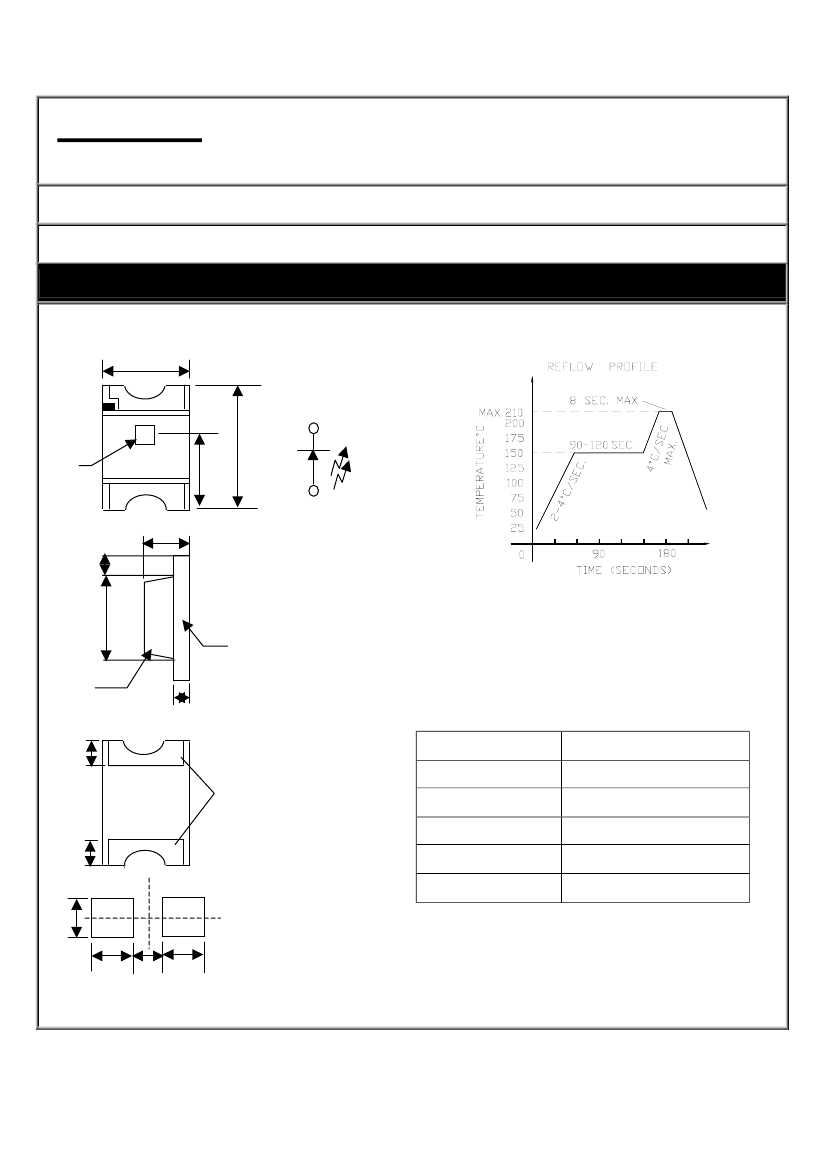

Package outlines & Re-flow Profile
Reflow Temp/Time
1.25
2.0
1.25
LED Die
1.1
0.3
PCB
Resin
0.4
0.5
Soldering terminal
Soldering iron
Basic spec is 5sec when 260℃. If temperature is higher, time
should be shorter (+10℃ -1sec ).Power dissipation of iron
should be smaller than 15W, and temperatures should be
controllable .Surface temperature of the device should be under
230℃ .
1.4
0.4
1.2
.2
0.9
1.2
ITEM
Resin (mold)
Lens color
Printed circuit board
Dice
Emitted color
MATERIALS
Epoxy
Water Clear
BT
GaAs/GaP
YELLOW
NOTES:
1.
2.
3.
4.
All dimensions are in millimeters (inches);
Tolerances are
±0.1mm
(0.004inch) unless otherwise noted.
Soldering terminal may shift in x, y direction.
Polarity referring on to the Cathode mark is reversed on the
red.
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
SURFACE MOUNT LED LAMPS
Part Number: AL-HY035A
ELECTRO-OPTICAL CHARACTERISTICS
Parameter
Viewing angle at 50% Iv
Forward voltage
CIE Coordinates
Luminous intensity
WAVELENGTH
(T
A
=25℃)
Value
120
2.10
2.60
Test
Symbol
Condition
If=10mA
(Typ.)
(Max.)
X (Typ.)
Y (Typ.)
(Typ.)
λp(nm)
λd(nm)
Unit
Deg
V
--
θ
Vf
--
Iv
If=20mA
If=20mA
If=20mA
If=20mA
6
583
585
mcd
nm
Absolute maximum ratings
Parameter
Forward current
Reverse voltage
Operating temperature range
Storage temperature range
Peak pulsing current (1/8 duty f=1kHz)
(T
A
=25℃)
Symbol
If
Vr
Value
30
5
-20 ~+80
-20 ~+100
100
Unit
mA
V
℃
℃
mA
Top
Tstg
Ifp
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
SURFACE MOUNT LED LAMPS
Part Number: AL-HD035A
Test items and results of reliability
Type
Test Item
Temperature Cycle
Thermal Shock
REF.
Standard
JIS C 7021
(1977)A-4
MIL-STD-
107D
JIS C 7021
(1977)A-5
JIS C 7021
(1977)B-10
JIS C 7021
(1977)B-11
JIS C 7021
(1977)B-12
JIS C 7035
(1985)
＊
＊
Test Conditions
-20℃
⇒
25℃
⇒
80℃
⇒
25℃
30mins, 5mins, 30mins, 5mins
-20℃
⇒
80℃
15mins, 15mins
30℃
⇒
65℃
90%RH 24hrs/1cycle
T
a
=80℃
T
a
=60℃
RH=90%
T
a
=－30℃
T
a
=25℃
I
F
=20mA
60℃
RH=90%
I
F
=20mA
T
a
=-20℃
I
F
=20mA
Note
100 cycle
100 cycle
10 cycle
1000 hrs
1000 hrs
1000 hrs
1000 hrs
500 hrs
1000 hrs
Number of
Damaged
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
0/100
Environmental
Sequence
High Humidity
Heat Cycle
High Temperature
Storage
Humidity Heat Storage
Low Temperature
Storage
Operation
Sequence
Life Test
High Humidity Heat
Life Test
Low Temperature Life
Test
＊Refer
to reliability test standard specification for in this line.
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
TYPICAL ELECTRICAL-OPTICAL CHARACTERISTICS CURVES
1.0
(A)
(B)
(C) (D)
(2) (3) (8)
(1)(6)
(5)
(9)
(10)
0.5
0
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
Wavelength(nm)

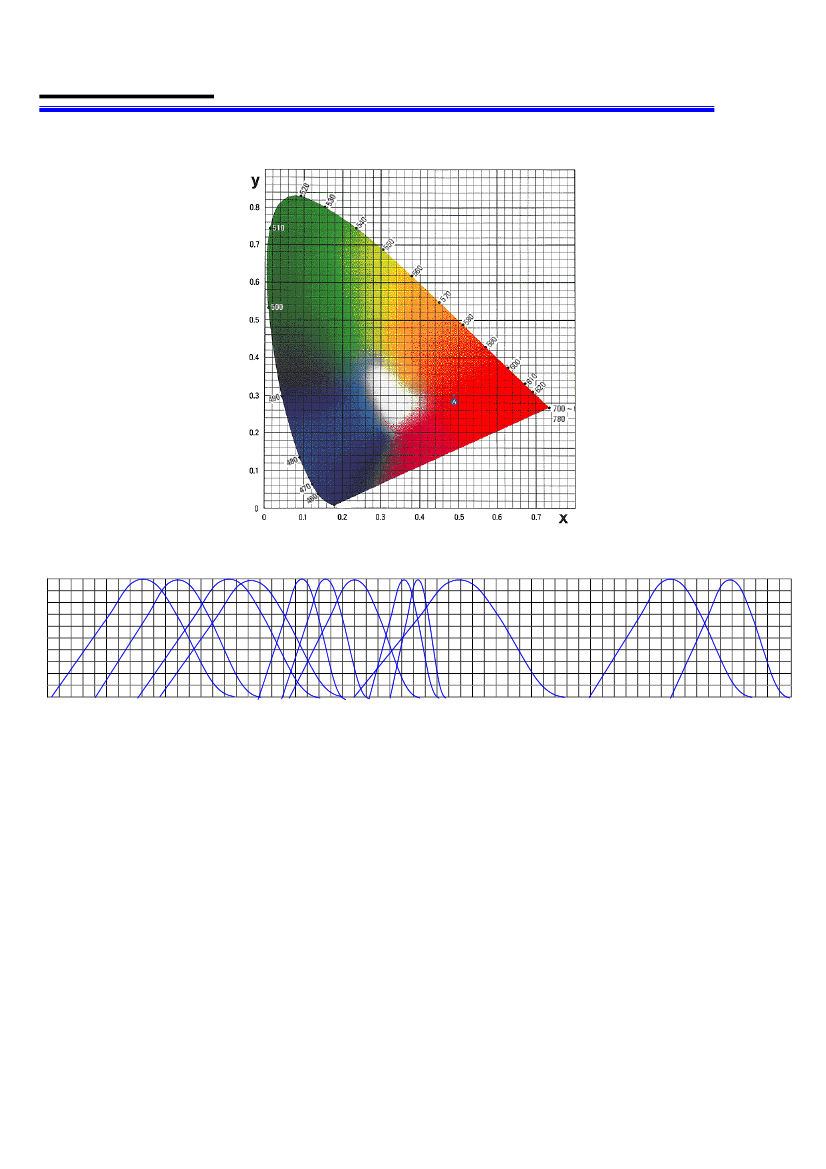

RELATIVE INTENSITY VS. WAVELENGTH(λd)
(1) wGaAsP/GaAs 655nm/Red
(2) wGaP 568nm/ Yellow Green
(3) wGaAsP/GaP 585nm/Yellow
(4) wGaAsP/GaP 635nm/Orange & Hi-Eff Red
(5) wGaP 700nm/Bright Red
(6) wGaAlAs/GaAs 660nm/Super Red
(8)wGaAsP/GaP 610nm/Super Red
(9)- GaAlAs 880nm
(10)-GaAs/GaAs&GaAlAs/GaAs 940nm
(A)- GaN 430nm/Blue
(B)- InGaN 470nm/Blue
(C)- InGaN 502nm/Ultra Green
(D)- InGaAl 523nm/Ultra Green
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.

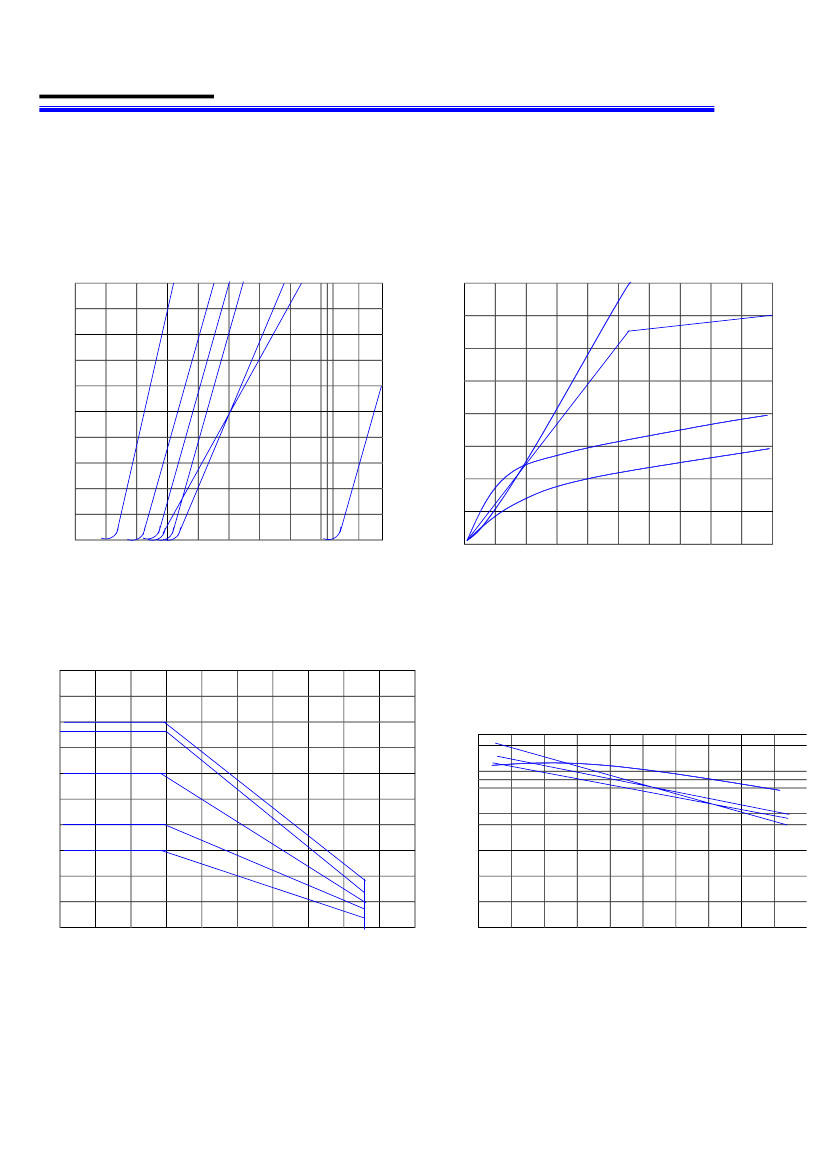

CHARACTERISTICS DIAGRAMS
50
FORWARD CURRENT(mA)
FORWARD CURRENT(mA)
0
40
30
20
10
0
FORWARD CURRENT VS. FORWARD VOLTAGE
8
1
645
2 3
RELATIVE LUMINOUS INTENSITY
RELATIVE LUMINOUS INTENSITY VS.
4.0
FORWARD CURRENT
2,3,4,6,8
1
3.0
B
D
2.0
5
B
1.0
D
1.2
1.6
2.0
2.4
2.6 3.0 3.5 4.0
0
20
40
60
80
100
FORWARD VOLTAGE (Vf)
FORWARD CURRENT VS. AMBIENT
TEMPERATURE
50
40
30
20
10
1
6
2,4,8,A
3
5
RELATIVE LUMINOUS INTENSITY
3
5
4
1 23
2
0.5
5
0.2
0.1
FORWARD CURRENT(mA)
1
20
40
60
80
100
20
40
60
80
100
AMBIENT TEMPERATURE Ta(℃)
AMBIENT TEMPERATURE Ta(℃)
