54F534LM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F534LM

54F534LM: DescriptionBus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size192KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F534LM Overview

Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20

54F534LM Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

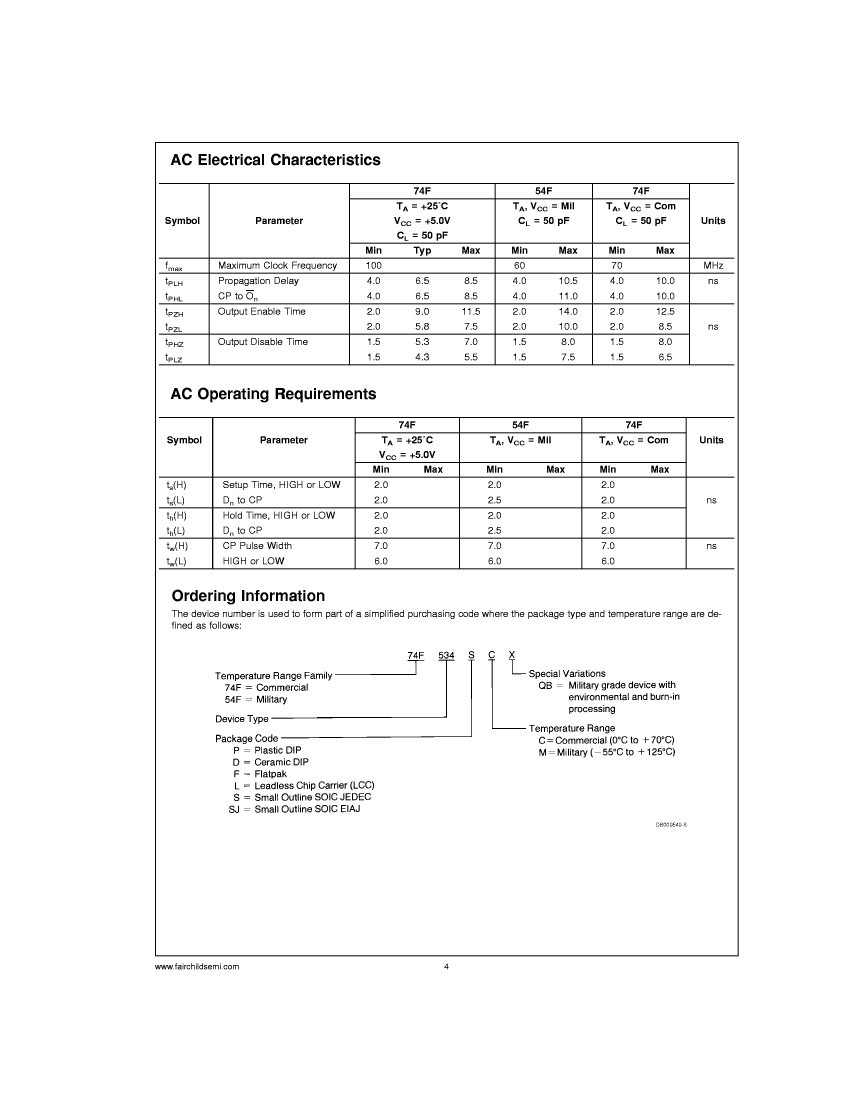

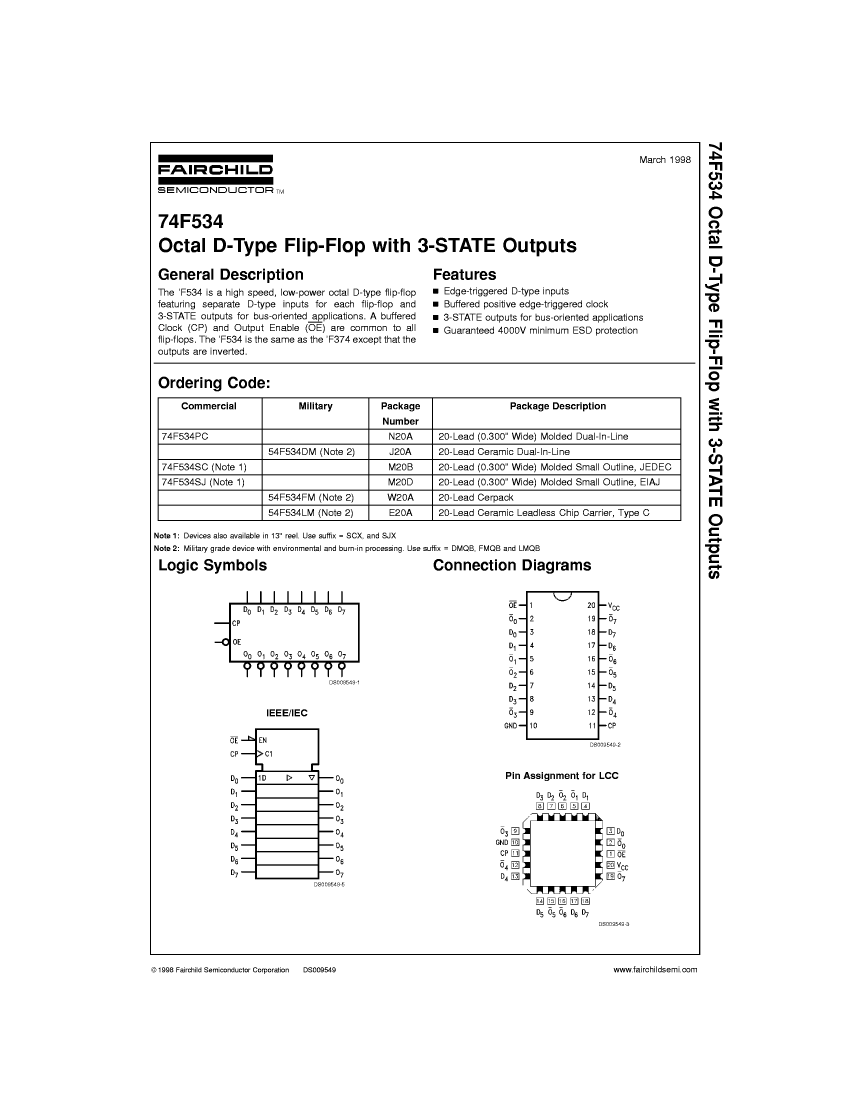

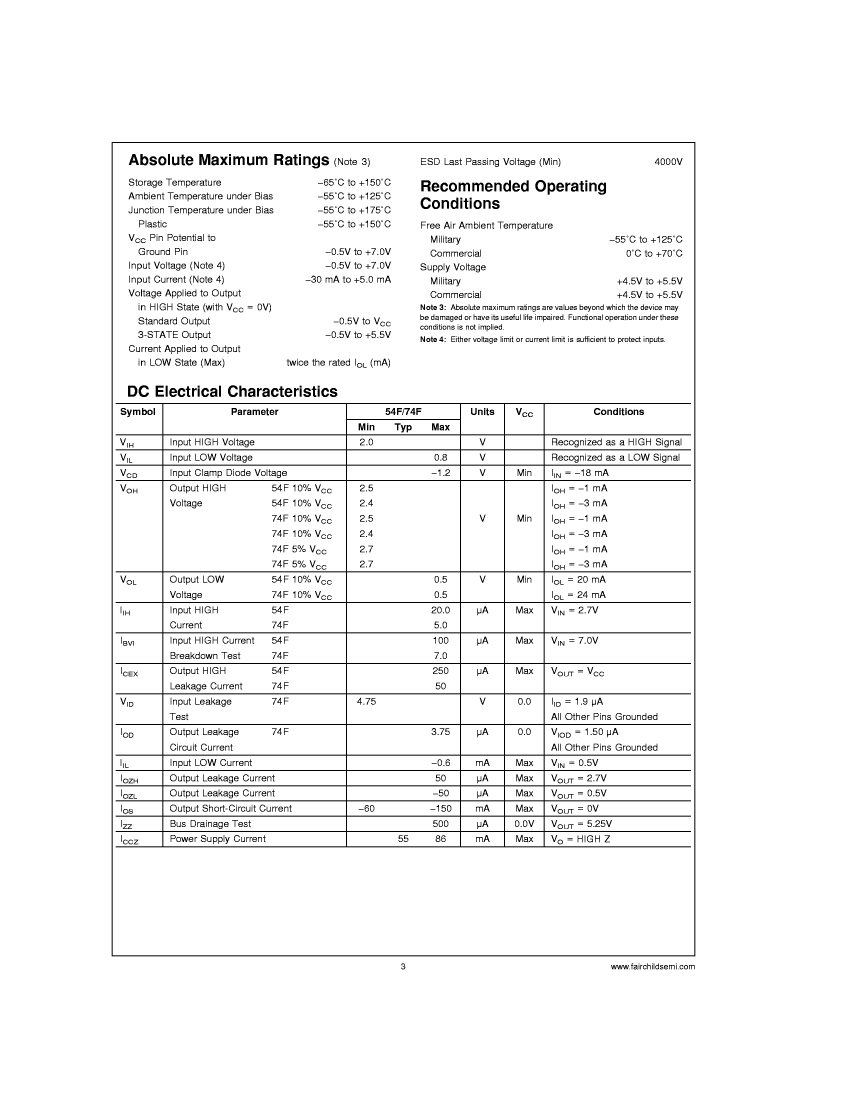

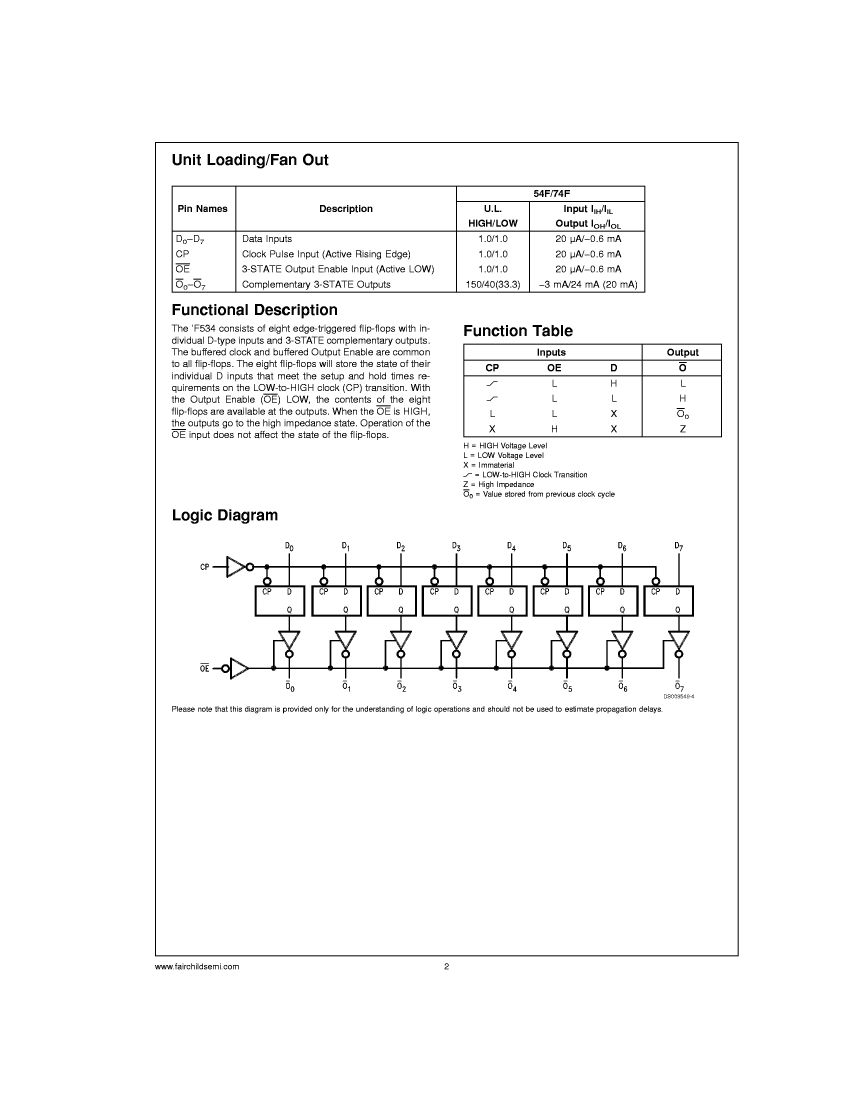

Preview

Download Datasheet

View All

54F534LM Related Products

	54F534LM	54F534LMQB	54F534DM	54F534DMQB	54F534FM	54F534FMQB
Description	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20
Parts packaging code	QLCC	QLCC	DIP	DIP	DFP	DFP
package instruction	QCCN,	QCCN, LCC20,.35SQ	CERAMIC, DIP-20	DIP, DIP20,.3	DFP, FL20,.3	DFP, FL20,.3
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T20	R-GDIP-T20	R-GDFP-F20	R-GDFP-F20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	DIP	DFP	DFP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	FLATPACK
propagation delay (tpd)	11 ns	11 ns	11 ns	11 ns	11 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	1.905 mm	5.08 mm	5.08 mm	2.286 mm	2.286 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
width	8.89 mm	8.89 mm	7.62 mm	7.62 mm	6.731 mm	6.731 mm
Base Number Matches	1	1	1	1	1	1
length	8.89 mm	8.89 mm	24.51 mm	24.51 mm	-	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	e0	e0	e0	e0	e0
Encapsulate equivalent code	-	LCC20,.35SQ	DIP20,.3	DIP20,.3	FL20,.3	FL20,.3
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-	5 V	5 V	5 V	5 V	5 V
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
