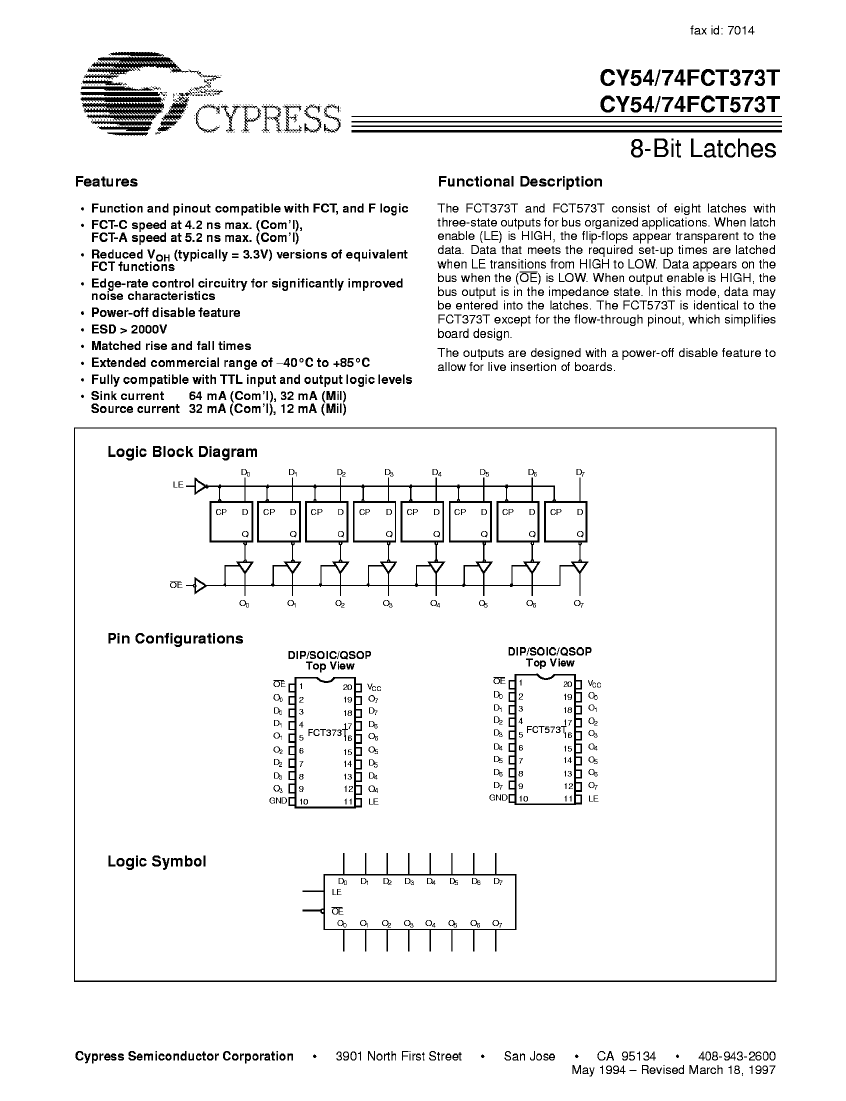

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20

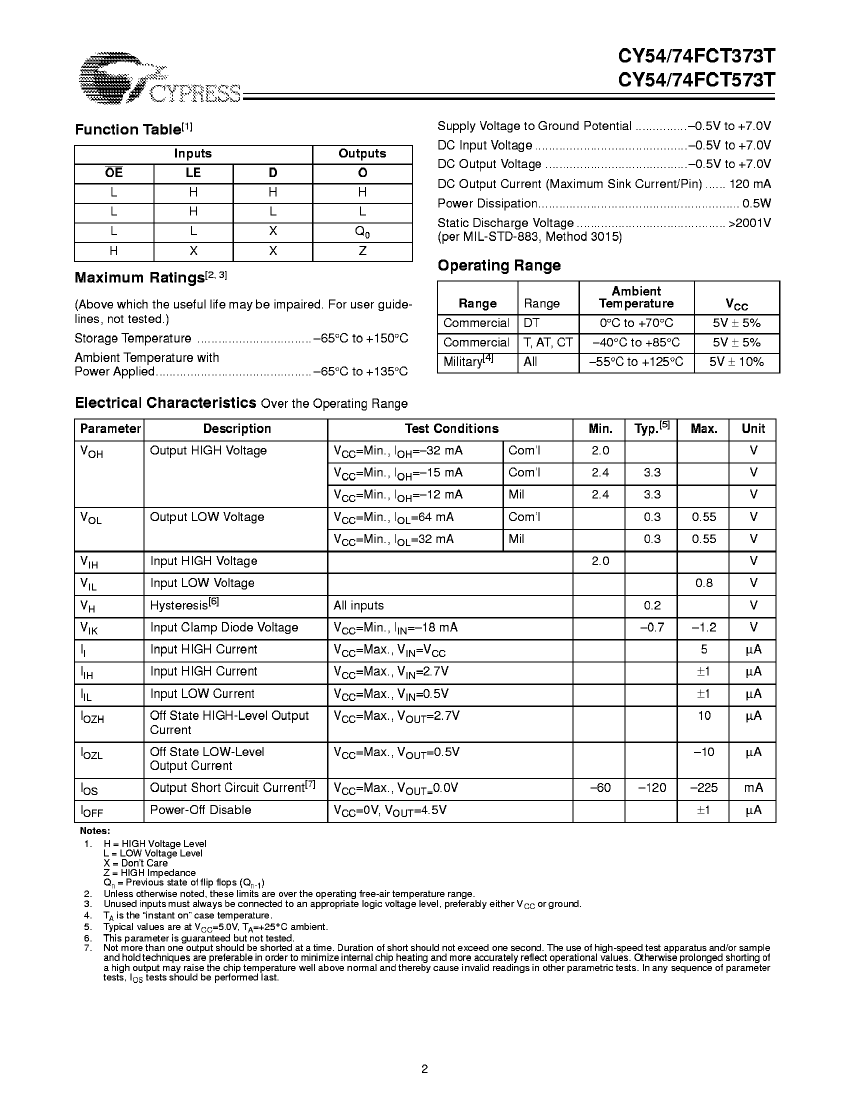

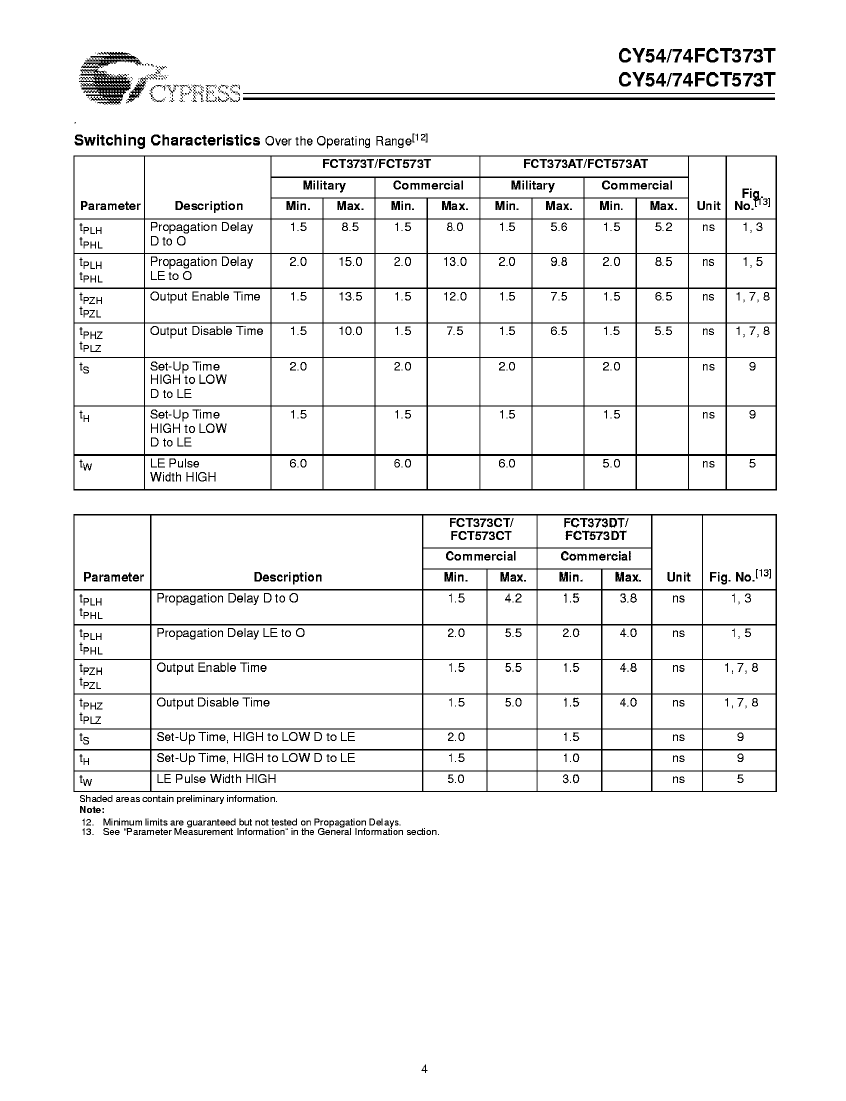

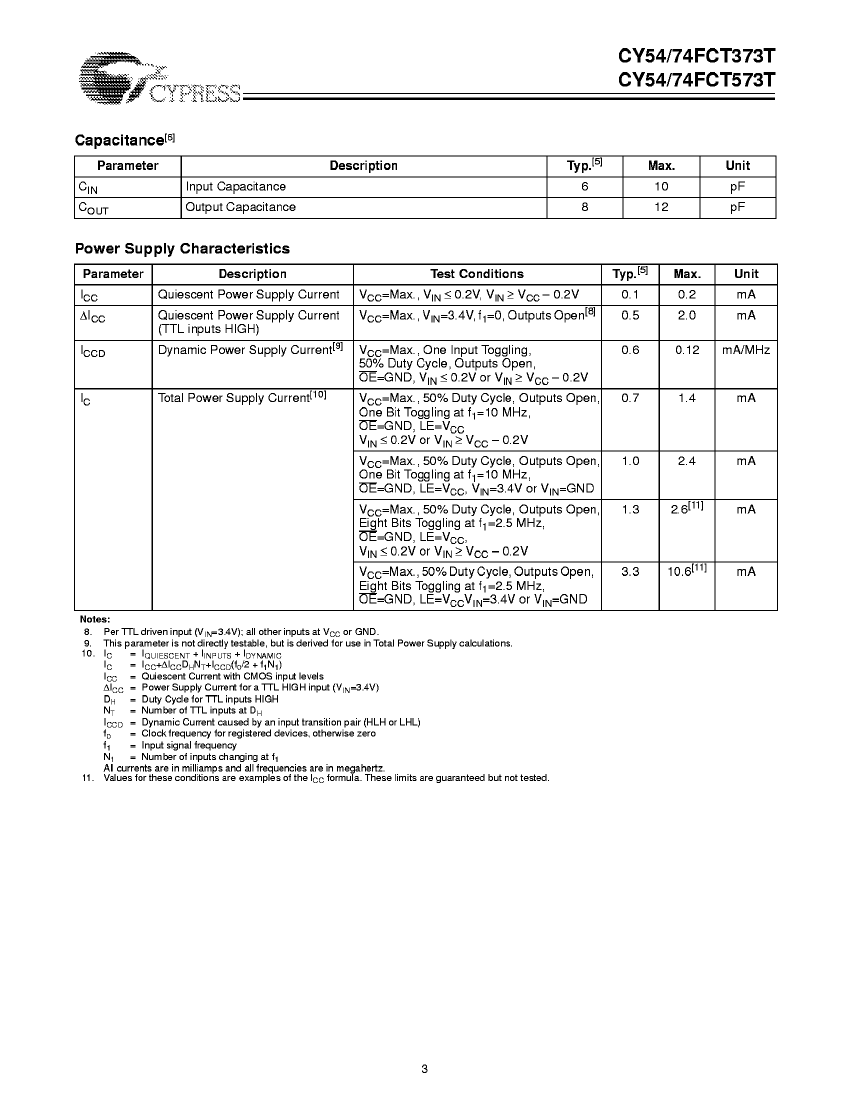

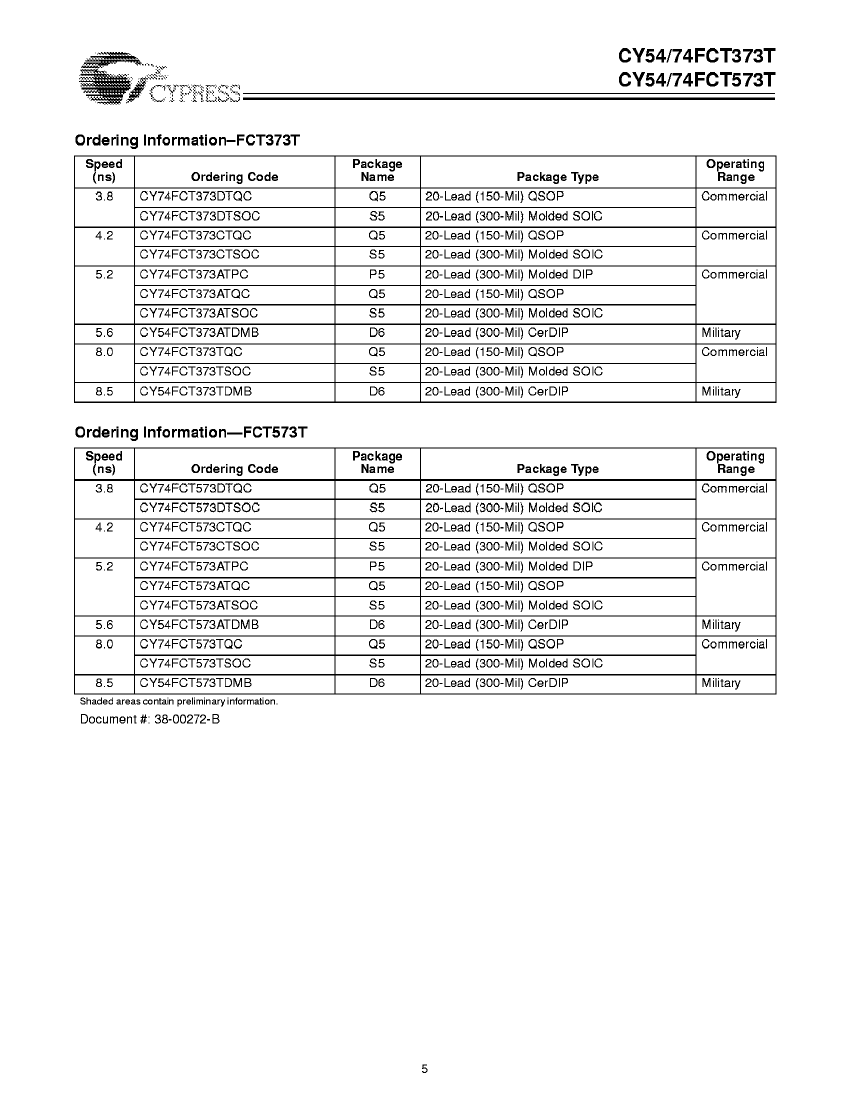

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Other features | BROADSIDE VERSION OF 373 |
| series | FCT |
| JESD-30 code | R-GDIP-T20 |
| length | 24.13 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 15 ns |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9223801MRX | 5962-9223802MRX | 5962-9221701MRX | 5962-9221702MRX | CY74FCT573ATQCT | CY74FCT573CTQCT | CY74FCT573TQCT | |
|---|---|---|---|---|---|---|---|
| Description | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20 |
| Parts packaging code | DIP | DIP | DIP | DIP | QSOP | QSOP | QSOP |
| package instruction | DIP, | DIP, | DIP, | DIP, | 0.150 INCH, QSOP-20 | 0.150 INCH, QSOP-20 | SSOP, |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknow | unknown | unknown | not_compliant | not_compliant | unknown |
| series | FCT | FCT | FCT | FCT | FCT | FCT | FCT |
| JESD-30 code | R-GDIP-T20 | R-GDIP-T20 | R-GDIP-T20 | R-GDIP-T20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 24.13 mm | 24.13 mm | 24.13 mm | 24.13 mm | 8.65 mm | 8.65 mm | 8.65 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | SSOP | SSOP | SSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH |
| propagation delay (tpd) | 15 ns | 9.8 ns | 15 ns | 9.8 ns | 8.5 ns | 5.5 ns | 13 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 1.75 mm | 1.75 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 0.635 mm | 0.635 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 3.9116 mm | 3.9116 mm | 3.9116 mm |
| Other features | BROADSIDE VERSION OF 373 | BROADSIDE VERSION OF 373 | - | - | BROADSIDE VERSION OF 373 | BROADSIDE VERSION OF 373 | BROADSIDE VERSION OF 373 |
| Load capacitance (CL) | 50 pF | - | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | - | - | - |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - | - |
