DAC811JP-BI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC811JP-BI

DAC811JP-BI: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, PDIP28,; CategoryAnalog mixed-signal IC converter; File Size433KB，9 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC811JP-BI Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, PDIP28,

DAC811JP-BI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.0122%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-12/+-15 V
Certification status	Not Qualified
Maximum stabilization time	4 µs
Nominal settling time (tstl)	3 µs
Maximum slew rate	35 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

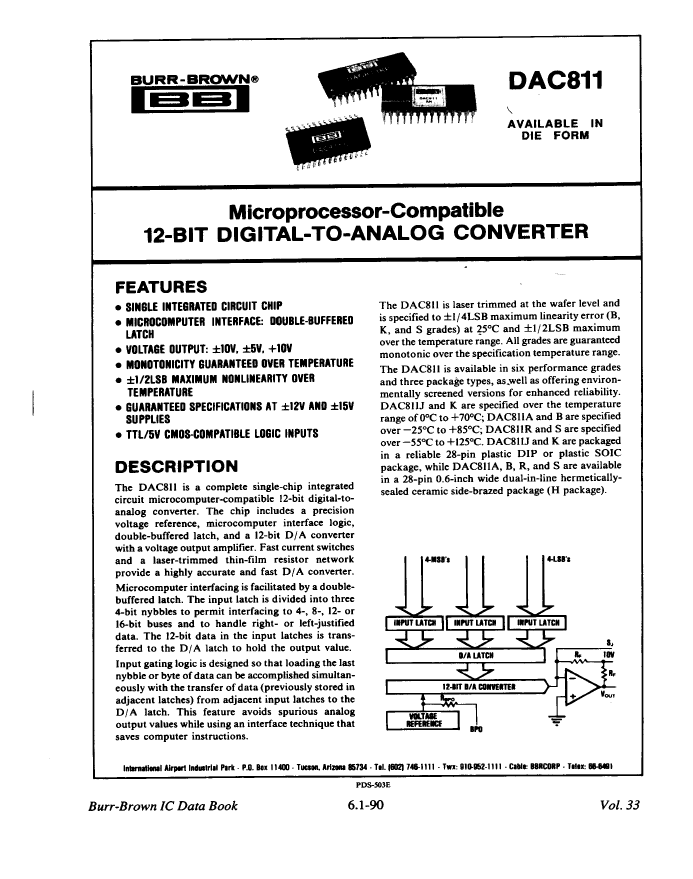

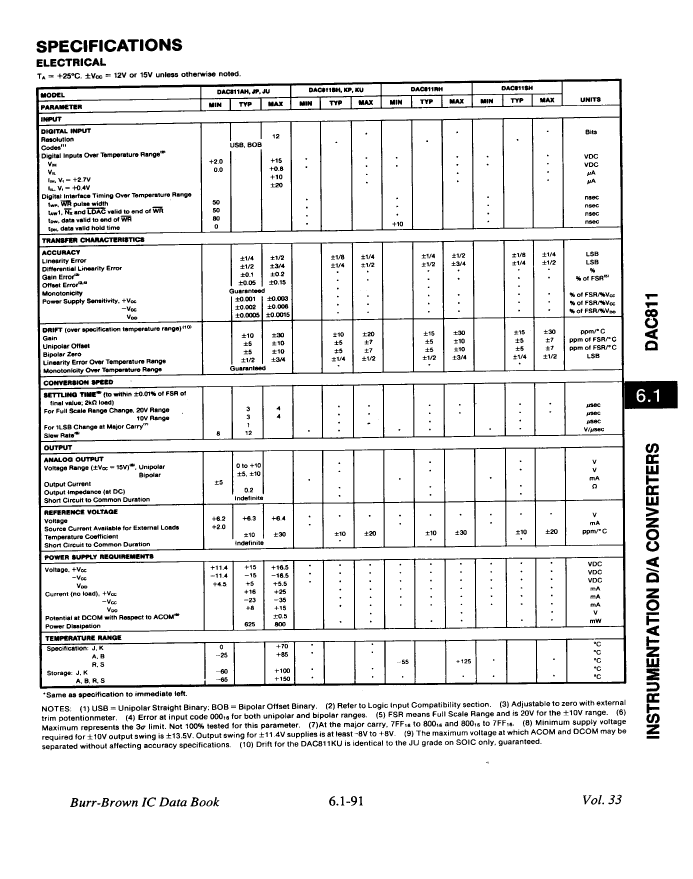

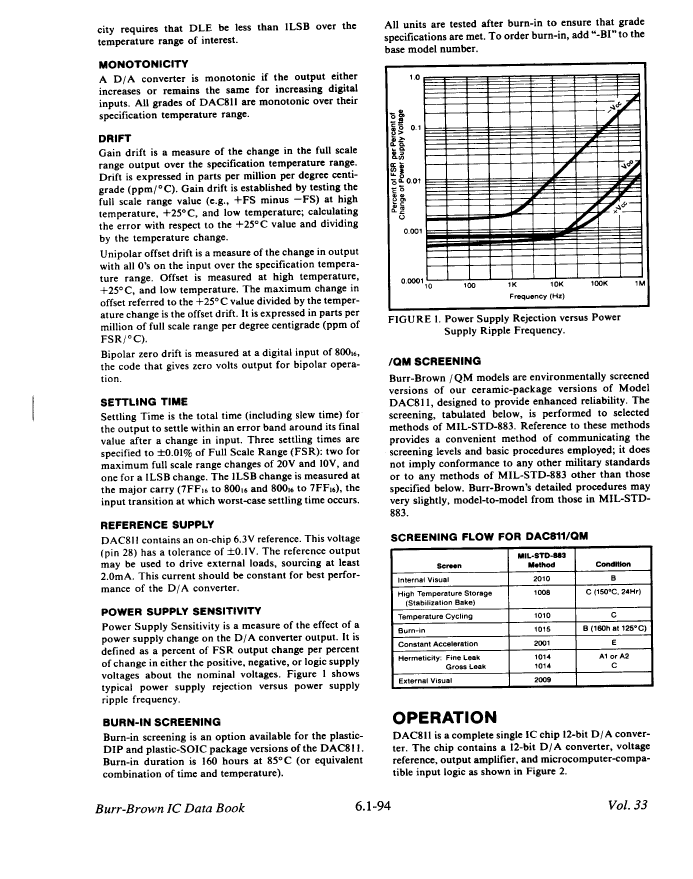

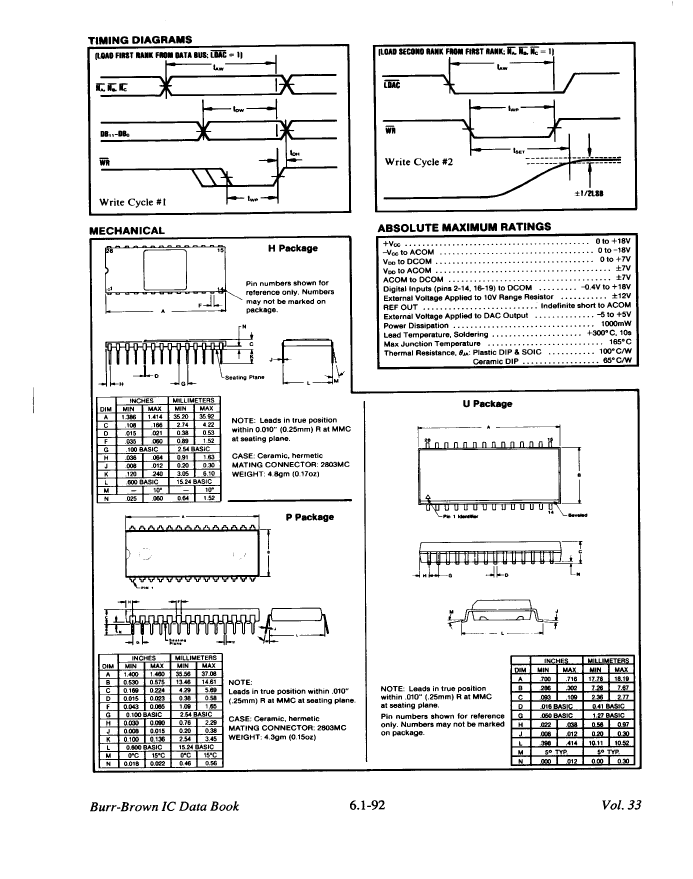

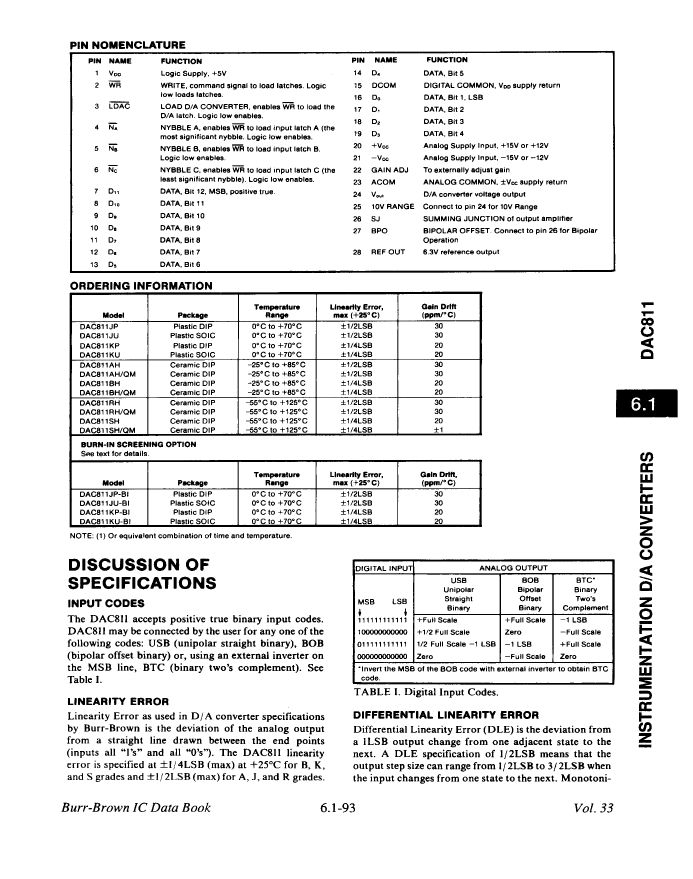

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DAC811JP-BI Related Products

	DAC811JP-BI	DAC811JU-BI	DAC811KP-BI	DAC811AH/QM	DAC811KU-BI	DAC811BH/QM	DAC811SH/QM	DAC811RH/QM
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, PDIP28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, PDSO28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, PDIP28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, PDSO28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP28,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V	-	-
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-	-
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	-	-
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	-	-
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	-	-
JESD-30 code	R-PDIP-T28	R-PDSO-G28	R-PDIP-T28	R-CDIP-T28	R-PDSO-G28	R-CDIP-T28	-	-
JESD-609 code	e0	e0	e0	e0	e0	e0	-	-
Maximum linear error (EL)	0.0122%	0.0122%	0.0061%	0.0122%	0.0061%	0.0061%	-	-
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-	-
Number of digits	12	12	12	12	12	12	-	-
Number of functions	1	1	1	1	1	1	-	-
Number of terminals	28	28	28	28	28	28	-	-
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	70 °C	85 °C	-	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	-	-
encapsulated code	DIP	SOP	DIP	DIP	SOP	DIP	-	-
Encapsulate equivalent code	DIP28,.6	SOP28,.4	DIP28,.6	DIP28,.6	SOP28,.4	DIP28,.6	-	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	-	-
power supply	5,+-12/+-15 V	5,+-12/+-15 V	5,+-12/+-15 V	5,+-12/+-15 V	5,+-12/+-15 V	5,+-12/+-15 V	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-
Maximum stabilization time	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs	-	-
Nominal settling time (tstl)	3 µs	3 µs	3 µs	3 µs	3 µs	3 µs	-	-
Maximum slew rate	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	-	-
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	-	-
surface mount	NO	YES	NO	NO	YES	NO	-	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-	-
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	OTHER	COMMERCIAL	OTHER	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	-
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	-	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	-
Base Number Matches	1	1	1	1	1	1	-	-
