595HF148M500DGR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 595HF148M500DGR

595HF148M500DGR: DescriptionCML Output Clock Oscillator; CategoryPassive components oscillator; File Size314KB，12 Pages; ManufacturerSilicon Laboratories Inc

Download Datasheet Parametric Compare View All

595HF148M500DGR Overview

CML Output Clock Oscillator

595HF148M500DGR Parametric

Parameter Name	Attribute value
Maker	Silicon Laboratories Inc
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR
Maximum control voltage	1.8 V
Minimum control voltage
maximum descent time	0.35 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	10 ppm
frequency stability	50%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	148.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CML
Output load	100 OHM
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	0.35 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

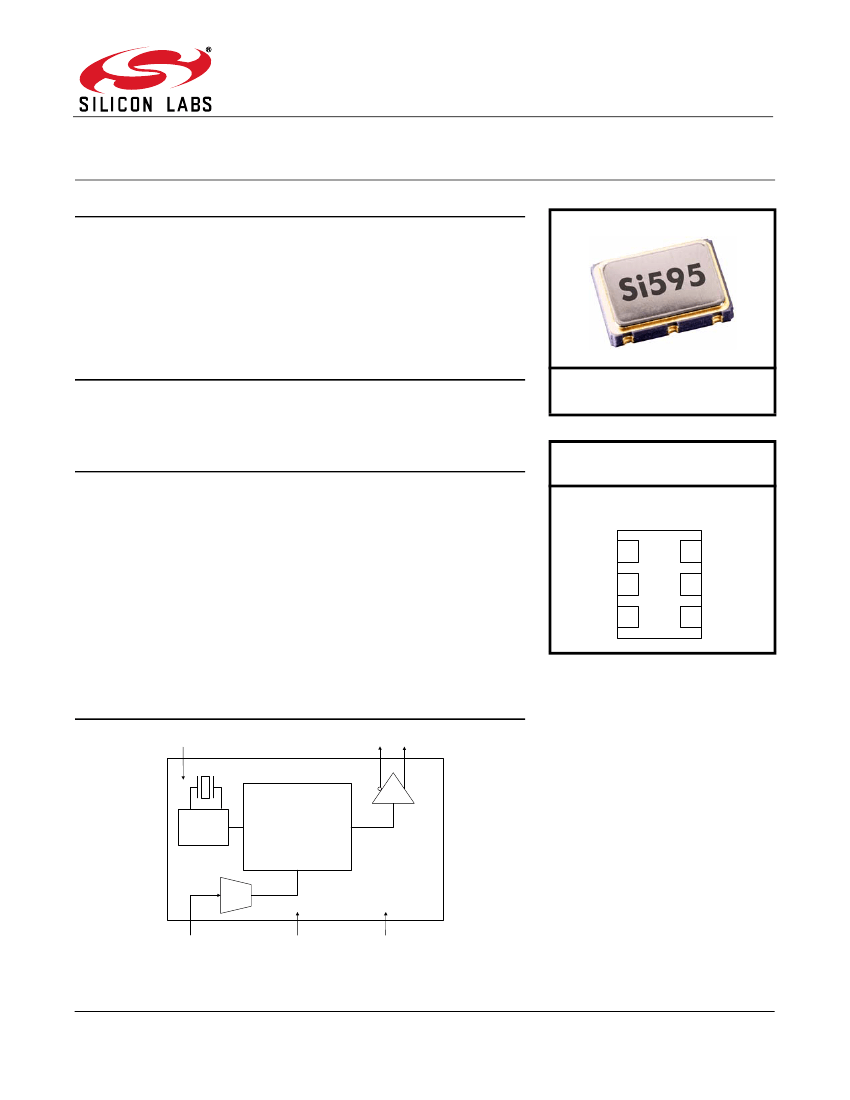

Si595

EVISION

O L TAG E

- C

ONTR OLLED

RYSTAL

S C I L L A T O R

(VCXO)

810 MH

Features



Available with any-rate output

frequencies from 10 to 810 MHz



3rd generation DSPLL

with

superior jitter performance



Internal fixed fundamental mode

crystal frequency ensures high

reliability and low aging

Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

–40 to +85 ºC operating range

Si5602

Applications



Ordering Information:



SONET/SDH (OC-3/12/48)

Networking

SD/HD SDI/3G SDI video

FTTx

Clock recovery and jitter cleanup PLLs

FPGA/ASIC clock generation

See page 7.

Description

The Si595 VCXO utilizes Silicon Laboratories’ advanced DSPLL

circuitry to

provide a low-jitter clock at high frequencies. The Si595 is available with

any-rate output frequency from 10 to 810 MHz. Unlike traditional VCXOs,

where a different crystal is required for each output frequency, the Si595

uses one fixed crystal to provide a wide range of output frequencies. This IC-

based approach allows the crystal resonator to provide exceptional

frequency stability and reliability. In addition, DSPLL clock synthesis

provides supply noise rejection, simplifying the task of generating low-jitter

clocks in noisy environments. The Si595 IC-based VCXO is factory-

configurable for a wide variety of user specifications including frequency,

supply voltage, output format, tuning slope, and absolute pull range (APR).

Specific configurations are factory programmed at time of shipment, thereby

eliminating the long lead times associated with custom oscillators.

Pin Assignments:

See page 6.

(Top View)

CLK–

GND

CLK+

Functional Block Diagram

CLK–

CLK+

Fixed

Frequency

Any-rate

10–810 MHz

DSPLL

Clock Synthesis

ADC

GND

Rev. 1.2 4/13

Si595

595HF148M500DGR Related Products

	595HF148M500DGR	595HF10M0000DG	595HF810M000DG	595HF810M000DGR	595UF148M500DG
Description	CML Output Clock Oscillator	CML Output Clock Oscillator	CML Output Clock Oscillator	CML Output Clock Oscillator	CML Output Clock Oscillator
Maker	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc	Silicon Laboratories Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TRAY	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TRAY	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TRAY
Maximum control voltage	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
maximum descent time	0.35 ns	0.35 ns	0.35 ns	0.35 ns	0.35 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO
Frequency offset/pull rate	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm
frequency stability	50%	50%	50%	50%	50%
linearity	10%	10%	10%	10%	10%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	148.5 MHz	10 MHz	810 MHz	810 MHz	148.5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	CML	CML	CML	CML	CML
Output load	100 OHM	100 OHM	100 OHM	100 OHM	100 OHM
physical size	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm
longest rise time	0.35 ns	0.35 ns	0.35 ns	0.35 ns	0.35 ns
Maximum supply voltage	1.89 V	1.89 V	1.89 V	1.89 V	1.89 V
Minimum supply voltage	1.71 V	1.71 V	1.71 V	1.71 V	1.71 V
Nominal supply voltage	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Base Number Matches	1	1	1	1	1
