54LS283LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS283LMQB

54LS283LMQB: DescriptionAdder/Subtractor, LS Series, 4-Bit, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size171KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS283LMQB Overview

Adder/Subtractor, LS Series, 4-Bit, TTL, CQCC20, CERAMIC, LCC-20

54LS283LMQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

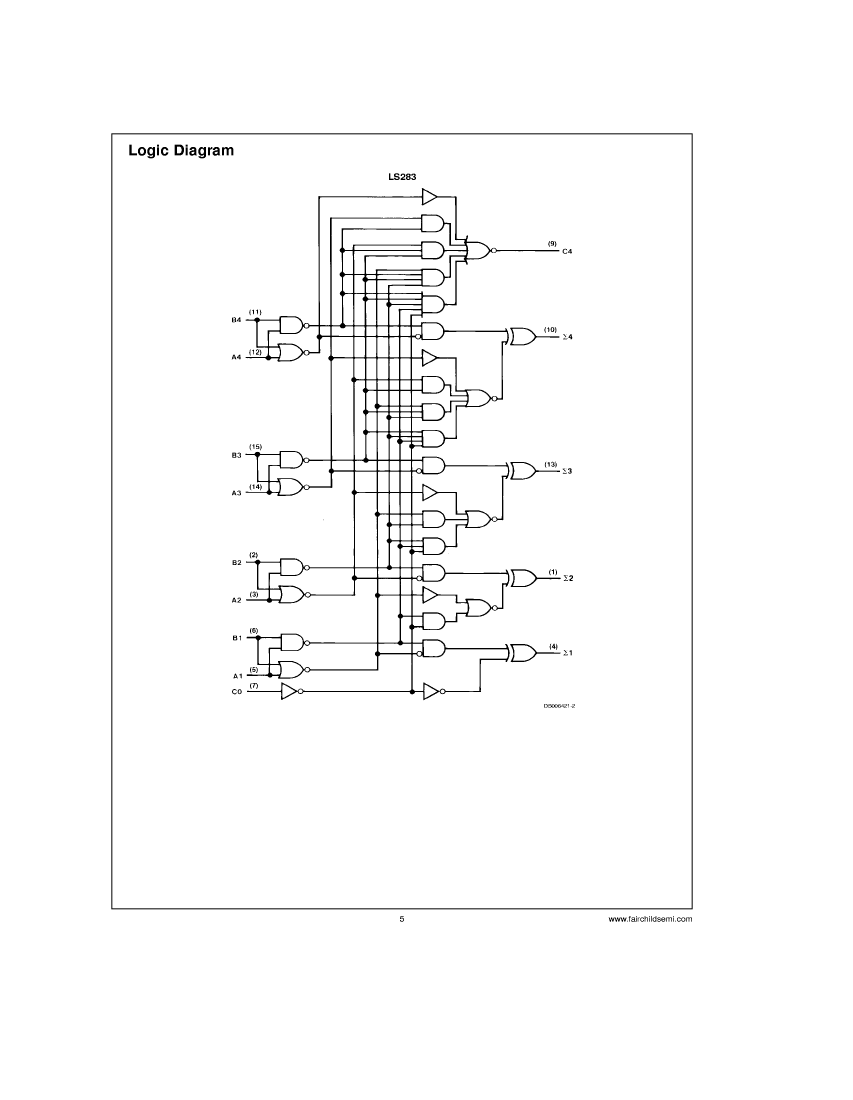

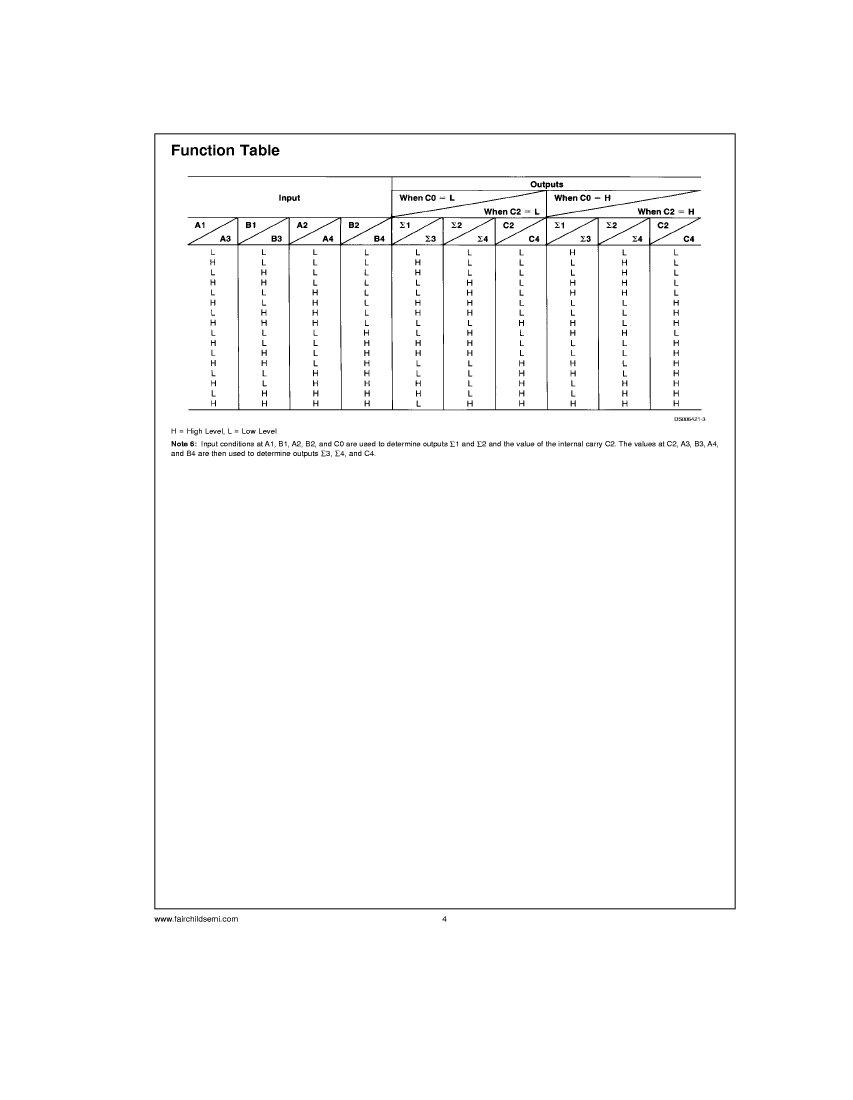

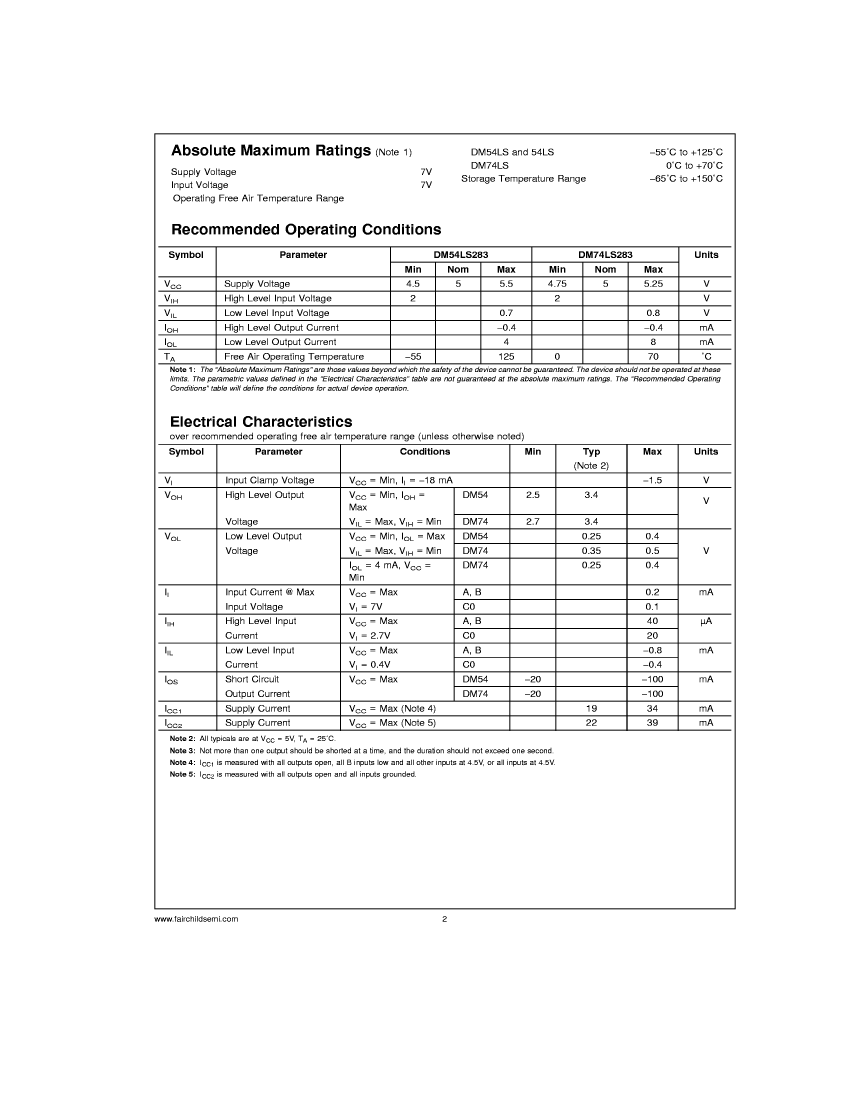

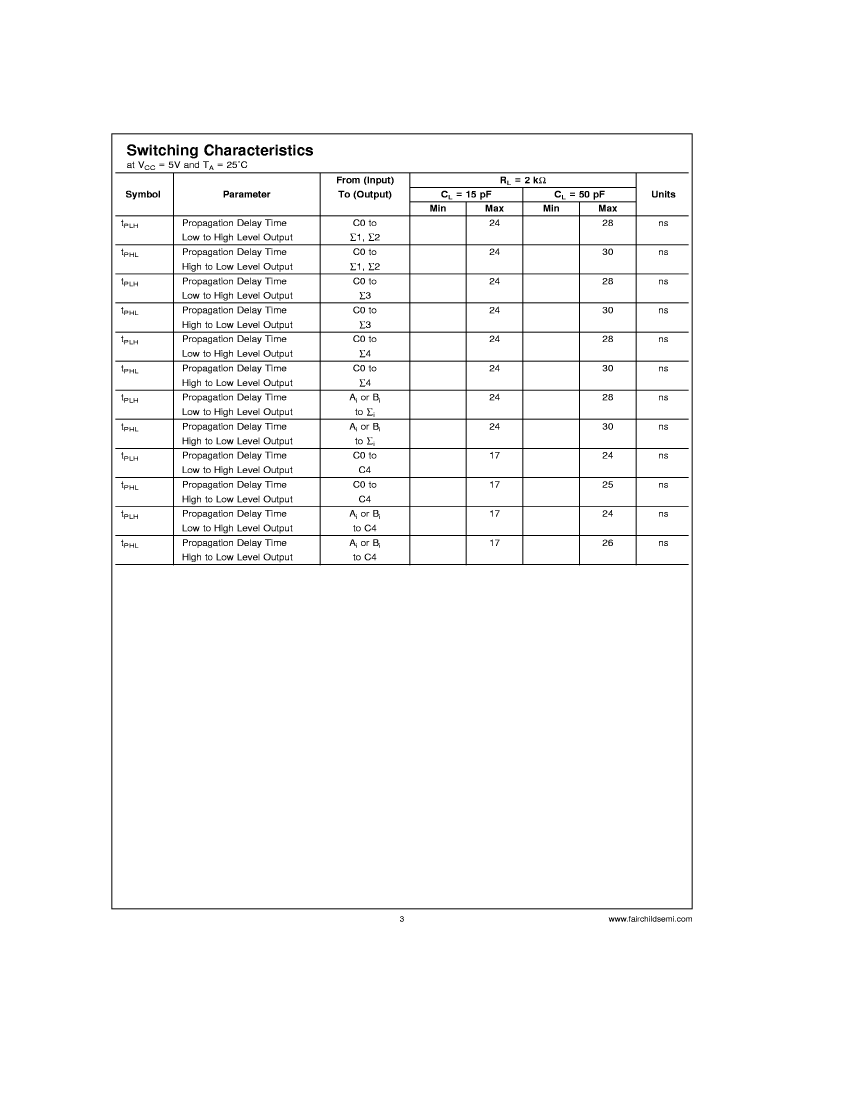

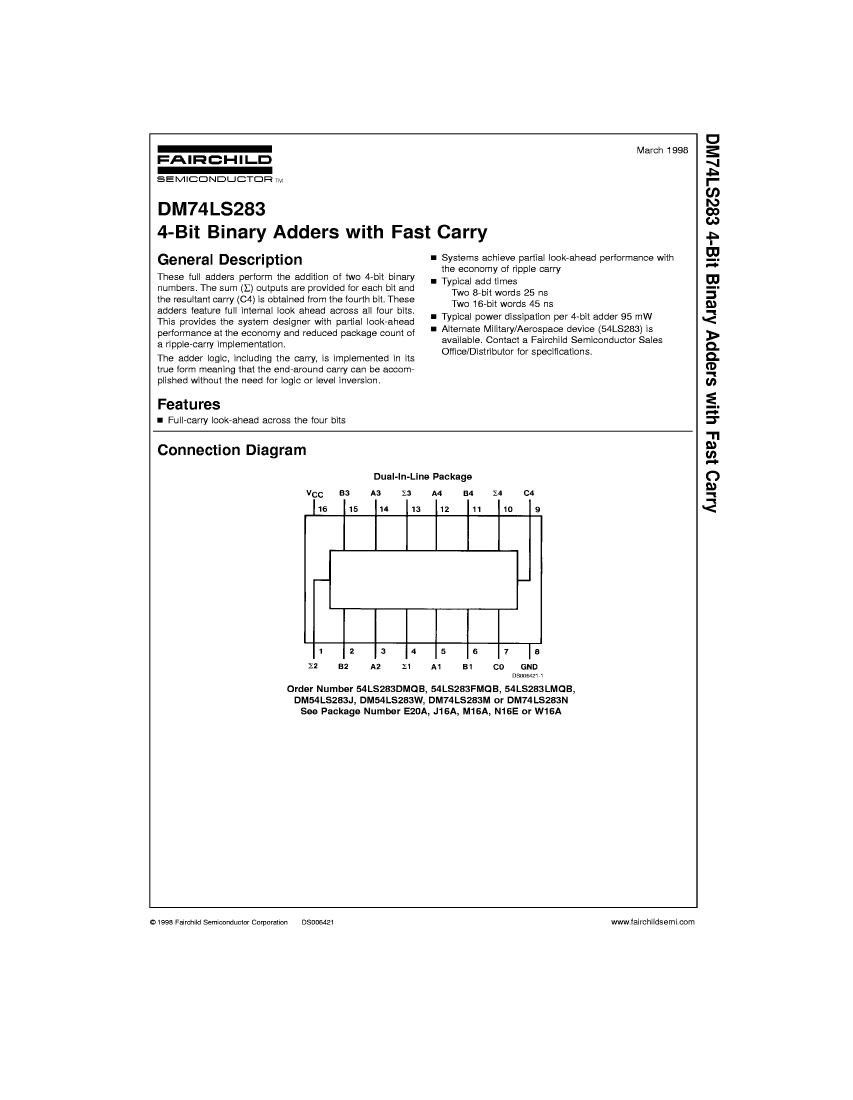

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS283LMQB Related Products

	54LS283LMQB	54LS283FMQB	DM54LS283J	54LS283DMQB	DM54LS283W
Description	Adder/Subtractor, LS Series, 4-Bit, TTL, CQCC20, CERAMIC, LCC-20	Adder/Subtractor, LS Series, 4-Bit, TTL, CDFP16, CERAMIC, FP-16	Adder/Subtractor, LS Series, 4-Bit, TTL, CDIP16, CERAMIC, DIP-16	Adder/Subtractor, LS Series, 4-Bit, TTL, CDIP16, CERAMIC, DIP-16	Adder/Subtractor, LS Series, 4-Bit, TTL, CDFP16, CERAMIC, FP-16
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DFP	DIP	DIP	DFP
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	CERAMIC, FP-16
Contacts	20	16	16	16	16
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
series	LS	LS	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0
length	8.89 mm	9.6645 mm	19.43 mm	19.43 mm	9.6645 mm
Logic integrated circuit type	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR
Number of digits	4	4	4	4	4
Number of functions	1	1	1	1	1
Number of terminals	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DIP	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
propagation delay (tpd)	30 ns	30 ns	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	2.032 mm	5.08 mm	5.08 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	6.604 mm	7.62 mm	7.62 mm	6.604 mm
Base Number Matches	1	1	1	1	1
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	-
