1TL372-61 datasheet, PDF - EEWORLD Datasheet

1TL372-61: DescriptionToggle Switch, SPST, Momentary, 18A, 28VDC, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size53KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

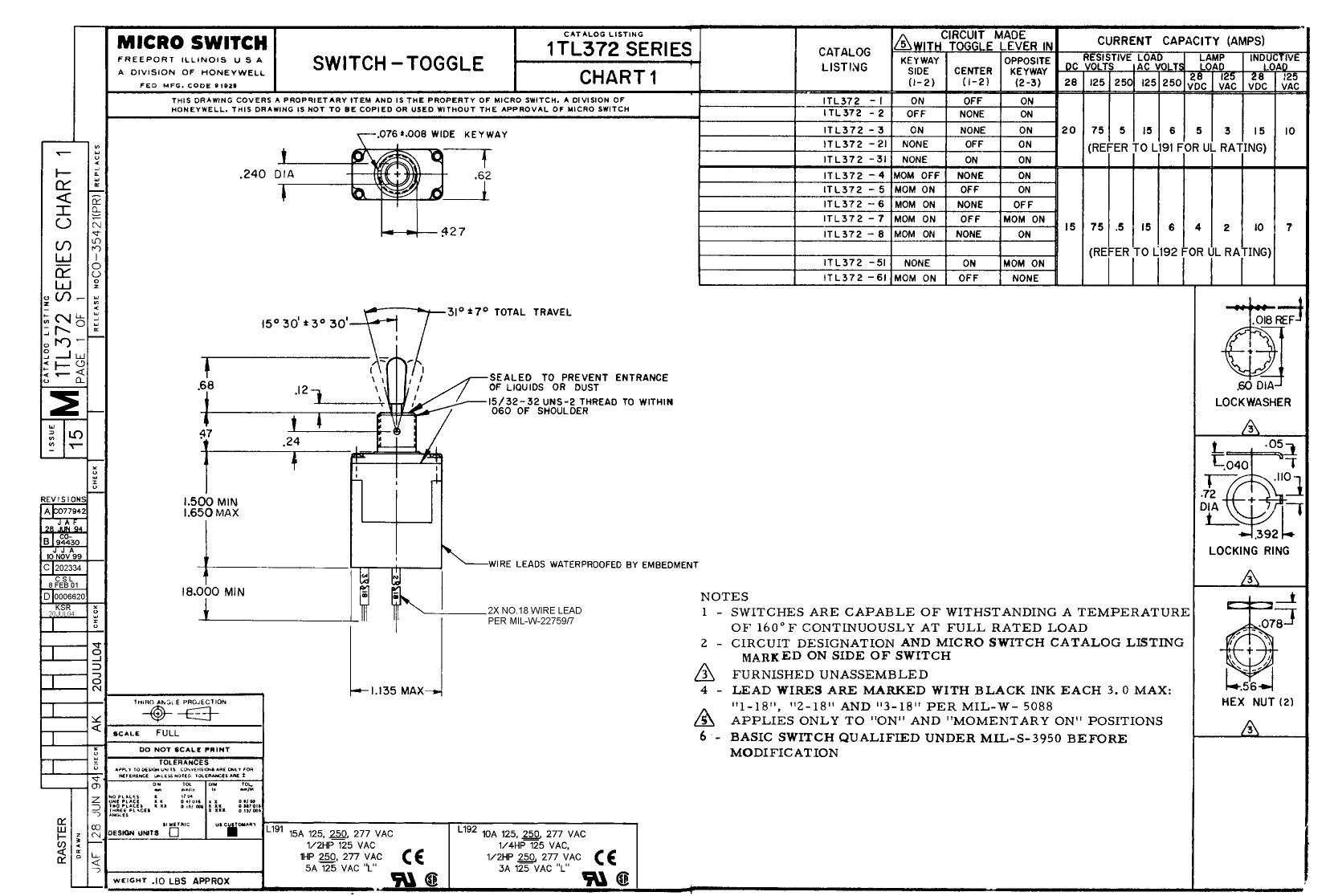

1TL372-61 Overview

Toggle Switch, SPST, Momentary, 18A, 28VDC, Wire Terminal, Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	15.75 mm
body height	41.91 mm
Body length or diameter	28.83 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	18 A
Contact (DC) maximum rated R load	18A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	1TL372
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1
