D2TO020C18002JRE3 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> D2TO020C18002JRE3

D2TO020C18002JRE3: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 20 W, 5 %, 150 ppm, 180000 ohm, SURFACE MOUNT, TO-263, ROHS COMPLIANT; CategoryPassive components The resistor; File Size109KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

D2TO020C18002JRE3 Overview

RESISTOR, METAL GLAZE/THICK FILM, 20 W, 5 %, 150 ppm, 180000 ohm, SURFACE MOUNT, TO-263, ROHS COMPLIANT

D2TO020C18002JRE3 Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	SMT, 3541
Reach Compliance Code	unknown
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	4.5 mm
Package length	10.5 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	8.8 mm
method of packing	TR
Rated power dissipation(P)	20 W
Rated temperature	25 °C
Guideline	AEC-Q200
resistance	180000 Ω
Resistor type	FIXED RESISTOR
size code	4135
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	150 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	GULL WING
Tolerance	5%
Operating Voltage	500 V
Base Number Matches	1

Preview

Download Datasheet

View All

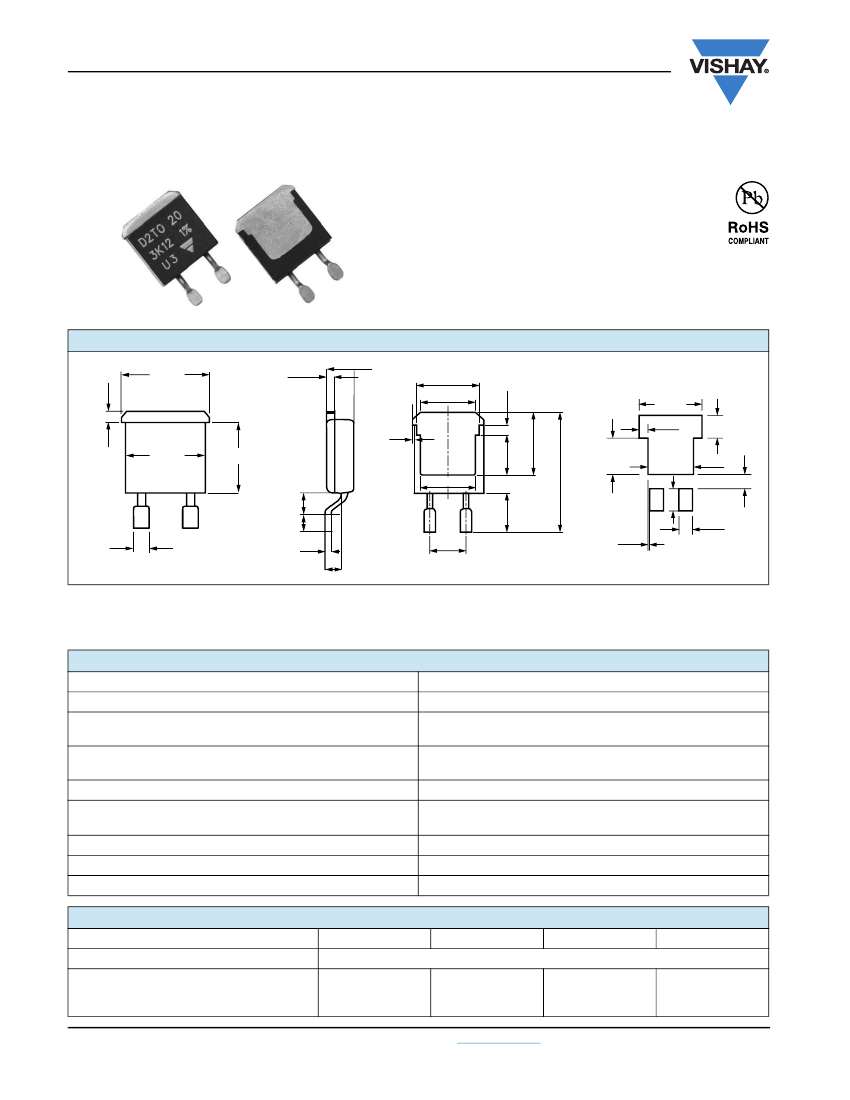

D2TO20

Vishay Sfernice

Surface Mounted Power Resistor

Thick Film Technology

FEATURES

•

20 W at 25 °C case temperature

•

Surface mounted resistor - TO-263 (D

PAK)

style package

•

Wide resistance range from 0.01

to 550 kΩ

•

Non inductive

•

Resistor isolated from metal tab

•

Solder reflow secure at 270 °C/10 s

•

Compliant to RoHS directive 2002/95/EC

DIMENSIONS

in millimeter

10.5

1.25

4.5

8.7

7.8 min.

1.6

5.15

8.1

0.2

10.1

8.8

7.6

2.8

2.2

1.6

0.3

Tolerance: ± 0.3 mm

5.08

0.26

2.40

1.25

Footprint recommendation for

solderable contact area:

11.00

1.50

6.50

15.4

4.00

4.02

8.00

2.49

Notes

• For the asssembly on board, we recommend the lead (Pb)-free thermal profile as per J-STD-020C

• Power dissipation is 2.8 W at an ambient temperature of 25 °C when mounted on a double sided copper board using FR4 standard, 70 µm of

copper, 39 mm x 30 mm x 1.6 mm

ELECTRICAL SPECIFICATIONS

Resistance Range

Tolerances (Standard)

Power Rating and Thermal Resistance

Temperature Coefficient

Limiting Element Voltage U

Dielectric Strength IEC 60115-1

Insulation Resistance

Inductance

Critical Resistance

0.01

to 550 kΩ

± 1 % to 10 %

20 W at 25 °C (case temperature)

TH (j - c)

: 6.5 °C/W

See Special Features table

Standard: ± 150 ppm/°C

250 V

2000 V

rms

- 1 min - 10 mA max.

(between terminals and board)

≥

MΩ

≤

0.1 µH

3.12 kΩ

SPECIAL FEATURES

Resistance Values

Tolerances

Requirement Temperature Coefficient (TCR)

(- 55 °C + 150 °C)

IEC 60115-1

www.vishay.com

± 1100 ppm/°C

≥

0.010

≥

0.045

± 1 % at ± 10 %

± 700 ppm/°C

± 250 ppm/°C

± 150 ppm/°C

≥

0.1

≥

0.5

For technical questions, contact:

sfer@vishay.com

Document Number: 51055

Revision: 30-Apr-10

Legal Disclaimer Notice

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Document Number: 91000

Revision: 11-Mar-11

www.vishay.com
