BA7755AFE1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BA7755AFE1

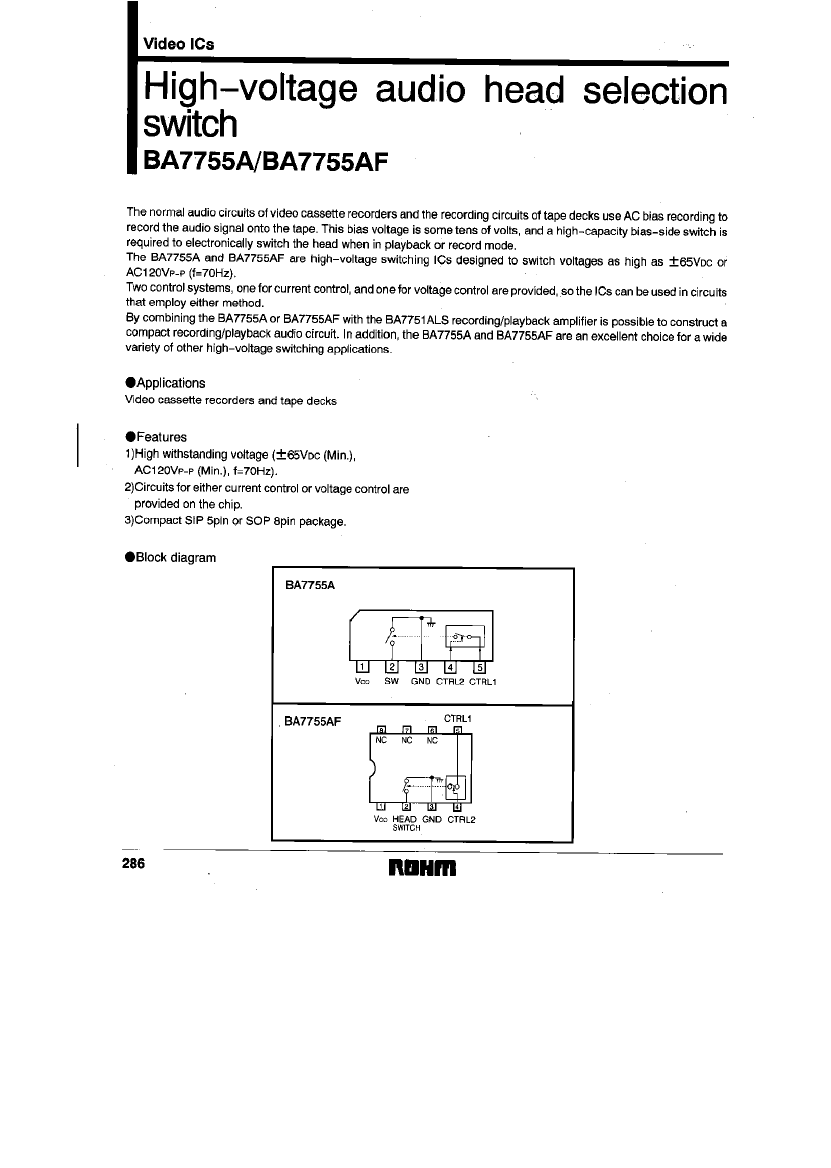

Preview

BA7755AFE1: DescriptionAUDIO/VIDEO SWITCH, PDSO8, SOP-8; CategoryAnalog mixed-signal IC The signal circuit; File Size97KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA7755AFE1 Overview

AUDIO/VIDEO SWITCH, PDSO8, SOP-8

BA7755AFE1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G8
JESD-609 code	e3/e2
length	5 mm
Number of functions	1
Number of terminals	8
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage (Vsup)	13 V
Minimum supply voltage (Vsup)	4 V
surface mount	YES
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm
Base Number Matches	1

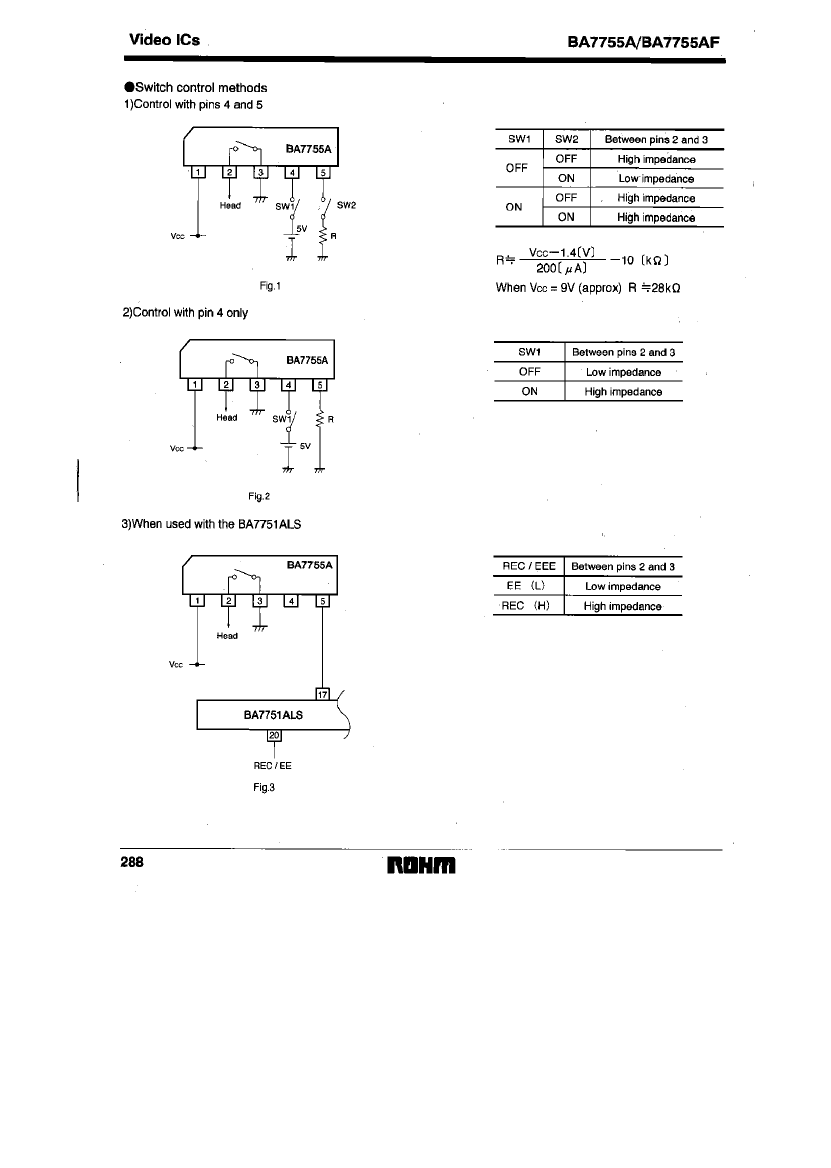

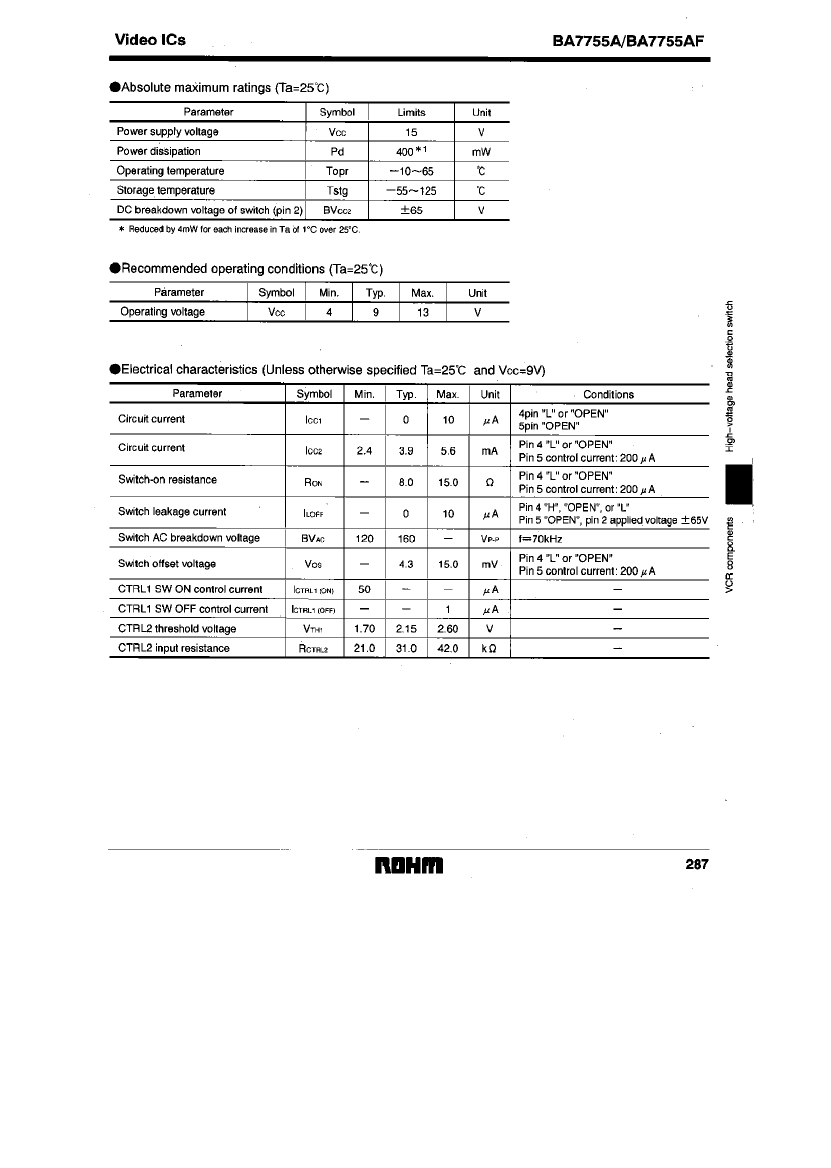

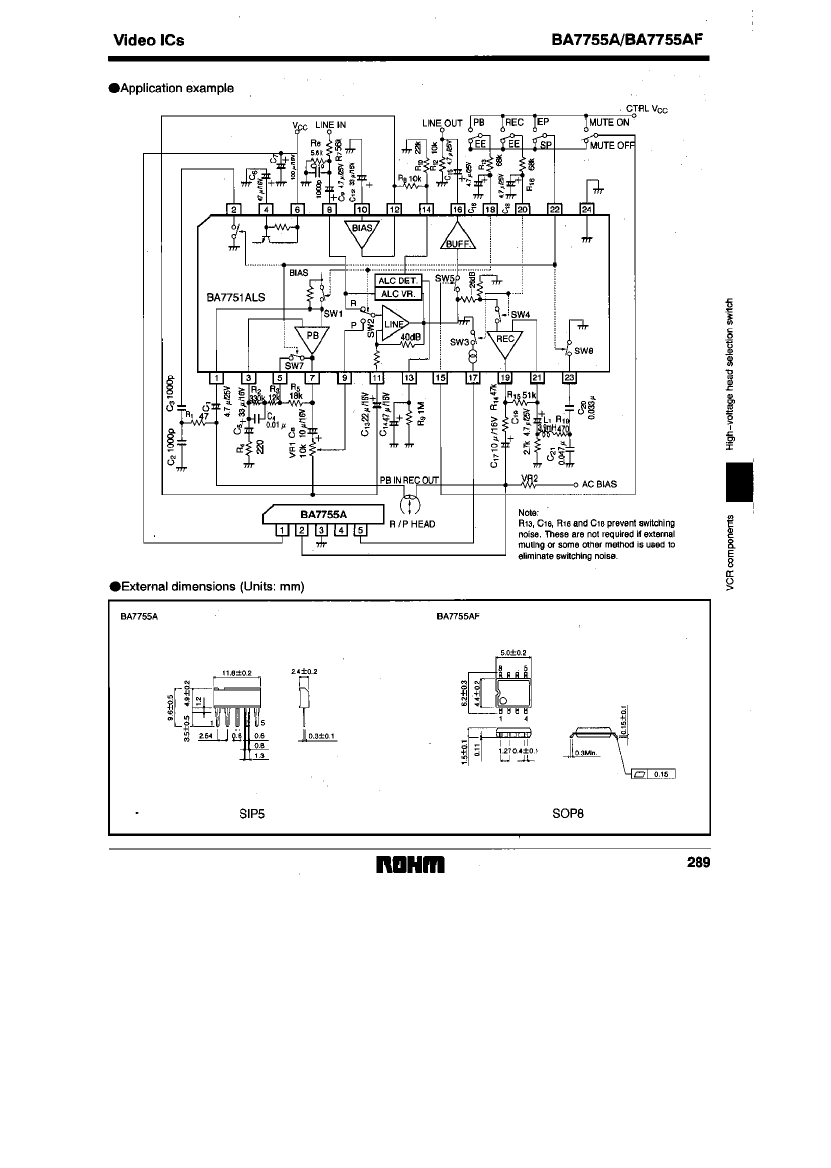

Preview

Download Datasheet

View All

BA7755AFE1 Related Products

	BA7755AFE1	BA7755AF-E1	BA7755AF-E2	BA7755AF-T1	BA7755AFT1	BA7755AFE2
Description	AUDIO/VIDEO SWITCH, PDSO8, SOP-8	Audio/Video Switch, 1 Func, 1 Channel, PDSO8, SOP-8	Audio/Video Switch, 1 Func, 1 Channel, PDSO8, SOP-8	Audio/Video Switch, 1 Func, 1 Channel, PDSO8, SOP-8	AUDIO/VIDEO SWITCH, PDSO8, SOP-8	1-CHANNEL, AUDIO/VIDEO SWITCH, PDSO8, SOP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP,	SOP-8	SOP-8	SOP-8	SOP-8	SOP-8
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2
length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.6 mm	1.7 mm	1.7 mm	1.6 mm
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Maximum supply voltage (Vsup)	13 V	13 V	-	13 V	13 V	-
Minimum supply voltage (Vsup)	4 V	4 V	-	4 V	4 V	-
Number of channels	-	1	1	1	-	1
Maximum operating temperature	-	65 °C	65 °C	65 °C	-	65 °C
Minimum operating temperature	-	-10 °C	-10 °C	-10 °C	-	-10 °C
Nominal supply voltage (Vsup)	-	9 V	9 V	9 V	-	9 V
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Maker	-	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
