specifications
SC Fiber Optic Adapters shall be compliant
with TIA FOCIS-3. Each simplex SC adapter
shall connect one SC connector pair in one
module space. Each duplex SC adapter shall
connect two SC connector pairs in two module
spaces. All SC adapters and adapter modules
are available with phosphor bronze or zirconia
ceramic split sleeves and can be used for
singlemode or multimode applications.
NETWORK CONNECTIVITY GROUP
™
SPEC SHEET
SC Fiber Optic Adapter
technical information
Split sleeve material:
Insertion loss:
Return loss:
Phosphor bronze or zirconia ceramic
0.10dB typical* (multimode), 0.15dB typical* (singlemode); supports
the performance of FOCIS-3 compliant connectors/patch cords
Supports singlemode(>40dB for SPC and >55dB for UPC) and
multimode(>20dB) connector polish performance
SC Adapter Module with
Phosphor Bronze Split Sleeves
Duplex:
CMDEISC**
Simplex:
CMSEISC**
Adapter color: Electric Ivory; to change adapter
color substitute BU (Blue) for EI
*PANDUIT
®
SC Connector/Adapter connection
key features and ...benefits
Robust design
FOCIS-3 compliant
High glass transition
temperature latch material
(Tg>100°C)
V-0 flammability rating on
housing and inner latches
Integrated retention clip
Network reliability; exceeds requirements of TIA/EIA-568-B.3
Ensures intermatability with all FOCIS-3 compliant components
Improved reliability; meets Telcordia GR-326-CORE, Issue 3;
maintains latch integrity/geometry in high temperature
environments
Meets Telcordia GR-326-CORE, Issue 3
Improved mounting; clip automatically adjusts for FOCIS-3
compliant panel thickness variations, creating a snug fit to
reduce rattles; no metal clips to become bent or damaged
Maximum protection from contamination; protective cap fully
surrounds split sleeve opening
SC Adapter Module with Zirconia
Ceramic Split Sleeves
Duplex:
CMDBUSCZ**
Simplex:
CMSBUSCZ**
Adapter color: Blue; to change adapter
color substitute EI (Electric Ivory) for BU
Multimode 900µm Tight-Buffered
Fiber or 3mm Jacketed Cable
Black boot:
FSCMBL
Red boot:
FSCMRD
Singlemode 900µm Tight-Buffered
Fiber or 3mm Jacketed Cable
Blue boot:
FSCSBU
SC/UPC Terminator (singlemode)
Simplex:
FTRM-SC1
Multimode Patch Cords
O
PTI
-P
LUG
™
duplex
connector to SC:
F6D6P-3M‡
Simplex 900µm
buffered SC pigtails:
F6B3-NM‡
Simplex SC to SC:
F6S3-3M‡
Duplex SC to SC:
F6D3-3M‡
Duplex ST to SC:
F6D2-3M‡
Duplex SC to FC:
F6D3-4M‡
Singlemode Patch Cords
O
PTI
-P
LUG
duplex
connector to SC:
F9D6P-3M‡
Simplex 900µm
buffered SC pigtails:
F9B3-NM‡
Simplex SC to SC:
F9S3-3M‡
Duplex SC to SC:
F9D3-3M‡
Duplex ST to SC:
F9D2-3M‡
Duplex SC to FC:
F9D3-4M‡
**Substitute for module color:
EI = Electric Ivory
BU = Blue
WH = White
BL - Black
IW = Off White
IG = International Gray
Please contact factory for additional patch cord
configurations and custom lengths.
‡Available in standard lengths of 1, 2, 3 and 10 meters
Improved adapter
protective cap design
Choice of phosphor bronze
Provides an adapter split sleeve material option to fit specific
or zirconia ceramic
network requirements
split sleeves
Q.C. number and split
sleeve material laser
marked on every adapter
M
INI
-C
OM
®
module design
Adapters available in
patch panels and fiber
optic adapter panels
(FAPs)
Assures 100% traceability; quick and easy identification of
split sleeve material; SC-P = Phosphor Bronze and
SC-Z = Zirconia Ceramic
System flexibility; adapter modules can be used in all
M
INI
-C
OM
closet products and work area outlets
Provides a complete SC system solution
Allows color-coding for network segregation
Adapter and module
available in multiple colors
Short flange design
Improved modularity and higher density usage
applications
PANDUIT
SC Adapters can be used with
M
INI
-C
OM
modules, patch panels, faceplates
and surface mount boxes for a complete SC
system solution. SC adapters provide a
robust solution for LANs, public networks,
storage area networks and fiber-to-the-desk
applications. SC adapters can be mounted in
high density applications within
O
PTICOM
™
and
O
PTICOM
HD
™
enclosures.
installer tip
Before making connections, always clean adapter
split sleeves and ferrule endfaces.
Always insert protective caps into unused ports
to prevent contamination.
V i s i t o u r w e b s i t e a t : w w w. p a n d u i t . c o m / n c g
SC Fiber Optic Adapter
Standards Compliant Performance*
TIA
455
1
2
4
ISO/IEC
874-1
--
4.5.11
4.5.18
Description
Flex
Impact
High Temperature
Test Procedure and
TIA/EIA-568-B.3 Required Performance
100 cycles; -180 to 180 degrees; max. insertion loss
0.75dB, min. return loss 20dB (MM), 26dB (SM)
8 drops from 1.8m; max. insertion loss 0.75dB,
min. return loss 20dB (MM), 26dB (SM)
4 days at 60°C followed by post-conditioning FOTP-6;
max. insertion loss 0.75dB,
min. return loss 20dB (MM), 26dB (SM)
4 days at 90-95% RH and 40°C; max. insertion loss
0.75dB, min. return loss 20dB (MM), 26dB (SM),
max. change during test 0.4dB
11.24 lbs. at 0 degrees, 4.4 lbs. at 90 degrees;
max. insertion loss 0.75dB, min. return loss
20dB (MM), 26dB (SM), max. additional loss 0.5dB
500 mate/unmate cycles; max. insertion loss 0.75dB,
min. return loss 20dB (MM), 26dB (SM)
max. insertion loss 0.75dB,
min. return loss 20dB (MM), 26dB (SM)
10 cycles; 2.5 cw, 5 ccw, 2.5 cw; max. insertion loss
0.75dB, min. return loss 20dB (MM), 26dB (SM)
20dB minimum (MM), 26dB minimum (SM)
7.4 lbs. at 0 degrees; max. insertion loss 0.75dB,
min. return loss 20dB (MM), 26dB (SM)
4 days at 0°C; max. insertion loss 0.75dB,
min. return loss 20dB (MM), 26dB (SM),
max. change during test 0.3dB
Performance
< 0.1dB additional loss
< 0.1dB additional loss
< 0.1dB additional loss
5
4.4.19
Humidity
< 0.1dB additional loss
6
21
34
36
107
185
188
4.5.4
4.5.32
4.4.7
4.5.5
--
4.5.6
4.5.17
Cable Retention
Durability
Insertion Loss
Twist
Return Loss
Coupling Strength
Low Temperature
< 0.1dB additional loss
< 0.1dB additional loss
0.10dB typical (MM), 0.15dB typical (SM)
< 0.1dB additional loss
>20dB (MM), >40dB (SM)
< 0.1dB additional loss
< 0.1dB additional loss
*PANDUIT
®
SC Connector/Adapter connection
NOTE: Multimode tests performed at 850 and 1300nm. Singlemode test performed at 1310 and 1550nm.
M
INI
-C
OM
®

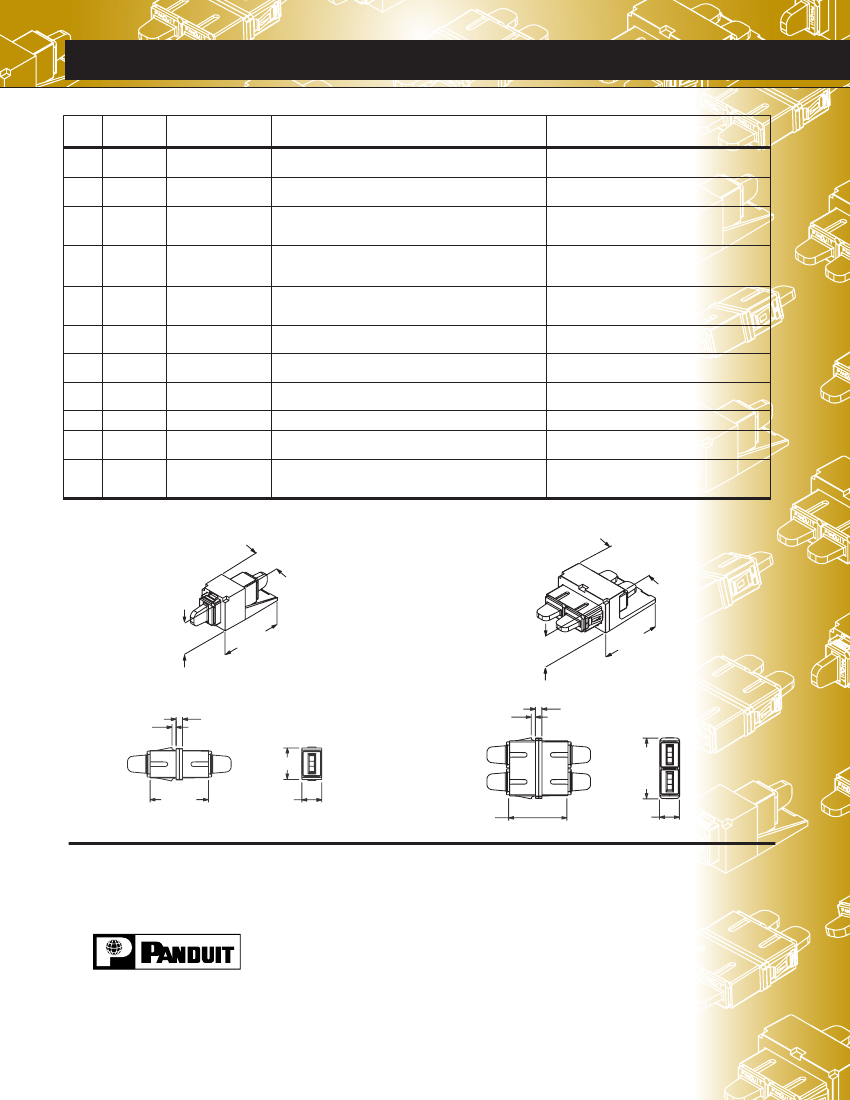

SC Simplex Adapter Module
.62
[15.8]
M
INI
-C
OM
SC Duplex Adapter Module
1.24
[31.5]
.71
[18.0]
1.37
[34.8]
.71
[18.0]
1.37
[34.8]
SC Simplex Adapter
.076
[1.9]
.120
[3.0]
.076
[1.9]
.585
[14.9]
1.079
[27.4]
.367
[9.3]
SC Duplex Adapter
.120
[3.0]
1.121
[28.5]
1.079
[27.4]
.367
[9.3]
Dimensions are in inches (Dimensions in brackets are in millimeters)
Our products are warranted to be free from defects in material and workmanship at the time of sale but our
obligation under this warranty is limited to the replacement of any product proved to be defective within 6
months (for product) or 90 days (for tools) from the date of delivery. Tool warranty is void if Panduit tools
are modified, altered or misused in any way. Use of Panduit tooling with any product other than the specified
Panduit products for which the tool was designed, constitutes misuse. Before using, user shall determine
the suitability of the product for his intended use and user assumes all risk and liability whatsoever in
connection therewith.
This warranty is made in lieu of and excludes all other warranties, expressed or implied. THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE ARE SPECIFICALLY
EXCLUDED. Neither seller nor manufacturer shall be liable for any other injury, loss or damage whether direct
or consequential, arising out of the use of, or the inability to use, the product.
The information contained in this literature is based on our experience to date and is believed to be reliable.
It is intended as a guide for use by persons having technical skill at their own discretion and risk. We do not
guarantee favorable results or assume any liability in connection with its use. Dimensions contained herein
are for reference purposes only. For specific dimensional requirements consult the factory. This publication is
not to be taken as a license to operate under, or a recommendation to infringe any existing patents. This
supersedes and voids all previous literature, etc.
™
NETWORK CONNECTIVITY GROUP
PANDUIT CANADA
Div. of
PANDUIT CORP.
Markham, Ontario
Phone: 905-475-6922
EUROPEAN HEADQUARTERS
PANDUIT EUROPE LTD.
London, UK
Phone: 44(0) 208-601-7200
WORLD HEADQUARTERS
PANDUIT CORP.
Tinley Park, Illinois, USA
Phone: 888-506-5400, ext. 6914
708-532-1800, ext. 6914
Fax: 708-460-2897
Email: info@panduit.com
Internet: www.panduit.com/ncg
ASIAN HEADQUARTERS
PANDUIT SINGAPORE PTE. LTD.
Republic of Singapore
Phone: (65) 379 6700
For Pricing and Further Information —
Contact your local authorized
PANDUIT P
AN
-N
ET
™
Distributor or Sales Office
PANDUIT CORP.
Japan Branch
Phone (81) (3) 3767-7011
PANDUIT MEXICO/LATIN AMERICA
& CARIBBEAN
Phone: (52) 3 666-2501
PANDUIT (AUST.) PTY. LTD.
Phone: (61) 3-9794 9020
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
©
PANDUIT
Corp. 2001
ALL RIGHTS RESERVED
SA-NC10SP01E
Printed in U.S.A.
