HDBD-2-3-26-P-X1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> HDBD-2-3-26-P-X1

HDBD-2-3-26-P-X1: DescriptionD Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric Compare View All

HDBD-2-3-26-P-X1 Overview

D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle

HDBD-2-3-26-P-X1 Parametric

Parameter Name	Attribute value
Maker	South Sea Terminal Co., Ltd.
Reach Compliance Code	unknown
Other features	WITH SCREW
body width	0.494 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	HDBD
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.15 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

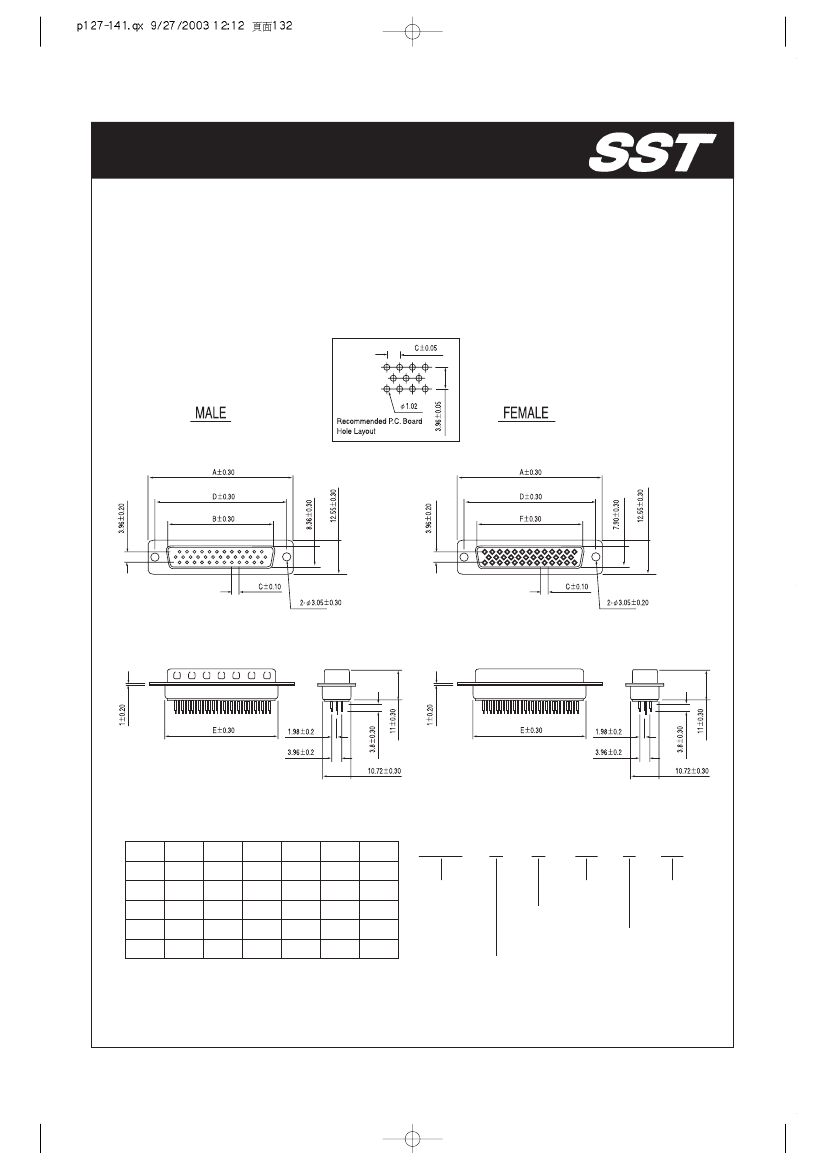

HDBD CONNECTOR SYSTEM

H.D-SUB DIP S/T type

CURRENT RATING : 5A

WITHSTANDING VOLTAGE : 1000VAC(1 MIN)

INSULATION RESISTANCE : 1000 MEGOHMS MIN.

CONTACT RESISTANCE : 30 MILLIOHMS MAX

OPERATION TEMPERATURE : -40ºC TO+85ºC

CONTACT: BRASS, SELECTIVE GOLD OR

ALL GOLD

INSULATOR. PBT & 30% G.F.

SHELL: STELL, TIN PLATED

30.80

39.10

53.00

69.30

66.90

19.90

25.30

39.00

55.40

52.86

2.29

2.41

24.99

33.32

47.04

63.50

61.11

19.30

27.50

41.30

57.70

55.30

16.30

24.70

38.40

54.80

52.34

HDBD - X - X - XX - X - XX

Series

Color:

1: Black

3: Blue

6: White

Style

1:W/o SCREW

2:With SCREW

No. of

Contact

Plating

X1: Selective Gold

A1: All Gold

Contact Type

P: Male

S:Female

132

HDBD-2-3-26-P-X1 Related Products

	HDBD-2-3-26-P-X1	HDBD-2-3-26-P-A1	HDBD-2-1-78-S-X1	HDBD-2-1-78-P-X1	HDBD-2-1-78-P-A1	HDBD-2-3-15-S-A1	HDBD-2-3-15-P-A1	HDBD-2-3-15-S-X1
Description	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle	D Type Connector, 78 Contact(s), Female, 0.095 inch Pitch, Solder Terminal, Hole .115-.125, Plug	D Type Connector, 78 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle	D Type Connector, 78 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Plug	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Hole .115-.125, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH SCREW	WITH SCREW	WITH SCREW	WITH SCREW	WITH SCREW	WITH SCREW	WITH SCREW	WITH SCREW
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
body length	1.539 inch	1.539 inch	2.634 inch	2.634 inch	2.634 inch	1.213 inch	1.213 inch	1.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	PLUG
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU
Contact point gender	MALE	MALE	FEMALE	MALE	MALE	FEMALE	MALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLACK	BLACK	BLACK	BLUE	BLUE	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	HDBD	HDBD	HDBD	HDBD	HDBD	HDBD	HDBD	HDBD
Plug contact pitch	0.09 inch	0.09 inch	0.095 inch	0.095 inch	0.095 inch	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch
Installation option 1	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	4	4	4	3	3	3
Number of rows loaded	3	3	4	4	4	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
Terminal pitch	2.286 mm	2.286 mm	2.413 mm	2.413 mm	2.413 mm	2.286 mm	2.286 mm	2.286 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	26	78	78	78	15	15	15
Maker	South Sea Terminal Co., Ltd.	South Sea Terminal Co., Ltd.	-	-	-	South Sea Terminal Co., Ltd.	South Sea Terminal Co., Ltd.	South Sea Terminal Co., Ltd.
Base Number Matches	1	1	1	1	1	-	-	-
