HM5225645F-B60: Description256M LVTTL interface SDRAM 100 MHz 1-Mword x 64-bit x 4-bank/2-Mword x 32-bit x 4-bank PC/100 SDRAM; Categorystorage storage; File Size81KB，16 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HM5225645F-B60 Overview

256M LVTTL interface SDRAM 100 MHz 1-Mword x 64-bit x 4-bank/2-Mword x 32-bit x 4-bank PC/100 SDRAM

HM5225645F-B60 Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
package instruction	,
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

HM5225645F-B60

HM5225325F-B60

256M LVTTL interface SDRAM

100 MHz

1-Mword

64-bit

4-bank/2-Mword

32-bit

4-bank

PC/100 SDRAM

ADE-203-1014C (Z)

Rev. 1.0

Oct. 1, 1999

Description

The Hitachi HM5225645F is a 256-Mbit SDRAM organized as 1048576-word

64-bit

4-bank. The Hitachi

HM5225325F is a 256-Mbit SDRAM organized as 2097152-word

32-bit

4-bank. All inputs and outputs

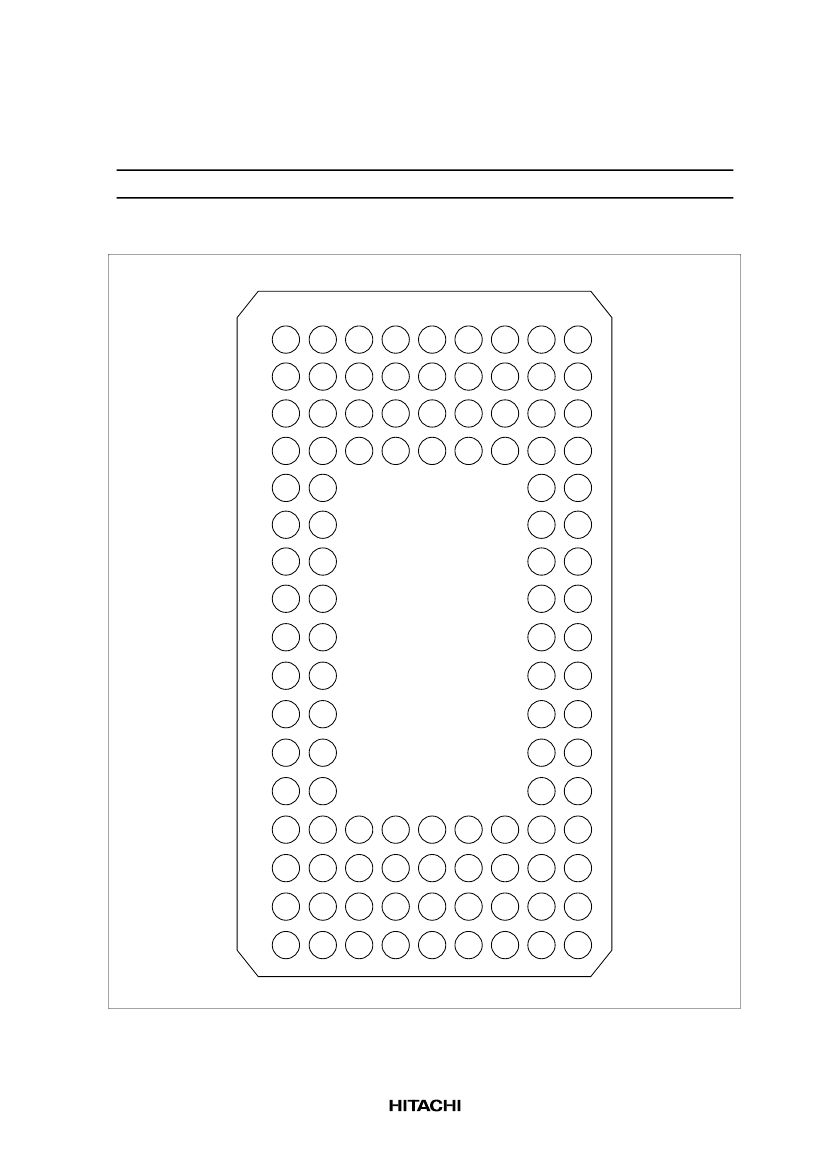

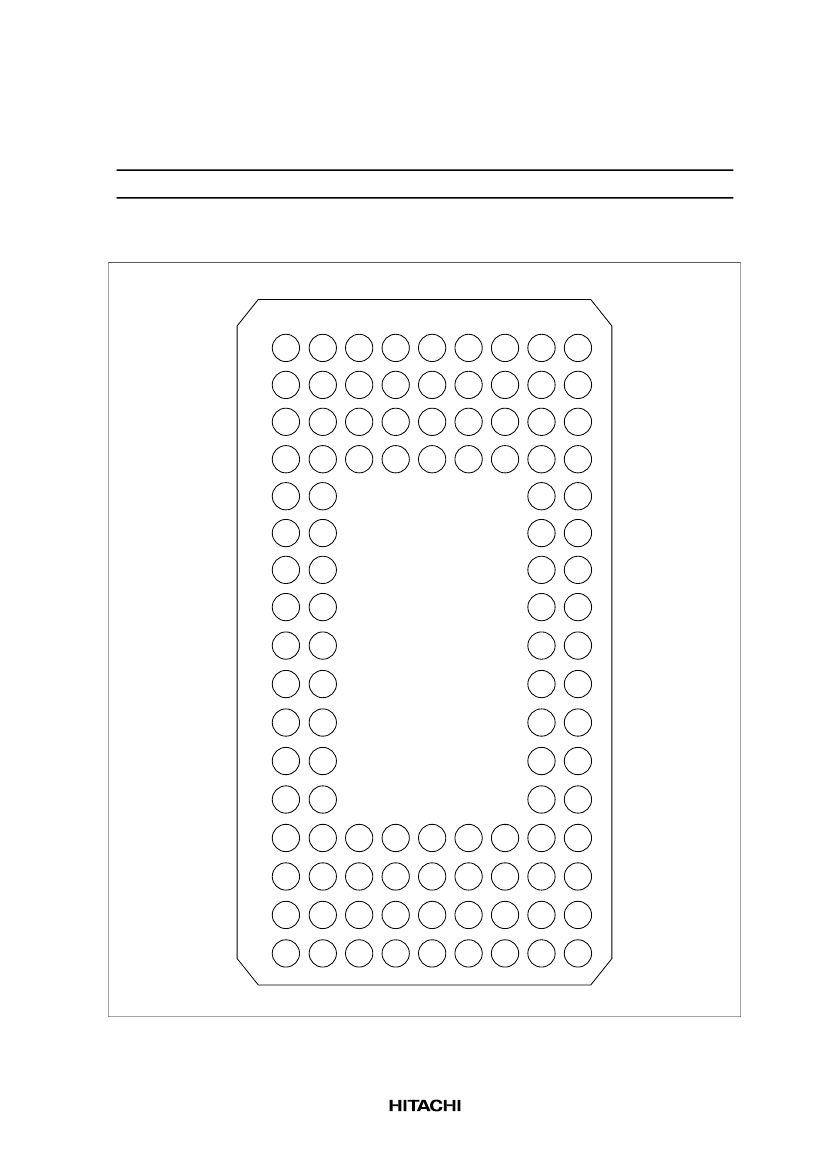

are referred to the rising edge of the clock input. It is packaged in standard 108 bump BGA.

Features

•

Single chip wide bit solution (× 64/× 32)

3.3 V power supply

Clock frequency: 100 MHz (max)

LVTTL interface

Extremely small foot print: 1.27 mm pitch



Package: BGA (BP-108)

4 banks can operate simultaneously and independently

Burst read/write operation and burst read/single write operation capability

Programmable burst length: 4/8/full page

2 variations of burst sequence



Sequential (BL = 4/8/full page)



Interleave (BL = 4/8)

Programmable

CAS

latency: 2/3

Byte control by DQMB

•
