583975-2 datasheet, PDF - EEWORLD Datasheet

583975-2: DescriptionCONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

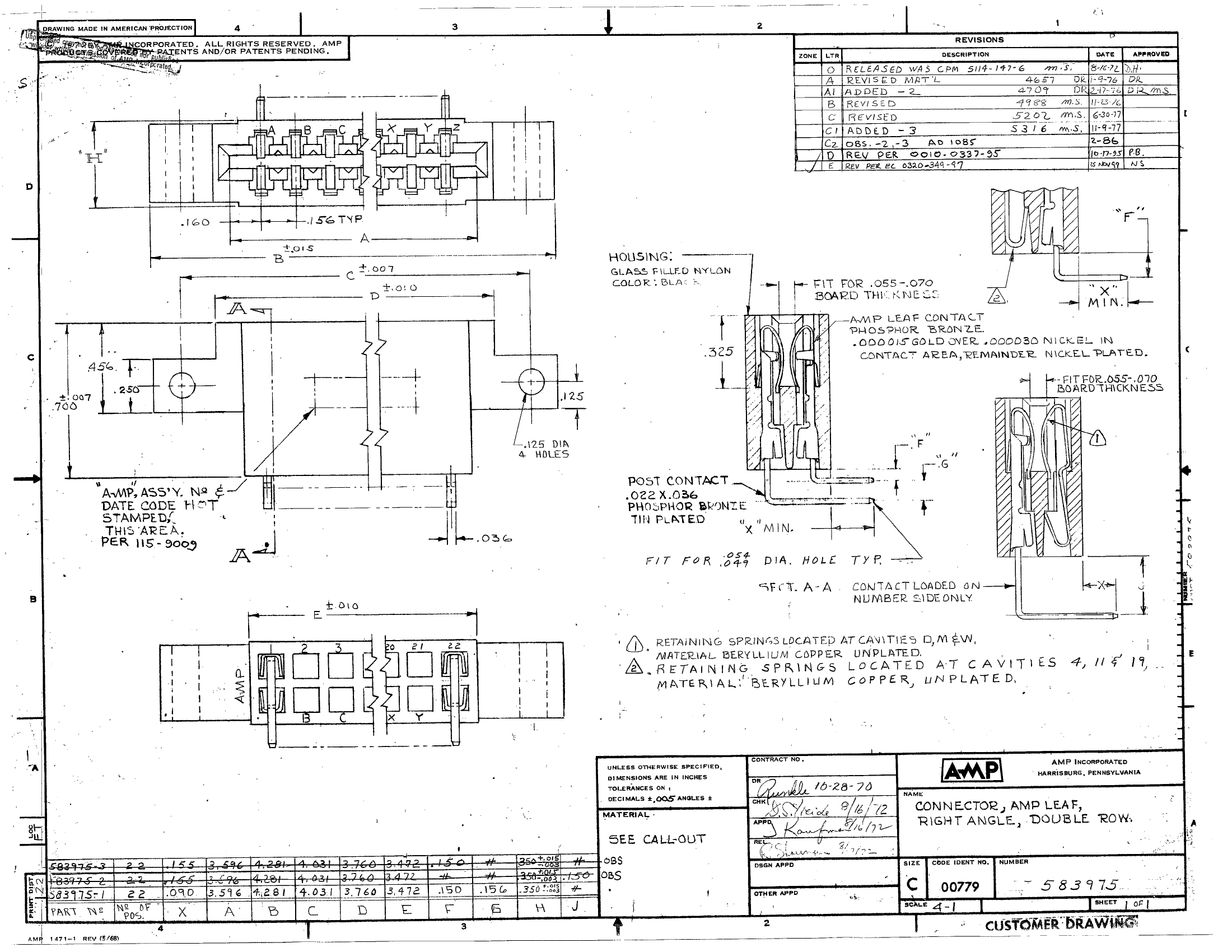

583975-2 Overview

CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	583975
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

	583975-2	583975-1	583975-3
Description	CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER	EDGE CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,0.156 PITCH,PC TAIL TERMINAL	CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Terminal pitch	3.96 mm	3.9624 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	22	22	22
Base Number Matches	1	1	1
Contact point gender	FEMALE	-	FEMALE
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Manufacturer's serial number	583975	-	583975
Mixed contacts	NO	-	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
