AND180CRP
Ultra Bright LED Lamps: Type 1
Weight: 0.31 g
Unit: mm
AND180CRP
5.6±0.3
GaAlAs Red Light Emission
T-1 3/4 Package (5 mm)
Features
• Peak wavelength (
λ
p = 660 nm) high bright emission
• All plastic mold type, clear colorless lens
• Low drive current: 20 mA for outdoor applications
0.5 mA for indoor applications
• Excellent On-Off contrast ratio
• Fast response time, capable of pulse operation
• Suitable for Outdoor Message Signboards
5.0±0.2
1.0±0.2
1.0 MIN.
26.4 MIN.
8.6±0.3
0.5
Maximum Ratings (T
a
= 25°C)
Characteristics
Forward Current
Symbol
I
F
V
R
P
D
T
Opr
T
Stg
Rating
40
5
125
-40 to 85
-40 to 100
Unit
mA
V
mW
°C
°C
2.54
Cathode Index
0.5
Reverse Voltage
Power Dissipation
Operating Temperature Range
1. Anode
2. Cathode
1
2
Storage Temperature Range
Electro-Optical Characteristics (T
a
= 25°C)
Characteristics
Forward Voltage
Reverse Current
Luminous Intensity
Peak Emission Wavelength
Spectral Line Half Width
Dominant Wavelength
Full Viewing Angle
Symbol
V
F
I
R
I
V
l
P
∆λ
λ
d
θ
Test Condition
I
F
= 20 mA
V
R
= 4 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
V
= 1/2 Peak
Minimum
–
–
2,500
–
–
–
–
Typical
1.7
–
3,600
660
20
643
10
Maximum
2.4
10
–
–
–
–
–
Unit
V
µA
mcd
nm
nm
nm
degree
Precaution
Please be careful of the following:
1. Soldering temperature: 260°C max
Soldering time: 5 sec. max
Soldering portion of lead: up to 1.6 mm from the body of the device
2. The lead can be formed up to 5 mm from the body of the device without forming stress.
Soldering should be performed after the lead forming.
Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085
Tel: 408.523.8200 • Fax: 408.733.1287 • email@purdyelectronics.com • www.purdyelectronics.com
11/19/02

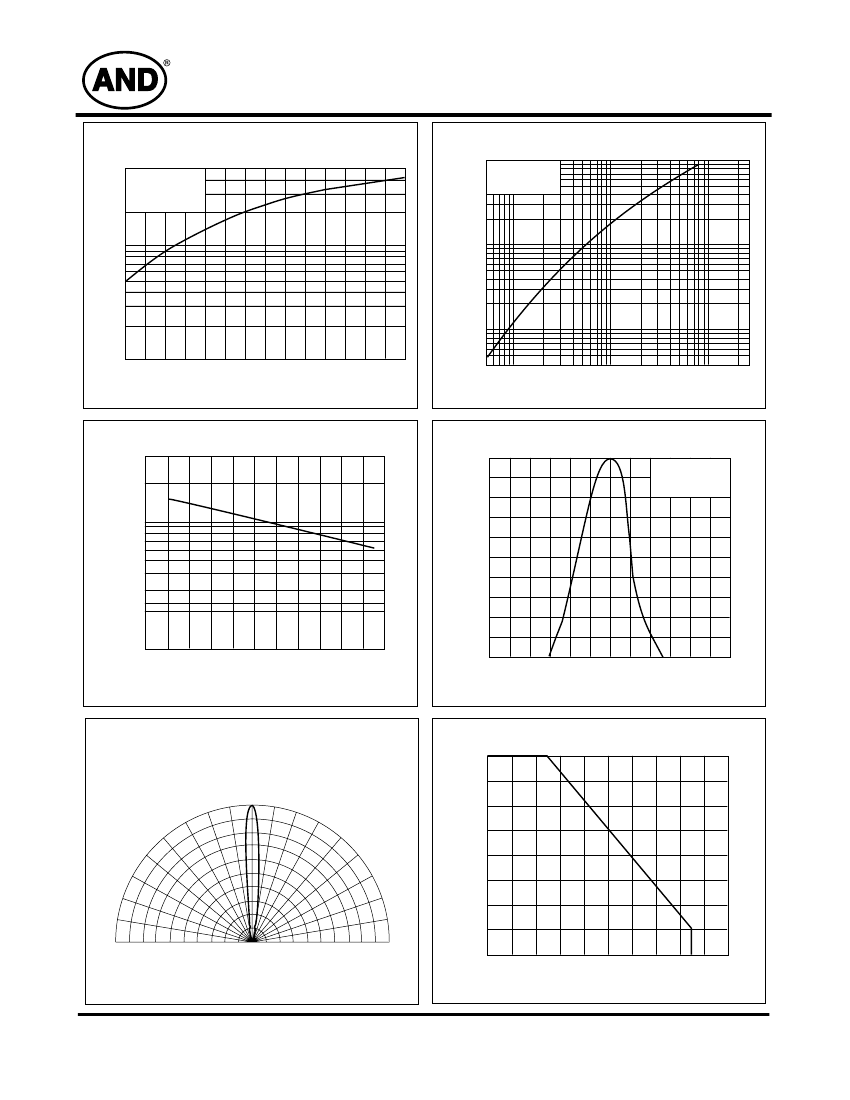

AND180CRP
GaAlAs Red Light Emission
I
F
— V
F
50
Luminous Intensity I
V
(mcd)
Forward Current I
F
(mA)
30
T
a
= 25¡C
10000
5000
3000
T
a
= 25¡C
Ultra Bright LED Lamps: Type 1
I
V
— I
F
10
5
3
1000
500
300
100
1
1.4
50
1.5
1.6
1.7
1.8
Forward Voltage V
F
(V)
1.9
2.0
2.1
0.5
1
3
5
10
30 50 100
300
Forward Current I
F
(mA)
I
V
— T
C
3
Relative Luminous Intensity
1.0
Relative Luminous Intensity — Wavelength
I
F
= 20 mA
T
a
= 25¡C
Relative Luminous Intensity
0.8
1
0.5
0.3
0.6
0.4
0.2
0
600
0.1
-20
0
20
40
60
80
620
640
660
680
700
720
Case Temperature T
C
(¡C)
Wavelength
λ
(nm)
Radiation Pattern
40
10¡
0¡
Ta = 25¡C
20¡
30¡
40¡
50¡
60¡
70¡
80¡
90¡
0
0.2
0.4
0.6
0.8
0
0
Allowable Forward Current I
F
(mA)
I
F
— T
a
20¡
30¡
40¡
50¡
60¡
70¡
80¡
90¡
10¡
30
20
10
20
40
60
80
Ambient Temperature T
a
(¡C)
100
Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085
Tel: 408.523.8200 • Fax: 408.733.1287 • email@purdyelectronics.com • www.purdyelectronics.com
11/19/02
