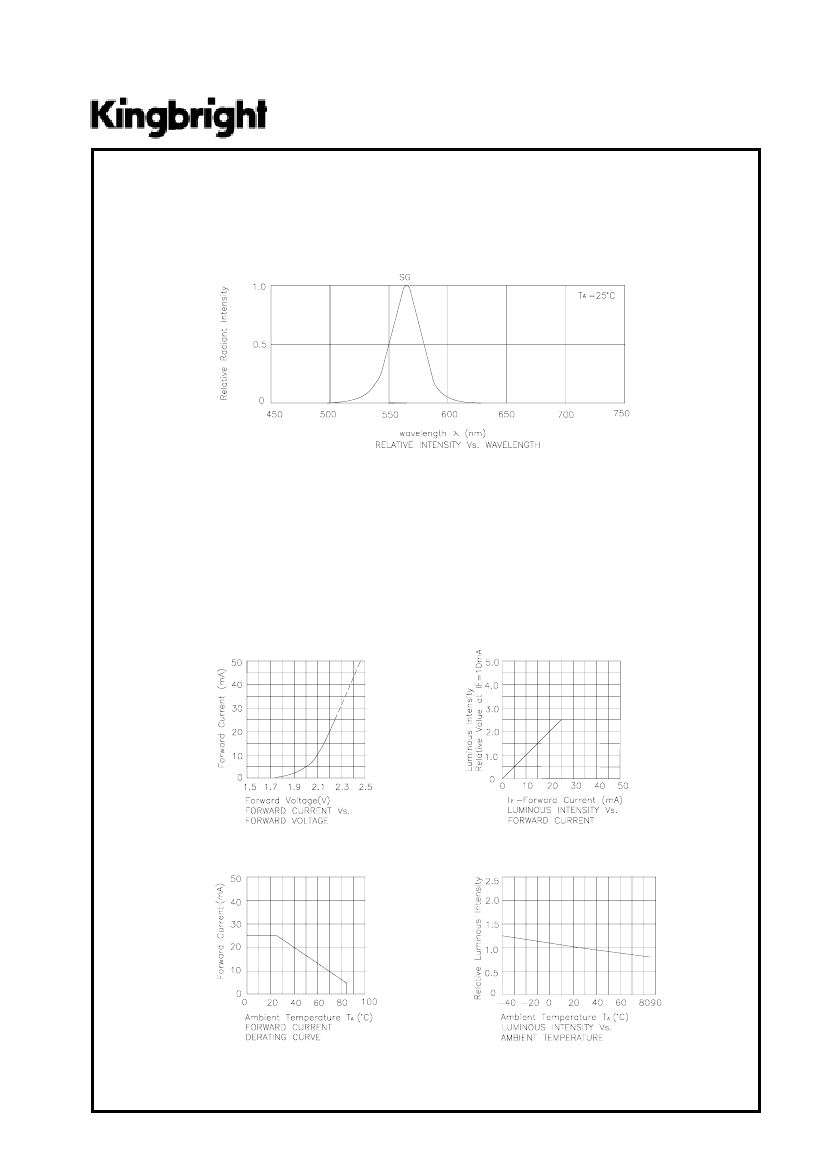

SURFACE MOUNT DISPLAY

APPDA04-41SGWA

SUPER BRIGHT GREEN

Features

0.4 INCH CHARACTER HEIGHT.

LOW

Description

The Super Bright Green source color devices are

made with Gallium Phosphide Green Light Emitting

Diode.

CURRENT OPERATION.

HIGH CONTRAST AND LIGHT OUTPUT.

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

CATEGORIZED FOR LUMINOUS INTENSITY.

MECHANICALLY RUGGED.

GRAY FACE, WHITE SEGMENT.

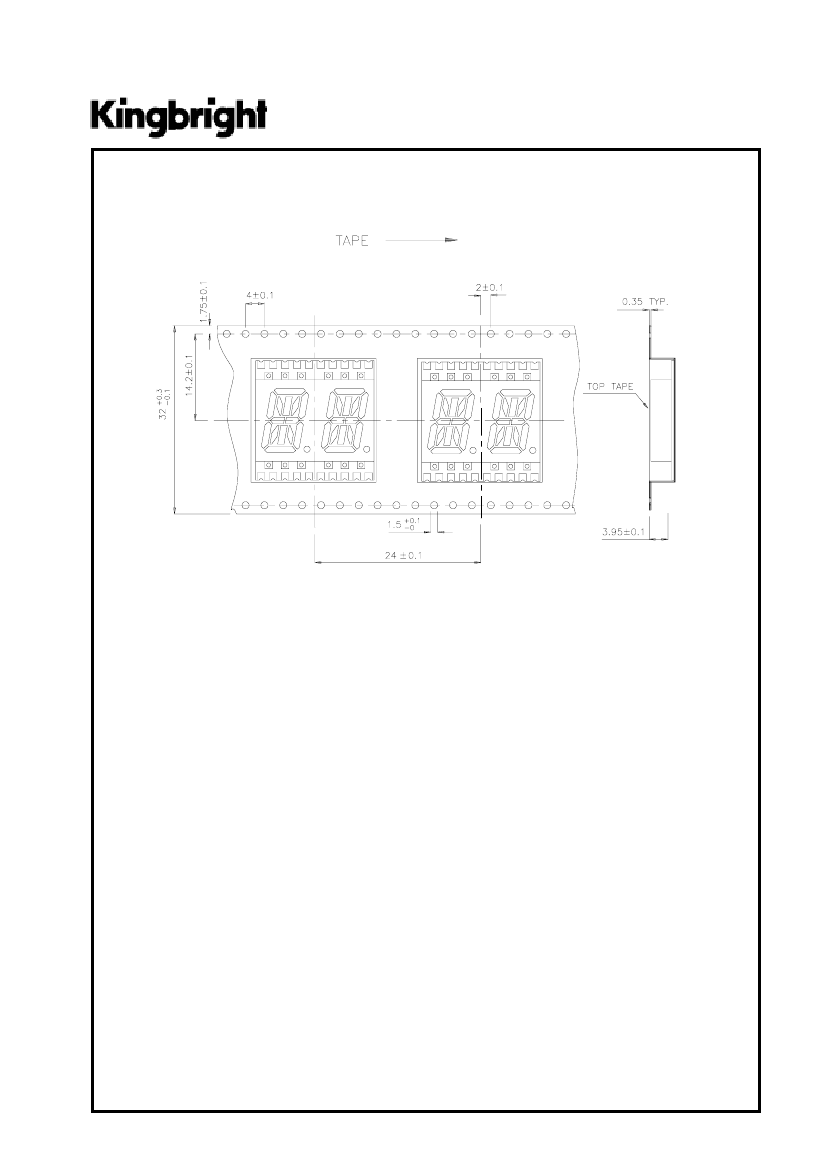

PACKAGE :500PCS / REEL.

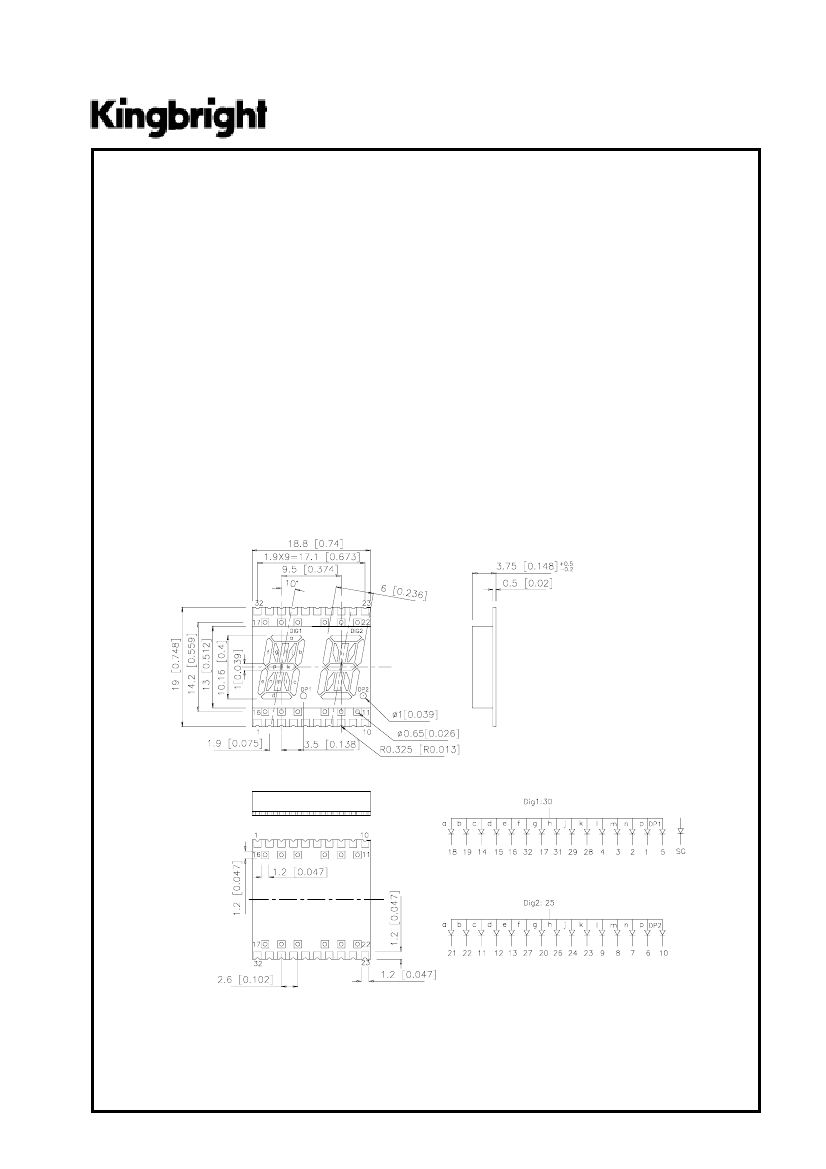

Package Dimensions & Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is

±0.25(0.01")unless

otherwise noted.

2. Specifications are subject to change without notice.

SPEC NO:DSAB3117

APPROVED : J. Lu

REV NO: V.2

CHECKED : Joe Lee

DATE:APR/11/2003

DRAWN: S.J.HOU

PAGE: 1 OF 5
