3921500000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3921500000

3921500000: DescriptionElectric Fuse, Time Lag Blow, 5A, 250VAC, 50A (IR), Through Hole, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size184KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

3921500000 Overview

Electric Fuse, Time Lag Blow, 5A, 250VAC, 50A (IR), Through Hole, ROHS COMPLIANT

3921500000 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME LAG
body width	4 mm
body height	8 mm
Body length or diameter	8.5 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	90 J
Manufacturer's serial number	392
Installation features	THROUGH HOLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	AMMO PACK; TAPE AND REEL
physical size	8.5mm x 4mm x 8mm
Pre-discharge time - minutes	20 ms
Rated breaking capacity	50 A
Rated current	5 A
Rated voltage (AC)	250 V
Guideline	CQC; IEC; METI; PSE; SEMKO; UL; VDE
surface mount	NO
Terminal surface	TIN
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

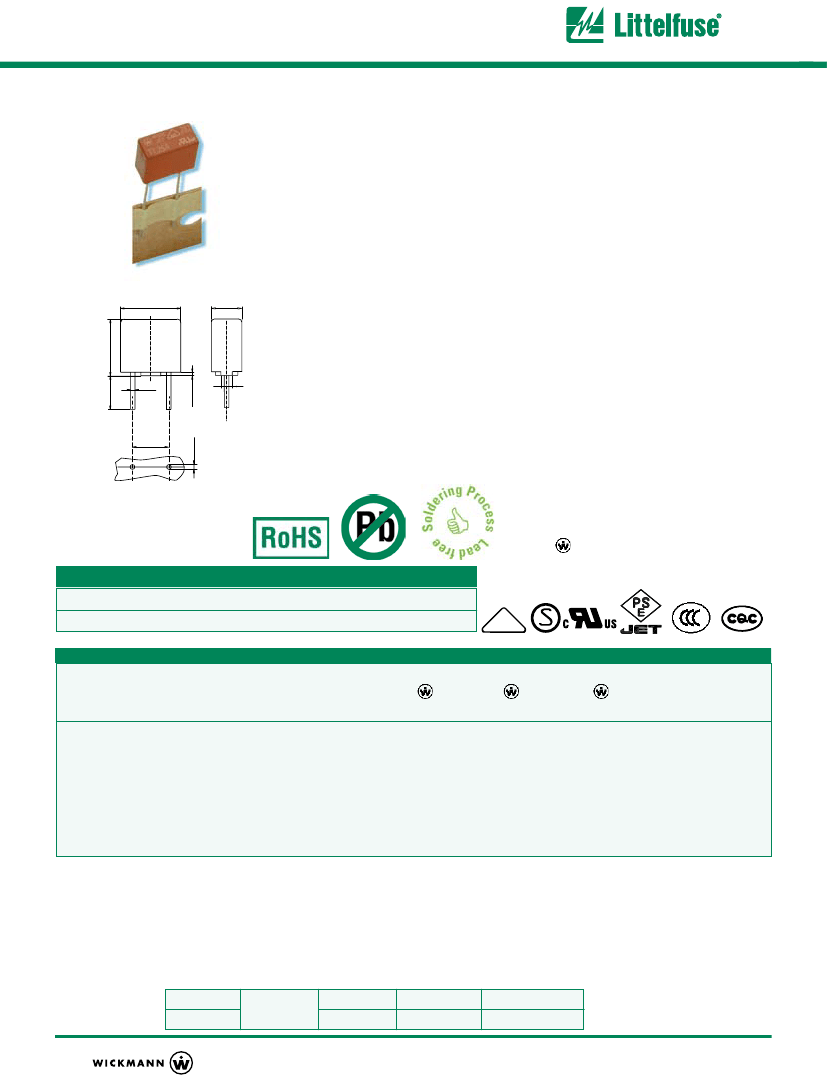

ubminiature

uSeS

No. 392 / TE5

IEC 60127-3/IV, 250 V, T

Lead Free

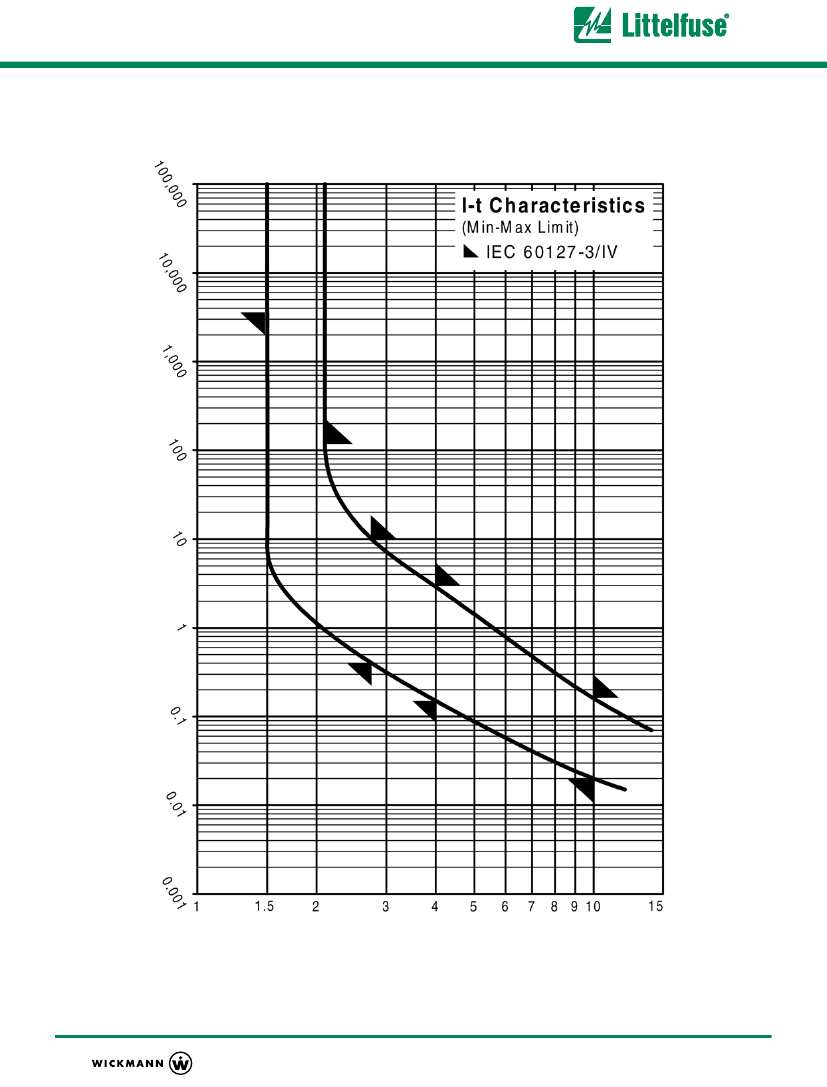

Time-Current Characteristic

Time Lag (T)

Specifications

Packaging

Materials

000: Tape/Ammopack (1,400 pcs.)

044: Short Leads - Bulk (1,400 pcs.)

Base/Cap:

rown Thermoplastic

olyamide PA 6.6, UL 94 V0

Round Pins: opper, Sn plated

-40 ˚C to +85 ˚C (consider de-rating)

Standard

According to IEC 60127-3/IV

VDE Expert Report

SEMKO

cULus Recognized

METI-PSE

CCC

CQC

Approvals

Operating Temperature

Climatic Category

Stock Conditions

-40 ˚C/+85 ˚C/21 days

(EN 60068-1,-2-1,-2-2,-78)

Dimensions

8.5

max. 4

Features

0.5 min

∅ 0.6

1.5

Lead Free

Reduced PCB space requirements

Direct solderable or plug-in versions

Internationally approved

Low internal resistance

Shocksafe casing

Vibration resistant

Halogen free

max. 8

+10 ˚C to +60 ˚C

relative humidity ≤ 75 % yearly average,

without dew, maximum value for 30 days - 95 %

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

10 N (IEC 60068-2-21)

Vibration Resistance

Lead Pull Strength

Solderability

260 ˚C, ≤ 3 s (Wave)

350 ˚C, ≤ 1 s (Soldering iron)

260 ˚C, 10 s (IEC 60068-2-20)

350 ˚C, ≤ 3 s (Soldering iron)

5.08

1 +0.1

Long Leads (L=18.8 mm)

Short Leads (L=4.3 mm)

L cher in der Leiterplatte

Holes in PCB

Holes in the printed circuit board

Soldering Heat Resistance

Marking

, T, Current Rating, Approvals

Limits for Pre-arcing Time

Rated Current 1.5 x I

2.1 x I

800 mA ... 6.30 A > 1 h

Unit Weight

2.75 x I

4 x I

10 x I

VDE

0.60 g (approx.)

< 2 min 400 ms ... 10 s 150 ms ... 3 s 20 ms ... 150 ms

Permissible continuous operating current is

≤

100 % at ambient temperature of 23 ˚C (73.4 ˚F).

SEMKO

PSE-JET

cURus

800 mA

1.00 A

1.25 A

1.60 A

2.00 A

2.50 A

3.15 A

4.00 A

5.00 A

6.30 A

0800

1100

1125

1160

1200

1250

1315

1400

1500

1630

250V

25A/250 V AC

32A/250 V AC

40A/250 V AC

50A/250 V AC

63A/250 V AC

110

115

100

280

400

500

600

700

750

1100

1200

1000

1200

3.80

5.80

9.75

13.50

21.00

32.00

55.00

100.00

90.00

126.00

•

• •

•

CQC

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

G = Expert Report

Order

Information

011906

Qty.

Order-

Number

Series

392

Amp Code

Packaging

Specifications are subject

to change without notice

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

www.littelfuse.com

K-Mark

VDE

CCC

Rated

Current

Amp

Code

Voltage

Breaking Voltage Drop Power Dissipation Melting Integral Approvals

Rating

Capacity

1.0 x I

1.5 x I

10 x I

50-60Hz/cos ϕ = 1.0

max. (mV)

max. (mW)

min. (A s)

•

Recommended Resources

Infant bedwetting alarm circuit

Automatic light control lighting circuit 5

Driving LED circuit diagram using fixed bias voltage and current limiting resistor

Electrical schematic circuit diagram of M5080 track-seeking grinder (2)

8-bit AD circuit block diagram of ML2252

TDA1013B power amplifier circuit

Is it possible to learn to fly a quadcopter in just a few days?: [i=s] This post was last edited by paulhyde on 2014-9-15 03:38 [/i] As the title says, is it possible to learn this stuff in such a short time? What's more annoying is that I have to learn chips again...; zhangeshao Electronics Design Contest

How can I use the matrix keyboard to input a three-digit number (0-999) by pressing three times in Verilog?: How does Verilog use the matrix keyboard to input a three-digit number (0-999) by pressing it three times? module key4x4 ( clk, rst_n, row, col, key_val ); input clk; input rst_n; input [3:0] row; // ...; yuxuanwlfei FPGA/CPLD

ADuCM360 - finally got into debug mode, SEGGER is such a rip off: [b][size=5]1. Background[/size][/b] I recently wanted to play with ADuCM360, so I installed a high-end version of IAR. After installation, it prompted me to install a new J-LINK driver. ----- Of cours...; dontium ADI Reference Circuit

Help: Please ask a question about the 51 single-chip microcomputer variable space overflow: What should I do if the number of variables defined in the program is greater than 128? The kelic compiler prompts the following: Program Size: data=140.1 xdata=126 code=24647 Can an expert provide a ...; 672192076 Embedded System

Learning simulation + "Operational Amplifier Noise Optimization Handbook" reading notes 6: [i=s]This post was last edited by dontium on 2015-1-23 11:10[/i] Tina Software Notes: Tina is one of the important modern EDA (Electronic Design Automation) software, used for simulation analysis of a...; 陌路绝途 Analogue and Mixed Signal

Square iron shell energy storage inductor for boost converter: 350V/10AThe power boost inductor is made of three sets of six EE55 ferrite cores, but the air gap of the center column section is5.2mm(Each piece is2.6mmThe winding wire of the boost energy storage in...; zbz0529 Power technology
