54F365LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F365LMQB

54F365LMQB: DescriptionBus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size155KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F365LMQB Overview

Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

54F365LMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	62 mA
Prop。Delay @ Nom-Sup	7 ns
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

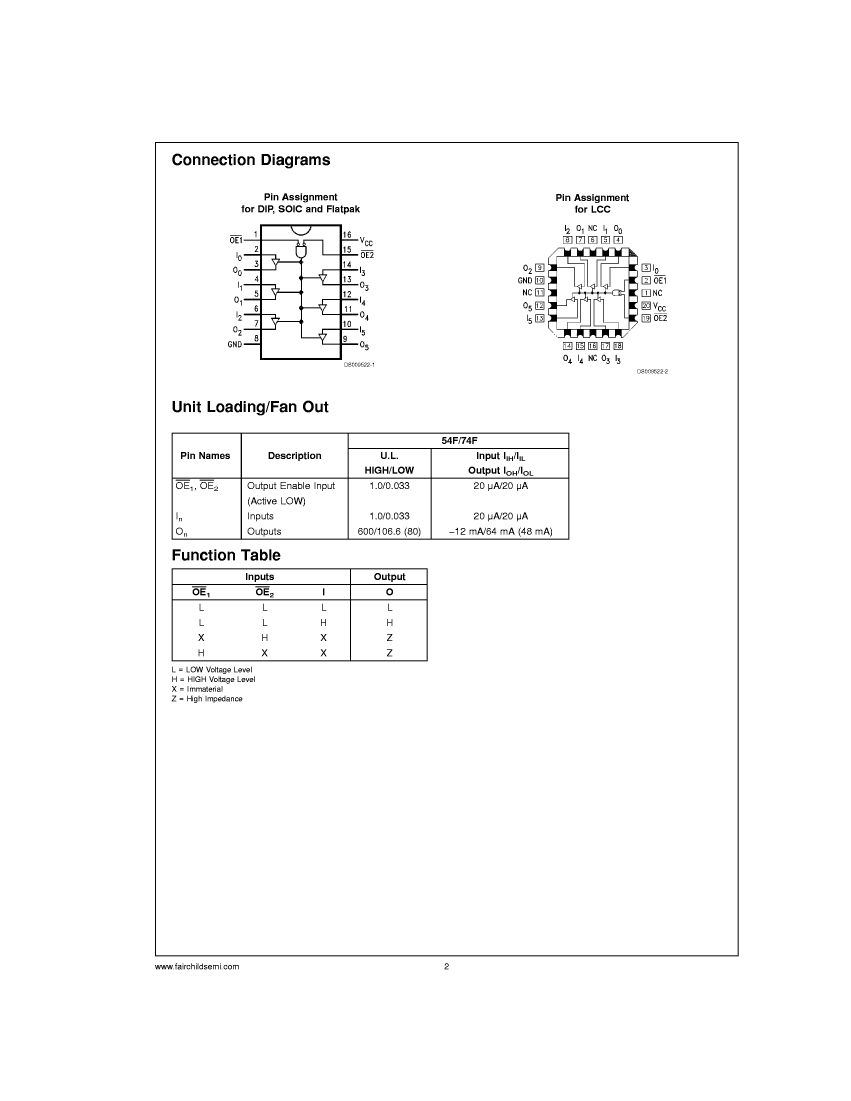

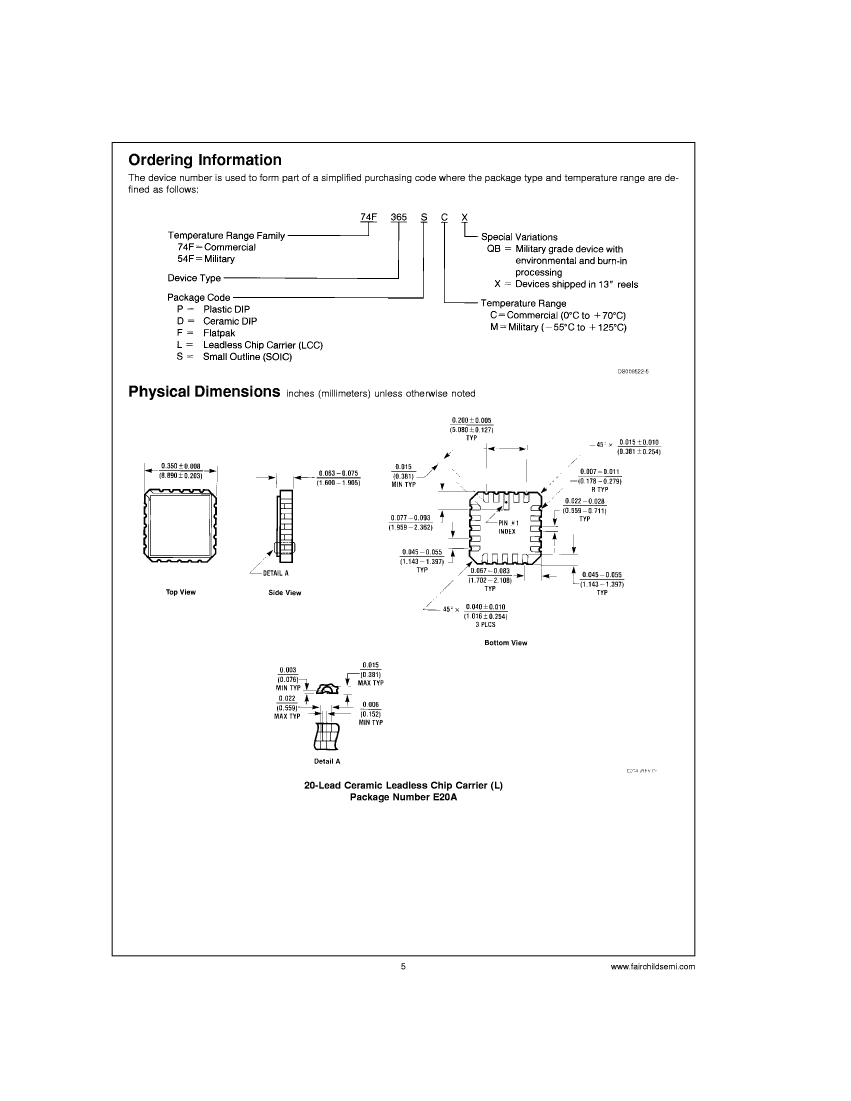

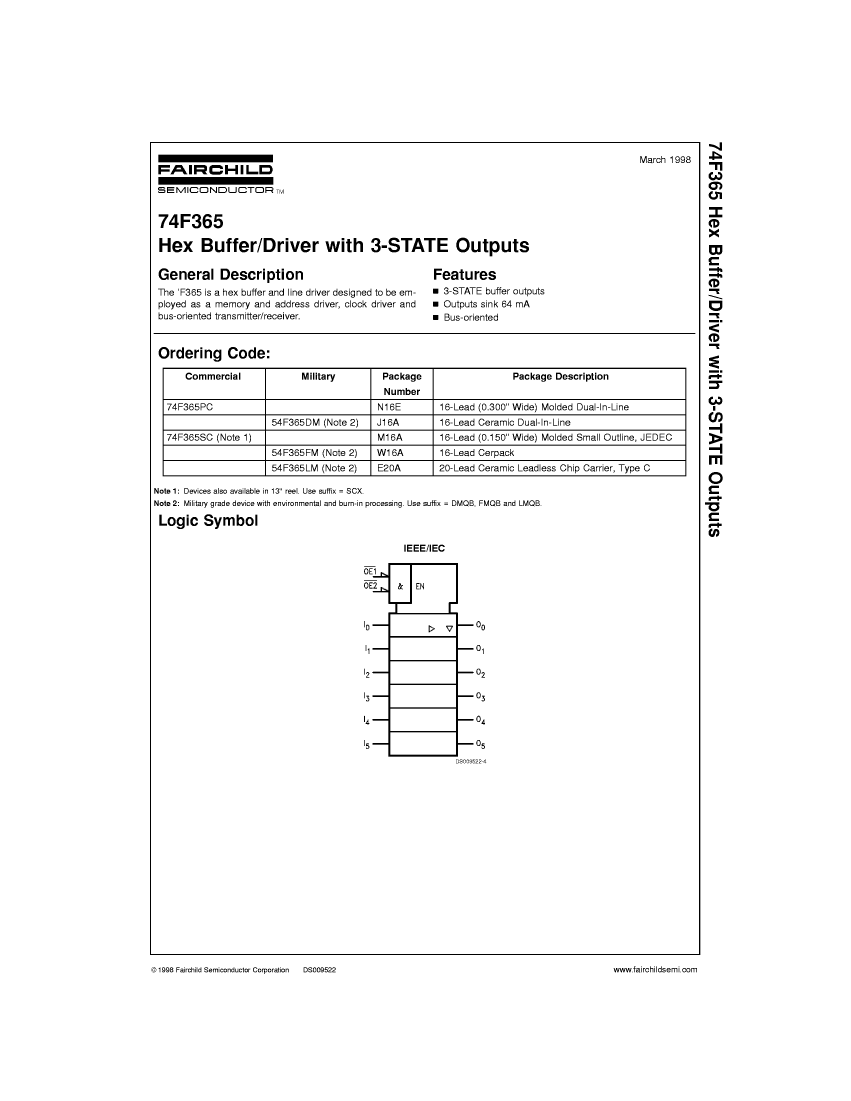

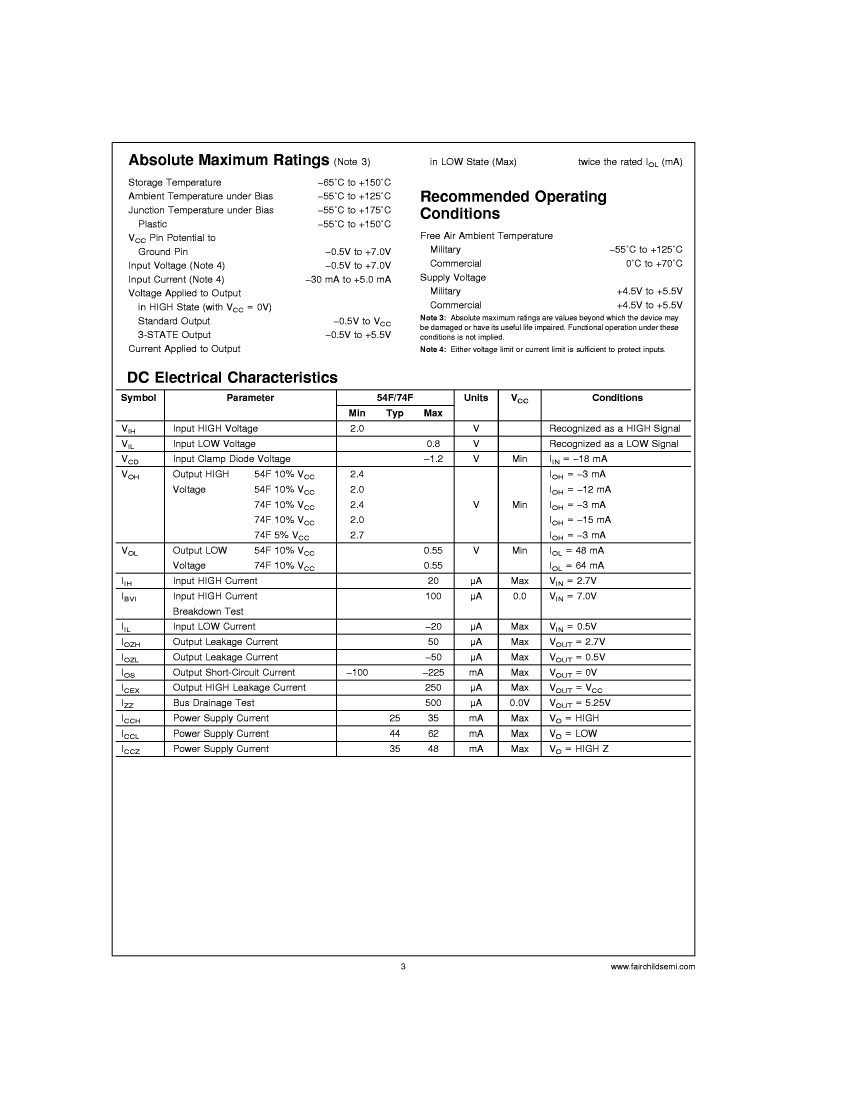

Preview

Download Datasheet

View All

54F365LMQB Related Products

	54F365LMQB	54F365FMQB	54F365DMQB
Description	Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERPACK-16	Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DFP	DIP
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP, DIP16,.3
Contacts	20	16	16
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16
JESD-609 code	e0	e0	e0
length	8.89 mm	9.6645 mm	19.43 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A	0.048 A
Number of digits	6	6	6
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DIP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	DIP16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	62 mA	62 mA	62 mA
Prop。Delay @ Nom-Sup	7 ns	7 ns	7 ns
propagation delay (tpd)	7 ns	7 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	1.905 mm	2.032 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	6.604 mm	7.62 mm
Base Number Matches	1	1	1
