R2520-31.999-32-F-2010-EXT-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> R2520-31.999-32-F-2010-EXT-TR

R2520-31.999-32-F-2010-EXT-TR: DescriptionParallel - Fundamental Quartz Crystal, 31.999MHz Nom,; CategoryPassive components Crystal/resonator; File Size191KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

R2520-31.999-32-F-2010-EXT-TR Overview

Parallel - Fundamental Quartz Crystal, 31.999MHz Nom,

R2520-31.999-32-F-2010-EXT-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compliant
Ageing	2 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	31.999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	2.5mm X 2.0mm X 0.65mm
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

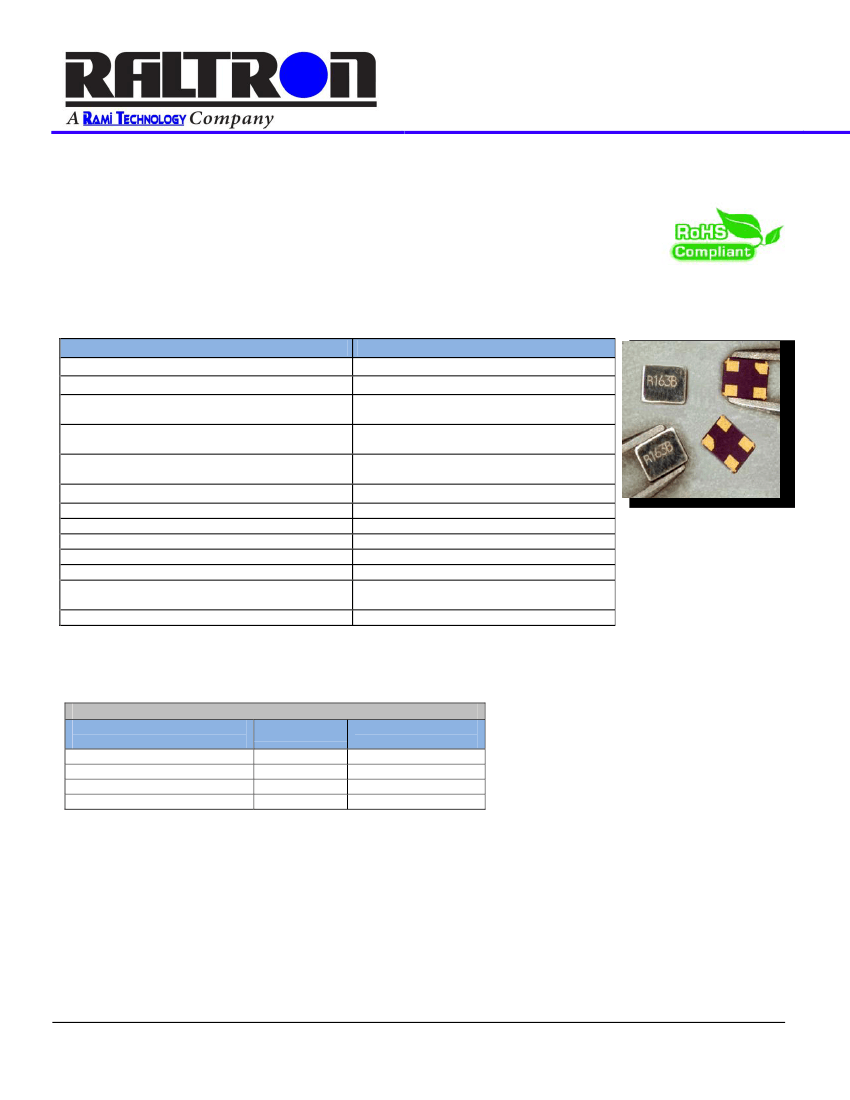

SURFACE MOUNT MICROPROCESSOR CRYSTAL

Page 1 of 3

SERIES R2520



FEATURES



COMPACT DESIGN

HIGH ACCURACY

EXCELLENT FOR HIGH DENSITY SURFACE MOUNTING



SPECIFICATIONS

PARAMETER

VALUE

16.00 MHz to 55.00 MHz

FUNDAMENTAL ONLY

±50 PPM MAXIMUM

(±10, AND ±20 PPM AVAILABLE)

±50 PPM MAXIMUM

(±10, AND ±20 PPM AVAILABLE)

-10°C TO +60°C STANDARD

-40°C TO +85°C EXTENDED

-40°C TO +85°C

±3 PPM PER YEAR MAXIMUM

8 pF to 32 pF OR SERIES

SEE TABLE 1

7 pF MAXIMUM

500 µW MAXIMUM

±5 PPM MAXIMUM 75 cm DROP TEST IN

3 AXES ONTO A HARD SURFACE

260°C ±5°C FOR 10s MAXIMUM

FREQUENCY RANGE

MODE OF OSCILLATION

FREQUENCY TOLERANCE AT 25°C

FREQUENCY STABILITY OVER TEMPERATURE

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

AGING

LOAD CAPACITANCE

EQUIVALENT SERIES RESISTANCE

SHUNT CAPACITANCE

DRIVE LEVEL

SHOCK RESISTANCE

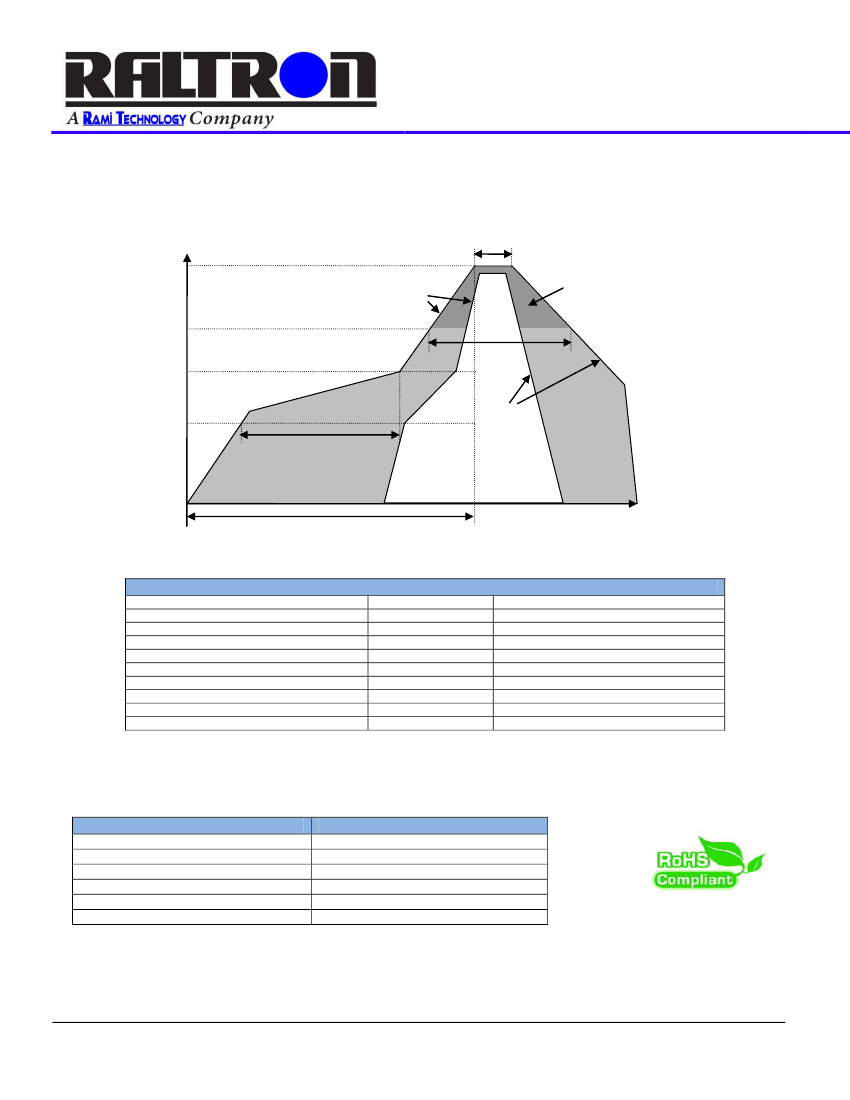

REFLOW CONDITIONS

NOTE: NOT ALL STABILITIES ARE AVAILABLE FOR ALL OPERATING TEMPERATURE RANGES.

CONTACT FACTORY FOR AVAILABILITY.

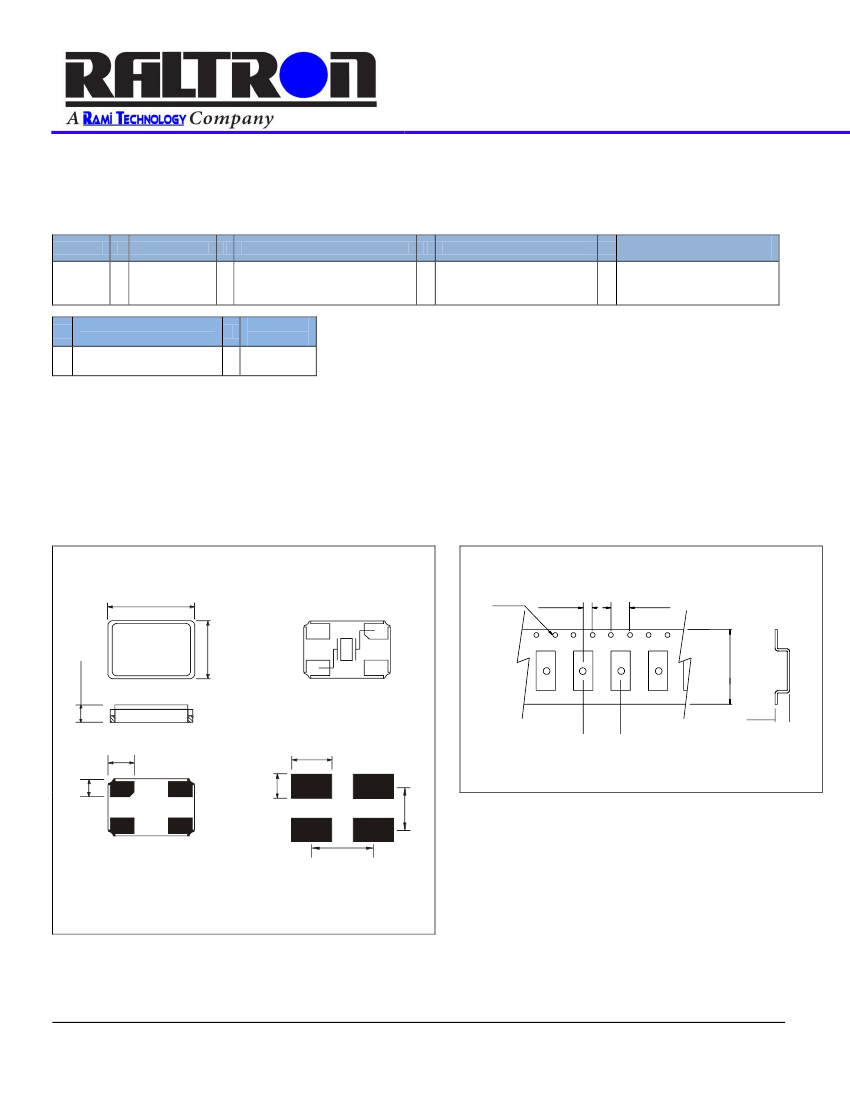

TABLE 1

FREQUENCY

(MHz)

16.000 TO 18.999

19.000 TO 24.999

25.000 TO 31.999

32.000 TO 50.000

MODE

FUND

MAX ESR

(OHMS)

R A L T R O N E L E C T R O N I C S



1 0 4 0 0 N .W . 3 3

STREET



Miami, Florida 33172



U.S.A.

Telephone: 305-593-6033



Fax: 305-594-3973



e-mail: sales@raltron.com



web site: http://www.raltron.com
