BA5968FP-E2 datasheet, PDF - EEWORLD Datasheet

BA5968FP-E2: DescriptionCD Motor Driver, 5 Channel, PDSO28, ROHS COMPLIANT, HSOP-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，17 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

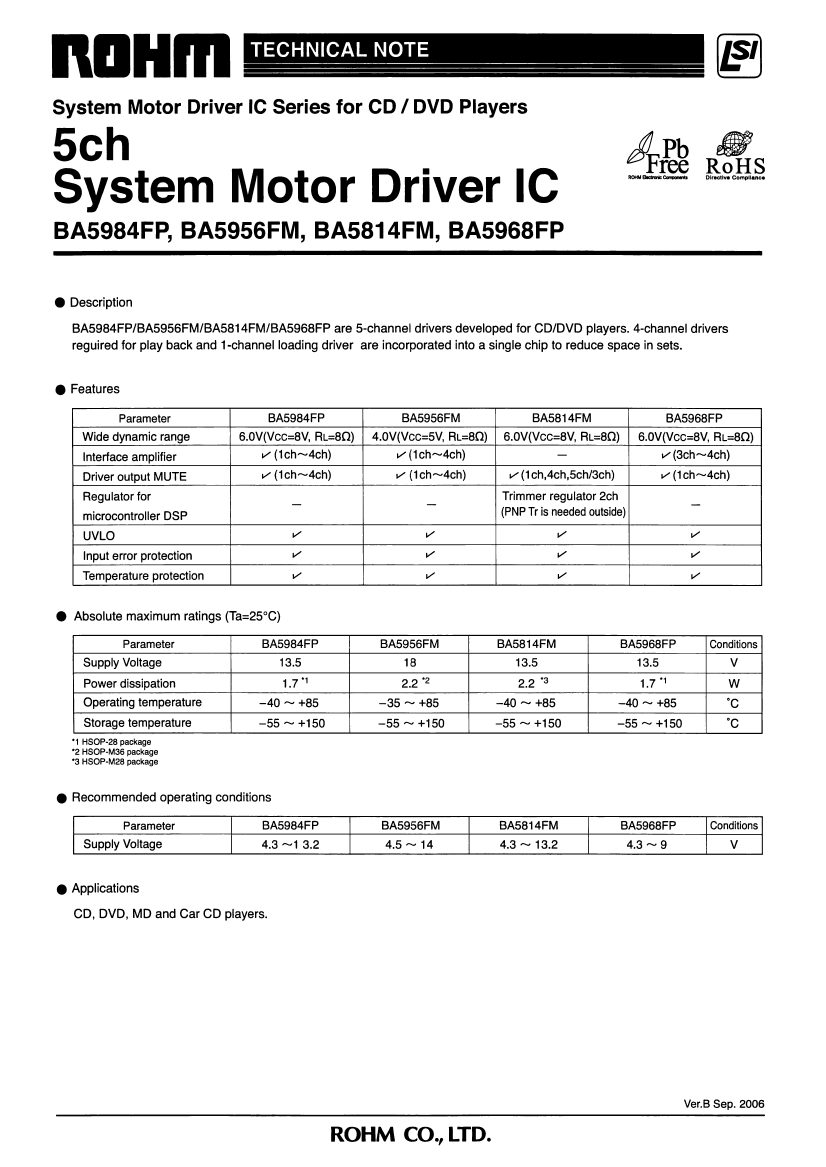

BA5968FP-E2 Overview

CD Motor Driver, 5 Channel, PDSO28, ROHS COMPLIANT, HSOP-28

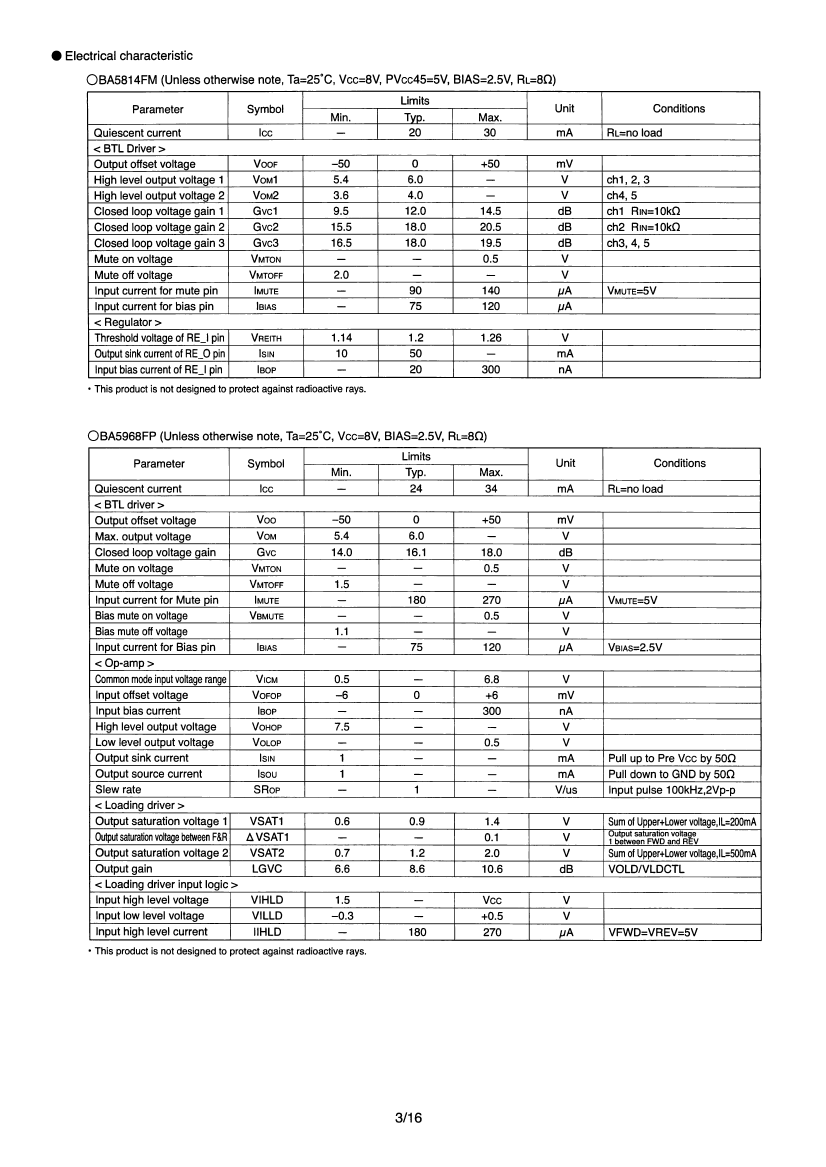

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	ROHS COMPLIANT, HSOP-28
Contacts	28
Reach Compliance Code	compliant
Drive type	OPTICAL
Interface integrated circuit type	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G28
length	18.5 mm
Number of channels	5
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified
Maximum supply voltage	9 V
Minimum supply voltage	4.3 V
Nominal supply voltage	8 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1
