4857-3577-02 datasheet, PDF - EEWORLD Datasheet

4857-3577-02: DescriptionMALE, RF CONNECTOR, TAB, PLUG; CategoryThe connector The connector; File Size347KB，10 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

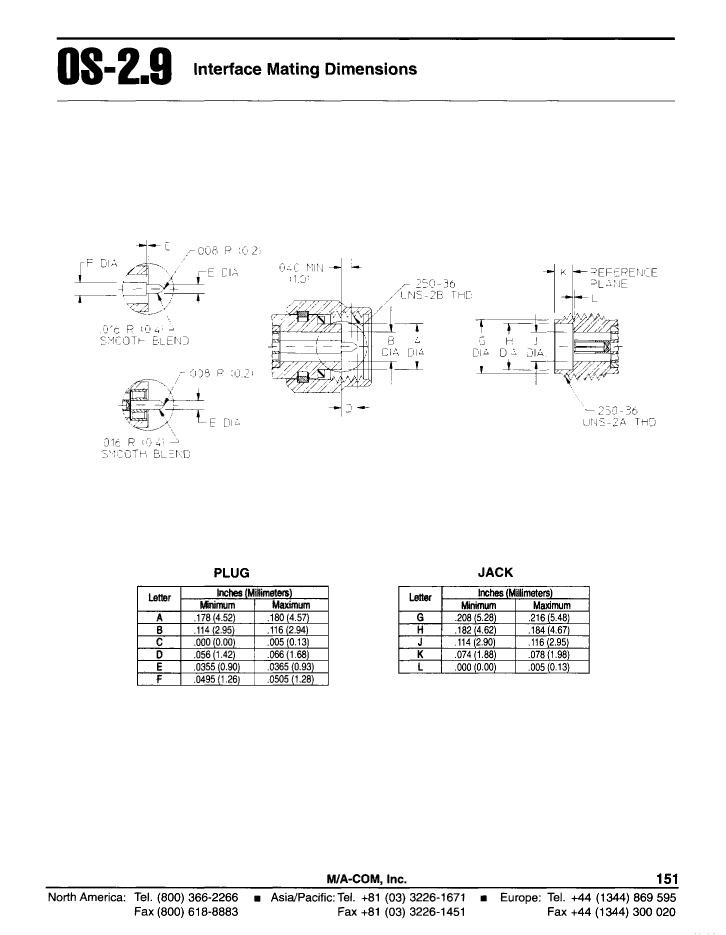

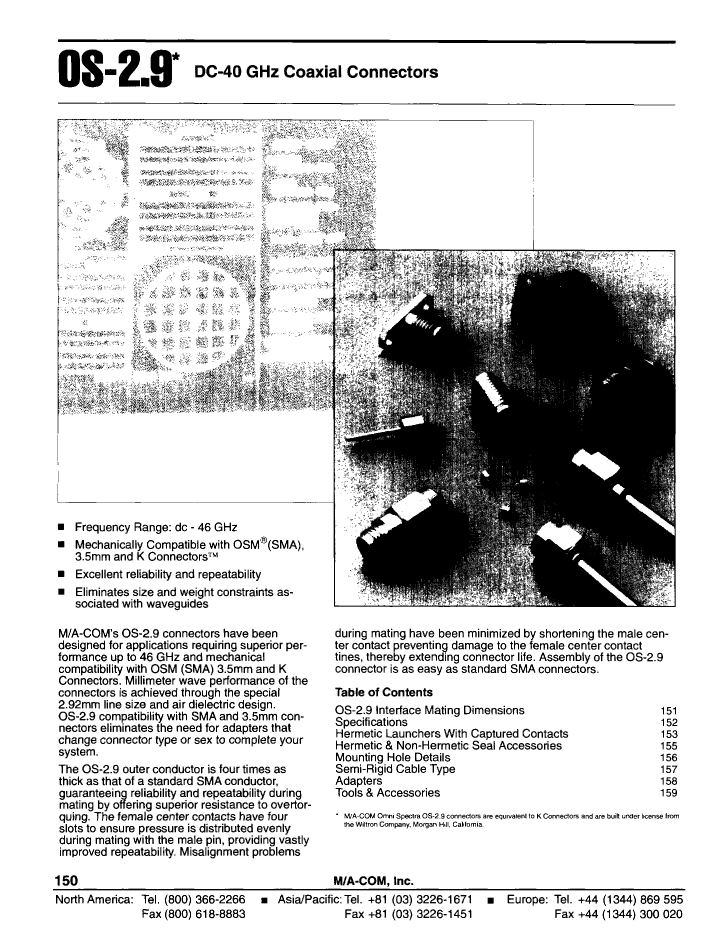

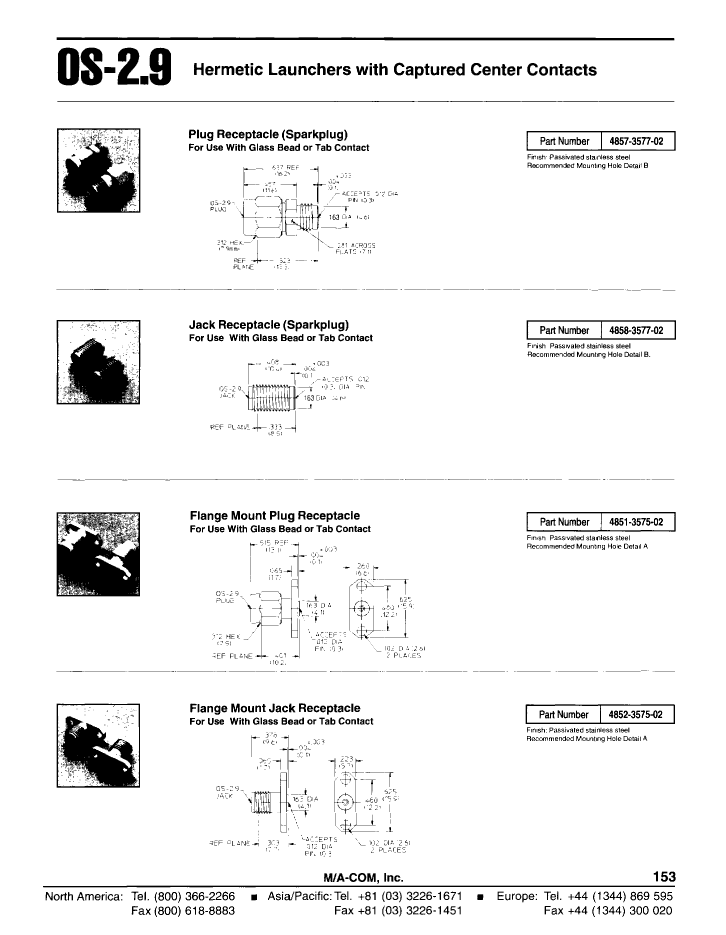

4857-3577-02 Overview

MALE, RF CONNECTOR, TAB, PLUG

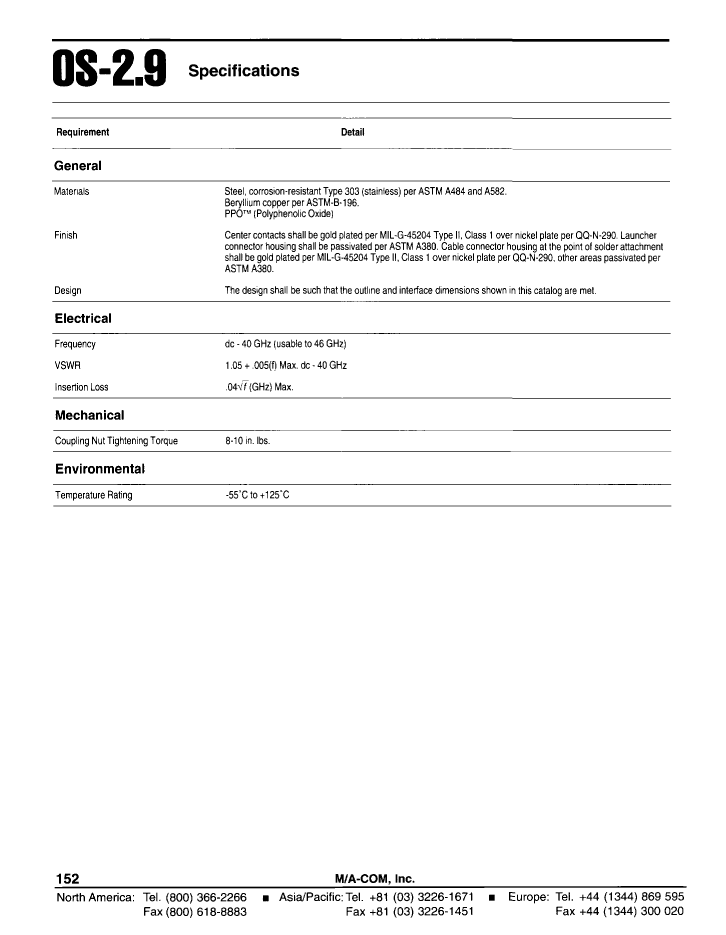

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CAPTIVE CENTER CONTACT, VSWR MAX AT 40GHZ
Body/casing type	RECEPTACLE
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	PPO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	OS-2.9
Installation method	STRAIGHT
Maximum operating frequency	46 GHz
Options	HERMETIC
Panel mounting	NO
Termination type	TAB
voltage standing wave ratio	1.25
Base Number Matches	1

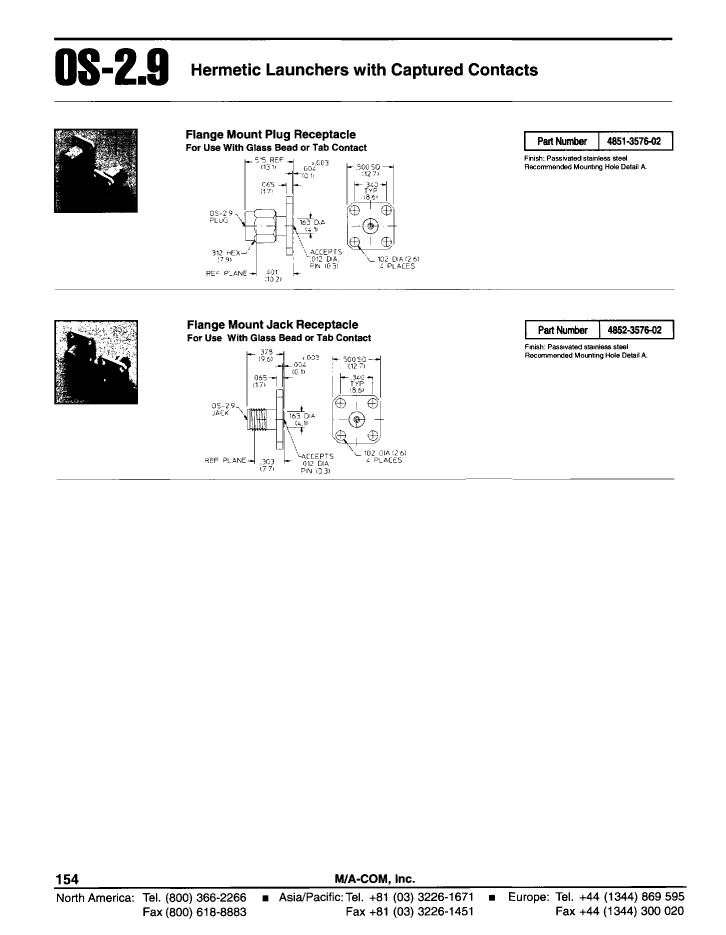

	4857-3577-02	4851-3575-02	4851-3576-02
Description	MALE, RF CONNECTOR, TAB, PLUG	PANEL MOUNT, MALE, RF CONNECTOR, TAB, PLUG	PANEL MOUNT, MALE, RF CONNECTOR, TAB, PLUG
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	CAPTIVE CENTER CONTACT, VSWR MAX AT 40GHZ	CAPTIVE CENTER CONTACT, VSWR MAX AT 40GHZ	CAPTIVE CENTER CONTACT, VSWR MAX AT 40GHZ
Body/casing type	RECEPTACLE	PLUG	PLUG
Connector type	RF CONNECTOR	RF F CONNECTOR	RF F CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB
insulator material	PPO	PPO	PPO
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	OS-2.9	OS-2.9	OS-2.9
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	46 GHz	46 GHz	46 GHz
Options	HERMETIC	HERMETIC	HERMETIC
Panel mounting	NO	YES	YES
Termination type	TAB	TAB	TAB
voltage standing wave ratio	1.25	1.25	1.25
Base Number Matches	1	1	1
