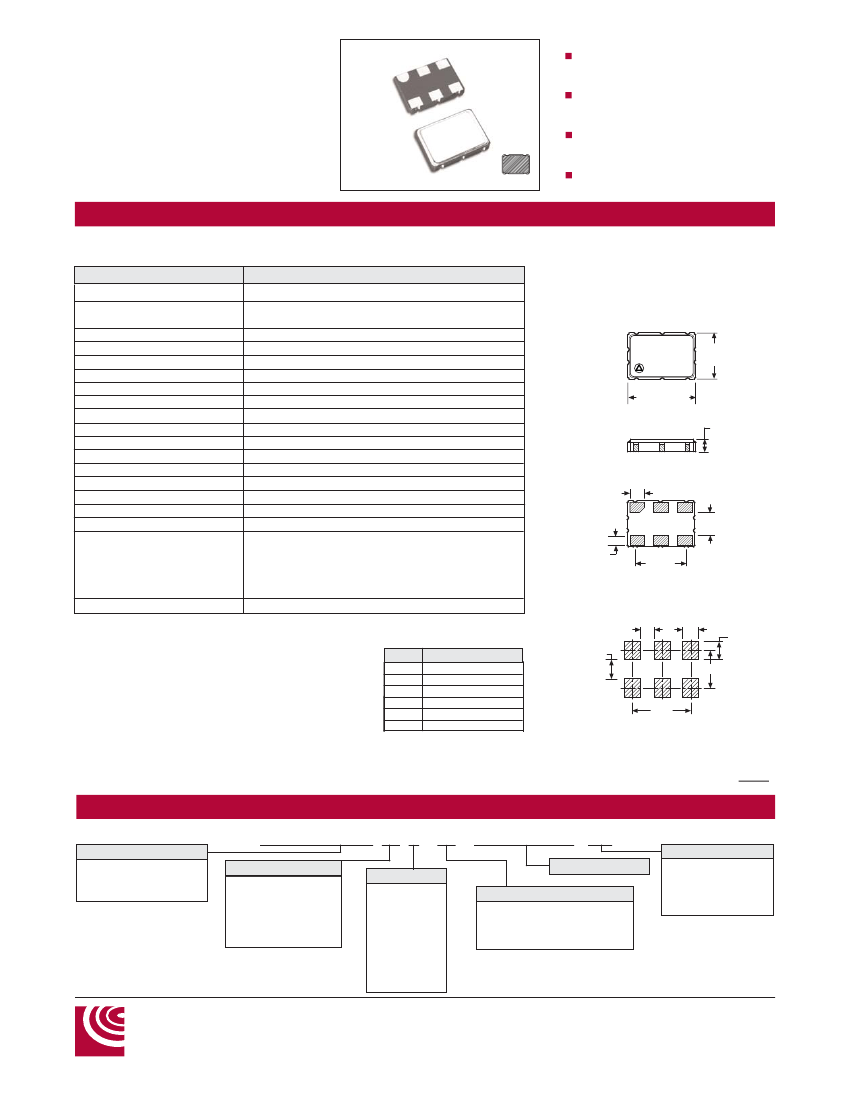

FMOCLVDSC2S
2.5 Vdc LVDS Clock Oscillators
SERIES
Miniature, Low Profile
2.5 Vdc Supply Voltage
LVDS
Actual Size
CERAMIC SMD 5x7
SPECIFICATIONS
Low Current Consumption
05|issue1|012005
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Phase Jitter (TpJ)
Phase Jitter (Tp-p)
Accumulated Jitter (Tacc)
Symmetry (Duty Cycle)
Rise and Fall Time
Start Time
Output
Output Load
Differential Output Voltage
(Vod) (Out 1 - Out 2)
Offset Voltage
Pin 1 Options
(See Spec. Option
T
below)
Specification
10.000 to 250.000 MHz
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std., -40 to +85°C Avail.
-55 to +125°C
+2.5 Vdc ± 5%
20 - 40 mA Typical (70 mA max.)
0.044 x 10
-3
Typical
3 pS RMS max. | Condition: 12 kHz to 20 MHz
3 pS RMS max. | Condition: 12 kHz to 20 MHz
45/55%
300 ps (20 to 80% of Vod) (700 ps max.)
10 ms max. < 5 ms typical
LVDS
50 ohms max. (Vcc - 2.0V), 100 ohms max. available
0.247V to 0.454V
(0.33V Typical)
1.25 Vos
No Connect (Std.)
Tri-State (option
T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
Output Disable/Enable Time: 100 nS max.
CERAMIC SMD
6
5
4
0.197
±0.008
(5.0
±0.2)
1
2
3
0.276
±0.008
(7.0
±0.2)
0.75
(1.90)
MAX
Side View
0.055
(1.40)
TYP
1
2
3
0.102
(2.60) TYP
5
0.200
(5.08)
TYP
4
0.047
(1.10)
TYP
6
Aging @ 25°C
±5ppm max first year
PIN FUNCTION TABLE
Pin
1
2
3
4
5
6
Function
Tri-state Enable/Disable
NC or Tri-State
Ground (Case)
Output
Diff. Output
Supply Voltage (Vdd)
Bottom View
0.94
2.40
3.90
1.60
1.50
All specifications subject to change without notice.
5.08
Soldering Position
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
FMOCLVDSC2S 00 A
Product Family
LVDS
2.5 Vdc Clock Osc.
Ceramic SMD
Overall Frequency Tol.
20 - ± 20 ppm
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
MARKING: See Page 52, Format
M
MARKING: See Page 57, Format
A
T - XX.XXXXXXM - CM
Frequency (MHz)
Specification Options
O - 100 ohms Output
T - Tri-State
BLANK - None Required (Std.)
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
39
