54F64/B2A datasheet, PDF - EEWORLD Datasheet

54F64/B2A: DescriptionAND-OR-Invert Gate, F/FAST Series, 1-Func, 11-Input, TTL, CQCC20; Categorylogic logic; File Size105KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

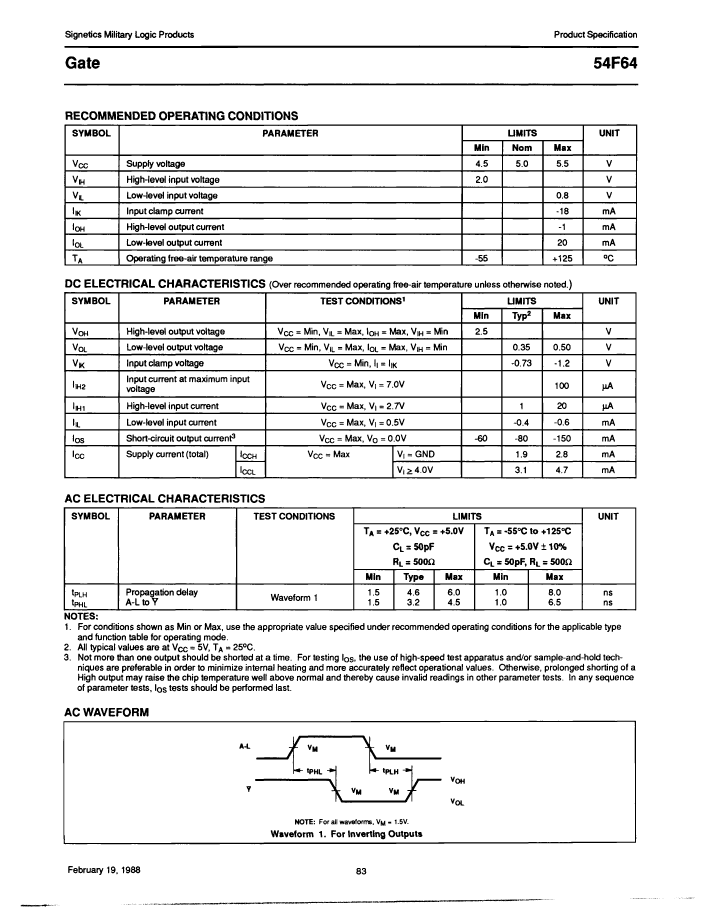

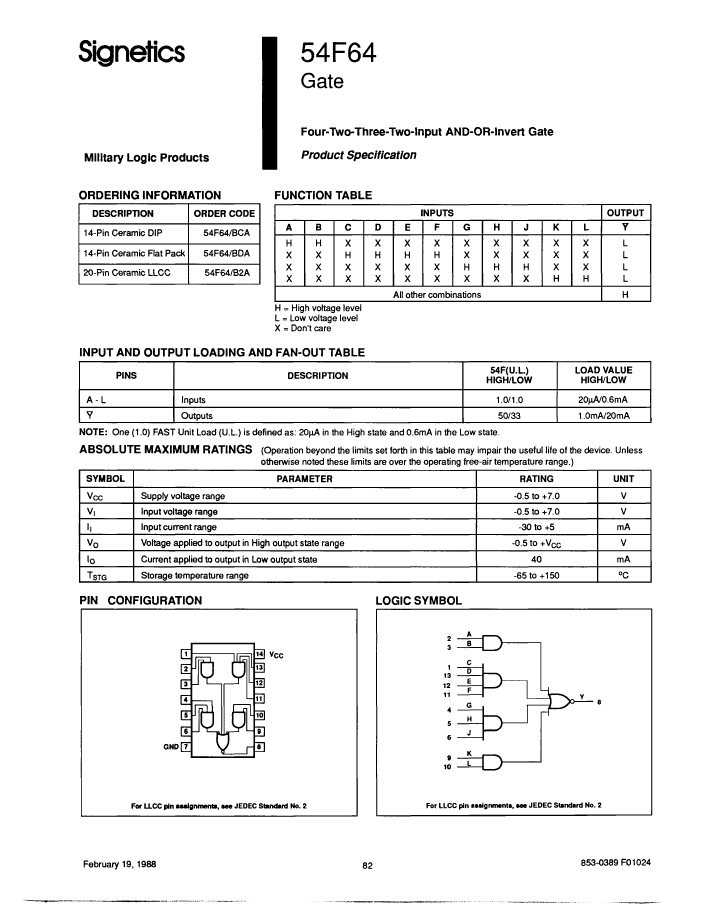

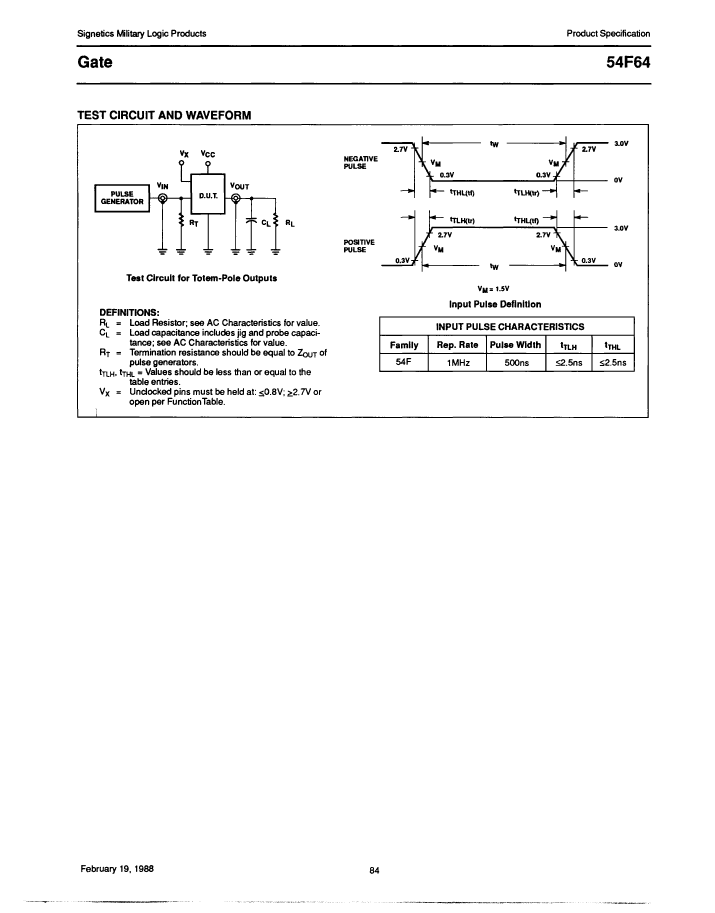

54F64/B2A Overview

AND-OR-Invert Gate, F/FAST Series, 1-Func, 11-Input, TTL, CQCC20

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE
Number of functions	1
Number of entries	11
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	4.7 mA
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

	54F64/B2A	54F64/BDA	54F64/BCA
Description	AND-OR-Invert Gate, F/FAST Series, 1-Func, 11-Input, TTL, CQCC20	AND-OR-Invert Gate, F/FAST Series, 1-Func, 11-Input, TTL, CDFP14	AND-OR-Invert Gate, F/FAST Series, 1-Func, 11-Input, TTL, CDIP14
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDFP-F14	R-CDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
Number of functions	1	1	1
Number of entries	11	11	11
Number of terminals	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
Maximum supply current (ICC)	4.7 mA	4.7 mA	4.7 mA
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	1
