BX2286C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> BX2286C

BX2286C: DescriptionTelecom Transformer; CategoryPower management transformer; File Size76KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX2286C Overview

Telecom Transformer

BX2286C Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO: 2:1, LENGTH AND HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH BCM6410; BCM6420
high	11.5 mm
length	12 mm
Manufacturer's serial number	BX2286C
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	12.0mm X 9.6mm X 11.5mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

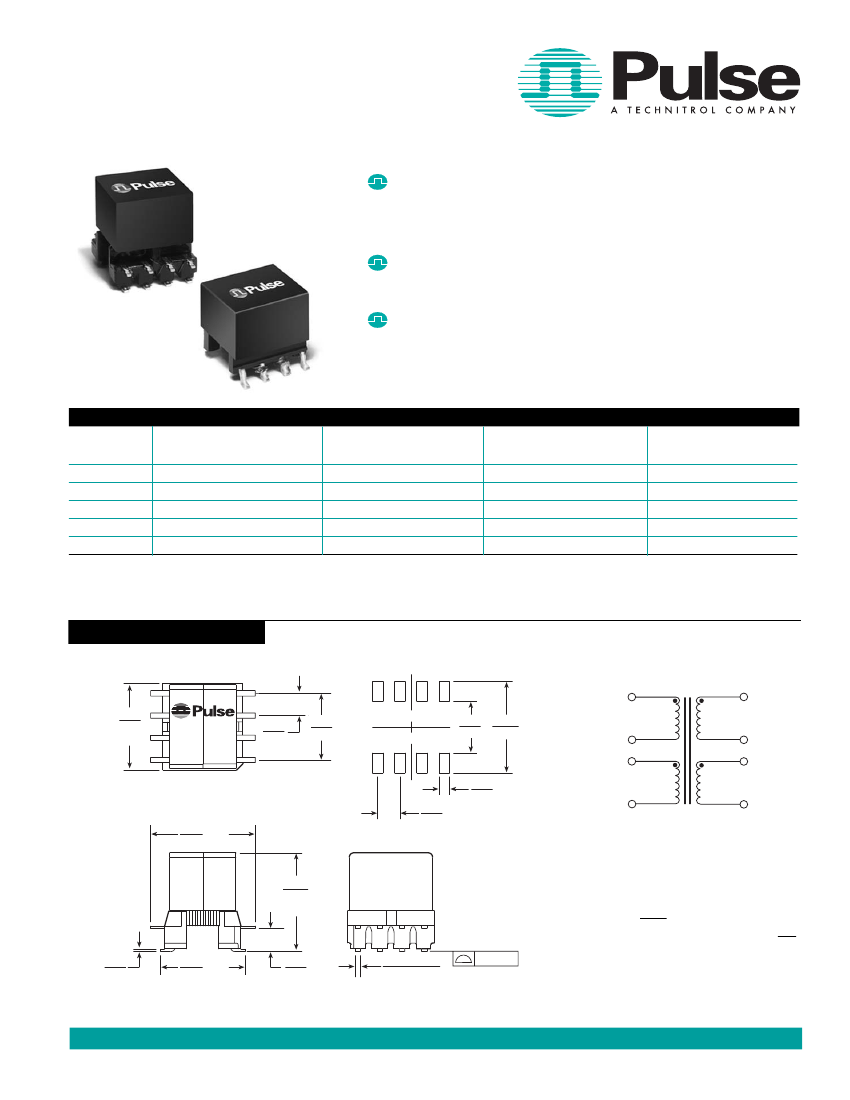

ADSL LINE TRANSFORMER

For Broadcom Bladerunner CO Chipset

Approved by Broadcom for use with

Bladerunner Central Office BCM6410 and

BCM6420 chipsets

ADSL/POTS and ADSL/ISDN options

available for Broadcom approved Line Drivers

Compact footprint for high density Central

Office board layouts

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

BX2286C

BX2287C

BX2302C

BX2303C

BX2302WA

Turns Ratio

Ratio

(Line:Chip)

2:1

1.41:1

OCL

Primary

(µH ±5%)

410

100

410

100

410

Isolation

Voltage

(Vrms)

1500

THD @ 30kHz,

4V pk-pk

(dB MAX)

-80

-78

-80

Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix

“T”

to this part number (BX2286CT)

Mechanical

BX2286C/87C & BX2302/03C

Schematic

.378

9,60

MAX

BX2286C/87C

BX2302C/03C

Date Code

Country of Origin

.098

2,50

.295

7,50

.228 .366

5,80 10,30

LINE

.047

1,20

CHIP

.472

12,00 MAX

.098

2,50

.453

11,50

MAX

Weight

. . . . . . . . . . . . . .2.7 grams

Tape & Reel

. . . . . . . . . . . .400/reel

Tray

. . . . . . . . . . . . . . . . . . .80/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .004

0,10

.012

0,30

.394

10,00 MAX

.102

2,60

.024

± .004

0,60

± 0,10

.004/0,10

8 SURFACES

US 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Taiwan 886 2 2698 0228

•

Hong Kong 852 2788 6588

•

http://www.pulseeng.com

B811.B (4/04)

BX2286C Related Products

	BX2286C	BX2287CT	BX2303CT	BX2302CT	BX2302C	BX2302WA	BX2302WAT
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TURNS RATIO: 2:1, LENGTH AND HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH BCM6410; BCM6420	TURNS RATIO: 2:1, LENGTH AND HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH BCM6410; BCM6420	TURNS RATIO: 1.41:1, LENGTH AND HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH BCM6410; BCM6420	TURNS RATIO: 1.41:1, LENGTH AND HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH BCM6410; BCM6420	TURNS RATIO: 1.41:1, LENGTH AND HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH BCM6410; BCM6420	TURNS RATIO: 1.4:1, COMPATIBLE WITH BLADERUNNER CENTRAL OFFICE BCM6410; BCM6420 CHIPSETS	TURNS RATIO: 1.4:1, COMPATIBLE WITH BLADERUNNER CENTRAL OFFICE BCM6410; BCM6420 CHIPSETS
high	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	10.7 mm	10.7 mm
length	12 mm	12 mm	12 mm	12 mm	12 mm	9.8 mm	9.8 mm
Manufacturer's serial number	BX2286C	BX2287C	BX2303C	BX2302C	BX2302C	BX2302WA	BX2302WA
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TRAY	TAPE & REEL	TAPE & REEL	TAPE & REEL	TRAY	TRAY	TAPE & REEL
physical size	12.0mm X 9.6mm X 11.5mm	12.0mm X 9.6mm X 11.5mm	12.0mm X 9.6mm X 11.5mm	12.0mm X 9.6mm X 11.5mm	12.0mm X 9.6mm X 11.5mm	L9.8XB9.1XH10.7 (mm)	L9.8XB9.1XH10.7 (mm)
surface mount	YES	YES	YES	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.1 mm	9.1 mm
Base Number Matches	1	1	1	1	1	-	-
