SAW Components
SAW Filter for smallcells and femtocells
LTE Band 13 Uplink
Series/type:
Ordering code:
Date:
Version:
B9627
B39781B9627P810
November 04, 2015
2.0
© EPCOS AG 2015. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW Filter
Data sheet
Table of contents
B9627
782 MHz
1
Application.........................................................................................................................................
3
2
Features............................................................................................................................................
3
3
Package............................................................................................................................................
4
4
Pin configuration................................................................................................................................
4
5
Matching circuit.................................................................................................................................
5
6
Characteristics...................................................................................................................................
6
7
Maximum ratings...............................................................................................................................
7
8
Transmission coefficient....................................................................................................................
8
9
Reflection coefficients........................................................................................................................
9
10
Packing material............................................................................................................................
10
11
Marking..........................................................................................................................................
13
12
Soldering profile.............................................................................................................................
15
13
Annotations...................................................................................................................................
16
14
Cautions and warnings..................................................................................................................
16
Contact and Important notes.............................................................................................................
17
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 18
November 04, 2015
SAW Components
SAW Filter
Data sheet
1
Application
Low-loss RF filter for LTE Band 13 systems
(RX).
No matching network required for operation at
50 Ω.
Unbalanced to unbalanced operation.
Usable pass band 10 MHz.
2
Features
Package size 1.4 mm × 1.1 mm.

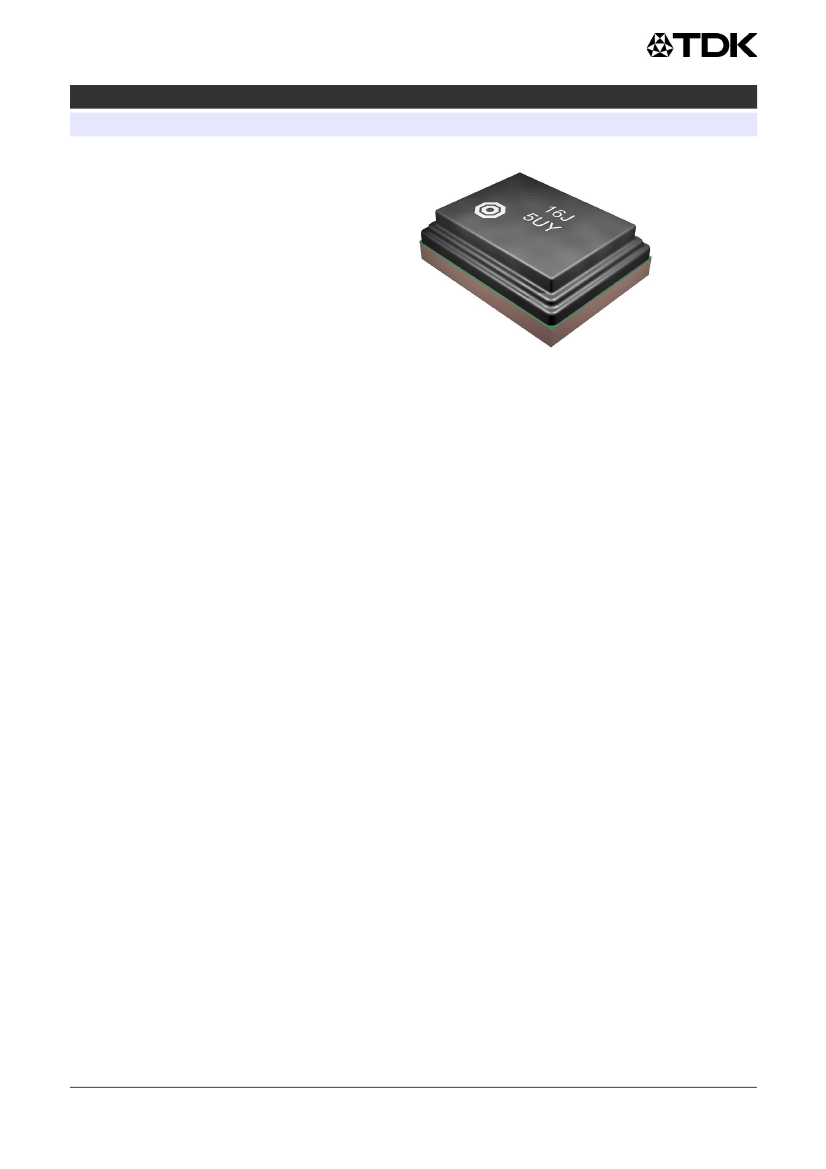

Figure 1:
Picture of component
Package height 0.45 mm.
with example of marking.
Approximate weight 0.003 g.
RoHS compatible.
Package for Surface Mount Technology (SMT).
Ni, gold-plated terminals.
Electrostatic Sensitive Device (ESD).
Moisture Sensitivity Level 2a (MSL2a).
B9627
782 MHz
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 18
November 04, 2015
SAW Components
SAW Filter
Data sheet
3
Package
4
1
4
2, 3, 5
Pin configuration
Input
Output
Ground
B9627
782 MHz

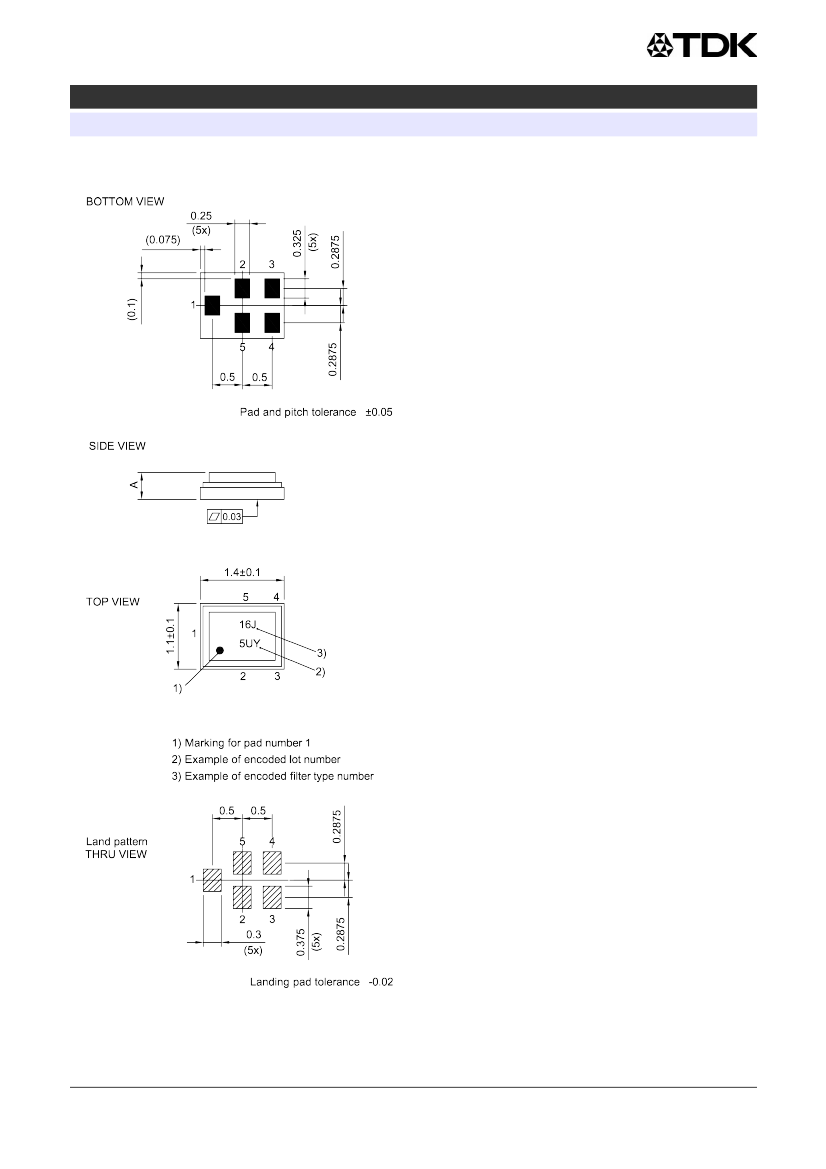

Figure 2:
Drawing of package with package
height A = 0.45 mm (max.). See Simplified
drawings (p. 16).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 18
November 04, 2015
