TECHNICAL DATA SHEET
SSMC

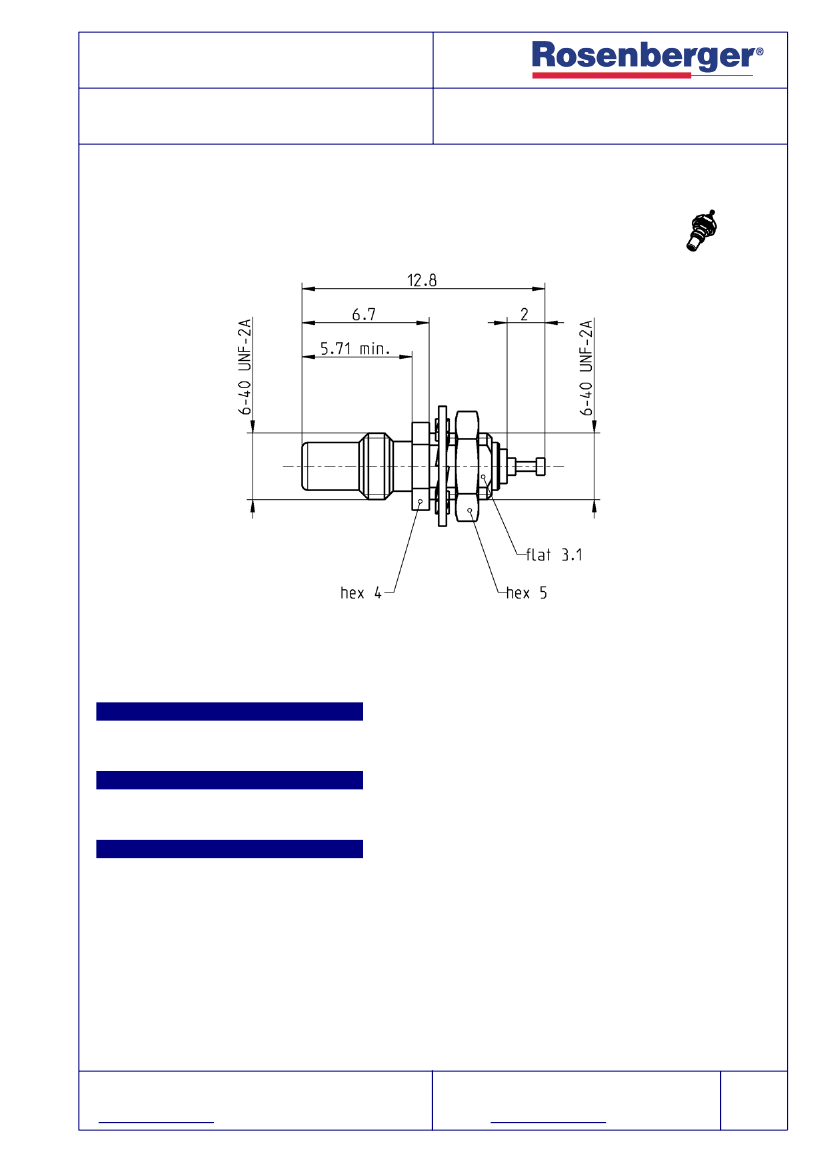

BULKHEAD PLUG
38S601-200E3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
EN 122 180, IEC 60169-19
Documents
Panel piercing
B 23
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Beryllium copper
Brass
Brass
PTFE
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 0.8 µm, over nickel
Gold, min. 0.8 µm, over nickel
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SSMC
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 6 GHz
≥
20 dB, DC to 1 GHz
≥
16 dB, 1 to 3 GHz
≥
11 dB, 3 to 6 GHz
≤
0.1 x
f(GHz)
dB, DC to 3 GHz
3
≥
1x10 MΩ
≤
5 mΩ
≤
2.5 mΩ
500 V rms
175 V rms
≥
70 dB up to 1 GHz
BULKHEAD PLUG
38S601-200E3
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
Mechanical data
Mating cycles
Center contact captivation
Coupling test torque
Recommended coupling torque
Tensile strength of coupling mechanism
≥
500
≥
8N
0.3 Nm
0.2 to 0.23 Nm
≥
100 N
Environmental data
Temperature range
Climatic class
Vibration
-55°C to +155°C
IEC 60068-2-1 55/155/21
IEC 60068-2-2
IEC 60068-2-3
IEC 60068-2-6
10 Hz to 500 Hz, 98m/s²
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
0.6 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
28/09/04
Approved
Rong Fang
Date
02/11/05
Rev.
b00
Engineering change number
05-0567
Name
Inge Mühlauer
Date
02/11/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
