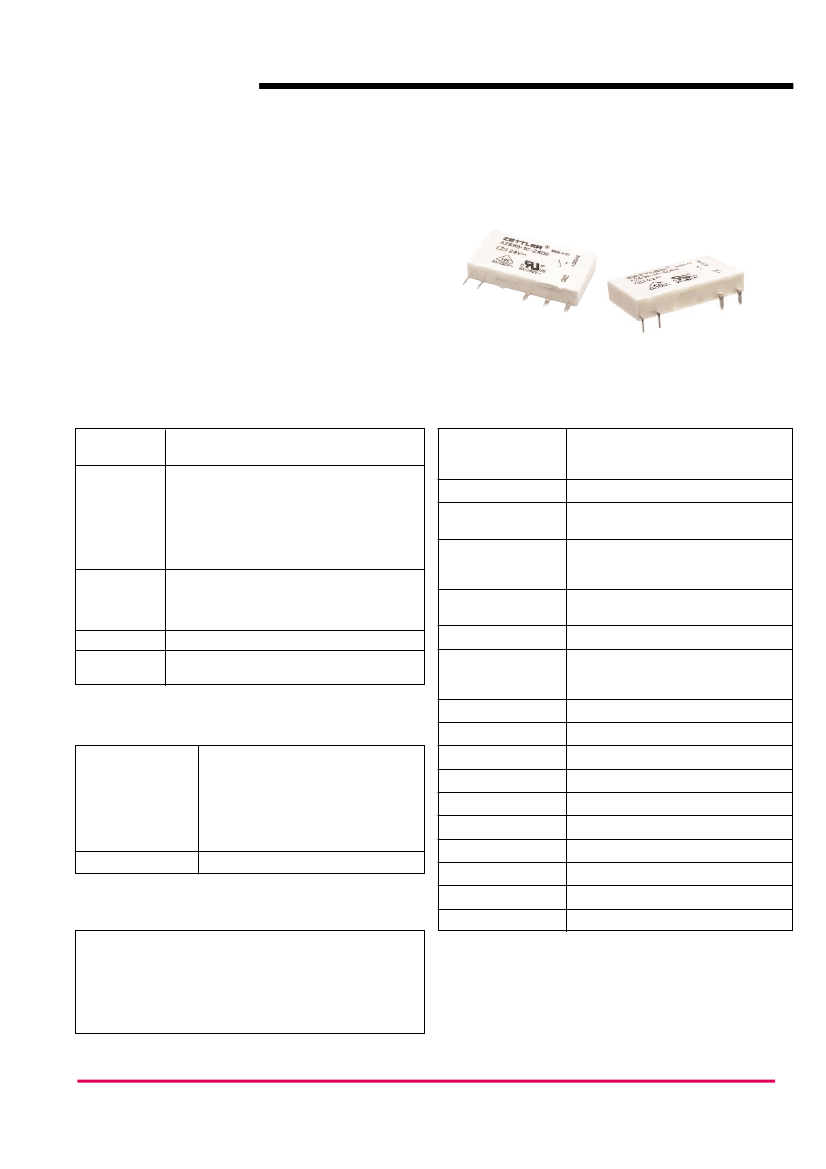

AZ699
SENSITIVE
SUBMINIATURE RELAY
FEATURES
•
•
•
•
•
•
•
•
•
•
Extremely small (5mm)
6 Amp switching capability
High sensitivity, 83 mW pickup
Dielectric strength 4000 Vrms contact to coil
Coils up to 48 VDC
Epoxy sealed
Clearance greater than 6 mm
Creepage greater than 8 mm
UL, CUR file E43203
VDE file 40000296
GENERAL DATA
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: 150 W or 1500 VA
Max. switched current: 6 A
Max. switched voltage: 300 VDC* or 400 VAC
*
Note: If switching voltage is greater than 30 VDC,
CONTACTS
Arrangement
Ratings
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 X 10
7
operations
1 X 10
5
at 5 A, 250 VAC
5 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
special precautions must be taken.
Please contact the factory.
Rated Load
UL, CUR
VDE
Material
Resistance
Dielectric Strength
1000 Vrms between open contacts
(at sea level for 1 min.)
4000 Vrms contact to coil
6000 V surge, contact to coil
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
100 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 5% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (158°F)
-40°C (-40°F) to 105°C (221°F)
5 g at 10–500 Hz
10 g
P.B.T. polyester 94V-0
Tinned copper alloy, P.C.
260°C (500°F)
5 seconds
80°C (176°F)
30 seconds
6 grams
20 per plastic tube / 1000 per carton box
6 A at 250 VAC resistive
6 A at 250 VAC resistive
Silver tin oxide
,
gold plating available
< 100 milliohms initially (AgSnO
2
)
< 30 milliohms initially (AgSnO
2
, gold plated)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
83 mW
0.9 W at 20°C (68°F) ambient
20°C (36°F) at nominal coil voltage
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. 105°C (221°F)
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Minimum permissible contact load:
AgSnO
2
contact: 100 mA at 12 VDC
AgSnO
2
contact with gold plating: 10 mA at 5 VDC
4. Specifications subject to change without notice.
Packing unit in pcs
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2004-08-11
Junkersstrasse 3, D-82178 Puchheim, Germany

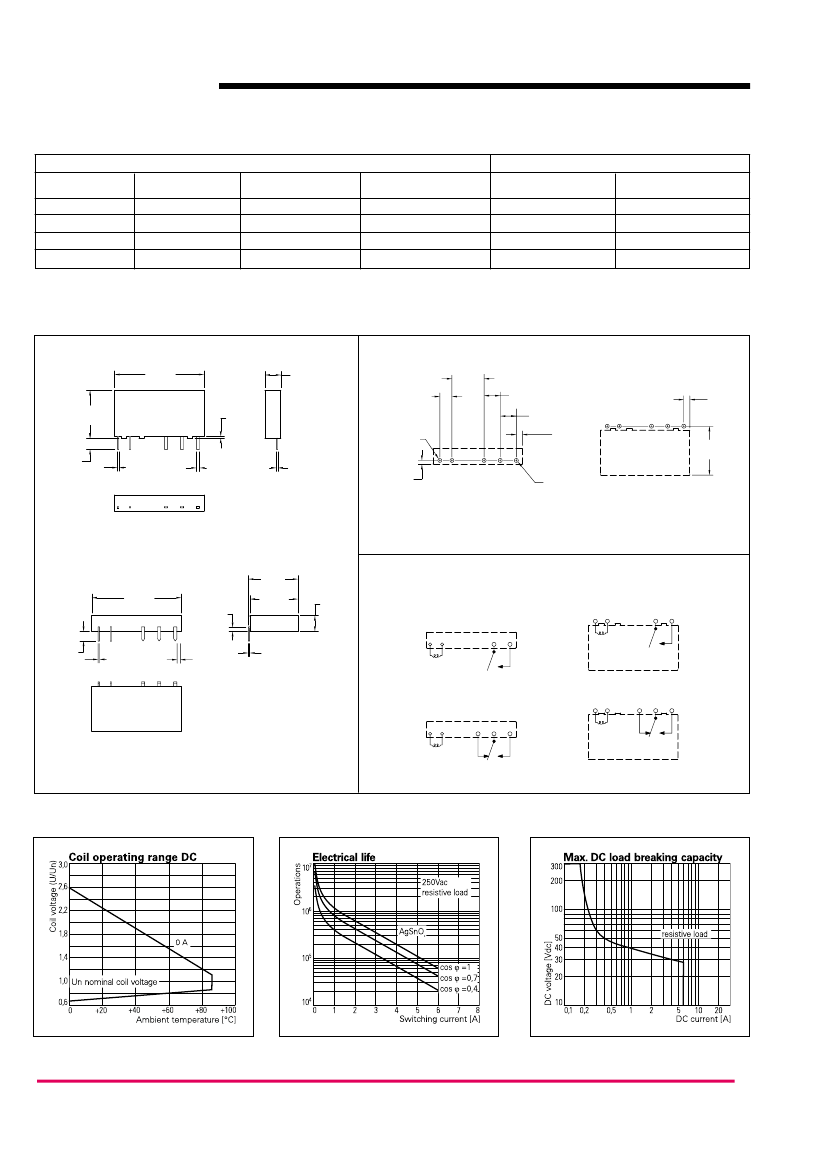

AZ699
RELAY ORDERING DATA
COIL SPECIFICATIONS
Nominal Coil
VDC
5
12
24
Must Operate
VDC
3.5
8.4
16.8
Max. Continuous
VDC
11.2
26.8
53.7
Coil Resistance
Ôhm ± 10%
147
848
3,390
AgSnO
2
Contact
AZ699–1C–5DE
AZ699–1C–12DE
AZ699–1C–24DE
ORDER NUMBER*
AgSnO
2
with Gold
Plated Contact
AZ699–1C–5DEA
AZ699–1C–12DEA
AZ699–1C–24DEA
48
33.6
100.0
10,600 (±
15%)
AZ699–1C–48DE
AZ699–1C–48DEA
*Substitute “1A” for “1C” to indicate 1 Form A contacts. Add suffix “H” at the end of order number for horizontal mounting.
MECHANICAL DATA
PC BOARD LAYOUT
1.102
[28.0]
.197
[5.0]
.148
[3.75]
.591
[15.0]
.020
[0.5]
2 x ø .039
[ø 1.0]
5 x .138
[3.5]
2 x .018
[0.45]
3 x .039
[1.0]
5 x .018
[0.45]
.466
[11.34]
.197
[5.0]
.197
[5.0]
.075
[1.9]
.075
[1.9]
.602
[15.3]
.047
[1.2]
3 x ø .051
[ø 1.3]
Vertical Mount
Vertical Mount
Horizontal Mount
Note: Mounting hole diameters and center to center dimensions
are the same for both vertical and horizontal mounting version
1.102
[28.0]
.050
[1.26]
.610
[15.5]
.591
[15.0]
WIRING DIAGRAM
.197
[5.0]
Form A
1 2
4
5
1 2
Form A
4
5
5 x .118
[3.0]
2X .018
[0.45]
3 x .039
[1.0]
5 x .018
[0.45]
Form C
1 2
1 2
3
4
5
Form C
3
4
5
Horizontal Mount
Vertical Mount
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
Horizontal Mount
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2004-08-11
Junkersstrasse 3, D-82178 Puchheim, Germany
