3006-1551-502 datasheet, PDF - EEWORLD Datasheet

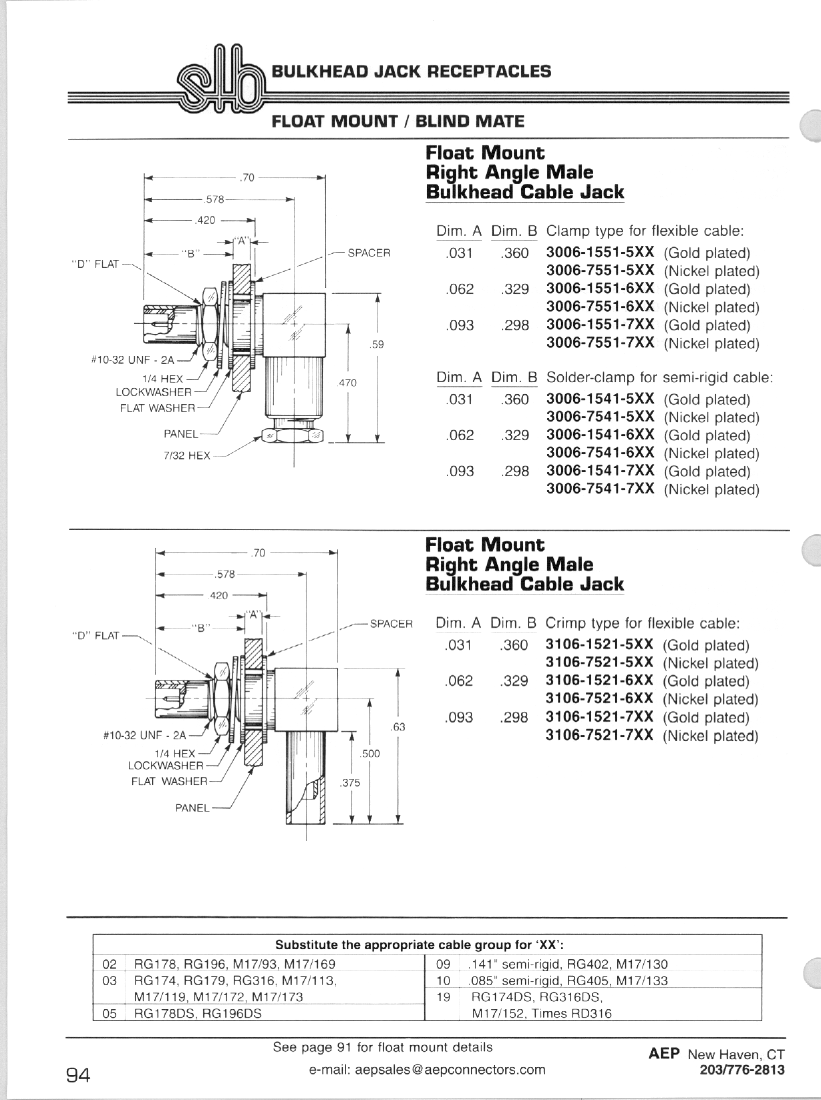

3006-1551-502: DescriptionBlindmate Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack; CategoryThe connector The connector; File Size343KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

3006-1551-502 Overview

Blindmate Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.6 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SLB
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP
voltage standing wave ratio	1.67
Base Number Matches	1
