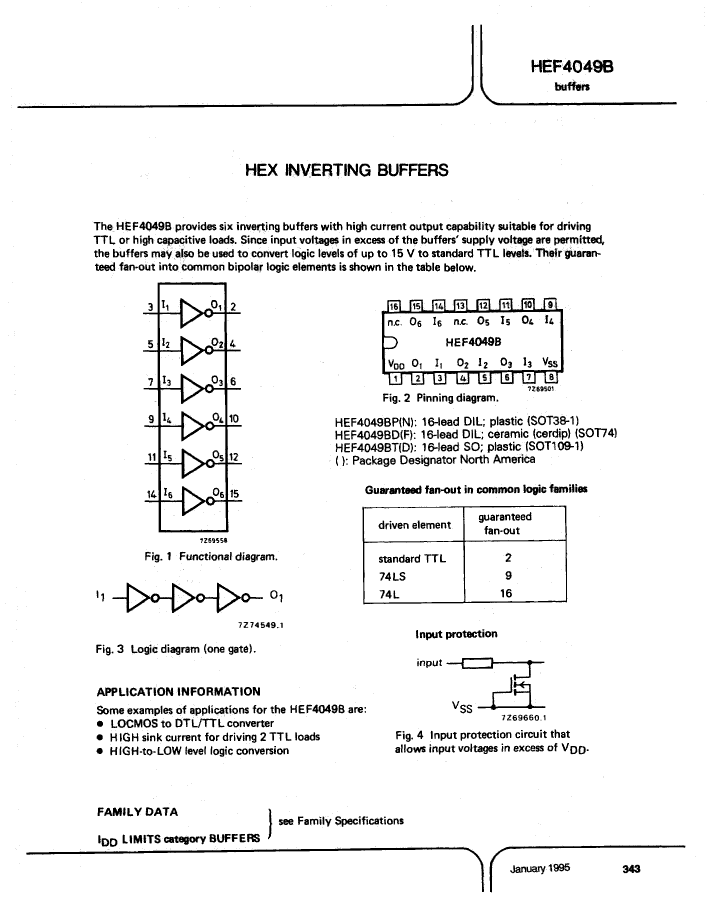

IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, Gate

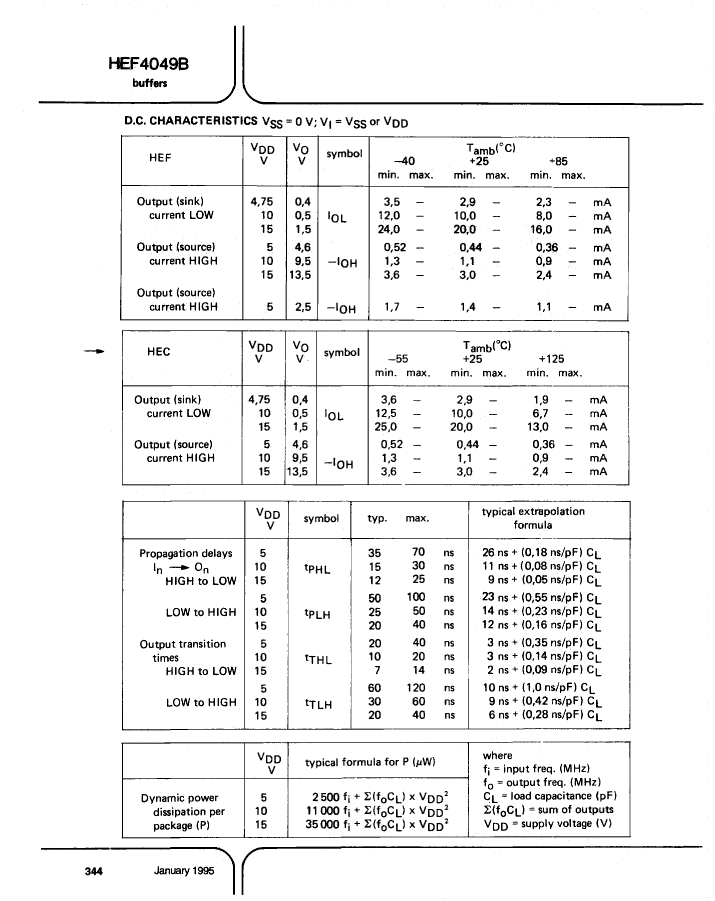

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | NXP |
| Reach Compliance Code | unknown |
| Other features | CMOS-TTL LEVEL TRANSLATOR |
| series | 4000/14000/40000 |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e4 |
| length | 9.9 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | INVERTER |
| Number of functions | 6 |
| Number of entries | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | BULK PACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5/15 V |
| Prop。Delay @ Nom-Sup | 100 ns |
| propagation delay (tpd) | 70 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 15 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | NICKEL PALLADIUM GOLD |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.9 mm |
| Base Number Matches | 1 |
| HEF4049BTD | HEF4049BT/T3 | HEF4049BDF | HEF4049BD | |
|---|---|---|---|---|
| Description | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, Gate | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO16, PLASTIC, SOP-14, Gate | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16, Gate | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16, Gate |
| Maker | NXP | NXP | NXP | NXP |
| Reach Compliance Code | unknown | unknown | unknown | compliant |
| Other features | CMOS-TTL LEVEL TRANSLATOR | CMOS-TTL LEVEL TRANSLATOR | CMOS-TTL LEVEL TRANSLATOR | CMOS-TTL LEVEL TRANSLATOR |
| series | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-GDIP-T16 | R-GDIP-T16 |
| Logic integrated circuit type | INVERTER | INVERTER | INVERTER | INVERTER |
| Number of functions | 6 | 6 | 6 | 6 |
| Number of entries | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | SOP | SOP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| propagation delay (tpd) | 70 ns | 70 ns | 70 ns | 70 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 5.08 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| Minimum supply voltage (Vsup) | 3 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 3.9 mm | 3.9 mm | 7.62 mm | 7.62 mm |
| Load capacitance (CL) | 50 pF | - | 50 pF | 50 pF |
