5962R9576301TXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9576301TXC

5962R9576301TXC: DescriptionHCT SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, DFP-14; Categorylogic logic; File Size124KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9576301TXC Overview

HCT SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, DFP-14

5962R9576301TXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
MaximumI(ol)	0.004 A
Number of digits	1
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	37 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	6.285 mm
Base Number Matches	1

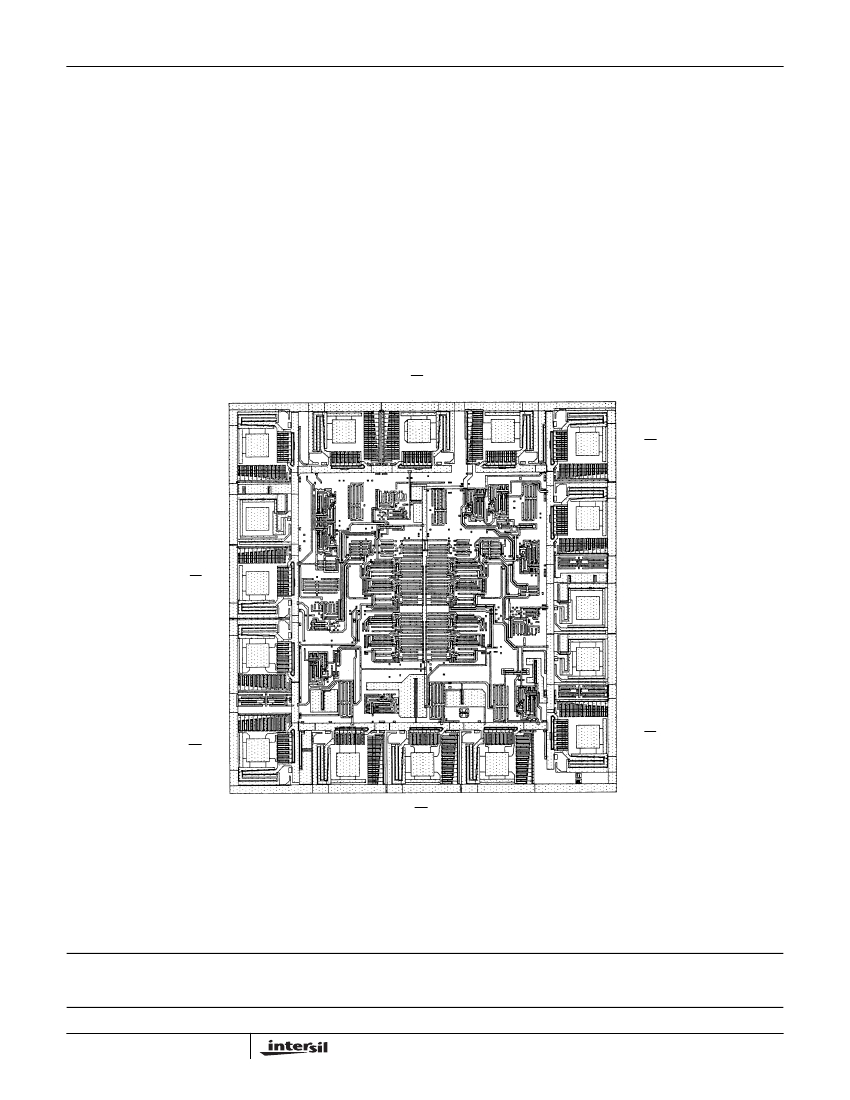

Preview

Download Datasheet

View All

HCTS74T

Data Sheet

July 1999

File Number

4625.1

Radiation Hardened Dual-D Flip-Flop with

Set and Reset

Intersil’s Satellite Applications

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The Intersil HCTS74T is a Radiation Hardened positive edge

triggered ﬂip-ﬂop with set and reset.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- SEP Effective LET No Upsets: >100 MEV-cm

/mg

- Single Event Upset (SEU) Immunity < 2 x 10

-9

Errors/Bit-Day (Typ)

• 3 Micron Radiation Hardened SOS CMOS

• Signiﬁcant Power Reduction Compared to LSTTL ICs

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HCTS74T are

contained in SMD 5962-95763.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

• DC Operating Voltage Range: 4.5V to 5.5V

• LSTTL Input Compatibility

- V

= 0.8V Max

- V

= V

CC/2

Min

• Input Current Levels Ii

≤

5mA at V

, V

Pinouts

HCTS74T (SBDIP), CDIP2-T14

TOP VIEW

R1 1

D1 2

14 V

13 R2

12 D2

11 CP2

10 S2

9 Q2

8 Q2

Ordering Information

ORDERING

NUMBER

5962R9576301TCC

5962R9576301TXC

PART

NUMBER

HCTS74DTR

HCTS74KTR

TEMP.

RANGE

(

-55 to 125

CP1 3

S1 4

Q1 5

Q1 6

GND 7

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CP1

GND

HCTS74T (FLATPACK), CDFP3-F14

TOP VIEW

CP2

4-1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.

5962R9576301TXC Related Products

	5962R9576301TXC	5962R9576301TCC
Description	HCT SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP14, CERAMIC, DFP-14	HCT SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP14
Parts packaging code	DFP	DIP
package instruction	DFP, FL14,.3	DIP, DIP14,.3
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	HCT	HCT
JESD-30 code	R-CDFP-F14	R-CDIP-T14
JESD-609 code	e4	e4
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.004 A	0.004 A
Number of digits	1	1
Number of functions	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	37 ns	37 ns
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	6.285 mm	7.62 mm
Base Number Matches	1	1
