3631B121LTM

Description
1 ELEMENT, 120uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components    inductor
File Size185KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3631B121LTM Overview

1 ELEMENT, 120uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

3631B121LTM Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
core materialFERRITE
DC Resistance0.26 Ω
Nominal inductance(L)120 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial number3631
Number of functions1
Number of terminals2
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
Maximum rated current1 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL IN-LINE
Terminal shapeGULL WING
Test frequency0.001 MHz
Tolerance15%
Base Number Matches1

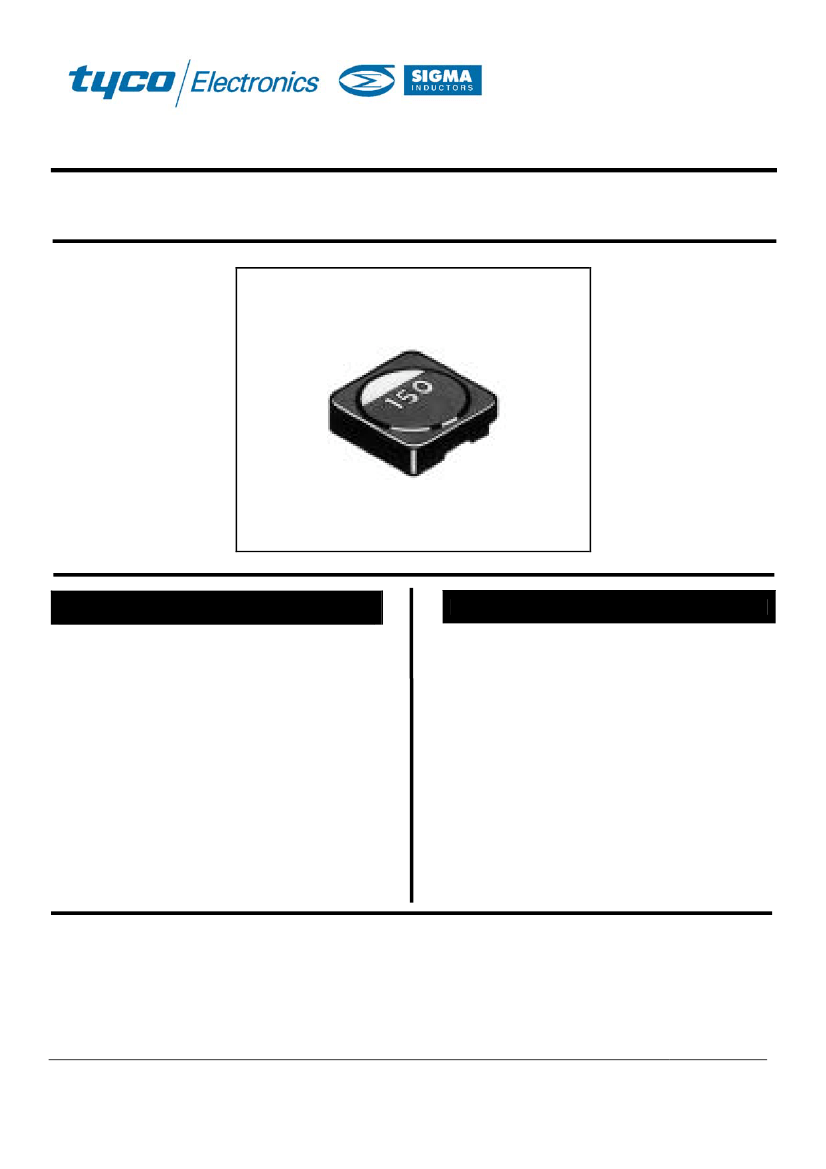

Product – Specification
TYPE 3631 SERIES
1
st
April 2003
ISSUE 4
Surface Mount Power Inductors
TYPE 3631 SERIES
KEY FEATURES
The 3631 Series of SMD Power Chokes are
suited to handle large current and has been
designed for use in SMD power circuits. With
its superior ferrite core material and its low
profile construction we can ensure excellent
inductance characteristics coupled with proven
quality. Please request design kits of Type B
parts.
Very High Current Capability
Wide Value Range Available
Ferrite Core
Handles up to 7.5 Amps
Only 12.7mm Square
Taped and Reeled
High Reliability
Attractively Priced
STOCKISTS:
This product is available from Farnell.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 3
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
