551-1709 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 551-1709

551-1709: DescriptionSingle Color LED, Red, Tinted Nondiffused, T-1, 3mm; CategoryLED optoelectronic/LED photoelectric; File Size102KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

551-1709 Overview

Single Color LED, Red, Tinted Nondiffused, T-1, 3mm

551-1709 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	RED
Configuration	SINGLE
JESD-609 code	e0
Lens type	TINTED NONDIFFUSED
Nominal luminous intensity	29.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	6.35 mm
method of packing	BULK
peak wavelength	635 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Base Number Matches	1

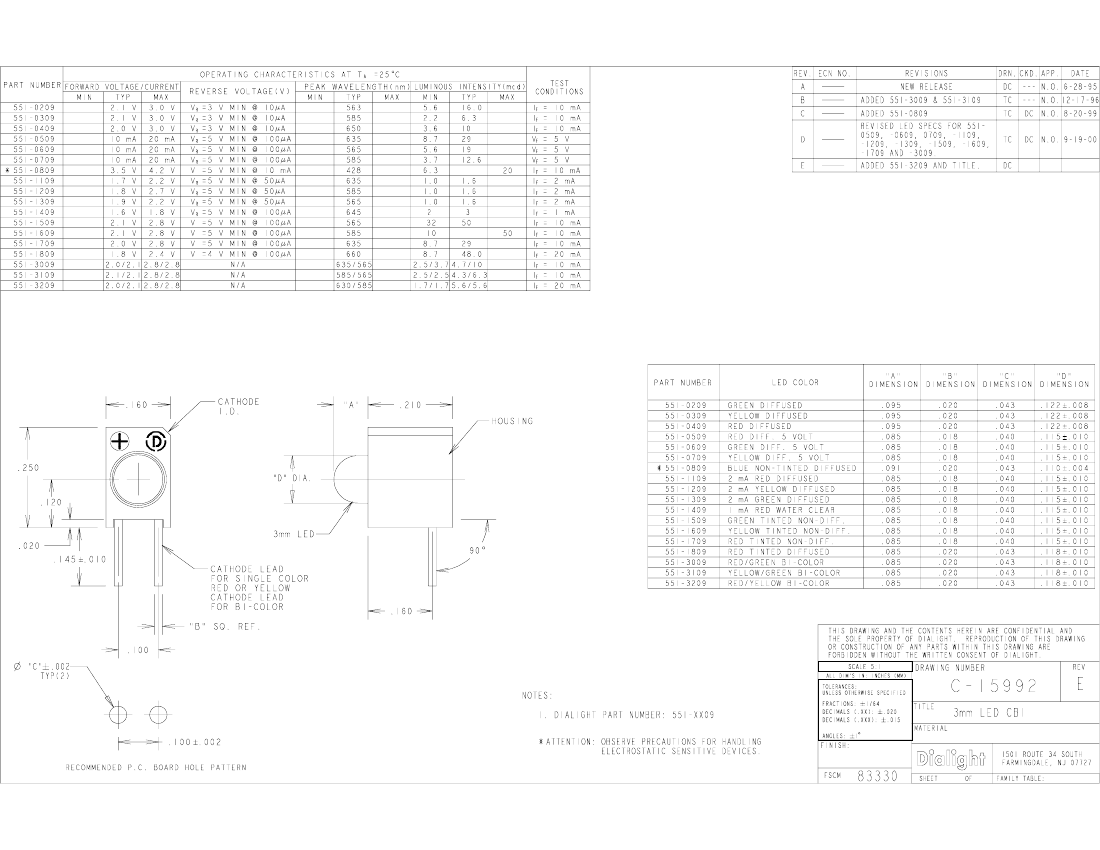

Preview

Download Datasheet

View All

551-1709 Related Products

	551-1709	551-3209	551-1409	551-1509	551-1609	551-1809
Description	Single Color LED, Red, Tinted Nondiffused, T-1, 3mm	Dual Color LED, Red/yellow, T-1, 3mm	Single Color LED, Red, Water Clear, T-1, 3mm	Single Color LED, Green, Tinted Nondiffused, T-1, 3mm	Single Color LED, Yellow, Tinted Nondiffused, T-1, 3mm	Single Color LED, Red, Tinted Diffused, T-1, 3mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
color	RED	RED/YELLOW	RED	GREEN	YELLOW	RED
Configuration	SINGLE	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SINGLE	SINGLE	SINGLE	SINGLE
JESD-609 code	e0	e0	e0	e0	e0	e0
Nominal luminous intensity	29.0 mcd	5.6 mcd	3.0 mcd	50.0 mcd	30.0 mcd	48.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	DUAL COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	635 nm	630/585 nm	645 nm	565 nm	585 nm	660 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Lens type	TINTED NONDIFFUSED	-	WATER CLEAR	TINTED NONDIFFUSED	TINTED NONDIFFUSED	TINTED DIFFUSED
Base Number Matches	1	1	1	1	-	-
Maker	-	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT
